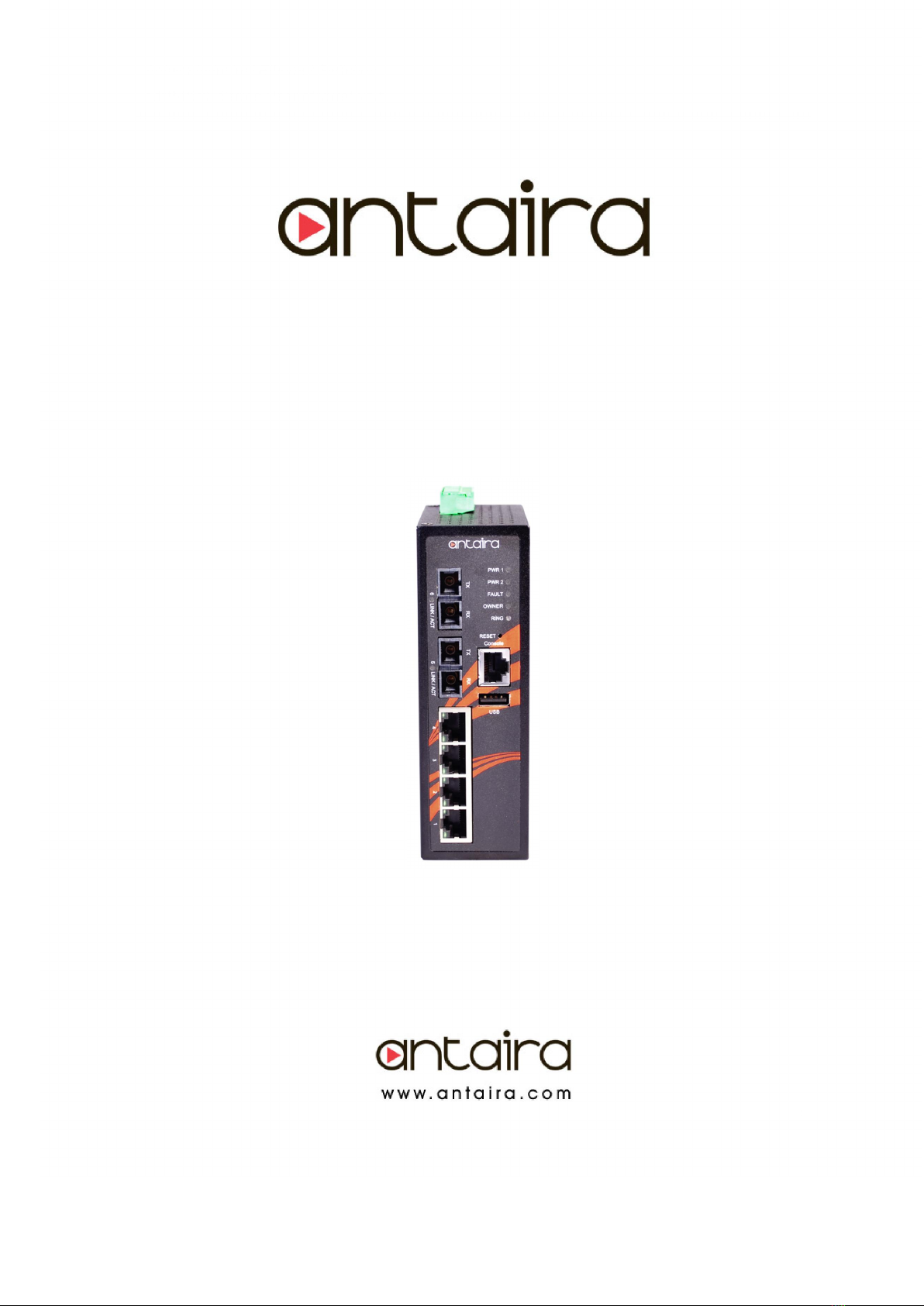

ANTAIRA LMP-0602 Series Manual de usuario

Antaira Industrial Ethernet Switches

LMP-0602 Series User Manual V1.1

LMP-0602 Series

6-Port Industrial PoE+ Managed Ethernet Switch, with

4*10/100Tx (30W/Port) and 2*100Fx, 48~55VDC Power Input

User Manual

Version 1.2

Antaira Industrial Ethernet Switches

LMP-0602 Series User Manual V1.2

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC may make improvements and/or changes to the product and/or specifications of the product described in this

manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Industrial Ethernet Switches

LMP-0602 Series User Manual V1.2

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Gigabit Unmanaged Ethernet Switches

User Manual

Version 1.2 (March 2018)

This manual supports the following models:

 LMP-0602-M

 LMP-0602-M-T

 LMP-0602-ST-M

 LMP-0602-ST-M-T

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail ([email protected]).



LMP-0602-S3

 LMP-0602-S3-T

 LMP-0602-ST-S3

 LMP-0602-ST-S3-T

Antaira Industrial Ethernet Switches

LMP-0602 Series User Manual V1.2

Table of Contents

1. Introduction ................................................................. 1

1.1 Product Overview ............................................... 1

1.2 Product Software Features ................................ 1

1.3 Product Hardware Features ............................... 2

1.4 Package Contents .............................................. 2

1.5 Safety Precaution ............................................... 3

2. Hardware Description ................................................. 4

2.1 Physical Dimensions .......................................... 4

2.2 Front Panel ......................................................... 5

2.3 Top View ............................................................ 5

2.4 LED Indicators .................................................... 6

2.5 Ethernet Ports..................................................... 6

2.6 Fiber Port ........................................................... 8

2.7 Cabling ............................................................... 8

2.8 Wiring the Power Inputs ..................................... 9

2.9 Wiring the Fault Alarm Contact .......................... 9

3. Mounting Installation ................................................ 10

3.1 DIN-Rail Mounting ............................................ 10

3.2 Wall Mounting .................................................. 11

4. Hardware Installation ................................................ 12

4.1 Installation Steps .............................................. 12

5. Web Management ...................................................... 13

5.1 Web Console Configuration ............................. 13

Antaira Industrial Ethernet Switches

LMP-0602 Series User Manual V1.2

5.1.1 About Web-Based Management ................. 13

5.2 Basic Setting .................................................... 14

5.2.1 System Information ..................................... 14

5.2.2 Admin &Password ....................................... 15

5.2.3 IP Setting..................................................... 16

5.2.4 System Time ............................................... 17

5.3Port Management ............................................. 18

5.3.1 Port Status .................................................. 18

5.3.2 Port Configuration ....................................... 18

5.4PoE (Power-over-Ethernet) ............................... 19

5.4.1 PoE Configuration ....................................... 19

5.4.2 Ping Alarm................................................... 20

5.4.3 PoE Schedule ............................................. 21

5.5 ERPS ............................................................... 22

5.5.1 ERPS Status ............................................... 23

5.5.2 ERPS Configuration .................................... 23

5.5.3 Before Configuring ERPS ........................... 25

5.6 Spanning Tree ................................................. 32

5.6.1 RSTP Status ............................................... 33

Antaira Industrial Ethernet Switches

LMP-0602 Series User Manual V1.2

5.6.2 RSTP Configuration .................................... 33

5.6.3 MSTI Status ................................................ 35

5.6.4 MSTI Configuration ..................................... 36

5.7. 802.1Q VLAN .................................................. 38

5.7.1 802.1Q VLAN settings ................................ 38

5.7.2 802.1Q VLAN Settings ................................ 39

5.8. IGMP Snooping ............................................... 39

5.8.1 IGMP Settings ............................................. 40

5.8.2 IGMP Snooping Status Table ..................... 41

5.9 QoS (Traffic Prioritization) ................................ 41

5.9.1 QoS Classification ....................................... 42

5.9.2 CoS Mapping .............................................. 43

5.9.3 ToS Mapping ............................................... 44

5.10 Port Mirroring ................................................. 45

5.11 SNMP…. ........................................................ 46

5.11.1 SNMP Agent .............................................. 46

5.11.2 SNMP Trap setting .................................... 47

5.12 System Warning ............................................. 48

5.12.1 Syslog Setting ........................................... 48

Antaira Industrial Ethernet Switches

LMP-0602 Series User Manual V1.2

vii

5.12.2 System Event Log ..................................... 49

5.12.3 SMTP Setting ............................................ 50

5.12.4 Event Selection ......................................... 51

5.12.5 Fault Alarm ................................................ 51

5.13 MAC Table ..................................................... 52

5.13.1 MAC Address Table .................................. 52

5.13.2 MAC Table Configuration ......................... 52

5.14 Maintenance .................................................. 53

5.14.1 Upgrade .................................................... 53

5.14.2 Reboot ....................................................... 54

5.14.3 Default ....................................................... 54

5.15 Configuration .................................................. 54

5.15.1 Save…. ..................................................... 55

5.15.2 Backup & Store ......................................... 55

5.15.3 Auto Load & Backup ................................. 56

5.16 Logout.. .......................................................... 56

6. Command Line Interface Management ................... 57

6.1 About CLI Management ................................. 57

7. Technical Specification ............................................ 75

Antaira Industrial Ethernet Switches

LMP-0602 Series User Manual V1.1

1. Introduction

All Antaira industrial managed switches come with a pre-installed “user friendly” web console interface,

which allows users to easily configure and manage the units, whether one is using a serial console

and command line interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or simple network

management protocols (SNMP).

1.1 Product Overview

Antaira’s LMP-0602 series is a 6-port industrial PoE+ managed Ethernet switch that is

embedded with four 10/100Tx Ethernet ports that support either IEEE802.3af or IEEE802.3at for

a maximum of 30 watts per port, and two 100Fx (SC or ST type) fiber ports in a multi-mode(2Km)

or single-mode (30Km) option. It is a fully manageable industrial Ethernet switch that supports the

standard Layer 2 Ethernet configurable settings. This product series is IP30 rated and DIN-rail

mountable that provides a standard operating temperature range (-10°C to 70°C) and an

extended operating temperature range (-40°C to 75°C). It also designed with high EFT and ESD

protection to prevent any unregulated voltage for industrial networking applications in process

control automation, intelligent transportation systems (ITS), power/utility, water wastewater

treatment plants, any outdoor or harsh environment.

1.2 Product Software Features

 Network Redundancy

 STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for

network redundancy

 Network Management

 Web UI based management, SNMP v1/v2, Serial Console

 Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,

broadcast storm control, Diffserv

 IEEE802.1q VLAN, port-based VLAN support

 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group

 Supports RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, SSH/SSL,

TFTP.

 Advanced PoE Ports Management (auto ping check)

 Auto powered device (PD) detection

 Auto reset (cycle power to unresponsive PD)

Antaira Industrial Ethernet Switches

LMP-0602 Series User Manual V1.2

 PoE ports weekly power scheduling

 Port Configuration

 Status, statistics, mirroring, rate limiting, event syslog

 Event Handling

 Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP

trap and Fault Alarm Relay Output

 Software Upgrade via TFTP and HTTP

 Configuration Backup – USB Port

1.3 Product Hardware Features

 System Interface and Performance

 All RJ-45 ports support Auto MDI/MDI-X Function

 Embedded 4*10/100Tx (PSE 30W/Port) RJ45 Ports, and 2*100Fx (SC/ST) fiber ports

with multi-mode (2Km) or single-mode (30Km)

 Store-and-forward switching architecture

 8K MAC address table

 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

 Power Input

 DC 48~55V redundant with a 6-pin removal terminal block

 One user programmable alarm relay contact

 Operating Temperature

 Standard operating temperature models: -10°C to 70°C

 Extended operating temperature models: -40°C to 75°C

 Case/Installation

 IP-30 protection metal housing

 Installation in pollution degree to environment

 DIN-Rail and wall mount design

1.4 Package Contents

 1– LMP-0602 series: 6-port industrial PoE+ managed Ethernet switch, with 4*10/100Tx

(30W/Port) RJ45 ports, and 2*100Fx (SC/ST) fiber ports.

 1-Product CD

 2-Wall mounting brackets and screws

 1-RJ45 to DB9 Serial Console cable

 1-DC cable –18 AWG & DC jack 5.5x2.1mm

Antaira Industrial Ethernet Switches

LMP-0602 Series User Manual V1.2

1.5 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de ANTAIRA

ANTAIRA

ANTAIRA LMP-0600-24-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LMP-1202G-SFP Series Manual de usuario

ANTAIRA

ANTAIRA LNP-800AGH-24 Series Manual de usuario

ANTAIRA

ANTAIRA LMP-0600 Series Manual de usuario

ANTAIRA

ANTAIRA LNP-2004G-SFP Series Manual de usuario

ANTAIRA

ANTAIRA LNP-C500G-T Manual de usuario

ANTAIRA

ANTAIRA LNX-800N Manual de usuario

ANTAIRA

ANTAIRA LMP-2004G-SFP Series Manual de usuario

ANTAIRA

ANTAIRA LNP-1604G-SFP Series Manual de instalación y operación

ANTAIRA

ANTAIRA LMP-0601G-SFP-24-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LMX-0500 Series Manual de usuario

ANTAIRA

ANTAIRA LNX-500A Manual de usuario

ANTAIRA

ANTAIRA LMP-0601G-SFP-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LNX-1600G Series Manual de usuario

ANTAIRA

ANTAIRA LMX-0800G Series Manual de usuario

ANTAIRA

ANTAIRA LMX-0602 Series Manual de usuario

ANTAIRA

ANTAIRA LNP-0500G-BT Series Manual de usuario

ANTAIRA

ANTAIRA LMP-0602-24-V2 Series Manual de usuario

ANTAIRA

ANTAIRA ARY-7235-AC-PD Manual de usuario

ANTAIRA

ANTAIRA LMP-0602 24-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LNX-501AG-SFP-T Manual de usuario

ANTAIRA

ANTAIRA LMP-0702G-SFP-24-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LNP-C500G Manual de usuario

ANTAIRA

ANTAIRA LNX-802AG-S10-T Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
