Anritsu MP1590B Manual de usuario

Quick Start Guide

MP1590B

Network Performance Tester EoS Measurement

ＥｏＳ測定クイックスタートガイド

CONFIDE

NTIAL 1

The contents of this manual shall not be disclosed in any way or

reproduced in any media without the express written permission of

Anritsu Corporation.

1 / 45

MP1590B Network Performance Tester

EoS Measurement Quick Start Guide

Anritsu Corporation

IP Network Div.

First edition

MBP-1SG050233-00

2 / 45

Before using MP1590B

Requisite task before measuring

Put in “Key” and “Remote interlock” at the following circle.

And turn on the key.

In the case of “OFF”, MP1590B cannot transmitted an optical signal.

3 / 45

EoS Measurement Flow

1. Setup

2. Port Setting (Mapping, Type, Bitrate and so on.)

3. Connecting

4. Setting concatenation

5. Measurement

LCAS Test

SDH/SONET Test

VCAT test with Differential Delay

EoS Frame test

6. Other functions

Save/Load

Printing and Screen Copy

Switching between SDH and SONET

4 / 45

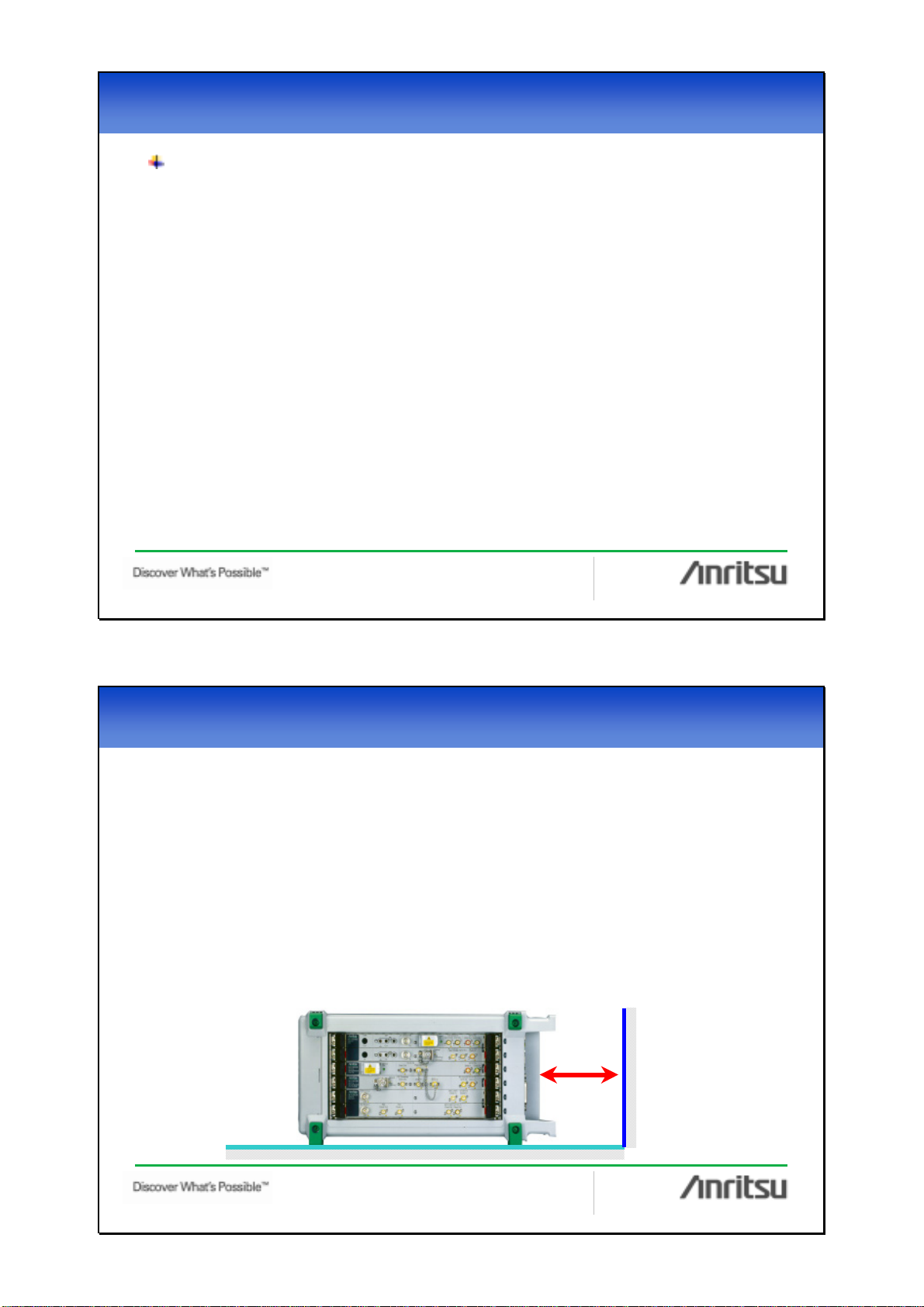

¾Put MP1590B on a safe and stable place where

MP1590B is not fallen down on.

¾A cooling fan is situated on the rear panel of the

MP1590B. Place the MP1590B 10 cm or more apart from

obstructions such as walls.

¾Supply power within voltage range of 100 to 115 Vac or

220 to 240 Vac and frequency range of 47.5 to 63 Hz.

Power consumption is 500 Vac or less.

> 10cm

1. Setup

Setup -

-setup

setup

5 / 45

MP1590B has two power switches,

“Main power switch”and“Power switch for stand-by condition”.

¾The case of turning on the power

(1) Connect a power code after ensuring that main power switch is Off.

(2) Turn On the main power switch.

(2’) From the Standby condition to power ON, press the power switch for

stand-by condition.

¾The case of turning off the power

(1) Press the power switch for stand-by condition.

(2) Turn off the main power switch.

Power Switch for Stand-by conditionMain Power Switch

1. Setup

Setup -

-Power

Power-

-On/Off procedures

On/Off procedures

6 / 45

1. Setup

Setup -

-Selection of Measuring mode

Selection of Measuring mode

Select the mode of application before measuring.

SDH/SONET/OTN mode is chosen here.

¾SDH/SONET/OTN mode:

For measuring SDH/SONET/OTN, Jitter.

This mode does not support “VCAT” and “LCAS”

¾EoS mode:

For measuring EoS, VCAT, LCAS.

SDH/SONET/OTN mode EoS mode

Button of

changing mode

7 / 45

(2) Choose bit rate, encapsulation

(mapping), and concatenation type

Choose the following parameters in pull down

menue:

• Bit rate

• Encapsulation (Mapping)

• Concatenation

2. Port setting (1)

Port setting (1)

Choose bit rate, encapsulation (mapping), and concatenation type

(1) Open Port Setting screen

Right-click the port icon and choose

“Port Setting…” command.

To use the LCAS functions, check this box.

8 / 45

(4)GFP Initial setting

When GFP setting is required, set

• Scramble ON/OFF

• Ethernet Address of this port

• Extension Header parameters

• GFP FCS parameter of Rx side

according to the DUT conditions.

This field changes according to the

selected encapsulation (mapping).

This field is used when it connects to a DUT

requires IP address like router, switch and so

on.

(3) Choose measurement mode and clock modes

(Measurement modes)

Normal mode -- Supports transmitting / receiving data. Select for two-way connection.

Through mode -- Transparent, OH Overwrite and Differential delay are also supported.

Monitor mode -- Not usually used

2. Port setting (2)

Port setting (2)

9 / 45

VOA Setting (option) Optical input level

and frequency

3. Connecting

Connecting

(1) Connect optical fiber.

¾You have to adjust output optical power using VOA option or external attenuator

before connecting because Tx Laser is always on in EoS mode.

(2) Check the optical input power in Analyze section.

¾You should adjust the optical input power to the optimum value.

¾The optimum value : -10.0 dBm to -12.0 dBm

MU150101A Spec. output power: -1 to +3dBm

input power: -8 to -29 dBm

10 / 45

4. Setting Concatenation

Setting Concatenation -

-Contiguous/Arbitrary

Contiguous/Arbitrary

Setting contiguous concatenation parameters

This setting is available when Concatenation Type is “Contiguous” in port setting.

(1) Multiplexing

Choose “Multiplexing” of measurement

channel in pull down menu. When you

choose “VC4-Xc”, you can set size of

concatenation.

(2) Measurement Channel

Choose “Measurement CH” for both Tx

and Rx side independently.

(3) Dummy Channel

Dummy CH parameters can be set

at the Dummy CH tab, when it is

necessary to set parameters other

than Measurement CH at Tx.

11 / 45

Setting virtual concatenation parameters

This setting is available when Concatenation Type is “Virtual” in port setting.

(1) Setting Rx-side VCAT group

At first, it has to match a concatenation and VCAT

group with DUT’s one.

Click “Edit…” button, to set VCG at Rx side.

4. Setting Concatenation

Setting Concatenation -

-Virtual (1)

Virtual (1)

(2) Setting Multiplexing

Next, it has to choose “Multiplexing”. It also has to

choose “Route” when it use Low Order Concatenation.

HO-VCAT LO-VCAT

12 / 45

(3) Detect VCG setting of DUT automatically

Click the “Detect VCG…” button in the Rx VCAT Group Setting screen to show the detected

VCAT group in the Detect VCG screen.

After analyzing, the result screen is appeared. Choose measurement VCG from list window.

And click “OK” button for both Detect VCG and Rx Multiplexing screen.

4. Setting Concatenation

Setting Concatenation -

-Virtual (2)

Virtual (2)

If Rx signal includes some VCG, all VCG

list up in this window.

13 / 45

(4-1) Copy Rx setting to Tx side

Click the “Copy from Rx Setting” button to copy Rx setting into Tx side.

4. Setting Concatenation

Setting Concatenation -

-Virtual (3)

Virtual (3)

If a VCG setting in Tx is the same as Rx’s one, see the (4-1);

If a VCG setting is independent between Tx and Rx, see the (4-2);

Finish to set concatenation,

see (5);

Finish to set concatenation,

see (5);

14 / 45

¾Multiplexing:

At first, choose “multiplexing” from pull down menu. If it set

VC3, VC12 or VC11, it also choose “Route” from AU4 or AU3.

¾Choose VCG size and Provisioned size automatically:

VCG members and Provisioned channels can be picked up

automatically when it set in this area. When it chooses

manually, set VCG size to 0 and use the “VCG members”

area.

(4-2) Tx-side VCG setting manually

Click the “Edit…” button to open Tx Multiplexing screen.

4. Setting Concatenation

Setting Concatenation -

-Virtual (4)

Virtual (4)

HO-VCAT LO-VCAT

15 / 45

¾Choose VCG members and Provisioned channels

manually:

Click “Add/Remove mode”. And choose channel from this

area. A channel becomes VCG member by “Single Click”

and becomes Provisioned channel by “Double Click”.

4. Setting Concatenation

Setting Concatenation -

-Virtual (5)

Virtual (5)

HO-VCAT LO-VCAT

Finish to set concatenation,

see (5);

Finish to set concatenation,

see (5);

It is possible to change SQ

for each channel in “SQ

Setting mode”.

It is possible to choose

channel across any AUG

by this TAB in LO-VCAT.

16 / 45

(5) Check Linkup

When it completes to set concatenation for both Tx and Rx side, the port icon

becomes green from red. And any alarm/error have gone.

4. Setting Concatenation

Setting Concatenation -

-Virtual (6)

Virtual (6)

Linkup

If an error/alarm occurs,

please check counter to get

detail information,

see 5-(4-1);
