Anolis ArcDot-CE Manual de usuario

User instructions

ArcDot-CE

The Anolis ArcDot-CE is a Cree MC-E RGBW multichip based high powered multicolored LED xture.

The unit´s high light output can be pixel mapped and therefore can be controlled and used for large scale

matrix applications, as well as used for individual illuminating needs. Cast aluminium housing with frosted UV

stable polycarbonate dome allows exible solutions to both interior and exterior environments. The product is

manufactured in two versions:

Version 1- with two supply cables Version 2-with one supply cable and T-connector

1. Attention

Do not install the module near high inammable liquids or materials.

Do not allow anything to rest on the module.

Do not install the module near the naked ames.

Do not install the module in dirty,dusty or badly ventilated location.

Avoid using the unit in locations subject to possible impacts.

Avoid looking directly into the LED light beam at close range.

Warning: Operation of this equipment in a residential environment could cause

radio interference.

2. Installation

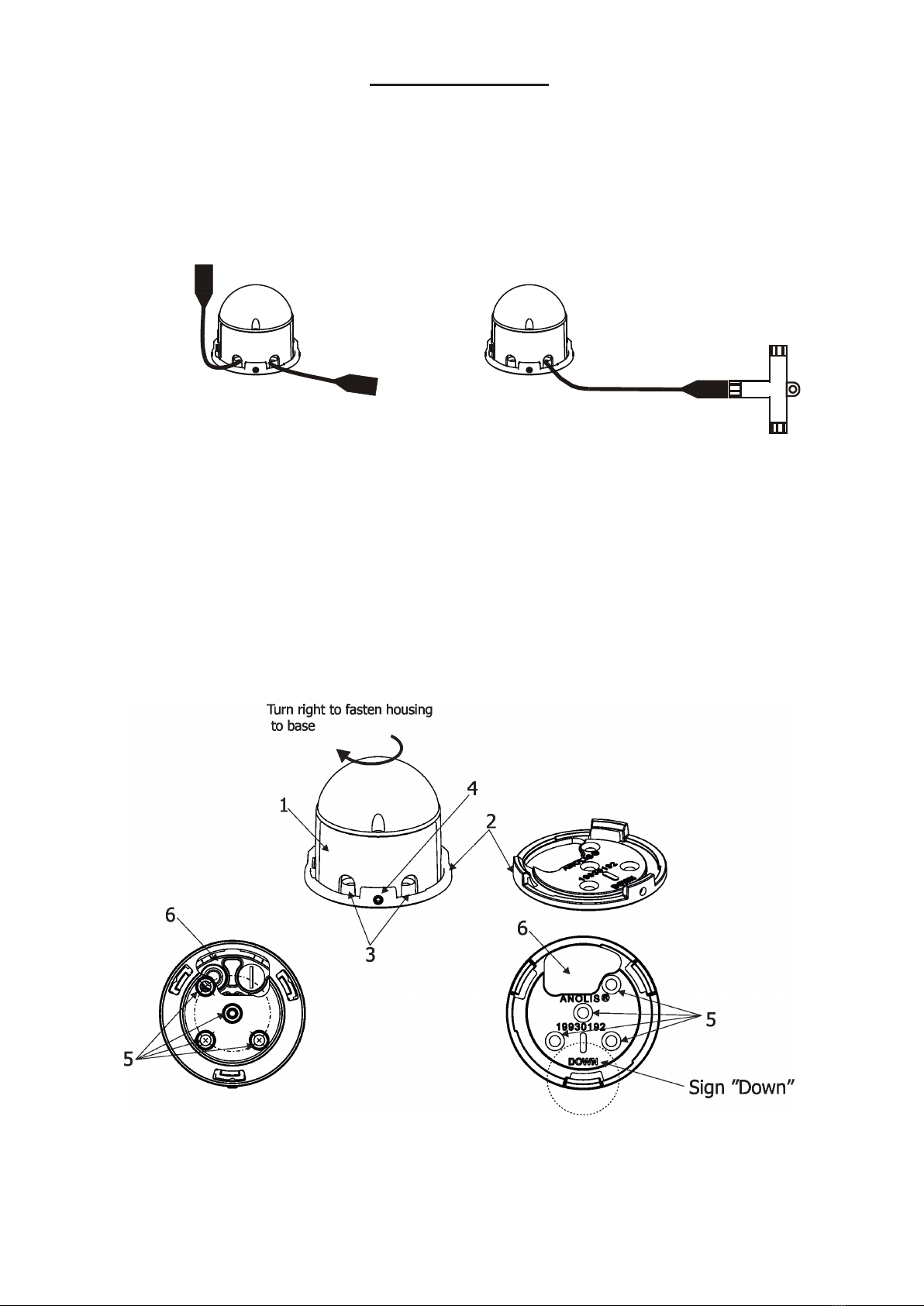

Four holes (5) of diameter of 5.5mm in the ArcDot base (2) serve for mounting the base on a non-ammable

at surface. The supply cable (s) can be led through the slots (3) in the housing (1) of the ArcDot or through

the aperture (6) in the ArcDot base .

1. Fasten the ArcDot´s base (2) on the mounting surface. Keep its orientation as shown on the picture above

(sign DOWN has to lead down).

2. Put the housing on the base, turn it to right and secure with screw M5 (4).

3. Connect ArcDots each other and to the ArcPixel Power-CE. See the ArcPixel Power-CE user manual for

detail description.

Outside view of base Iinside view of base

Use the following ways for connecting ArcDots with two supply cables(example for matrix of 4x4).

Horizontal sorting Vertical sorting

3. Technical specications

LED device: Cree MC-E RGBW multichip

Max. current per colour: 520 mA

Maximum power consumption: 5.5 Watts/48V

Compatible power supply: ArcPixel Power-CE, ArcPower Unit Pixel Rack Mount,

ArcPower Unit Pixel Wall Mount, DRS

Typical Lumen maintenance: 70% @ 50.000 hours

Led life expectancy: minimum 50.000 hours

Cooling system: convection

Surface operating temperature: +35°C @ ambient 25°C

Ambient operating temp.range: -20°C/+50°C

Control electronics:

Internal chip protection against overheating

Flicker-free operation (300 Hz current driving of LEDs)

Status messages for communication with power supply unit

Design:

Housing & base: cast aluminium

Dome: frosted polycarbonate

Weight: 0.2 kg

Mounting: via 5 holes in base

Ingress Protection: IP 67

IK rating: IK07

Data cables: Li9Y11Y, 2xAWG16+1xAWG 20(length according

requirement, standard length is 0.25m IN and 0.18m OUT)

Connectors:

Version 1: 1x Chogori CGRBB-03BMMA-SL8001 (male); 1x Chogori CGRBB-03BFFA-SL8001 (female)

Version 2: 1x Chogori CGRBB-03BMMA-SL8001 (male), 1x T-connector Chogori T-CGRBA-030303FFM-TS

Dimensions (mm):

4. Wiring of ArcDot connectors

Input Output

Chogori CGRBB-03BMMA-SL8001 (male) Chogori CGRBB-03BFFA-SL8001 (female)

1 GND (blue wire) 1 GND (blue vire)

2 +48V (red wire) 2 +48V (red wire)

3 Data (orange wire) 3 Data (orange wire)

5. Accessories

(P/N 13051564) T-connector Chogori T-CGRBA-030303FFM-TS /for product version 2 only/

(P/N 13052784) Cable Connection DRS/RU Pixel (CGR-F/bare,3pin, 1.5m)*

(P/N 13052738) Cable Connection DRS/RU Pixel (CGR-F/bare,3pin, 0.2m)*

(P/N 1305 2023) Connection cable ArcDot, 2m *

(P/N 1305 2024) Connection cable ArcDot, 4m*

(P/N 1006 2330) Active Terminator for ArcDot*

(P/N 1006 2331 Passive Terminator for ArcDot*

(P/N 1305 1703) Ferrite GTFC 16-8-16 (for ArcDot) *

(P/N 13052738) Cable Connection DRS/RU Pixel (CGR-F/bare,3pin,0.2m)*

* quantity depends on size of installation (see the ArcPixel Power-CE user manual)

Version 1.9

October 22, 2019

Specications are subject to change without notice.

Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici
