ANBTEK CT2000 Manual de usuario

CT2000

Long Battery GPS Tracker

User’s Manual

Version:2.0

Content Index

1.Introduction:.................................................................................................................................... 3

1.1 Instruction of Safety:.............................................................................................................3

1.2 About document terms definition:.......................................................................................4

1.3 Power and Battery:............................................................................................................... 4

1.4 Package Contents:................................................................................................................. 4

2. Characteristics:................................................................................................................................ 5

2.1 Basic Characteristics:.............................................................................................................5

3. Preparation:.....................................................................................................................................8

3.1 Configuration Software Requirements:................................................................................ 8

3.2 Configurator:......................................................................................................................... 9

4. Device Working Principles:..............................................................................................................9

4.1 Working Profiles:...................................................................................................................9

4.2 I/O Events:...........................................................................................................................10

5. Configurator Operation:................................................................................................................10

5.1 Operation Menu:.................................................................................................................11

5.2 Basic Parameters:................................................................................................................12

5.3 General Settings:.................................................................................................................13

5.4 Profiles Parameters:............................................................................................................ 16

5.5 Other Setting :.....................................................................................................................18

6. SMS Command List:...................................................................................................................... 19

7. Firmware Upgrading:.....................................................................................................................19

1.Introduction:

CT2000 is a terminal with GPS and GSM connectivity, which is able to determine the object’s

coordinates and transfer them via the GSM network. This device is perfectly suitable for

semi-trailers tracking which is not with permanent power supply. CT2000 built-in 13000mAH

battery with smart power saving technology can last from 4 years during time based on different

position data updates interval.

1.1 Instruction of Safety:

Do not disassemble the device more than it is allowed. If the device is damaged, the

power supply cables are not isolated or the isolation is damaged, before unplugging

the power supply, do not touch the device.

All wireless data transferring devices produce interference that may affect other

devices which are placed nearby.

The device may be fitted only by qualified personnel.

The device must be firmly fastened in the predefined location.

The device is susceptible to water and humidity in environment with IP class greater

than IP67.

Use only batteries provided by ANBTEK. If wrong battery is used, the device may

malfunction. ANBTEK takes no responsibility for device damage caused by third

party batteries.

Any installation and/or handling during a lightning storm is prohibited.

Please use cables provided with CT2000 device. ANBTEK is not responsible for

any harm caused by using wrong cables for PC <-> CT2000 connection.

ANBTEK reserves the right to change or modify the device in a way that feels is

acceptable and is not in disagreement with terms and conditions.

Ensure that the batteries are not immersed in water. When stored, keep the device in a

cool and dry place.

Ensure that device and batteries are not exposed to hot surfaces or direct sunlight.

When transporting, ensure that batteries are safe from metal articles and do not keep it

with metal rings, chains, etc.

Do not damage battery with sharp objects.

Do not try to charge the battery – this may lead to explosion and/or other harms

1.2 About document terms definition:

This document contains information about the architecture, mechanical characteristics,

configuration and possibilities of the CT2000 device. Acronyms and terms used in document

•PC – Personal Computer.

•GPRS – General Packet Radio Service.

•GPS – Global Positioning System.

•GSM – Global System for Mobile Communications.

•SMS – Short Message Service.

•AC/DC – Alternating Current/Direct Current.

•Record – AVL data stored in CT2000 memory. AVL data contains GPS and I/O

Information

•AVL packet - Data packet that is being sent to server during data transmission. AVL packet

contains from 1 to 25 records.

•Profile – operating mode for CT2000 device. It consists of list of settings indicating how

device should behave in certain situations.

1.3 Power and Battery:

CT2000 is with built-in 13000mAH unchargeable battery which can last for a expected time as

defined.

•Voltage: 3.6 V DC

•Nominal capacity: 6500mAh

•Battery Number: 4

•Max pulse current not less than: 2000mA

1.4 Package Contents:

The CT2000 device is supplied to the customer in a cardboard box containing all the

equipment that is necessary for operation.

The package contains:

1. The CT2000 device.

2. Micro USB cable.

Optional Accessories:

- Strong Magnetic Installation Kit

2. Characteristics:

2.1 Basic Characteristics:

- GSM / GPRS Parameter

- GPS Specification

•Ublox NEO-6M

•Tracking sensitivity: -160dBm

•Accuracy:5Meter

- Advantages:

•WCDMA network compatibility

•Smart profile switching (any element dependent)

•Highly configurable data acquisition and sending

•Multiple GEO areas configuration

•Real-time process monitoring

•Authorized number list for remote access

•Firmware update via USB

•Configuration update via SMS or USB port

•15000 record storing

•Extra long battery life time

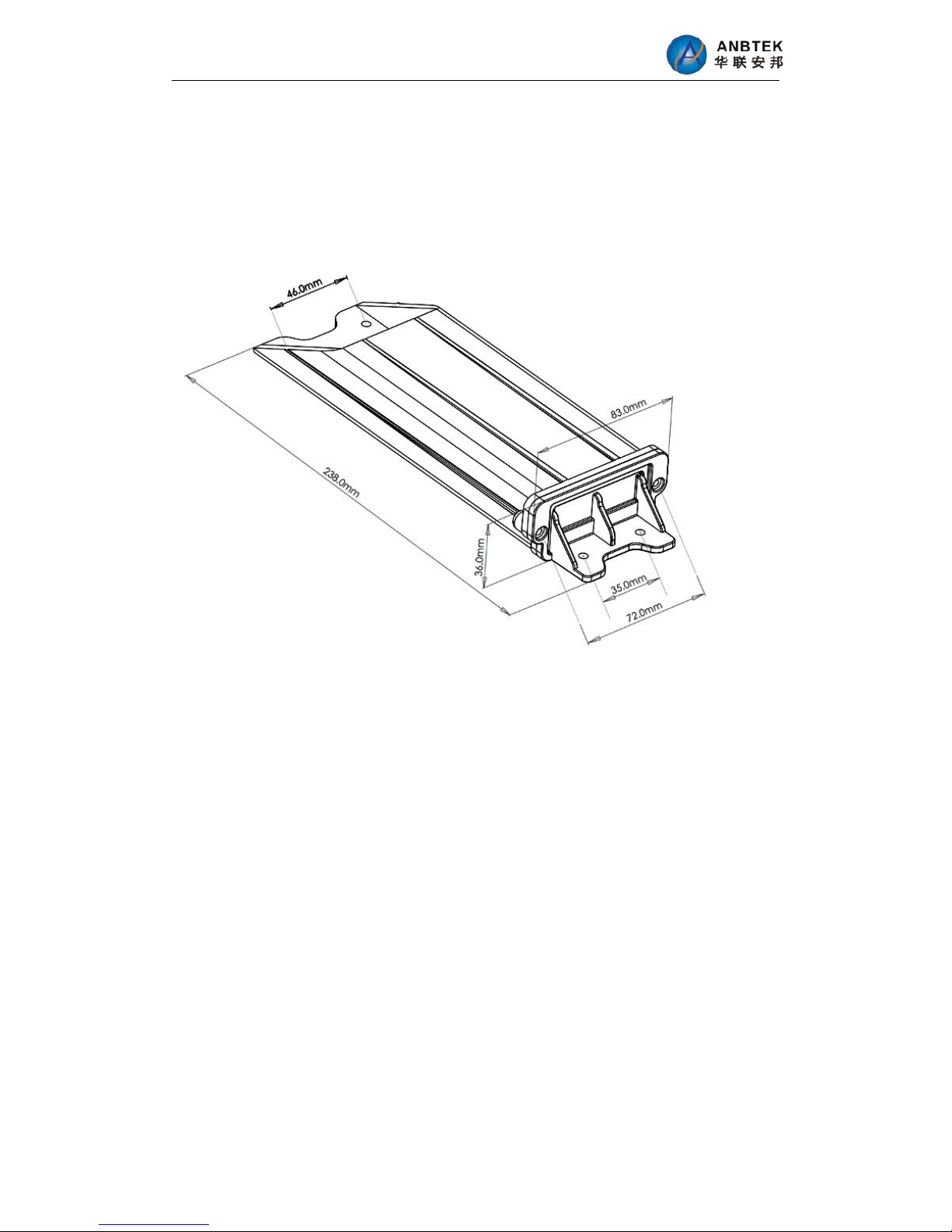

- Mechanical Characteristics:

-SimCard Insert Scheme:

Operation Process:

①Open CT2000 Plastic Box by Screw Driver

②Open Simcard Slot lid and insert SIM

③Close Simcard Lid

④Push SIM card lid in the shown direction to lock it and assemble CT2000

-Connect CT2000 with PC by Micro-USB:

-Electrical Characteristics:

Batteries：

•Voltage：3.6 V DC

•Nominal capability:6500mAH

•Max Pulse current not less than 2000mA

The battery lifetime of CT2000 is subject to configuration, coverage of GSM and GPS signals.

Expected battery lifetime depends on:

•Temperature;

•Humidity;

•GSM level

•GPS satellite visibility

•Configuration of device – additionally monitored parameters, etc.

Expected battery self discharging is 1-3% per year in normal humidity and 20°C.

3. Preparation:

3.1 Configuration Software Requirements:

- OS Environment

Windows XP SP2 or Higher version，Windows Vista ，Windows 7

- Configurator Program and Driver

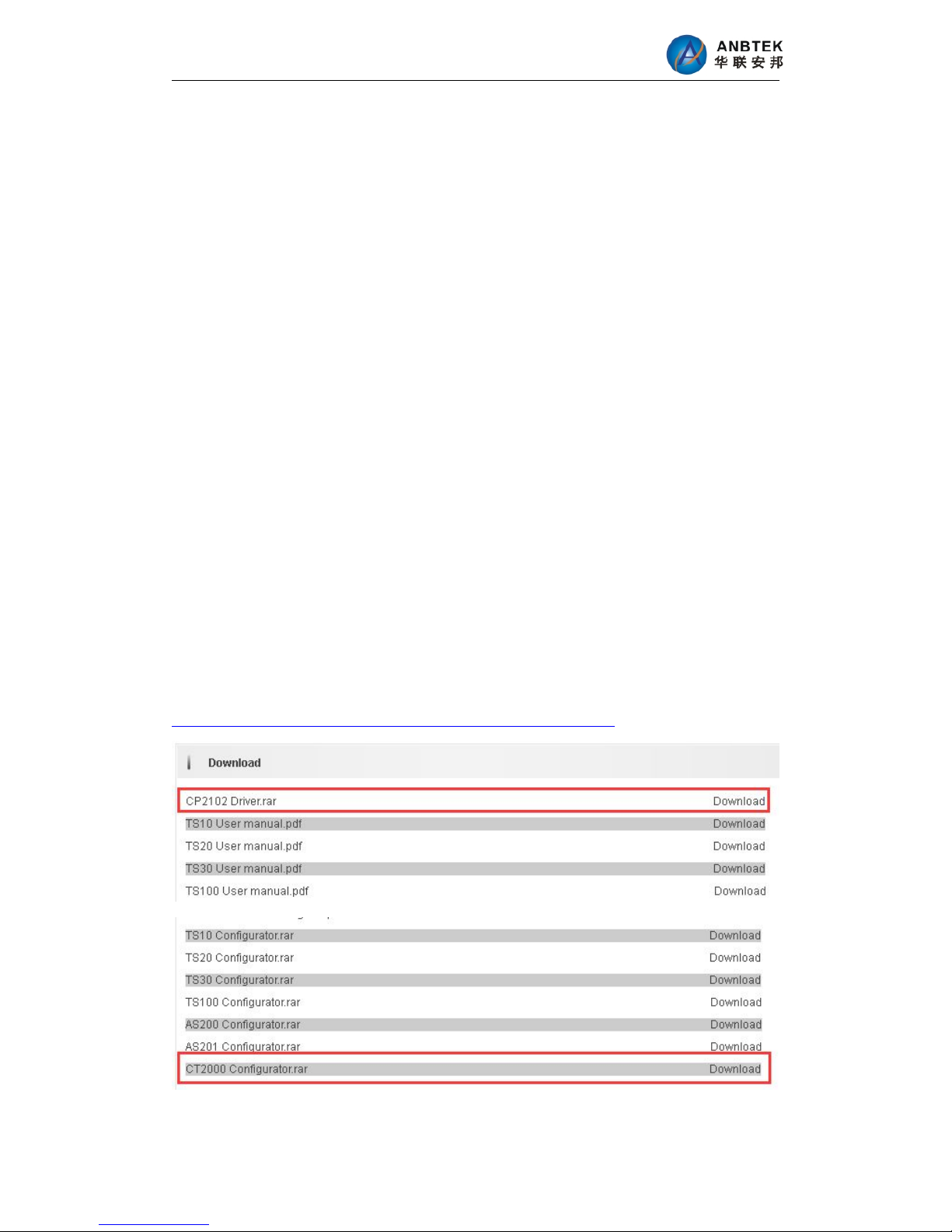

Please download CT2000 driver from ANBTEK website support center:

http://www.anbtek.com/index.php?_m=mod_static&_a=view&sc_id=7

3.2 Configurator:

CT2000 configurator gets not necessary for installation. Just run the CT2000

Configurator.exe file inside the program folder:

Note:

- During driver installation, please keep CT2000 powered up and connected with PC by

USB cable

- Select a correct ComPort for CT2000 device.

To find out which COM port is used follow these steps:

•Right-click on 'My Computer' and choose 'Properties';

•Go to 'Hardware' and click on 'Device Manager';

•Expand 'Ports (COM & LPT)' menu.

See COM port number near 'Silicon Labs CP210X USB to Uart Bridget'.

4. Device Working Principles:

4.1 Working Profiles:

In order to save the battery using fast, CT2000 is designed to stay in a sleep mode as

long as possible. Device periodically wakes up for a very short time and checks states of

static/Movement. And in preset wake up time will check all I/O parameters, if I/O event(s)

state has changed, profile manager changes to profile according to logical sentences.

If there is no any profile compatible with current conditions, it will auto take P5 as the

default profile.

4.2 I/O Events:

CT2000 supported I/O events are

•Critical low Battery level

•GSM Network Roaming

•Power Connection source

•Door Status

•Temperature level

•Static/Movement status

•GEO Areas status( IN/OUT)

All these I/O events can be used for profile switching conditions.

5. Configurator Operation:

Main CT2000 Configurator windows consist of:

1) Operation Menu

2) Basic Device Setting
