DEMO MANUAL DC2630A

Rev. 0

DESCRIPTION

LT3966

I2C Programmable Quad

Monolithic Boost LED Driver

Demonstration circuit 2630A is an I2C programmable

quad channel monolithic boost LED driver featuring the

3966. It drives four separate strings of LEDs (up

to50V) at 125mA when VIN is between 9V and 18V.

DC2630A runs at 2MHz switching frequency. Its four

channels are capable of powering LED strings which can

have different currents, voltages, or dimming ratios. Each

channel can be independently controlled via I2C commu-

nications or analog inputs. DC2630A can be configured to

run in either mode by modifying the ADDR pin settings.

It is protected against output overcurrent, overvoltage

events, and reports open and short LED fault events by

latching an alert pin. In I2C mode, faults can be enabled or

disabled. A DC2026C Linduino

One demonstration circuit

is used to interface with the board by directly connecting

it with a QuikEval™ribbon cable and provided command

line interface code.

The LT3966 has an input voltage range from 3V to 60V.

Each boost channel has an integrated 60V 1.6A low-side

power switch. It has adjustable switching frequency

between 300kHz and 2MHz and can be synchronized to

an external clock source. Additionally, LT3966 can be pro-

grammed to output its own master clock to sync other

devices. The high side PWMTG MOSFET drivers assist

with PWM dimming and fault protection. The LT3966

channels can be configured to operate as a ground-ref-

erenced step-up (boost) LED driver, or as a floating output

LED driver to perform step-down (buck mode) or step-up/

step-down (buck-boost mode) operation.

All registered trademarks and trademarks are the property of their respective owners.

Each channel of the LT3966 can be independently dimmed

by applying a PWM signal or CTRL voltage to the corre-

sponding channel CTRL/PWM pin while operating in non-

I2C mode. In I2C mode, each channel has a maximum of

13bits of PWM dimming resolution and 8 bits of analog

dimming resolution.

Small ceramic input and output capacitors are used to

save space and cost. The open LED overvoltage protection

uses the IC’s constant-voltage regulation loop to regu-

late the output to approximately 57V if the LED string

isopened.

Undervoltage lockout can be adjusted on the circuit with a

few simple resistor choices. The output voltage (overvolt-

age protection) can be adjusted by changing the feedback

resistors for different string voltages. Other components

may need to be changed to accommodate the change in

output voltages as well.

The LT3966 data sheet gives a complete description of

the device, operation and applications information. The

data sheet must be read in conjunction with this demo

manual for DC2630A. The LT3966EUJ is assembled in a

40-lead plastic 6mm × 6mm QFN package with a thermally

enhanced ground.

Design files for this circuit board are available.

DEMO MANUAL DC2630A

Rev. 0

PARAMETER CONDITION MIN TYP MAX UNIT

Input Voltage VIN Range Operating

Transient

9 18

Switching Frequency (fSW) R30 = 47.5kΩ, MPHASE = OFF 2 MHz

ILED1, ILED2, ILED3, ILED4 R3 = R16 = R22 = R26 = 2Ω 125 mA

Open LED Voltage VOUT R4 = R17 = R23 = R27 = 1MΩ

R5 = R18 = R24 = R28 = 21.5kΩ

57 V

Efficiency (100% PWM DC) VIN = 12.0V, fSW = 2MHz, VLED = 50V

ILED1 = ILED2 = ILED3 = ILED4 = 125mA

86.7%

VLED Range R4 = R17 = R23 = R27 = 1MΩ

R5 = R18 = R24 = R28 = 21.5kΩ

40 56 V

I2C Minimum PWM Dimming Frequency R30 = 47.5kΩ, SCL[2:0] = 0b111 244 Hz

VIN Undervoltage Lockout (UVLO) Falling R2 = 499kΩ, R1 = 84.5kΩ 8.5 V

VIN Enable Turn-On (EN) Rising R2 = 499kΩ, R1 = 84.5kΩ 9.7 V

Note: Make sure that the voltage applied to VIN does not

exceed 50V.

HOW TO OPERATE DC2630A IN NON-I2C MODE

The DC2630A is easy to set up to evaluate the perfor-

mance of the LT3966 in non-I2C mode. Refer to Figure1

for proper measurement equipment setup and follow the

procedure below.

1. With power off, connect a string of up to 16 LEDs

between each channel’s LED+and GND turrets.

Connect the EN/UVLO turret to GND to keep the cir-

cuit shut down. With the power off, connect the input

power supply to the VIN and GND terminals.

2. For non-I2C mode operation, set both JP1 and JP2

(ADDR1 and ADDR2) to 0. This address is for non-

I2C mode, and all other settings are for I2C serial

communications mode.

3. Adjust the input power supply voltage between 9V

and 18V and enable its output.

4. Release the EN/UVLO-to-GND connection.

5. Observe the LED string running at the programmed

LED current.

6. To change the brightness with analog dimming in

non-I2C mode, attach an adjustable voltage source

to the corresponding CTRL/PWM turrets and set

the voltage between 0V and 1.5V. See data sheet

fordetails.

7. To change brightness with external PWM dimming

in non-I2C mode, attach a rectangular waveform

with varying duty cycle to the corresponding CTRL/

PWMturrets.

HOW TO OPERATE DC2630A WITH COMMAND LINE

INTERFACE – I2C SERIAL COMMUNICATIONS MODE

The DC2630A works with a Linduino One microcontroller

board (DC2026C) and can be connected to a PC via USB.

This allows DC2630A to be controlled via serial port inter-

face in Arduino IDE. Refer to the DC2026C Demo Manual

for detailed instructions on installing and configuring the

necessary software libraries.

1. Launch Arduino IDE.

2. Connect Linduino to computer via USB.

3. Connect a ribbon cable between the J1 serial

communications connection and a Linduino One

democircuit.

QUICK START PROCEDURE

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

DEMO MANUAL DC2630A

Rev. 0

4. Download the Linduino code and library files from

the DC2630A web page.

5. Upload the code to the connected Linduino

democircuit.

6. With power off, connect a string of up to 16 LEDs

between each channel’s LED+and GND turrets.

Connect the EN/UVLO turret to GND to keep the cir-

cuit shut down. With the power off, connect the input

power supply to the VIN and GND terminals.

7. For I2C serial communications, set JP1 (ADDR1)

to 1 and JP2 (ADDR2) to 1. This is the chosen I2C

address for the DC2630A command line interface.

8. Open up the serial monitor inside Arduino IDE.

9. Turn on 12V power to the VIN and GND pins of

theDC2630A.

10. Use command line interface in serial monitor to eval-

uate the performance of the LT3966 demo circuit.

Figure1. Test Setup Drawing for DC2630A

QUICK START PROCEDURE

DEMO MANUAL DC2630A

Rev. 0

Figure2. DC2630A Input Voltage vs Efficiency – 4× Channels Powering 16 White LEDs Per Channel at 125mA

Figure3. DC2630A PWM Dimming Using I2C Settings for 1250:1 and 500:1 Dimming Ratios

TEST RESULTS

(V)

100

EFFICIENCY (%)

dc2630a F02

1250:1

500:1

244Hz PWM FREQUENCY

1µs/DIV

LED

50mA/DIV

dc2630a F03

DEMO MANUAL DC2630A

Rev. 0

(a) 50% to 100%

Figure4. DC2630A Load Transient Response

(b) 100% to 50%

20µs/DIV

CTRL/PWM

500mV/DIV

LED

50mA/DIV

dc2630a F04b

TEST RESULTS

20µs/DIV

CTRL/PWM

500mV/DIV

LED

50mA/DIV

dc2630a F04a

DEMO MANUAL DC2630A

Rev. 0

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 8 C1, C2, C7, C8, C11, C12, C15, C16 CAP., X7R, 2.2µF, 50V, 10% 1206 AVX, 12065C225KAT2A

2 8 C4, C5, C9, C10, C13, C14, C17, C18 CAP., X7R, 2.2µF, 100V, 10% 1206 AVX, 12061C225KAT4A

3 1 C6 CAP., X5R, 4.7µF, 16V, 10% 0603 MURATA, GRM188R61C475KAAJD

4 1 C24 CAP., X7R, 1.0µF, 50V, 10% 0603 TAIYO YUDEN, UMK107AB7105KA-T

5 4 D1, D3, D5, D7 SCHOTTKY DIODES, PMEG6010CEH, SOD-123 NXP, PMEG6010CEH

6 4 L1, L2, L3, L4 IND., 10µH WURTH ELEKTRONIK, 74438336100

7 4 R3, R16, R22, R26 RES., 2Ω, 1/2W, 1% 1206 SUSUMU, RL1632R-2R00-F

8 4 R4, R17, R23, R27 RES., 1M, 1/10W, 1% 0603 VISHAY, CRCW06031M00FKEA

9 4 R5, R18, R24, R28 RES., 22.6k, 1/10W, 1% 0603 VISHAY, CRCW060322K6FKEA

10 1 R30 RES., 47.5k, 1/10W, 1% 0603 VISHAY, CRCW060347K5FKEA

11 1 U1 IC., LT3966, QFN-40, 6mm × 6mm ANALOG DEVICES., LT3966EUJ#PBF

Additional Demo Board Components

1 1 C3 CAP., ALUM., 47µF, 50V, 6.3×7.7 SIZE WURTH ELEKTRONIK, 865080645012

2 0 C20–C23(OPT) CAP., OPTION, 0603

3 4 M1, M2, M3, M4 P-MOSFET, 60V, SOT-23 VISHAY, Si2309CDS-T1-GE3

4 1 R1 RES., 84.5k, 1/10W, 1% 0603 VISHAY, CRCW060384K5FKEA

5 1 R2 RES., 499k, 1/10W, 1% 0603 VISHAY, CRCW0603499KFKEA

6 0 R6, R7, R12, R13, R14, R15, R19,

R20, R21, R25, R31, R33, R34

RES., OPTION, 0603

7 5 R8, R9, R10, R11, R29 RES., 100k, 1/10W, 1% 0603 VISHAY, CRCW0603100KFKEA

Hardware: For Demo Board Only

1 8 E3, E4, E8, E11, E16, E17, E18, E20 TESTPOINT, TURRET, .094" PBF MILL-MAX, 2501-2-00-80-00-00-07-0

2 13 E1, E2, E5, E6, E7, E9, E10, E12, E13,

E14, E15, E19, E21

TESTPOINT, TURRET, .061" PBF MILL-MAX, 2308-2-00-80-00-00-07-0

3 2 JP1, JP2 HEADER 3-PIN 0.079 DOUBLE ROW WURTH ELEKTRONIK, 62000621121

4 2 XJP1 ,XJP2 SHUNT, .079" CENTER WURTH ELEKTRONIK, 60800213421

5 1 J1 HEADER, 2×7 DUAL ROW MOLEX, 87831-1420

6 2 J2, J3 JACK BANANA KEYSTONE, 575-4

7 4 MH1–MH4 STAND-OFF, NYLON 6.4mm WURTH ELEKTRONIK, 702931000

PARTS LIST

DEMO MANUAL DC2630A

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications

subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

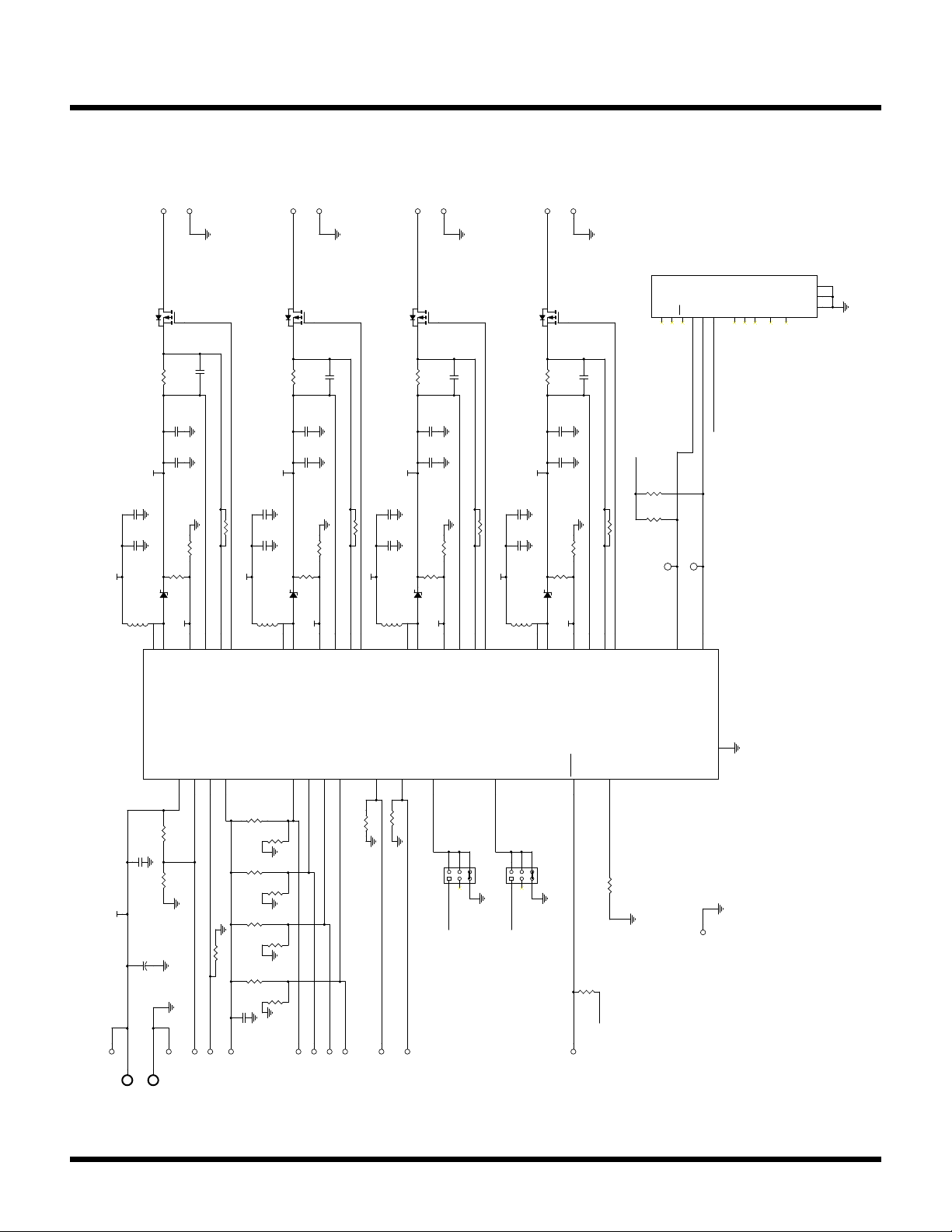

SCL
