Analog Devices ADIS1650 Series Manual de usuario

ADIS1650x

/PCBZ User Guide

UG-ADIS1650x

One

Technology

Way

•

P. O.

Box

9106

•

Norwood,

02062-9106,

U.S.A.

•

Tel:

781.329.4700

•

Fax:

781.461.3113

•

www.analog.com

Evaluating the ADIS16500, ADIS16505, and ADIS16507 Inertial Measurement Units

Using the EVAL-ADIS2 Evaluation Platform

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT

WARNING AND LEGAL TERMS AND CONDITIONS.

Rev. PR.C | Page 1 of 11

FEATURES OF EVAL-ADIS2

Simple power connection using the USB 5 V connection and

on-board switching and LDO voltage regulators

Regulators easily bypassed for power measurements

On-board ADSP-BF527 DSP

Easy access to digital I/O and diagnostic signals via I/O

header

Status LEDs for diagnostic signals

Windows-based GUI with data logging, complete access to

gyroscope outputs

APPLICATIONS

Performance evaluation of IMU

Small size permits mounting onto test fixtures or inside of

autonomous vehicle

GENERAL DESCRIPTION

This user guide applies to the ADIS1650x IMU (Inertial

Measurement Units). The members of this family include the

ADIS16500, ADIS16505, and ADIS16507. Although only the

ADIS16505 is discussed within, this guide is applicable to all

members of the ADIS1650x family, as these devices differ

primarily performance levels and sensitivity ratings.

The ADIS16505 is a very small, high-performance. The

ADIS16505 features factory internal calibration, high

performance, and robust operation in dynamic and challenging

environments.

The ADIS16505 evaluation board, together with the EVAL-

ADIS2 are a compact, easy-to-use platform for evaluating all

features of the ADIS16505.

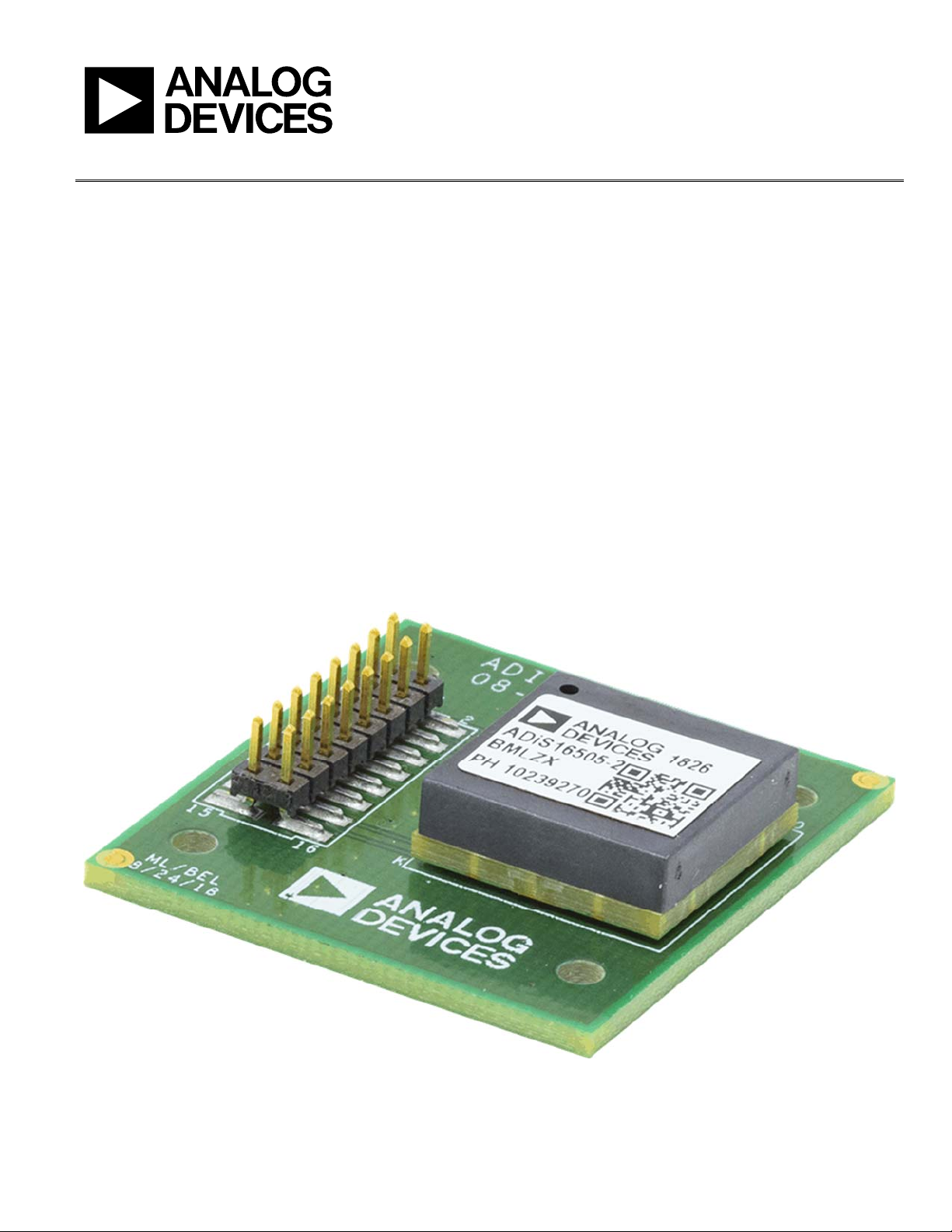

Figure 1. ADIS16505-2 Evaluation Board

UG-ADIS1650x ADIS1650x/PCBZ User Guide

Rev. PR.C | Page 2 of 11

TABLE OF CONTENTS

Features of EVAL-ADIS2................................................................. 1

Applications....................................................................................... 1

General Description......................................................................... 1

Revision History ............................................................................... 2

The ADIS165505 Breakout Board.................................................. 3

Description.................................................................................... 3

Drawing ......................................................................................... 3

Pin Assignments ........................................................................... 4

Schematic....................................................................................... 4

Evaluation Using the EVAL-ADIS2 SYSTEM............................... 5

USB Driver Installation ................................................................5

Downloading the Evaluation Software.......................................6

EVAL-ADIS2 Physical Connections...........................................7

Evaluation Software...........................................................................8

Running the Evaluation Software ...............................................8

Troubleshooting.............................................................................. 10

Running the Software Without an EVAL-ADIS2 Evaluation

Board Attached........................................................................... 10

Device Blacklisted ...................................................................... 10

Log File Error.............................................................................. 10

REVISION HISTORY

11/2019—Rev. PR.C to Rev. PR.B

Changes to Document Formatting................................................. 3

Changes to Evaluation Software Hyperlink .................................. 6

5/2019—Rev. PR.B to Rev. PR.A

Changes to Document Title ............................................................ 3

4/2019—Revision PR.A: Initial Version

ADIS1650x/PCBZ User Guide UG-ADIS1650x

Rev. PR.C | Page 3 of 11

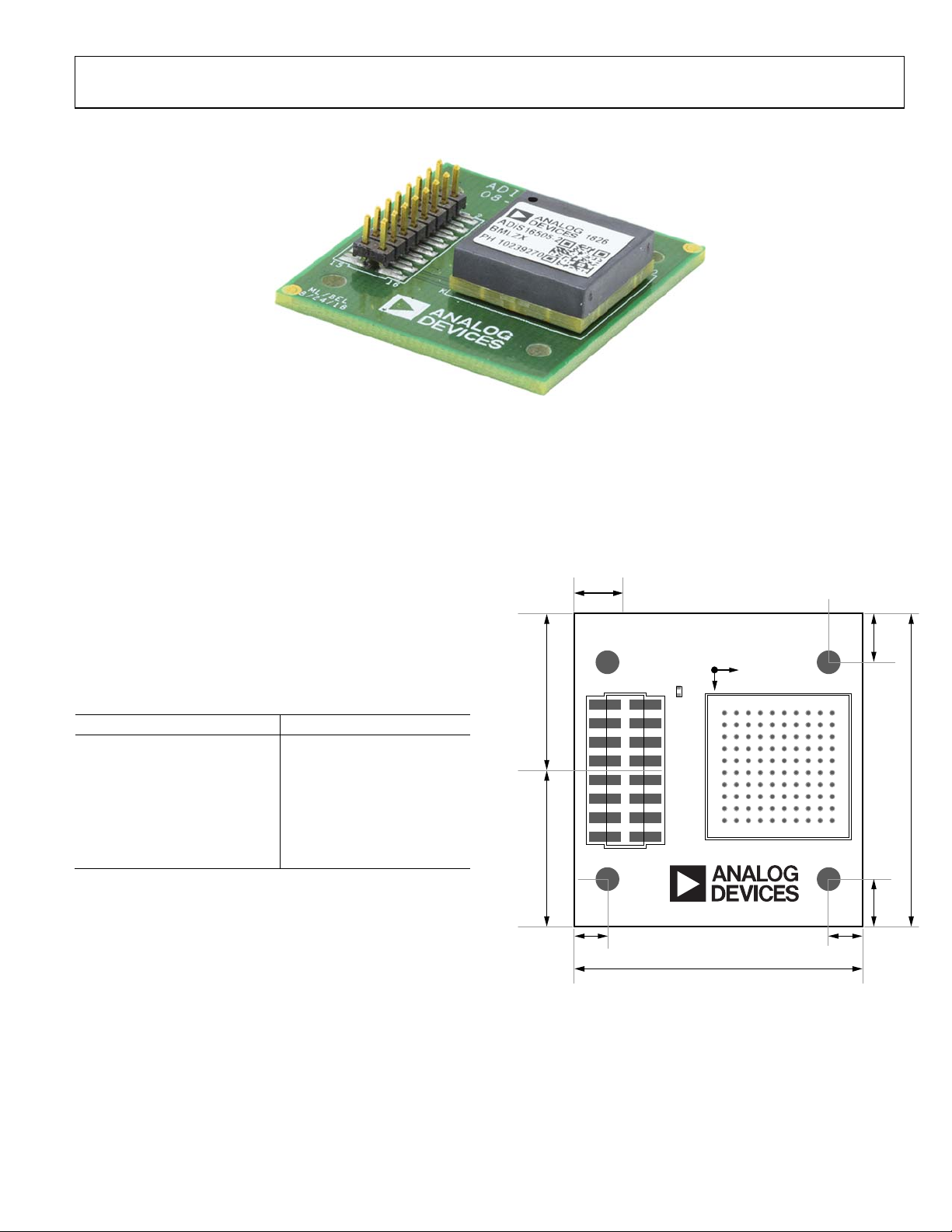

THE ADIS165505 BREAKOUT BOARD

Figure 2. ADIS16505-2/PCBZ

DESCRIPTION

Breakout boards provide a simple way to connect an existing

embedded processor platform to an ADIS16500, ADIS16505 or

ADIS16507 IMU. Each breakout board contains (1) IMU and a

simple interface connector, which provides access to all

necessary electrical connections with the IMU. Figure 2

provides a picture the ADIS16505-2/PCBZ breakout board,

which contains and ADIS16505-2BMLZ IMU model.

Table 1 provides a list of the model numbers for each breakout

board, along with the IMU model that is on each breakout

board.

Table 1. Breakout Board Models

Breakout Board Model IMU Model

ADIS16500/PCBZ ADIS16500AMLZ

ADIS16505-1/PCBZ ADIS16505-1BMLZ

ADIS16505-2/PCBZ ADIS16505-2BMLZ

ADIS16505-3/PCBZ ADIS16505-3BMLZ

ADIS16507-1/PCBZ ADIS16507-1BMLZ

ADIS16507-2/PCBZ ADIS16507-2BMLZ

ADIS16507-3/PCBZ ADIS16507-3BMLZ

DRAWING

Figure 3 provides a top-level view of the breakout board layout,

along with key physical attributes. The electrical interface (J1)

on each breakout board is a dual row, 2 mm pitch, 16-pin

interface. This supports standard ribbon cabling with 1 mm pitch.

Figure 3. Top Level View of the Breakout Board

17329-054

ADIS1650x - x / PCB

08 - 050552 - 01 - A

J1 R2

15 16

6.03

16.99

3.62

5.125

33.25

3.62

30.7

DIMENSIONS SHOWN IN MILLIMETERS

ML / BEL

8 / 24 / 18

UG-ADIS1650x ADIS1650x/PCBZ User Guide

Rev. PR.C | Page 4 of 11

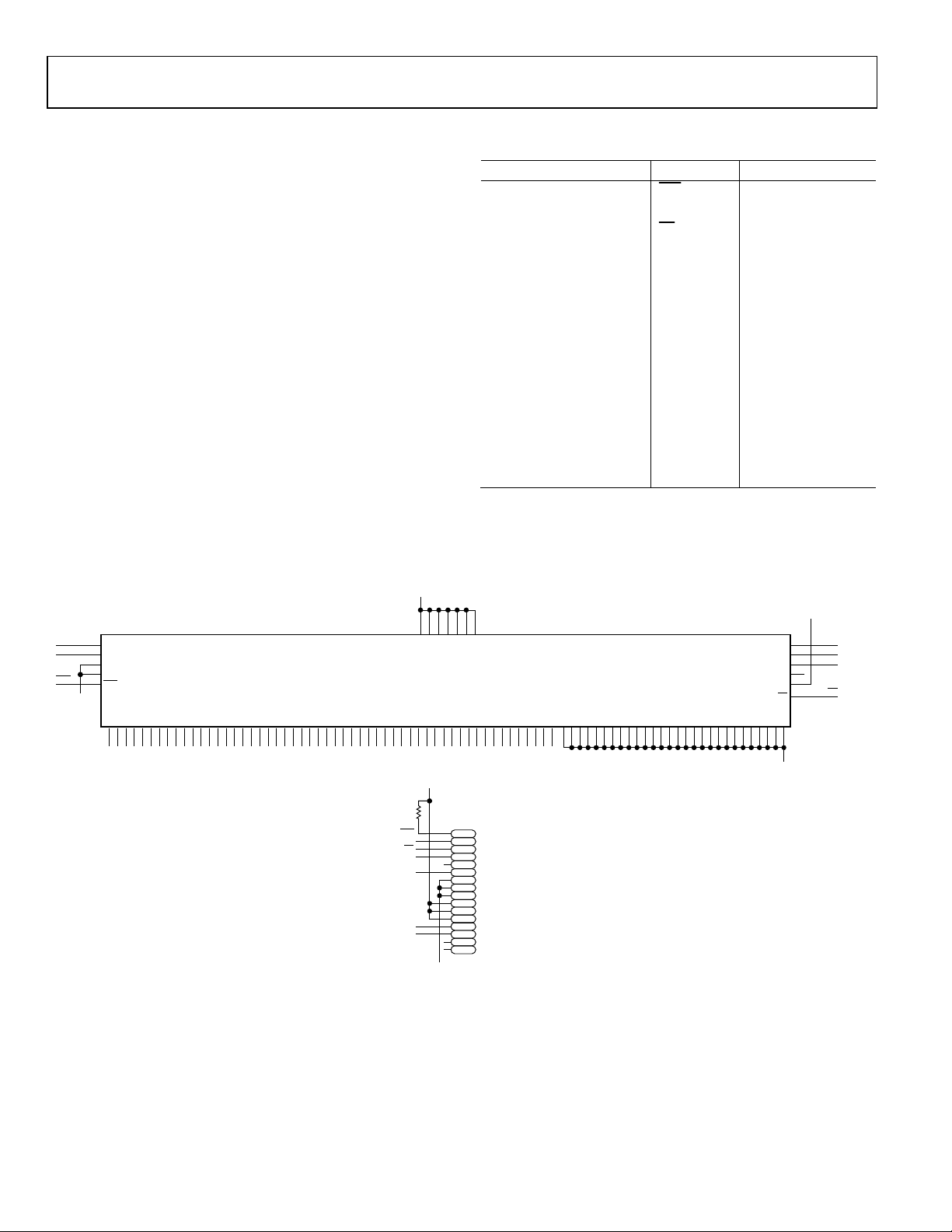

PIN ASSIGNMENTS

Table 2 provides the J1 pin assignments which support direct

connection to an embedded processor board using standard

ribbon cables. Although each environment has its own

sensitivities (such as electromagnetic interference (EMI)), these

boards typically support reliable communication over ribbon

cables up to 20 cm in length.

Table 2. J1 Pin Assignments, Breakout Board

J1 Pin Number Signal Function

1 RST Reset

2 SCLK SPI

3 CS SPI

4 DOUT SPI

5 NC No connect

6 DIN SPI

7 GND Ground

8 GND Ground

9 GND Ground

10 VDD Power, 3.3 V

11 VDD Power, 3.3 V

12 VDD Power, 3.3 V

13 DR Data ready

14 SYNC Input clock

15 NC No connect

16 NC No connect

SCHEMATIC

Figure 4. ADIS16500/PCB Schematic

DIN

DIN G6

SCLK

SCLK H6

TDI/GND

TCK/GND

RST/VDD

RST F3

GND

DOUT DOUT

DIO0 DR

DIO1 SYNC

TDO/NC C3

TMS/VDD E3

CS CS

VDD

N/C

A10

N/C

B10

N/C

C10

N/C

D10

N/C

E10

N/C

F10

N/C

G10

N/C

H10

N/C

J10

N/C

K10

GND

VDD C7

VDD D6

VDD G1

VDD H1

VDD J4

VDD J5

VDD K6

ADIS16500

TMM-108-01-G-D-SM

GND

SYNC

DIN

DOUT

SCLK

RST

VDD

10kΩ

17329-055

ADIS1650x/PCBZ User Guide UG-ADIS1650x

Rev. PR.C | Page 5 of 11

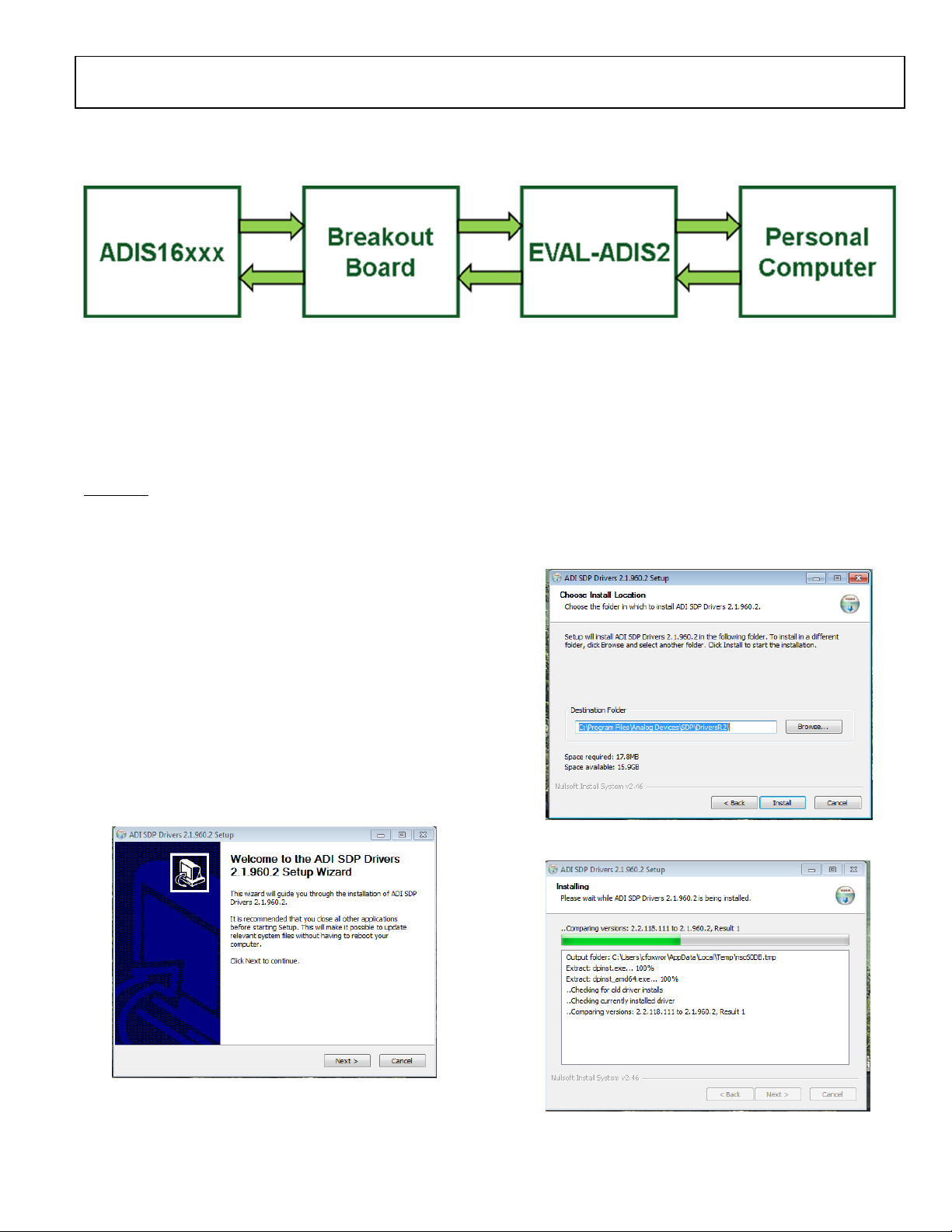

EVALUATION USING THE EVAL-ADIS2 SYSTEM

Figure 5. EVAL-ADIS2 System Block Diagram

In addition to supporting quick prototype connections between the IMU and an embedded processing system, the breakout boards

connect directly to J1 on the EVAL-ADIS2 evaluation system. When used in conjunction with the IMU Evaluation Software for the EVAL-

ADISZ Platforms, the EVAL-ADIS2 provides a simple, functional test platform that allows users to configure and collect data from the

IMU models. Figure 5 and Figure 8

Important: Download and install USB drivers before connecting the EVAL-ADIS2 to the test computer.

USB DRIVER INSTALLATION

The following instructions cover the USB driver installation for

the EVAL-ADIS2, and is common to ADI IMU products.

1. Navigate to

ftp://ftp.analog.com/pub/IMU/IMU_FTP_Directory.htm.

2. Locate and click on the link called SDPDrivers.zip under

the heading of EVAL-ADIS2 USB drivers.

3. After downloading the EVAL-ADIS USB Driver file,

extract the SDPDrivers.exe file from the zip file and double

click on the EXE to start the process. When the setup

wizard opens, click on Next to start the installation process:

4. Click on Next to accept the default driver location.

5. The user will see at least two progress bars like this:

UG-ADIS1650x ADIS1650x/PCBZ User Guide

Rev. PR.C | Page 6 of 11

6. Click on Install to continue with the installation if this

message appears during the process:

7. Click Finish to complete the process.

DOWNLOADING THE EVALUATION SOFTWARE

The evaluation software for the ADIS16505 can be downloaded

from the ADI IMU ftp site

1. Navigate to the ftp site by clicking here:

ftp://ftp.analog.com/pub/IMU/IMU_FTP_Directory.htm

2. Click on “IMU Evaluation 1.18.xx” where “xx” is the latest

version posted on the FTP site.

After the EXE file downloads, place it in a convenient location

on the host PC, but don’t run it until the evaluation board is

connected to the PC.

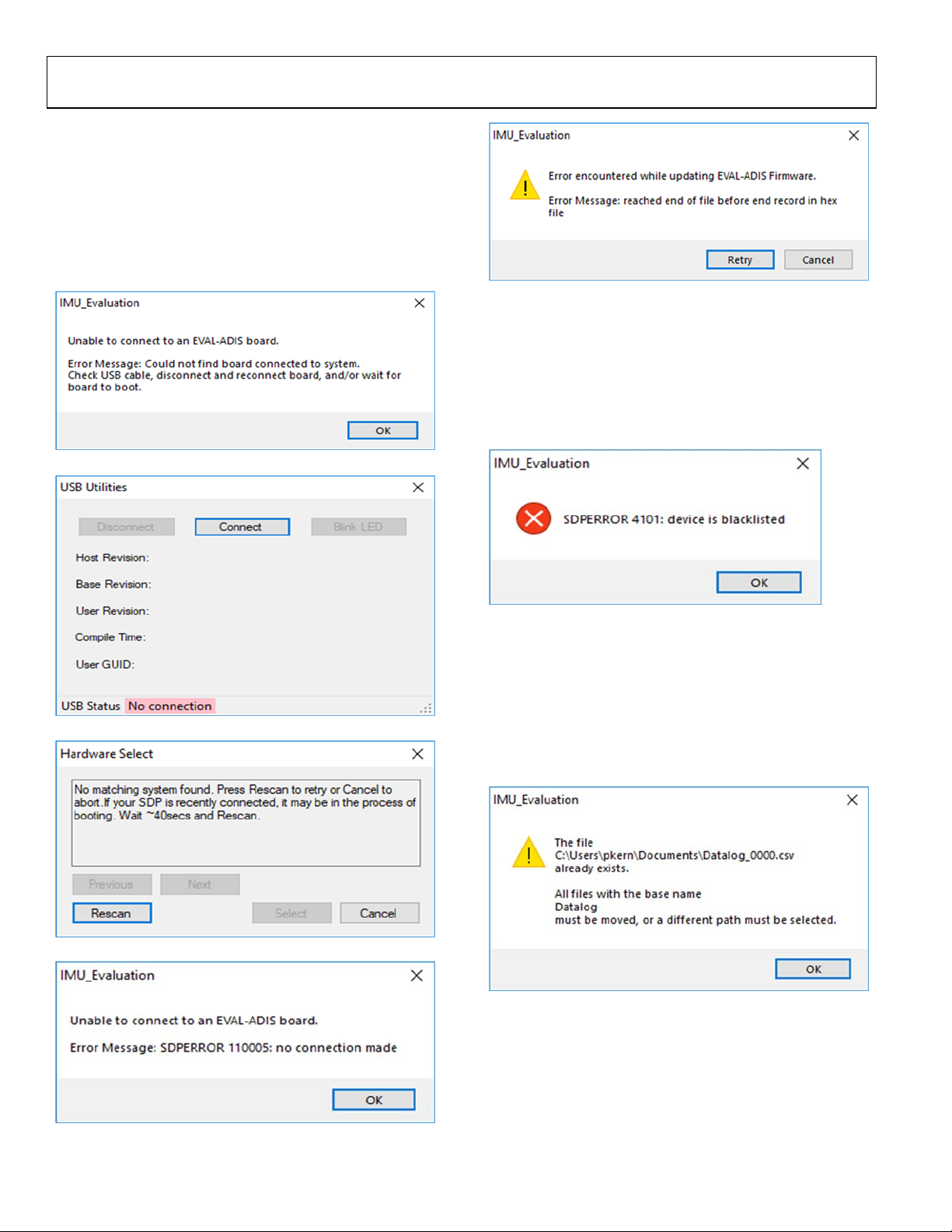

Note: If the user runs the software before connecting the

evaluation board, the user will see the following pop-up

windows and errors:

If this occurs, the user should exit out of the software, and

proceed to the “EVAL-ADIS2 Physical Connections” section of

this user guide and ensure that the evaluation board is properly

connected and powered prior to running the evaluation

software.

ADIS1650x/PCBZ User Guide UG-ADIS1650x

Rev. PR.C | Page 7 of 11

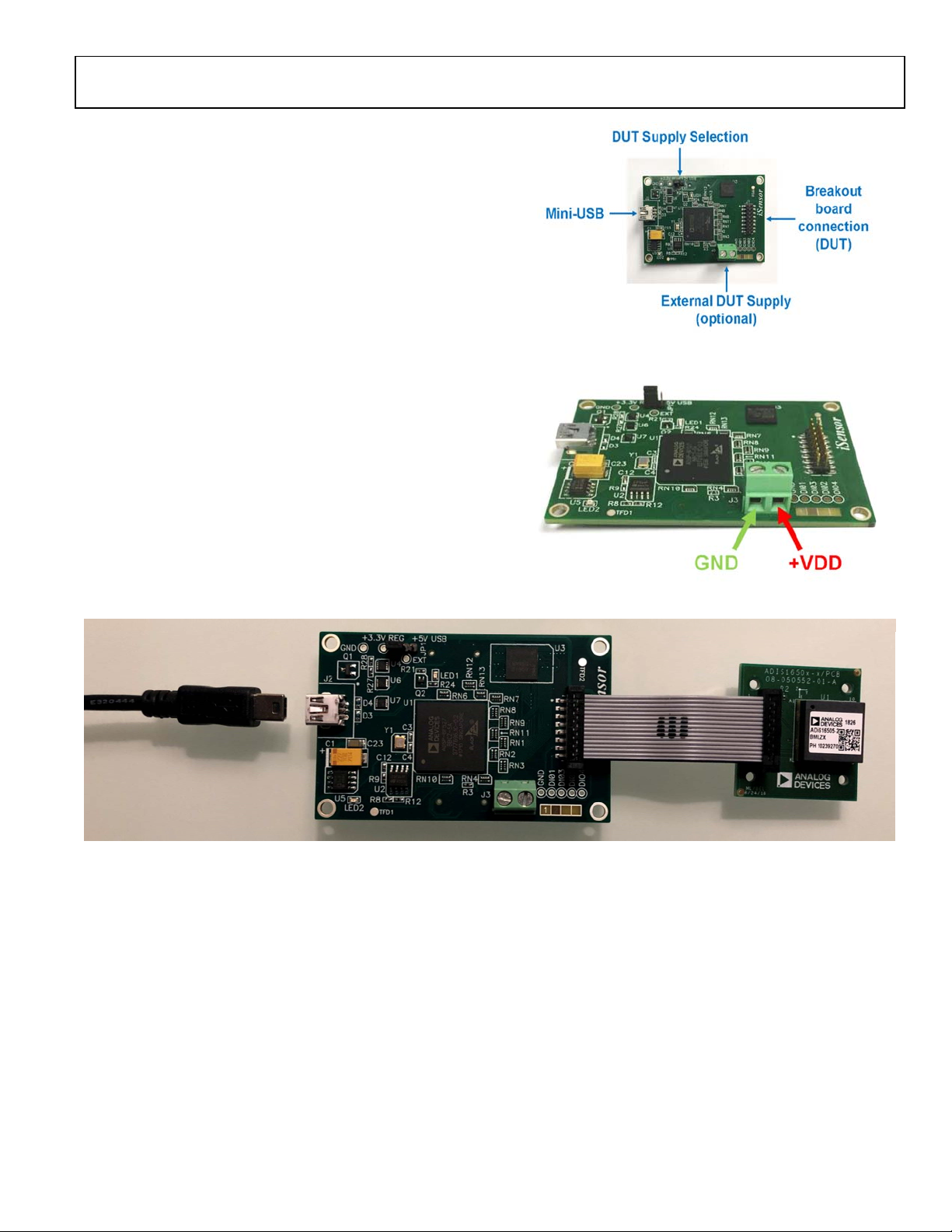

EVAL-ADIS2 PHYSICAL CONNECTIONS

Figure 8 illustrates the physical connection between the

ADIS16505-2/PCBZ and an EVAL-ADIS2Z evaluation system.

Connecting the Evaluation Boards

1. Ensure that Jumper JP1 (See “DUT Supply Selection” in

Figure 6) is straddling the left “+3.3V REG” pin and the

center pin, assuming the EVAL-ADIS2 board is oriented as

shown in Figure 6.

Note: If the user wishes to use an external power supply,

move the JP1 jumper so that it straddles the center and

lower pin and connect the external supply to Connector J3.

GND is the left pin and VDD (+3.3 V) is the right pin.

See Figure 7 for an illustration.

2. Connect the ribbon cable between the EVAL-ADIS2 and

ADIS16505 evaluation board.

3. Connect the EVAL-ADIS2 USB cable to the PC and verify

that LED1 and LED2 are illuminated on the EVAL-ADIS2

board.

Figure 6. EVAL-ADIS2 Connector Locations

Figure 7. EVAL-ADIS2 External Power Connector

Figure 8. ADIS16505-2PCBZ connection to the EVAL-ADIS2

UG-ADIS1650x ADIS1650x/PCBZ User Guide

Rev. PR.C | Page 8 of 11

EVALUATION SOFTWARE

RUNNING THE EVALUATION SOFTWARE

1. Ensure the that USB Driver is properly installed as

described in the “USB Driver Installation” section of this

user’s guide.

2. Ensure that the evaluation board is properly connected as

described in the “EVAL-ADIS2 Physical Connections”

section of this user’s guide.

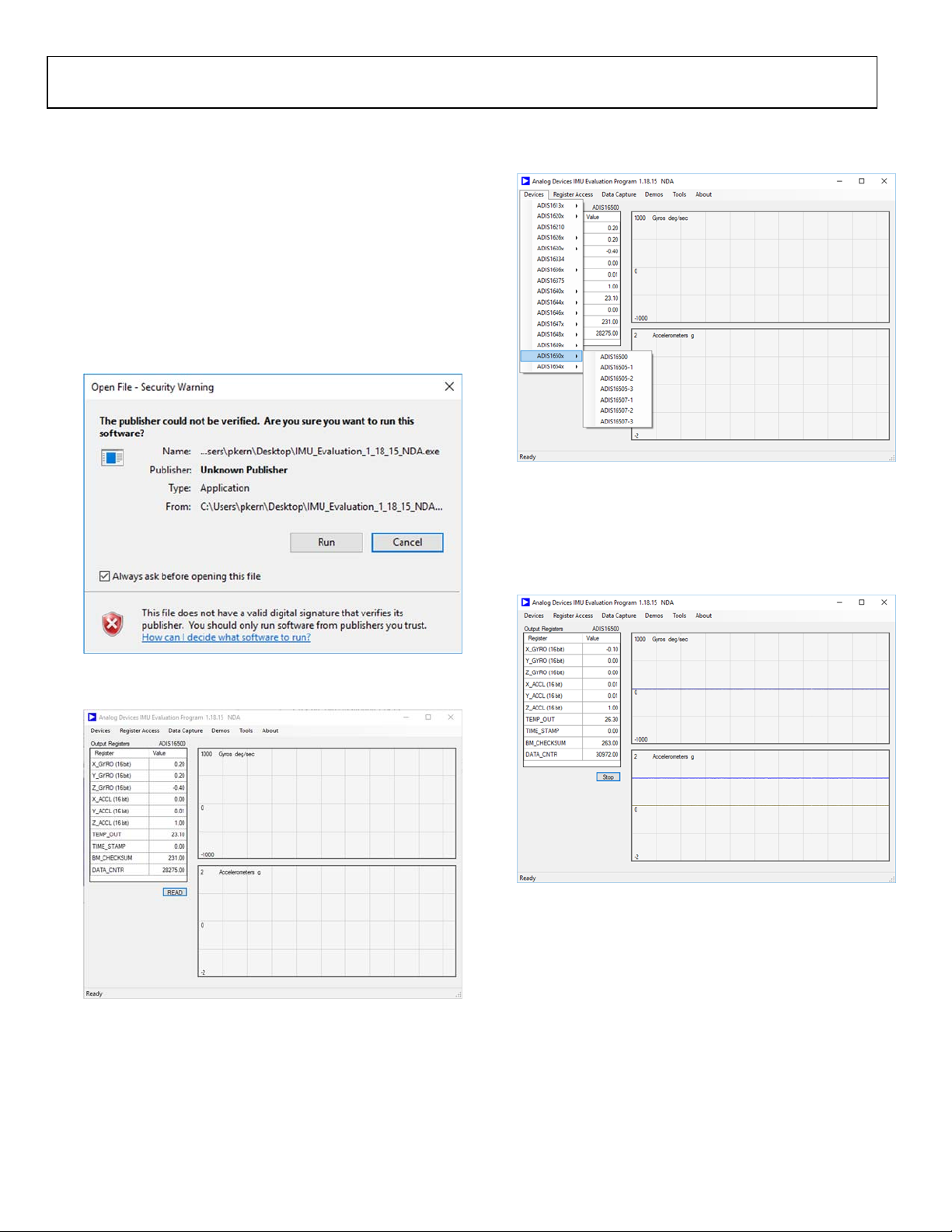

3. Double-click on the ADIS16505 evaluation software EXE

file. The user should click the “Run” button if this pop-up

window appears:

4. The EVAL-ADIS main window appears

5. On the Devices Menu, select the correct IMU model.

6. Click on the “READ” button to read the IMU registers in

real-time. If the EVAL-ADIS2 is correctly connected, and

all the drivers and software are correctly installed, the user

should see the following, if the IMU is at rest and lying

face-up on a flat surface:

Note that the gyroscopes read zero rotation, the x- and y-

axis accelerometers read 0 g, and the z-axis reads 1 g.

ADIS1650x/PCBZ User Guide UG-ADIS1650x

Rev. PR.C | Page 9 of 11

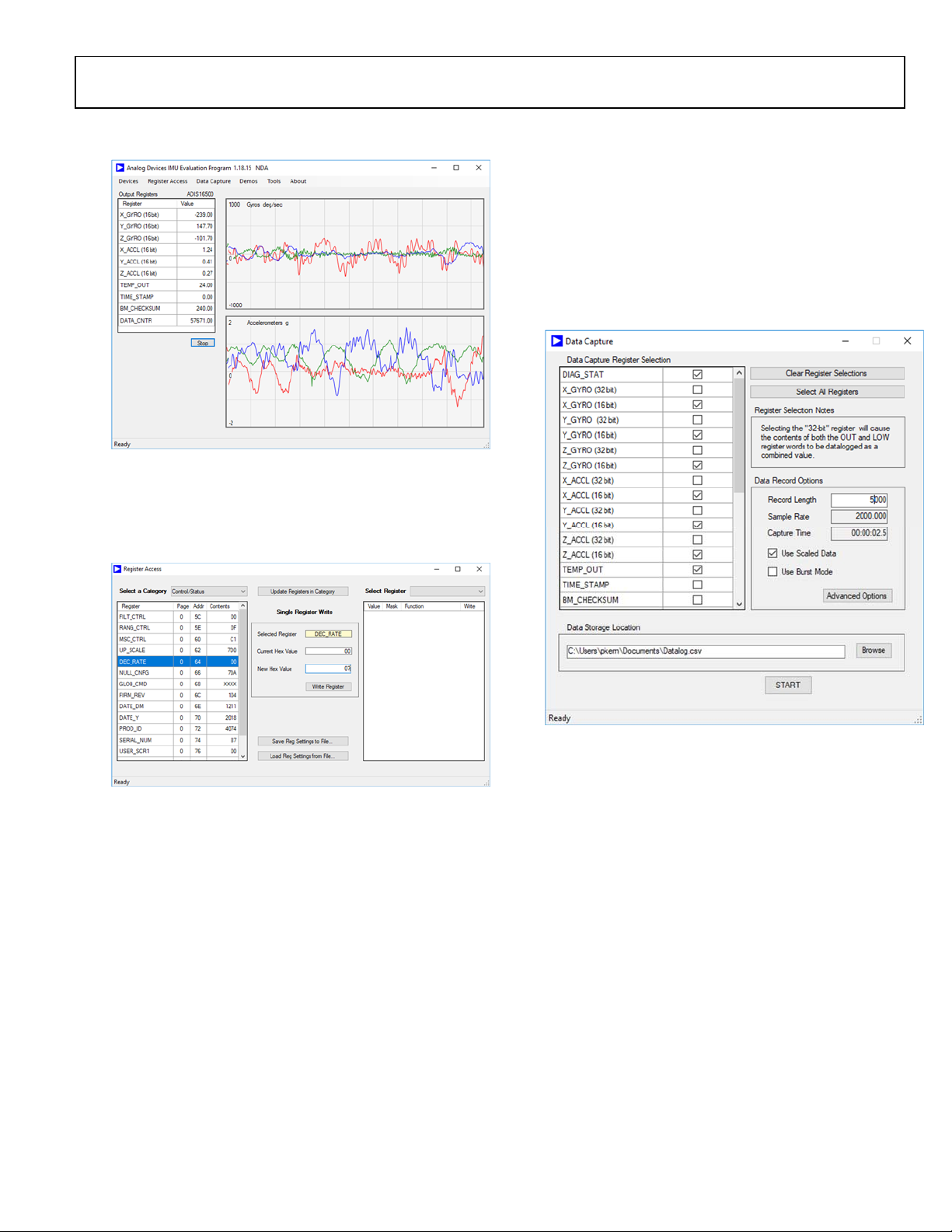

7. Movement of the IMU is recorded and displayed in real

time:

8. The user can change register settings by clicking on the

“Register Access” menu. In this example, the decimation

rate is being changed from 0x00 to 0x07.

9. Logging the IMU readings is a common task using the

EVAL-ADIS2 and clicking on the Data Capture menu

brings up the data capture window. This window allows the

user to choose which settings to log. Note that if a

decimation rate of 0 (no averaging) is used, the user will

need to select 16-bit gyro and accelerometer values (not

32-bit) to have enough time to transfer all data in one data

capture interval. However, this does not limit the accuracy

of the IMU data, as the lower 16-bits are only significant

when averaging or filtering is enabled.

ADIS1650x/PCBZ User Guide UG-ADIS1650x

Rev. PR.C | Page 21 of 21

TROUBLESHOOTING

RUNNING THE SOFTWARE WITHOUT AN EVAL-

ADIS2 EVALUATION BOARD ATTACHED

The user will see the following screens if the evaluation software

is run without the EVAL-ADIS2 connected:

In this case, the user should exit out of the software, and

proceed to the “EVAL-ADIS2 Physical Connections” section of

this user guide and ensure that the evaluation board is properly

connected and powered prior to running the evaluation

software.

DEVICE BLACKLISTED

The most common cause of this error is attempting to read the

registers of the IMU while the EVAL-ADIS2 evaluation board is

disconnected from the PC after having previously been

successfully connected. Communication can be restored by

reconnecting the EVAL-ADIS2 to the PC.

LOG FILE ERROR

This error occurs if the filename specified for the data log file

already exists. The user should either rename the existing file or

choose a different filename for the new log file.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Analog Devices

Analog Devices

Analog Devices DC2685A Guía de configuración rápida

Analog Devices

Analog Devices EV-ADF4355SD1Z Manual de usuario

Analog Devices

Analog Devices AD7195 Manual de usuario

Analog Devices

Analog Devices EZ-KIT Lite ADSP-BF707 Guía del usuario

Analog Devices

Analog Devices ADXRS450 Manual de usuario

Analog Devices

Analog Devices Hittite HMC764LP6CE Manual de usuario

Analog Devices

Analog Devices EVAL-AD5678DBZ Manual de usuario

Analog Devices

Analog Devices LINEAR TECHNOLOGY LTC2874 Guía de configuración rápida

Analog Devices

Analog Devices DC2374B Guía de configuración rápida

Analog Devices

Analog Devices EVAL-AD7606BFMCZ Manual de usuario

Analog Devices

Analog Devices DC3186A Guía de configuración rápida

Analog Devices

Analog Devices ADP1872-EVALZ Manual de usuario

Analog Devices

Analog Devices EVAL-AD5592RSDZ Manual de usuario

Analog Devices

Analog Devices EVAL-ADAQ23876FMCZ Manual de usuario

Analog Devices

Analog Devices ADP5063 Manual de usuario

Analog Devices

Analog Devices EV-SC594-SOM Manual de usuario

Analog Devices

Analog Devices EVAL-AD51150SDZ Manual de usuario

Analog Devices

Analog Devices INEAR TECHNOLOGY DC2583A Guía de configuración rápida

Analog Devices

Analog Devices EVAL-AD7903SDZ Manual de usuario

Analog Devices

Analog Devices ADA4830-1BCP-EBZ Manual de usuario

Analog Devices

Analog Devices Hittite HMC1023LP5E Manual de usuario

Analog Devices

Analog Devices EVAL-ADPD1081Z-PPG Manual de usuario

Analog Devices

Analog Devices AD9739-R2-EBZ Manual de usuario

Analog Devices

Analog Devices EVAL–ADM2486EBZ Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
