INSTRUCTION MANUAL
RANGE HOOD
MODEL:3005D
Available size:30''
AC 120V 60Hz
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
CONTENTS
SAFETY WARNING ....................................................................................................01
NOTICE OF INSTALLATION ......................................................................................03
INSTALLATION............................................................................................................03
TOUCH CONTROL PANEL INSTRUCTION ...............................................................06
REMOTE CONTROL FUNCTION ...............................................................................07
MAINTENANCE...........................................................................................................08
TROUBLESHOOTING ................................................................................................10
1
SAFETY WARNING
Thank you for choosing our cooker hood. Please read the instruction
manual carefully before use.
The cooker hood is used on 120V,60Hz.
Never let the children operate the machine.
The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purpose.
The cooker hood and its filter should be clean regularly in order to keep in
good working condition.
Clean the cooker hood according to the instruction manual and keep the
unit from danger of burning.
Forbid the direct baking from the gas cooker.
Please keep the kitchen from a good air flow.
Before connecting this appliance,check if the power supply cord is not
damaged. If the supply cord is damaged,it must be replaced by the
manufacturer,it's service agent or similarly qualified persons in order to
avoid a hazard .
There is fire risk if cleaning is not carried out in accordance with the
instructions.
There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels.
The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
Regulations concerning the discharge of air have to be fulfilled.
Do not flame under the range hood.
The range hood is not intended to be installed over a hob having more
than four hob elements.
This appliance is not intended for use by persons(including children)with
reduced physical,sensory or mental capabilities,or lack of experience and
knowledge,
unless they have been given supervision or instruction concerning use of
2
the appliance by a person responsible for their safely.
Children should be supervised to ensure that they do not play with the
appliance.
When the range hood and appliances supplied with energy other than
electricity are simultaneously in operation,the negative pressure in the
room must not exceed 4 Pa (4x10-5 bar)
CAUTION:Accessible parts may become hot when used with cooking
appliance.
The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
If the external flexible cable or cord of this luminaire is damaged,it shall be
exclusively replaced by the manufacturer or his service agent or a similar
qualified person in order to avoid a hazard.
Electrical Shock Hazard
Only plug this unit into a properly earthed outlet. If in doubt seek advice
from a suitably qualified engineer.
Failure to follow these instructions can result in death, fire,or electrical
shock.
The instructions shall state the substance of the following:
-there shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels(not
applicable to appliances that only discharge the air back into the room);
-the details concerning the method and frequency of cleaning;
-there is fire risk if cleaning is not carried out in a accordance with The
instruction;
-CAUTION:Accessible parts may become hot when used with cooking
appliances;
-The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels(not applicable to
appliances that only discharge the air back into the room);
-In order to optimally capture the contamination during cooking, your
3
extractor hood should be installed at least 65cm above the cooking
surface.
-Regulations concerning the discharge of air have to be fulfilled.
NOTICE OF INSTALLATION
1.Before installation, please ensure the area is clean to avoid suction of
the remaining bits of broken wood and dust.
2.It cannot share the same air ventilation tube with other appliance such as
gas tube, warmer tube,and hot wind tube.
3.The bending of ventilation tube should be≥120°, parallel or above the
start point and should be connected to the external wall.

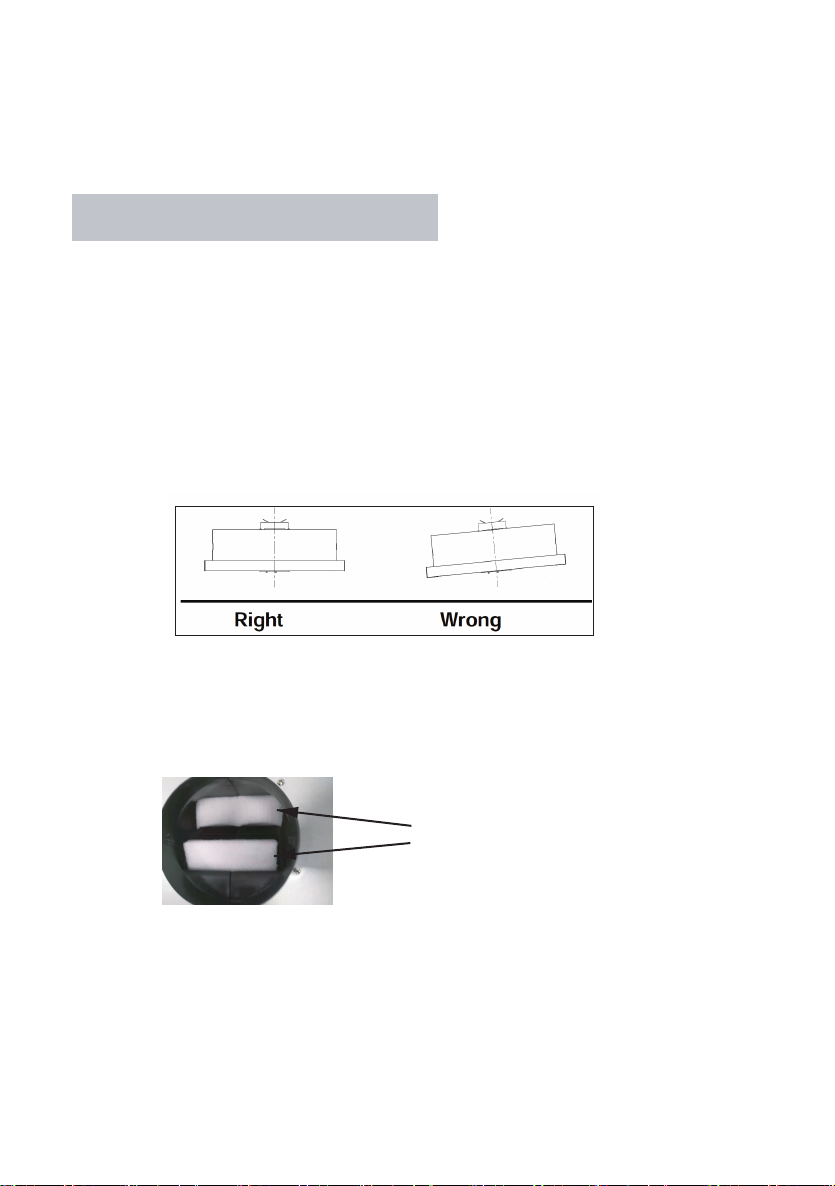

4.After installation,make sure that the extractor is level to avoid grease
collection at one end.
5.Warning: To prevent air block after power connected,please
remove two protection foams from air outlet before installation.
two protection foams
For general ventilating use only. Do not use to exhaust hazardous or explosive materials
and vapors.
Mount your range hood so that the bottom of the hood is 26" to 30" above the cooking surface.
The minimum hood distance above cooktop must not be less than 26"; any installation less than
26" may cause overheating and cause damage to the range hood.
Two to three installers are recommended because of the larger size and weight of this hood.
To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not exhaust
air into spaces within walls and ceiling or into attics, crawl space or garages.
Because of the high exhausting capacity of this hood,you should make sure enough air is
entering the house to replace exhausted air by opening a window close to or in the kitchen.
Use with approved cord-connection kit only.
Please read product specification label on range hood for further information and requirements.
INSTALLATION CAUTION
Wear protective gloves if it is necessary to remove any parts for installing ,cleaning or servicing.
Check all joints on duct work to insure proper connection and all joints should be properly taped.
All electrical wiring must be properly installed,insulated and grounded.
When cutting or drilling into wall or ceiling,be careful not to damage electrical wiring or other
hidden utilities.
INS

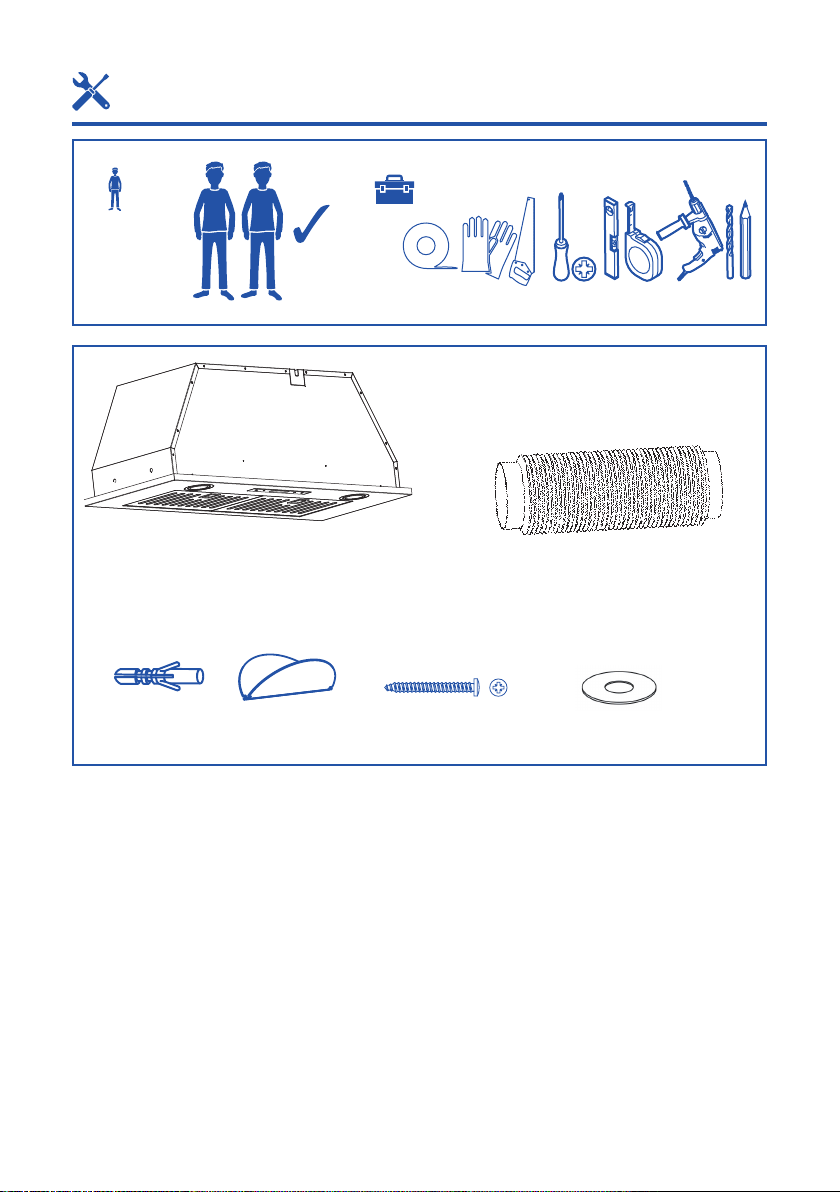

Tools needed for the installation
Parts included
TALLATION
x2
[02] x 8 [03] x 1 [04] x 8
[01] x 1
(4x40 mm) (Φ12*0.8)
[05] x 8
15mm(0.6’’)
750mm(30’’)
716mm(28.2’’)
296mm(11.7’’)
259.4mm
(10.2’’) 65mm
(2.6’’)
280 mm(11’’)
Ø 150mm (6’’)

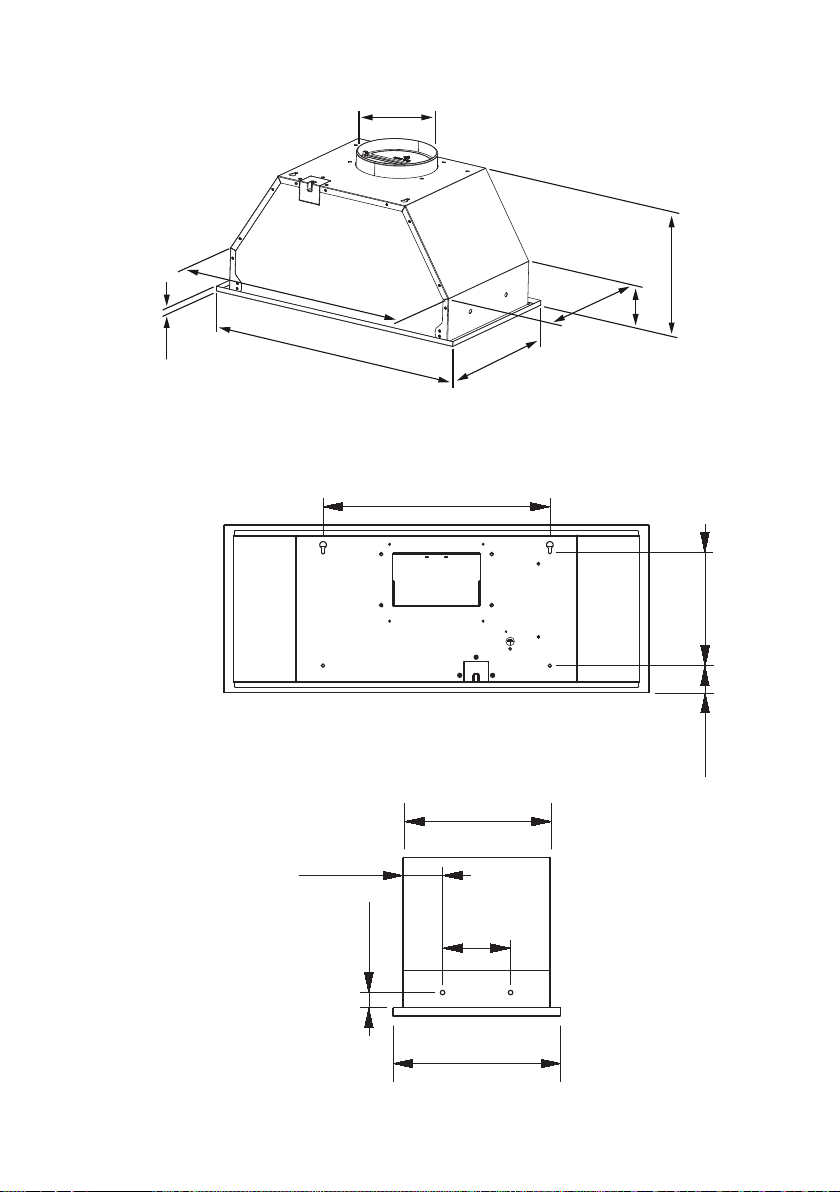

Side view
Back view
Whole view
400mm(15.7’’)
200mm (7.9’’)
48mm (1.9’’)
259.4mm (10.2’’)
296mm (11.7’’)
120mm (4.7’’)
69.7mm (2.7’’)
26.7mm (1.1’’)
01
Length 716~719 mm
*Width 260~263 mm
*
02
(26 inch)
(30 inch)
Cut-out dimension:Length 716~719mm(28.2’’~28.3’’) X Width 260~263 mm (10.2’’~10.4’’)

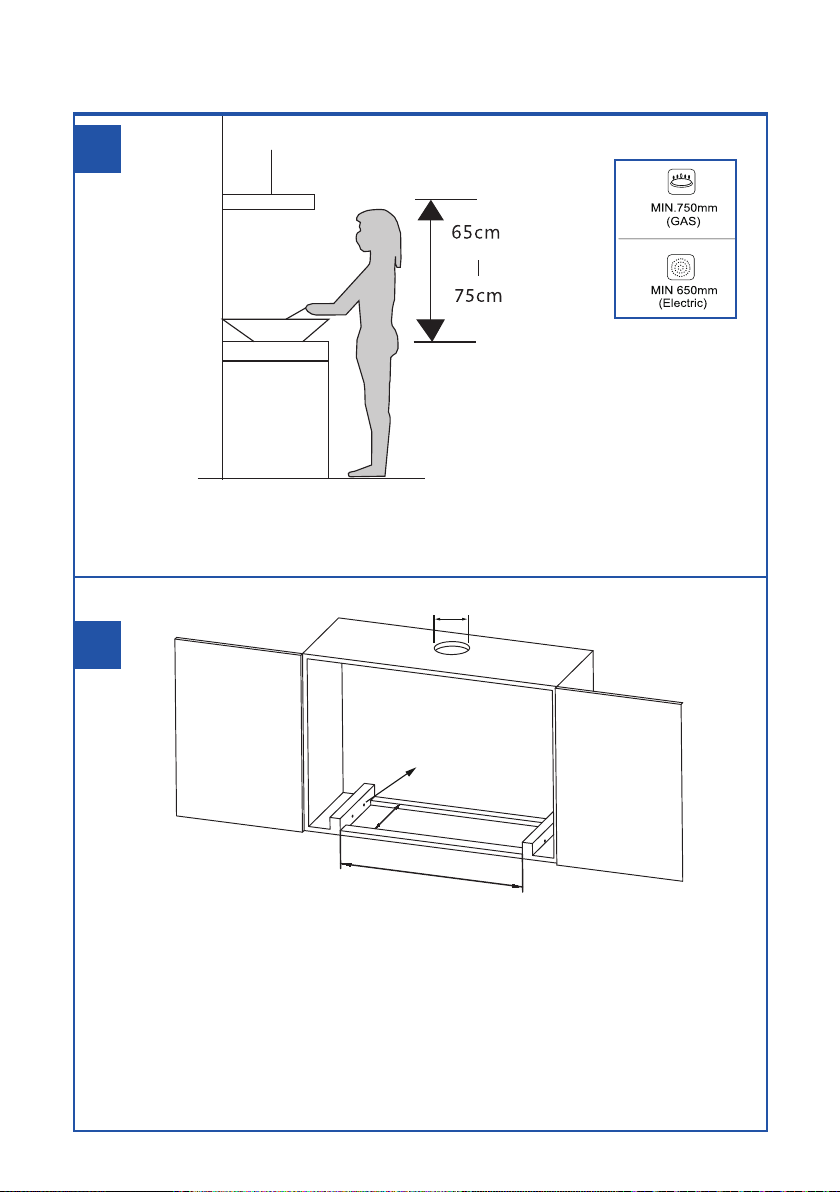

The cooker hood should be placed at a distance of 65-75cm(26-30inch) from the
cooking surface for the best effect.
1) Mearsure and cut an opening at the bottom of the cabinet to fit the range
hood housing.
2) Measure and cut a hole (Ø160mm (6.3’’)) at the top of cabinet to fit the duct tube.
3) Note that the hole at the top of the cabinet may not be necessary depending
on venting methods chosen(see step 6 instruction). If the air is vented through
the wall,cut a hole at the wall.
4) According to the sizes shown in whole view and side view,drill the holes on two
wood frames on both sides.
drill the holes on
the wood frame
Ø160mm (6.3’’)
03
04
[05]×8
[02]×8
[04]×8

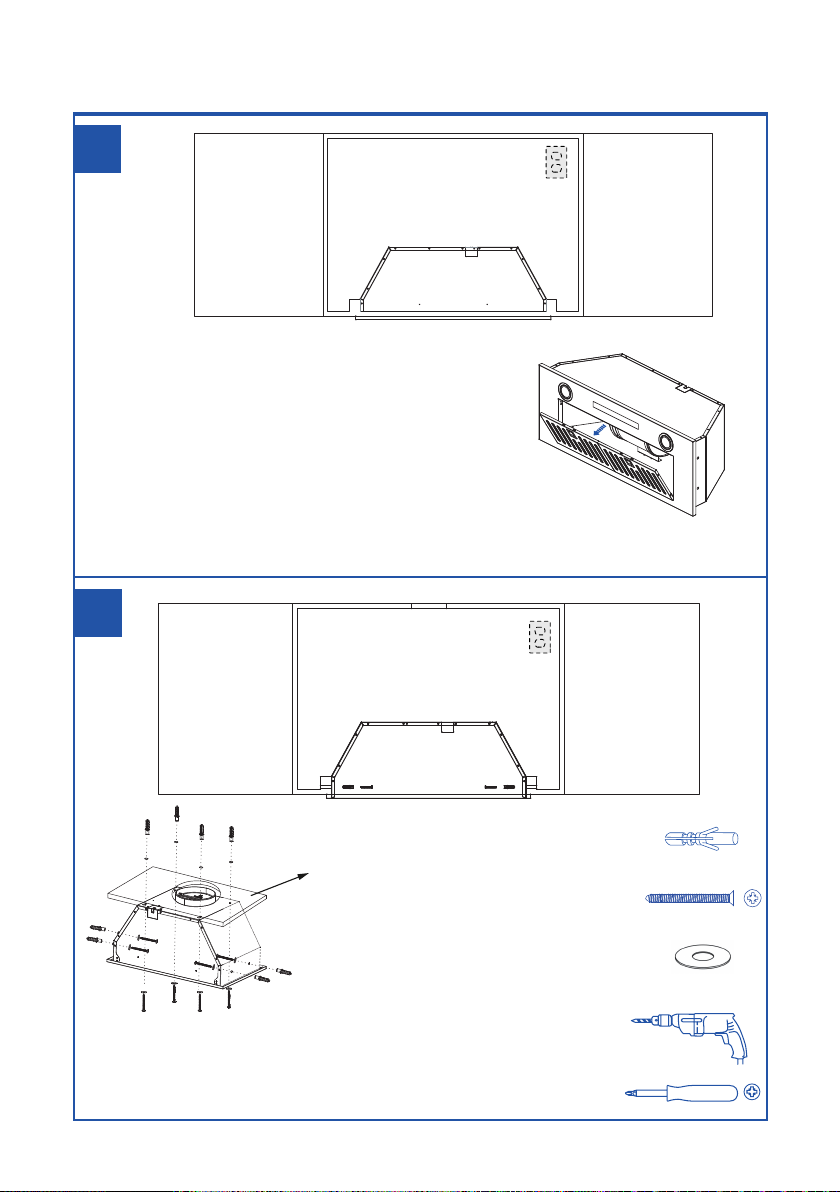

Optional assembly
Remove two stainless steel filters,then lift the range hood into the cabinet.
1) Align range hood to the pre-drilled holes on both sides
and screw in using the screws provided.
2) User could also drill screws on the top wood plate,
it’s optional assembly.
