Amperes PD2400 Manual de usuario
Thank you for choosing another quality product from Amperes Electronics.
Amperes has improved and upgraded this version of PD2400 paging microphone, which can be used and
interchanged with other models of PD series paging console in the system. Apart from this, every PD2400 can be
used alongside with MxP2188 MatriMix system, thanks to the continuous improvement policy of Amperes.
We shall endeavor to make products with contemporary needs and yet expandable for future upgrades. We are
sure you make the right decision to choose Amperes, which is not only offering the product that meets your budget,
but perform beyond your expectation.
We appreciate that you read through the manual to avoid any mishandling as well as to explore the full potential this
unit can offer. Keep this manual for future reference and we believe that you are getting an optimum product in its
class.

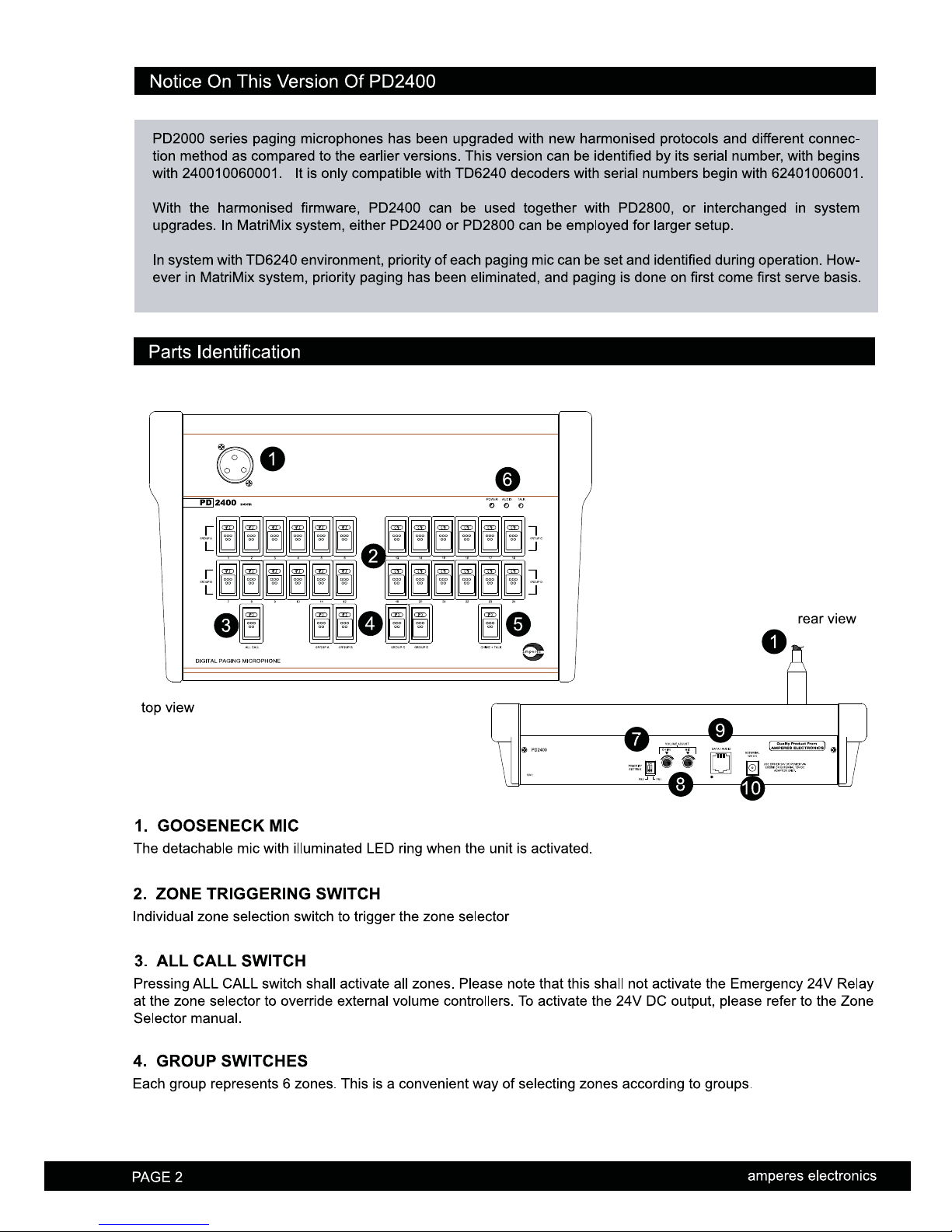

INSTRUCTION MANUAL
PD2400
24 Zones Digital Desktop Paging Microphone
VER 2 / 2010
version 2 / 2010
harmonised protocol

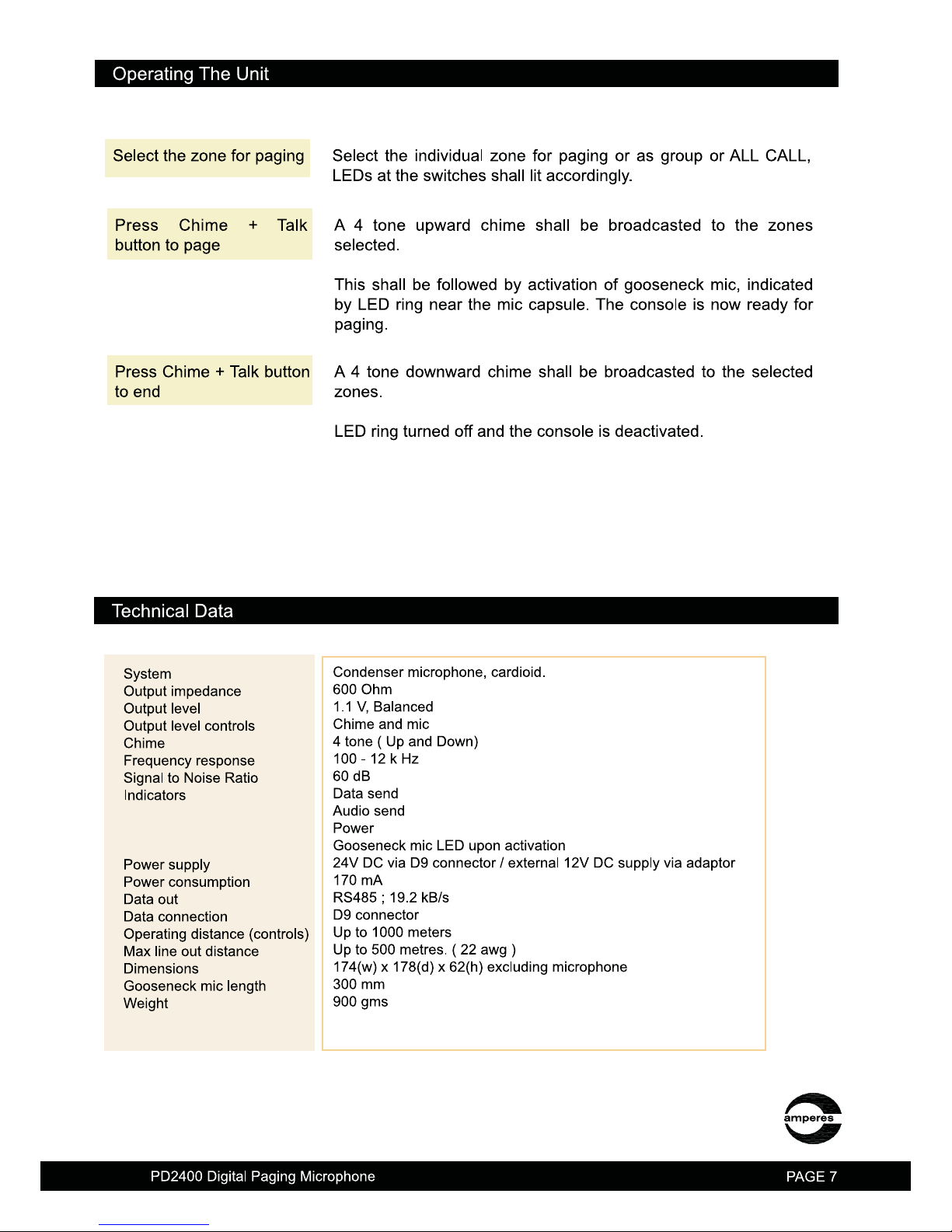

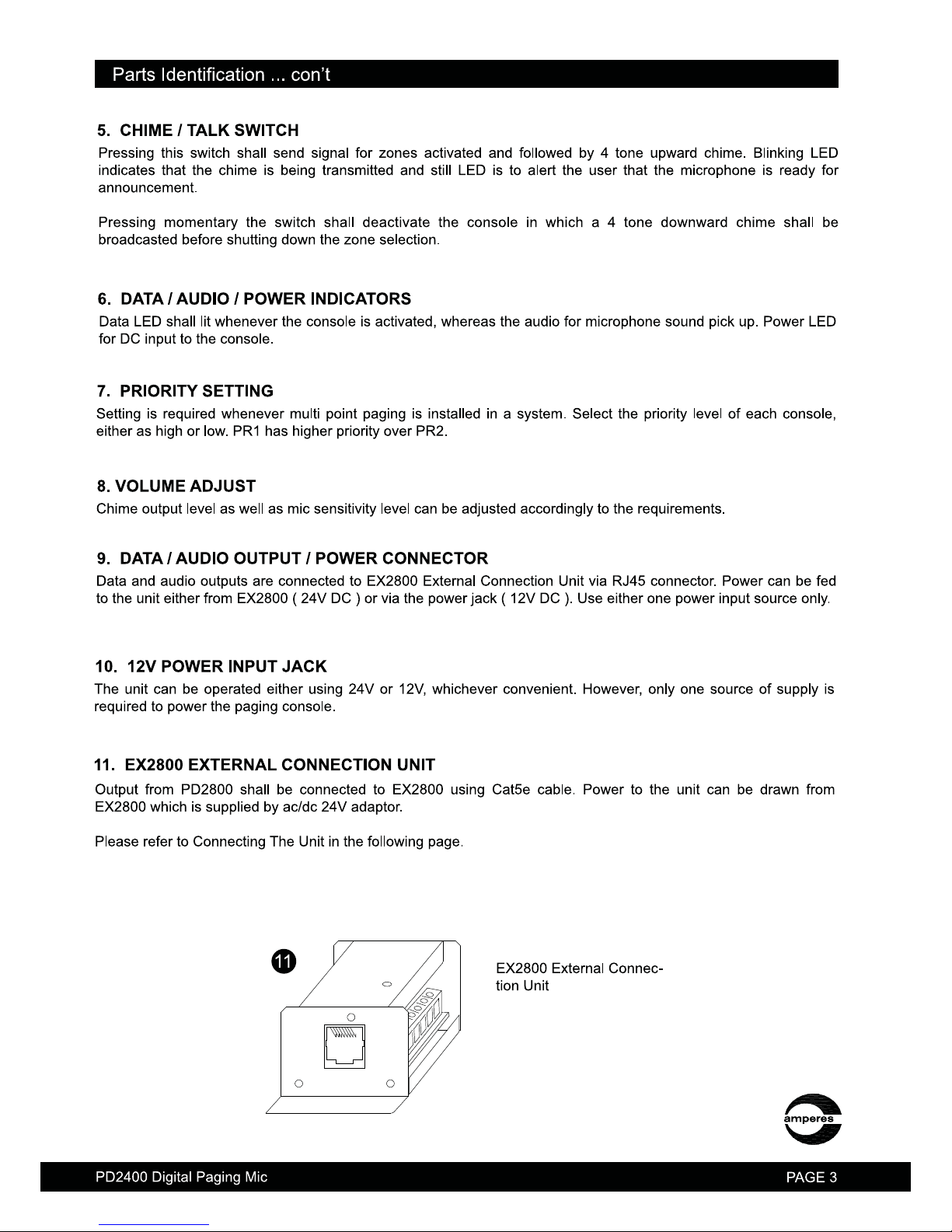

PAGE 4 amperes electronics
General Schematic Diagram
The above configuration shows a typical system with 24 speaker zones, using 3 units of PD2400 with
a single TD6240 ( 24 zone decoder ) and 2 ZS5121.
Other made of zone selectors of Amperes ZS5602 can be used to replaced ZS5121
Priority setting is done at each individual mic, connected to TD6240 remote mic inputs. Note that
connection to the TD6240 can be made freely to the connectors unlike the previous version.
PD2400 can also be used with MatriMix system. In this case EX1102 shall be used instead of
EX2800 as the external connection unit.
PD2400
Mic Nbr 1
PD2400
Mic Nbr 2
PD2400
Mic Nbr 3
EX2800
EX2800
EX2800
TD6240 Zone Decoder
(24 channel)
MX2222 Pre-amplifier
Mixer
Power Amplifier
ZS5121 Spk Zone Selector
(Zone 1 to 12)
ZS5121 Spk Zone Selector
(Zone 13 to 24)
Speakers
12V DC
via adaptor
8 core cable ( Cat 5 )
connection via RJ45 Jack
Each cable to cater for 6
zones
Cat 5e
Cat 5e
Cat 5e
At remote location
2 pair screen cable
12V DC
via adaptor
