AMP Lighting AtomPro Mini LED Spotlight Instrucciones de funcionamiento y seguridad

INSTALLATION & MAINTENANCE GUIDE

Help Hotline:

1-813-978-3900 • Mon-Fri 9am-6pm (EST)

www.amplighting.com

AMP®Low Voltage Landscape Lighting

AMP® AtomPro Mini LED Spotlight (Constant Output)

AAL-1041-4-B-BZ

AMP® AtomPro Mini LED Spotlight (Constant Output)

AAL-1041-4-B-BZ

INSTALLATION & MAINTENANCE GUIDE

www.amplighting.com

–2–

[email protected] • 813.978.3900

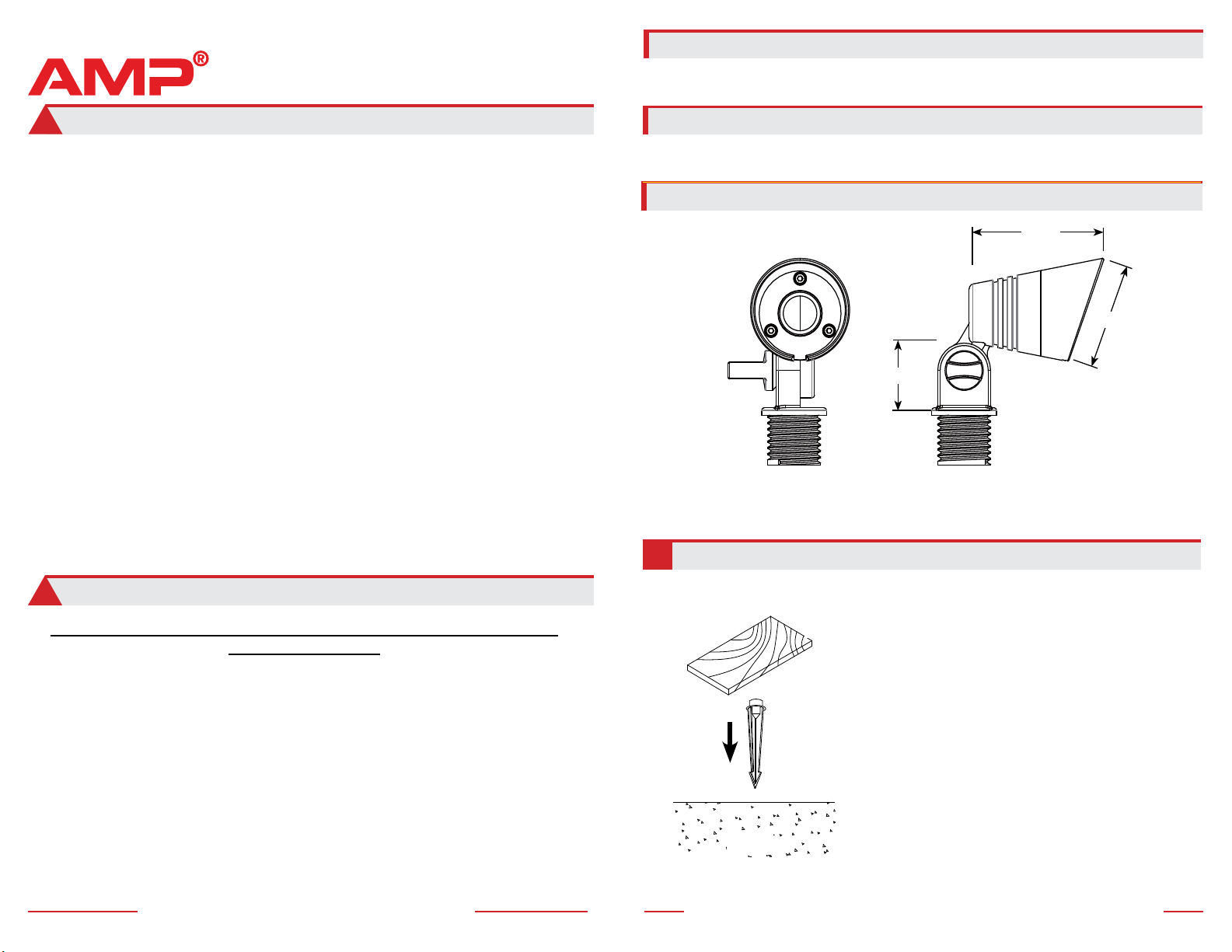

Product Dimensions

–3–

Important Safety Instructions: Read Before Installation

Important Safety Instructions

Package Contents

A. (1) Fixture Body

Parts Required (sold separately)

A. (1) Stake

Install Stake

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing

this luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that

are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or

tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

1.15”

1.75”

2.2”

Determine the desired location

for mounting the stake mount.

Hammer the stake into the

ground until ange of stake

is ush to grade. To avoid

damage to the stake, place a

board on top of the stake while

hammering.

Note: If the ground is hard and

the stake is dicult to install,

make a crosscut in the ground

using a at shovel.

Board

Ground

Soil

Stake

INSTALLATION & MAINTENANCE GUIDE

–4–

www.amplighting.com

–4–

[email protected] • 813.978.3900

–5–

AMP® AtomPro Mini LED Spotlight (Constant Output)

AAL-1041-4-B-BZ

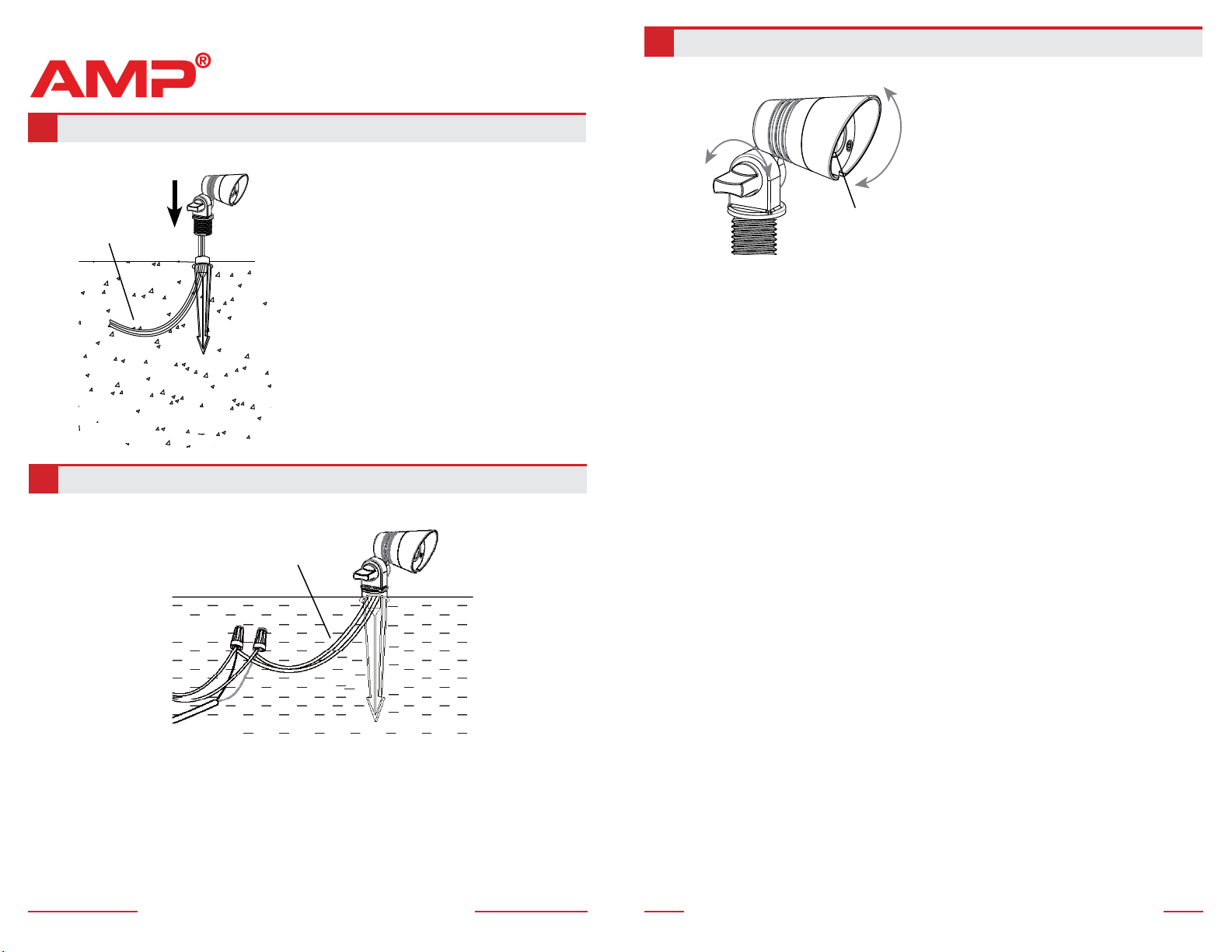

Install Fixture Body to Stake

Clear away an area in the

ground at the wireway slot

on top of the stake. Lay the

xture wire into the wireway

slot. Thread the xture body

onto the stake and hand

tighten until snug.

Fixture Body

Fixture Wire

Ground

Soil

Stake

Wire Connections

Strip both leads from the xture body supply wires. Using two UL listed

wire connectors (sold separately), connect supply wires from xture

body to the main supply cable leads.

Main Supply Cable

Supply Wire from

Fixture Body

Wire Connectors

Adjust Luminaire Direction

Loosen the handle at the joint

of xture body and then adjust

the luminaire to your desired

direction. Always tighten the

handle once your desired

direction is achieved.

Knuckle

Luminaire

Rotate

INSTALLATION & MAINTENANCE GUIDE

–6–

www.amplighting.com

–6–

[email protected] • 813.978.3900

–7–

AMP® AtomPro Mini LED Spotlight (Constant Output)

AAL-1041-4-B-BZ

IS-AAL-1041-4-B-BZ-ver1.pdf

Specications and product details subject to change without notice.

[email protected] • 813.978.3900

Help Hotline:

1-813-978-3900 • Mon-Fri 9am-6pm (EST)

www.amplighting.com
