AGH7100 &
AGVH7300
Gas hobs
Installation, use and maintenance
2
Contents:
3 Important safety warnings
4 Important safety warnings and appliance information
6 Using Your Hob
7 Hob layout(s)
9 Igniting the burners
10 Ecient use of your hob
11 Care And Maintenance- AGH7100
12 Care And Maintenance- AGVH7300
13 Troubleshooting
14 What to do if you smell gas
17 Preventing unsafe conditions
18 Mains Electricity Connection
19 Gas Supply Requirements
20 Ventilation
21 Natural Gas to LPG Conversion
22 LPG to Natural Gas Conversion
22 Fitting the hob
24 How to install the hob
25 Installation diagrams
26 Energy eciency information
IMPORTANT: THIS APPLIANCE MUST BE INSTALLED BY GAS
SAFE REGISTERED PERSONS, IN COMPLIANCE WITH THE
CURRENT REGULATIONS AND ONLY INSTALLED IN ROOMS
EQUIPPED WITH ADEQUATE VENTILATION. CONSULT THIS
ENTIRE MANUAL BEFORE PROCEEDING WITH INSTALLATION
OR USE OF THE APPLIANCE. DO NOT MODIFY THE HOB IN ANY
WAY. TO DO SO MAY BE DANGEROUS.
3
Important safety warnings
1. It is a legal requirement that all gas appliances are installed by
qualified personnel and only in accordance with current legislation. It
is your responsbility to ensure compliance with the law.
2. Repairs or servicing of this product must only be carried out by an
authorised service agent using approved parts.
3. No attempt must be made to modify this appliance under any
circumstances.
4. Cooking appliances can become very hot in use – please keep
children and pets away from them at all times.
5. Do not allow children to operate or play with any part of the
appliance.
6. Do not use unstable pans and ensure that the handle is positioned
away from the edge of the worktop.
7. In the interest of hygiene and safety, please ensure the hob is kept
clean.
8. This appliance is designed for domestic cooking only. Commercial
use will invalidate the warranty.
9. Do not cover the hob or place combustible materials on or near the
surface even when the hob is not in use.
10. Do not fill deep fat frying containers more than one thrid full of oil
and never leave unattended.
11. If the supply cable is damaged it must be replaced by a CDA
authorised service agent or qualified person only.
12. Do not immerse the appliance or the power cable into water or any
other liquid.
13. Any gas regulator used must comply with EN 16129 or EN 12864
and local and national regulations. Make sure of the outlet pressure
before connecting the regulator to the product.
4
Important safety warnings
The manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product.
Please note that we reserve the right to invalidate the guarantee
supplied with this product following incorrect installation or misuse of
the appliance.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
EU Declarations of Conformity:
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Gas safety, Electrical
5
safety (LVD) and Electromagnetic interference compatibility (EMC).
Parts intended to come into contact with food conform to 1935/2004/
EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.
Please note:
•Gas hobs become hot and remain hot during and immediately after
use. Do not touch the pan stands, burners or hob spill tray until the
appliance has been allowed to cool.
•Keep children away from the appliance when in use.
•After use, please ensure that the gas taps are in the ‘O” position.
•Ensure that the appliance is correctly adjusted for the type of gas
available before installation.
•The use of a gas appliance produces heat and humidity in the room
in which it is installed. Ensure that the room is well ventilated, either
by the use of natural ventilation outlets (e.g. windows) or a ducted
extractor.
6
•This hob (Class 3) has been designed for use only as a cooking
appliance. Any other use (e.g. heating rooms) should be considered
incorrect and potentially dangerous.
•These instructions are valid only for the countries of destination, the
symbols of which appear the appliance.
Using your hob
Gas burners:
Gas flow to the burners is controlled by the control knobs (5, 6, 7, 8 and
9 on the diagrams on pages 6 & 7). There are 3 positions shown on the
control panel. Turning the control knob to the positions shown below
achieves the following:
Closed (OFF position)
Maximum position: Provides fast boiling function
Minimum position: Provides simmer function
The burners can be set to the desired position by turning the control
knobs through the adjustment range in an anti-clockwise direction.
Fig. 1
7

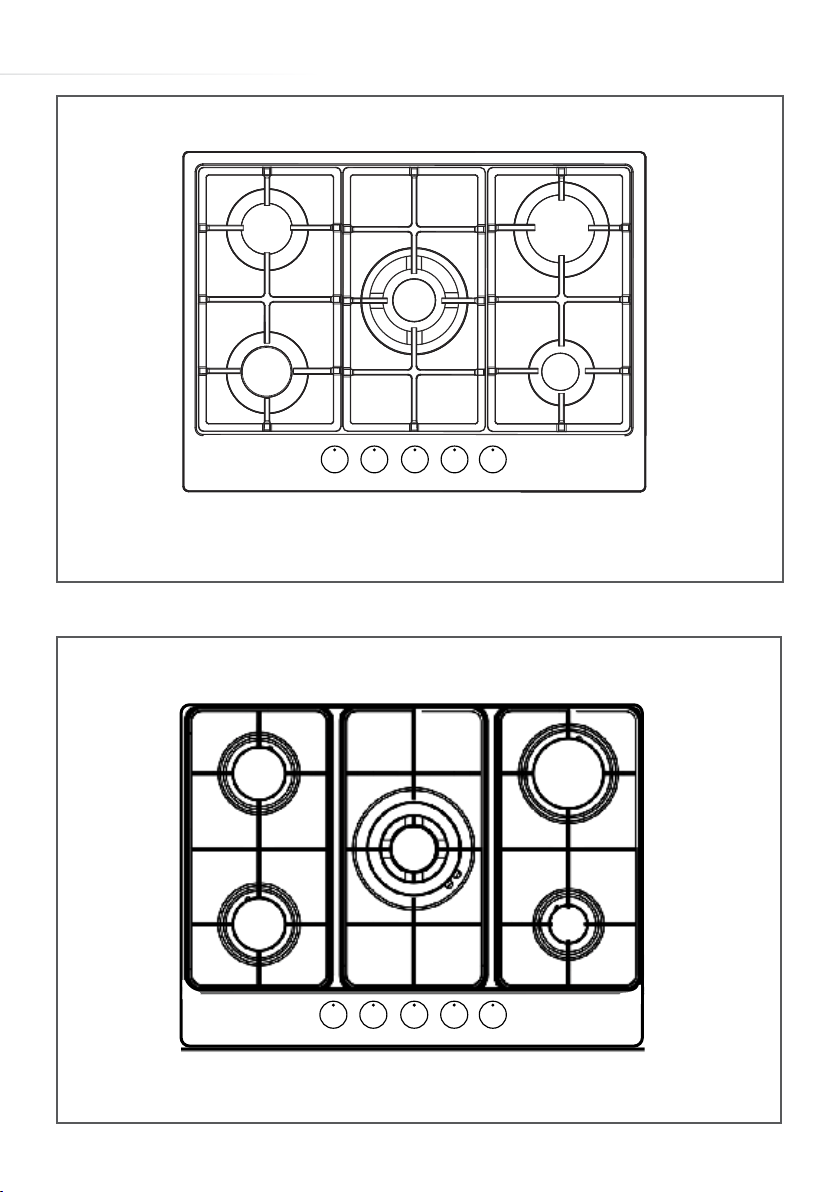

AGH7100
Fig. 2
AGVH7300
Fig. 3
3
3
2
4
5 6 7 8 9
1
5 6 7 8 9
3
3
2
4
1
8
Key to Fig 2
Gas burners:
1. Triple burner 3.8kW
2. Rapid burner 3.0kW
3. Semi-Rapid burner 1.75kW
4. Auxiliary burner 1.0kW
Control panel:
5. Front left burner control knob
6. Back left burner control knob
7. Centre burner control knob
8. Back right burner control knob
9. Front right burner control knob
Key to Fig 3
Gas burners:
1. Triple burner 3.8kW
2. Rapid burner 3.0kW
3. Semi-Rapid burner 1.75kW
4. Auxiliary burner 1.0kW
Control panel:
5. Front left burner control knob
6. Back left burner control knob
7. Centre burner control knob
8. Back right burner control knob
9. Front right burner control knob
These appliances are class 3
9
Igniting the burners
The hob is fitted with flame failure de-
vices on each burner. Flame failure de-
vices operate by shutting o the supply
of gas to the burner in the event that
the flame is extinguished accidentally.
To ignite the burners, follow these
instructions:
1. Lightly press the control knob down and turn the knob anti-
clockwise to the maximum position. Firmly press and hold down
the control knob to begin the ignition process (a clicking sound
will be heard). Hold down the control knob for a few seconds
(sometimes up to 10) after ignition to allow the safety device to
detect that the burner is lit.
2.Once the burner is lit, adjust the burner power to the required
position.
Please note:
• The ignition device should not be operated for more than 15
seconds.
• If a burner does not ignite, or turns o accidentally, turn the
control knob to the ‘o’ position, and wait for one minute before
attempting to reignite the burner.
• If the burner does not ignite, repeat the ignition process with the
burner at the minimum position.
• Switch all controls o after you have finished cooking.
Fig. 4
10
Fig. 5
Burner Size Minimum Pan Diameter (cm) Maximum Pan Diameter (cm)
Auxiliary 10 14
Semi-Rapid 16 18
Rapid 20 22
Triple 24 26
Wok - 36
Ecient use of your hob
The hob is equipped with burners of dierent sizes, designed to
accommodate most shapes and sizes of pan. For best results,
only use pans with flat bottoms and choose an appropriate burner
depending on the size of the pan. The most ecient use of the hob is
shown below, where the pan and burner are correctly chosen.
Ensure that the pans do not overlap the
edge of the pan stand, or cover the
control panel.
The table below shows the sizes of pan that should be used with each
burner:
