Ameriwood HOME 3325335COM Manual de usuario
3325335COM
Night Stand
B343325335COM0
THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT
SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date of Purchase ___ / ___ / ___
Lot Number:
Assembly Difficulty Meter
Easy Tough
WARNING: Manufacturer assumes no liability
for improper installation or excessive loads
placed on screws or bracket. This wall anchor
is not a substitute for proper adult supervision.
Keep your home and family safe
with the wall anchor kit that is
included with the product.
Serious or fatal crushing injuries can
occur from tipping furniture.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Contact Us!
Helpful Hints
2
Do NOT return this product!
Contact our friendly customer service team first for help.
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Visit ameriwoodhome.com to view the
limited warranty valid in the U.S. and Canada.
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a
R
(right) and
L
(left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 2 HOURS
3
Before You Start
P
Quick
Tip
Assembly
P
P
P
Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
1
3
2
4
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P
4
Before You Start
Quick
Tip
Assembly
Please Note:
You may need to lightly tap the wood dowels to insert into the holes
during your assembly process.
wood dowel
5
Board Identification
Not actual size
Left Panel
33325335010
Right Panel
33325335020
Shelf (x2)
33325335040
Top
383325335030
Left Front Leg
33325335050
Drawer Front
33325335090
Right Rear Leg
33325335080
C
EF
DG
H
I
J
AB
Right Front Leg
33325335060 Left Rear Leg
33325335070
Drawer Side (x2)
39991167346200C
DWR
BACK
Drawer Back
39991167062090B
Drawer Bottom
39991338067710D
DWR
BTM
DWR
SIDE
Back Panel
K332533500
This piece is paperboard construction.
It is not made from wood, but is
required for the assembly of your unit.
6
Board Identification
Not actual size
This piece is paperboard construction.
It is not made from wood, but is
required for the assembly of your unit.
A
B
C
E
F
G
H
I
D
J
DWR
SIDE
DWR
BTM
DWR
BACK
DWR
SIDE
D
7

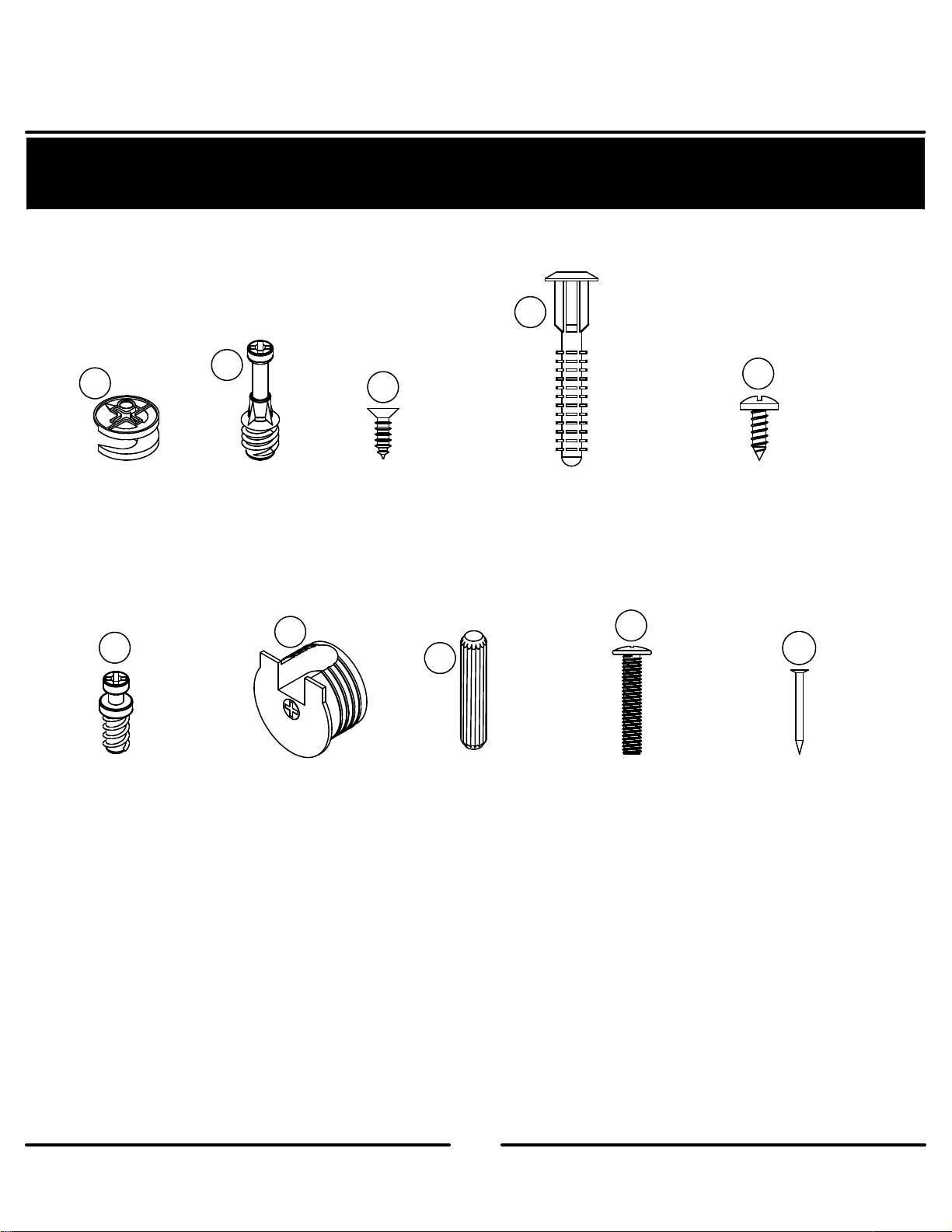

Part List
Actual Size
(x12)
#A22620
cam lock
1
(x12)
#A22610
cam bolt
(x20)
#A21660
wood dowel
(x10)
#A11080
#6 x 7/16" screw
(x8)
#A22910
connector bolt
(x20)
#A12120
#8 x 7/16" screw
8
5
(x8)
#A22920
connector
(x16)
#A21110
nail
67
(x2)
#A17400
8-32 x 7/8" truss
(x4)
#A21970
drive fastener
4
23
911
8
Part List
Not Actual Size
12d
12c
12b
12a
Left Cabinet Member
Right Cabinet Member
Left Drawer Member
Right Drawer Member
(x1)
#A56750
drawer slide pkg.
13a
13b
13c
13d
(x1)
#A84050
safety bracket kit
(x2)
#A54520
drawer bracket
(x1)
#A51715
handle
10
13
12
(x1)
#A54900
drawer brace
14 15
9
STEP1
6
6
(x8)
#A22910
F
H
E
G
6
6
6
6
6
6
6
10
STEP2
78
2
(x2)
#A22620 (x4)
#A22610 (x6)
#A21660
(x4)
#A22920
You will need to tap the connector (7)
with a hammer to fully insert. Be sure
the connector is positioned as shown
before tapping into hole.
8
7
7
2
Proper orientation of CAM LOCK
Tip
Assembly
Quick
1
1
A
7
7
1
2
2
2
8
8
8
8
8
