Ameriwood HOME Monticello 7962319COM Manual de usuario

B347962319COM00PK

Do Not Return This Product!

Contact our customer service team for help rst

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

–Unit can p over causing severe injury or death.

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

Moncello 6D Dresser

7962319COM

Date of Purchase: ____/____/_____

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING Follow Ameriwood Home

Easy Tough

102022PK

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 30 MINUTES

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Before You Start

Cam Lock Fastening System

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

Board Idencaon

Not actual size

ameriwoodhome.com

T7962319010PK

TOP PANEL

T7962319020PK

SIDE PANEL LEFT

T7962319030PK

SIDE PANEL RIGHT

T7962319040PK

BOTTOM PANEL

T7962319050PK

CENTER RAIL LEFT

T7962319080PK

UPPER DRAWER FRONT

T7962319090PK

UPPER DRAWER SIDE

LEFT

T7962319060PK

CENTER RAIL RIGHT

T7962319070PK

PARTITION

8 9

2 3

Board Idencaon

Not actual size

ameriwoodhome.com

T7962319100PK

UPPER DRAWER SIDE RIGHT

T7962319130PK

LOWER DRAWER SIDE LEFT

T7962319110PK

UPPER DRAWER BACK

T7962319140PK

LOWER DRAWER SIDE RIGHT

T7962319120PK

LOWER DRAWER FRONT

T7962319150PK

LOWER DRAWER BACK

16 17 18

T7962319160PK

DRAWER BOTTOM

T7962319170PK

DRAWER SUPPORT

T7962319180PK

LEG

T7962319190PK

BACK PANEL

Part List

ameriwoodhome.com

x52

TPK0001

CAM BOLT

x52

TPK0002

CAM LOCK

15 X 9

x21

TPK0004

DOWEL

8 X 30

x50

TPK0015

NAIL

x24

TPK0008

CBS 4 x 38

27962319COM0PK

Hardware Bag Reference Number:

x12

TPK3012

HANDLE

x12

TPK3013

HANDLE SCREW

TPK0032

JCBC SCREW

M6 X 30

TPK2004

ANTI TIPPING KIT

TPK0014

HEX KEY

Not Actual Size

ameriwoodhome.com

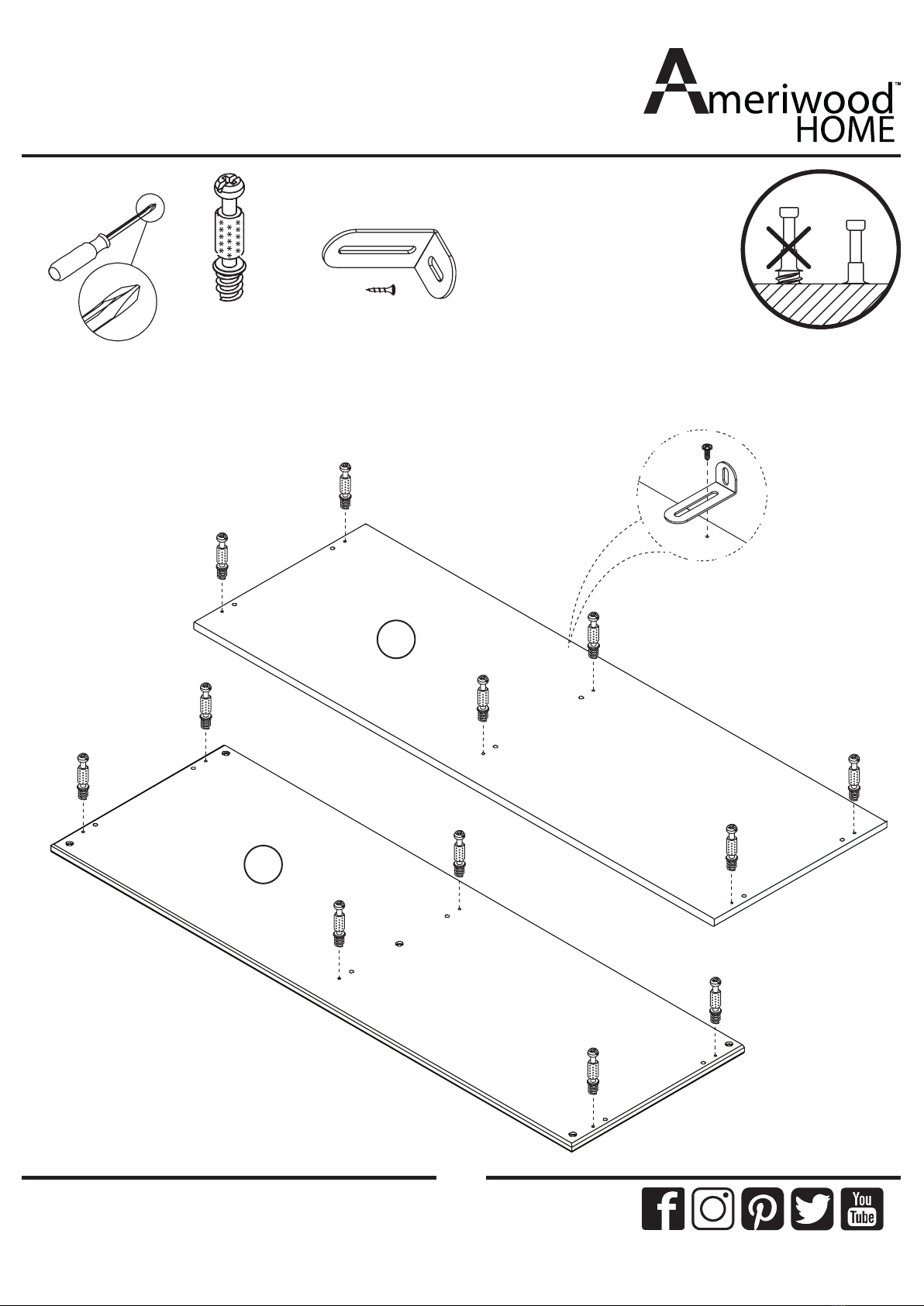

Step 1

Insert cam bolt and fully ghten it.

Fix an-pping kit, do not fully ghten in this step.

x12

TPK0001

TPK2004

ameriwoodhome.com

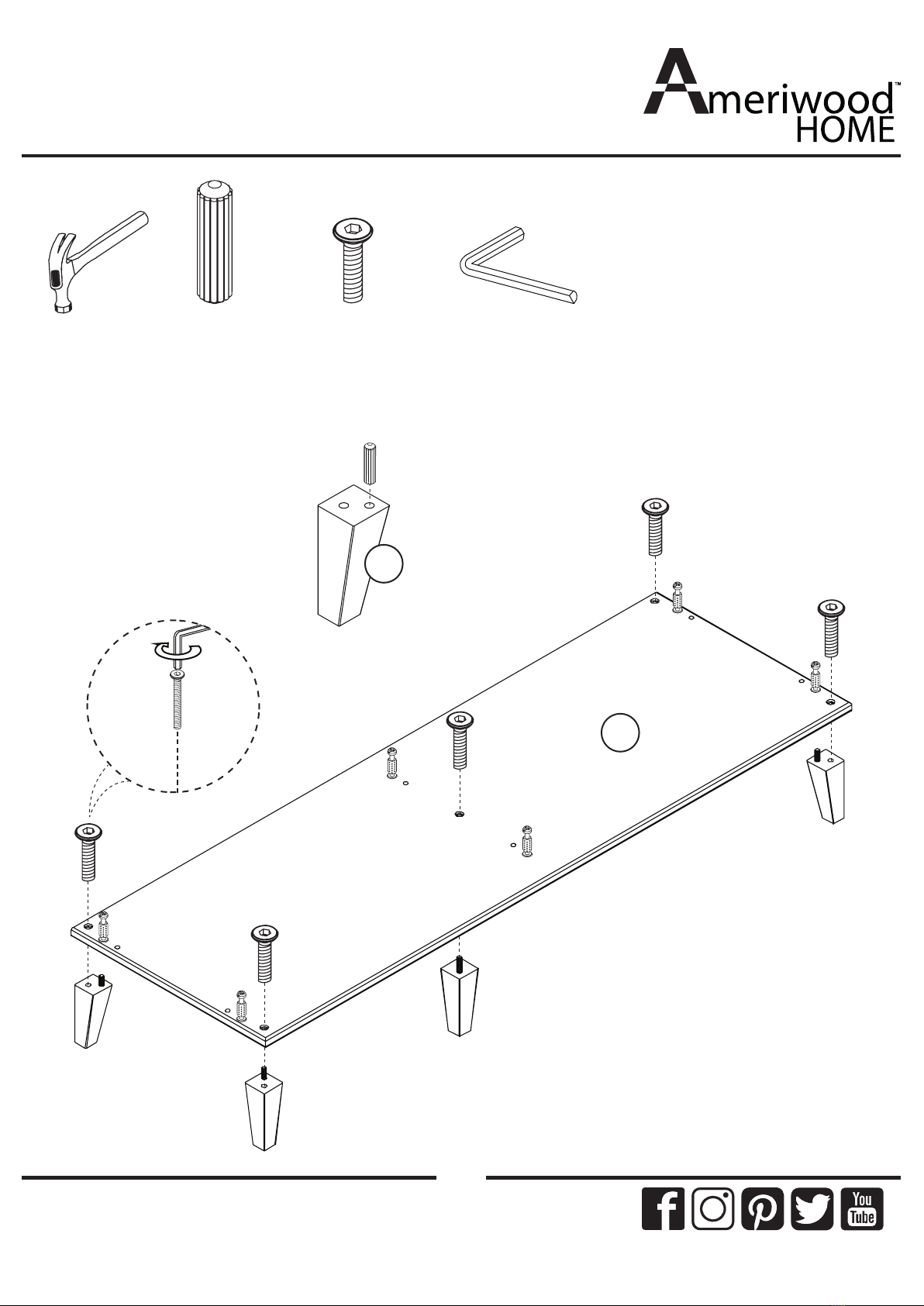

Step 2

Tight

TPK0004

TPK0032

TPK0014

18 X 5

X 5

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

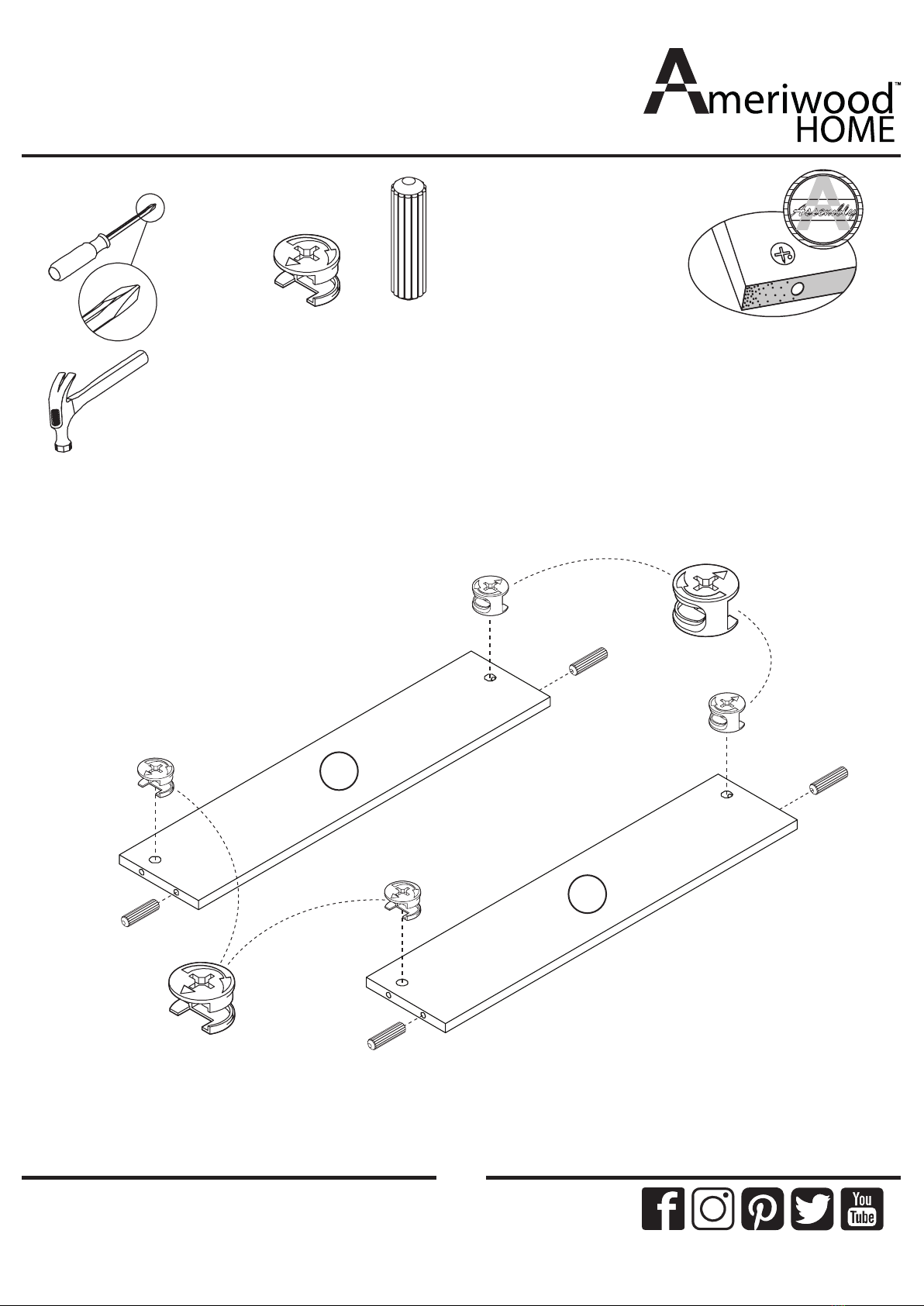

Step 3

x12

TPK0002

x12

TPK0004

TPK0001

Properly insert Cam Lock

and dowel.

FLIP OVER 7

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Step 4

TPK0002

TPK0004

Properly insert Cam Lock

and dowel.
