Ameriwood HOME 9552096COM Manual de usuario

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

Tube

You

Assembly Difficulty Meter

Easy Tough

B349552096COM00YC

9552096COM

Wildwood L Desk/ Rustic Gray

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Date of Purchase ___ / ___ / ___

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Helpful Hints

Before You Start

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight. Failure

to do so may result in stripping the screw.

Tube

You

This Cam Lock Fastening System will be used throughout the assembly process.

Cam Lock Fastening System

ameriwoodhome.com

Board Identification

Not Actual Size

Tube

You

Side top

T9552096010YC

Main top

T9552096020YC

Left side frame

T9552096030YC

Right side frame

T9552096050YC

Middle frame

T9552096040YC

Left support tube

T9552096060YC

Right support tube

T9552096070YC

ameriwoodhome.com

Board Identification

Not Actual Size

Tube

You

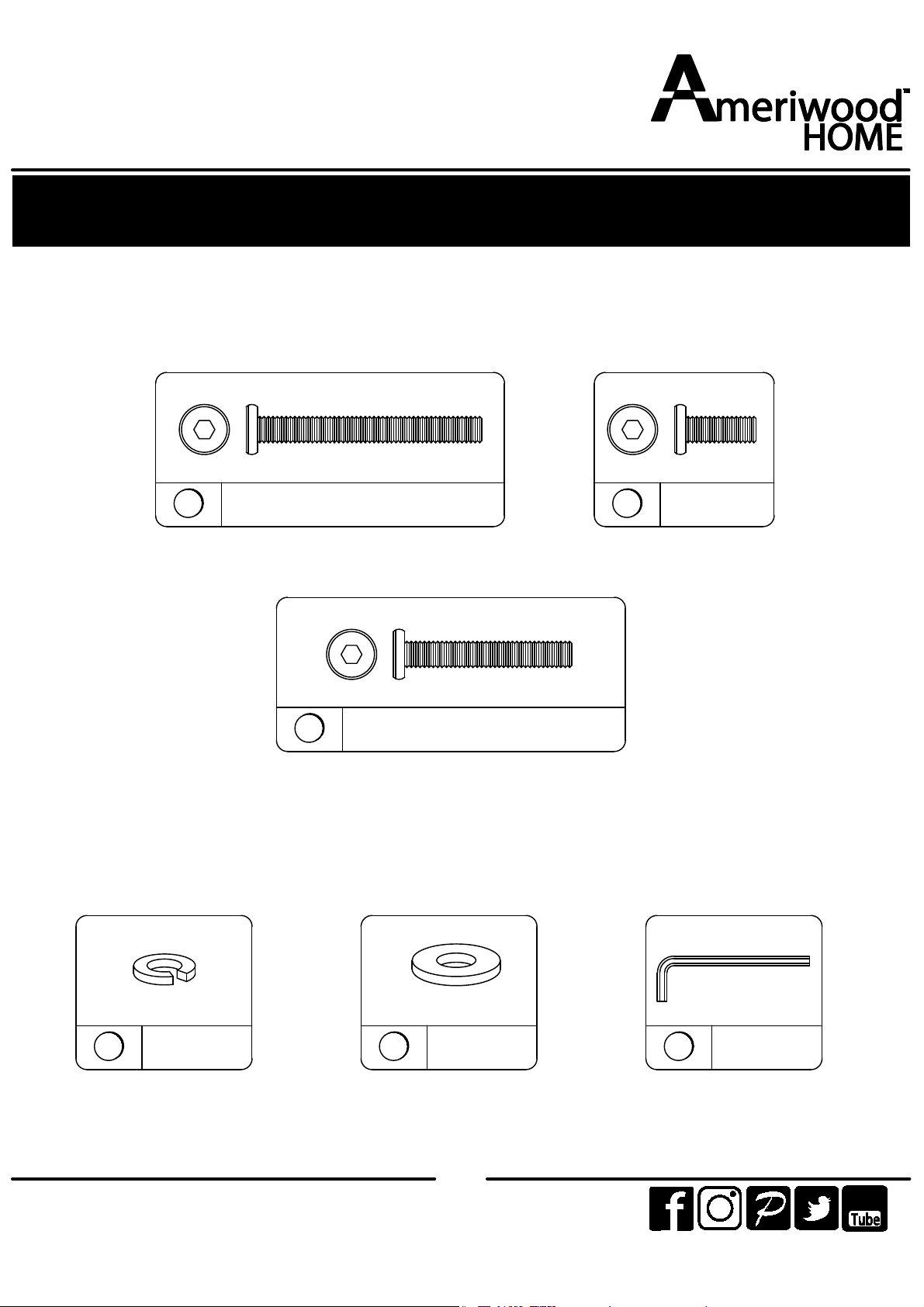

Part List

ameriwoodhome.com

Tube

You

Actual Size

× 6

× 17

Washer

TYC1009

Spring washer

TYC1008

Hardware Bag Reference Number:

29552096COM0YC

Ø1/4"X2"

Bolt

TYC1001

× 8

Ø1/4"X5/8"

Bolt

TYC1015

Not Actual Size

× 17

Ø1/4" Ø1/4"X16mm

× 1

Hex key

TYC1007

× 3

Ø1/4"X1 1/2"

Bolt

TYC1017

Tube

You

× 4

× 1× 4

Ø1/4"X5/8"

× 4

234

Ø1/4" Ø1/4"X16mm

ameriwoodhome.com

STEP

1.1 Attach (G) to (D), (E) with (2), (3), (4) as illustrated.

Tube

You

× 4

Ø1/4"X16mm

× 4

Ø1/4"X2"

ameriwoodhome.com

STEP

2.1 Attach (A) to (D), (E) with (1), (3) & (4) as illustrated.

× 1

Hex key

TYC 1007

× 4

Ø1/4"

CAUTION!

·Do NOT remove strap on (A) until assembly completed.

·Mechanism spring under tension. Use caution when removing strap on (A).

Tube

You

ameriwoodhome.com

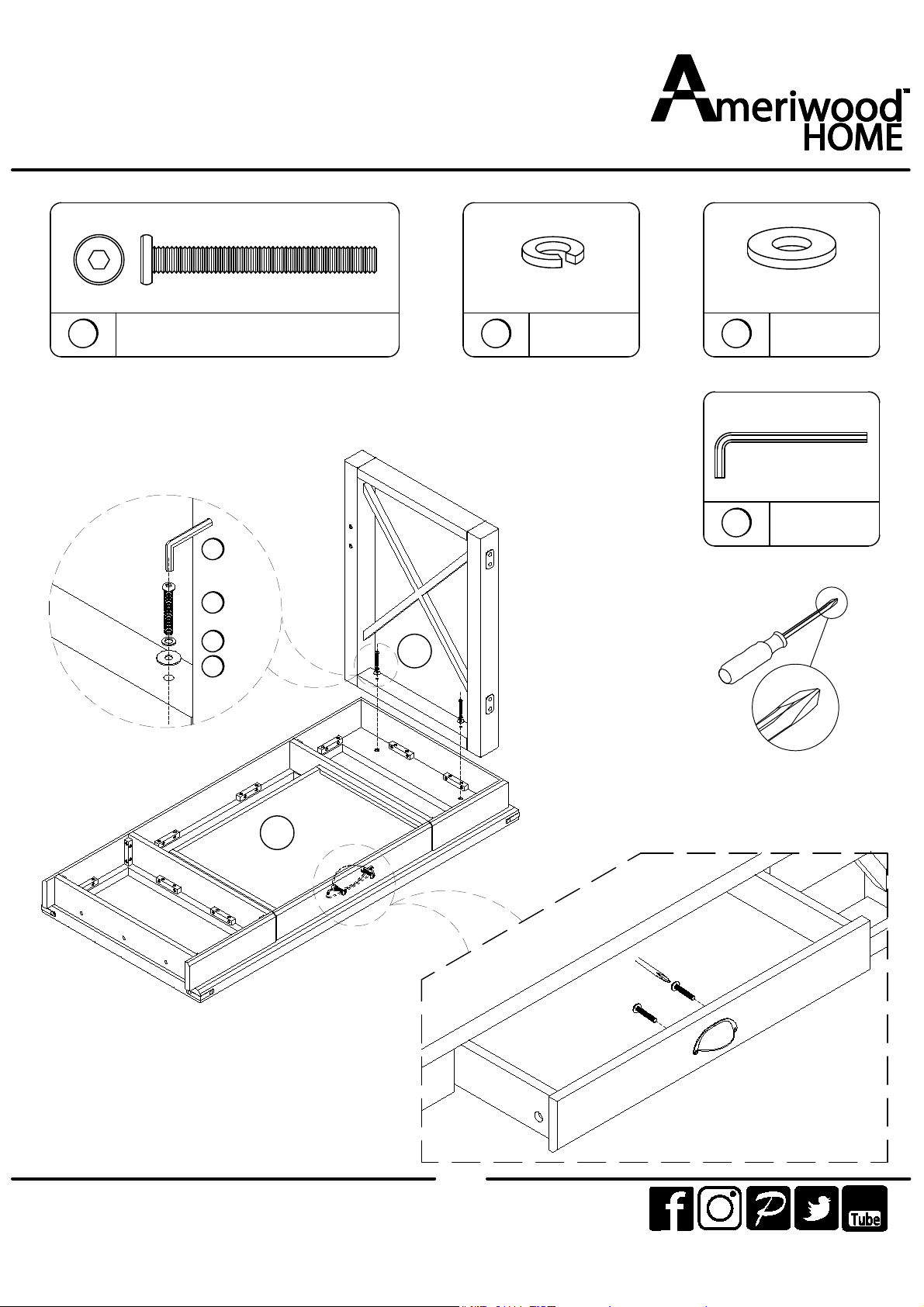

STEP

× 2

Ø1/4"X2"

× 4

Ø1/4"X16mm

× 4

Ø1/4"

3.1 Attach (B) to (C) with (1), (3), (4) as illustrated.

3.2 Remove the handle from drawer box and attach outside as illustrated.

× 15

Handle assembly

Tube

You

ameriwoodhome.com

STEP

× 7

Ø1/4"

Ø1/4"X16mm

× 3

Ø1/4"X1 1/2"

× 4

Ø1/4"X5/8"

234

4.1 Attach (A) to (B) with (6), (3), (4) as illustrated.

4.2 Attach (F) to (A) (B) with (2), (3), (4) as illustrated.

× 15

Please make sure all bolts are securely tightened. Failure to do

so may result in collapse of unit, property damage or inury.

CAUTION
