Ameriwood HOME 9230339COM Manual de usuario

9230339COM

6 Drawer Dresser

B349230339COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Assembly Difficulty Meter

Easy Tough

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 2 HOURS

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Tube

You

ameriwoodhome.com

Board Identification

Not actual size

Left Panel

39230339010

Right Panel

39230339020

Bottom

392303390040

Drawer Front (x6)

35799339060

Top

39230339030

Partition

39230339050

Drawer Side (x12)

39991167346200C

Drawer Back (x6)

39991167060190B

Back Panel

K923000000

Drawer Bottom (x5)

39991341061210D

This piece is paperboard construction.

It is not made from wood, but is

required for the assembly of your unit.

DWR

BTM

DWR

SIDE

DWR

BACK

ameriwoodhome.com

Board Identification

Not actual size

This piece is paperboard

construction. It is not made

from wood, but is required for

the assembly of your unit.

DWR

BACK

DWR

BTM

DWR

SIDE

DWR

SIDE

ameriwoodhome.com

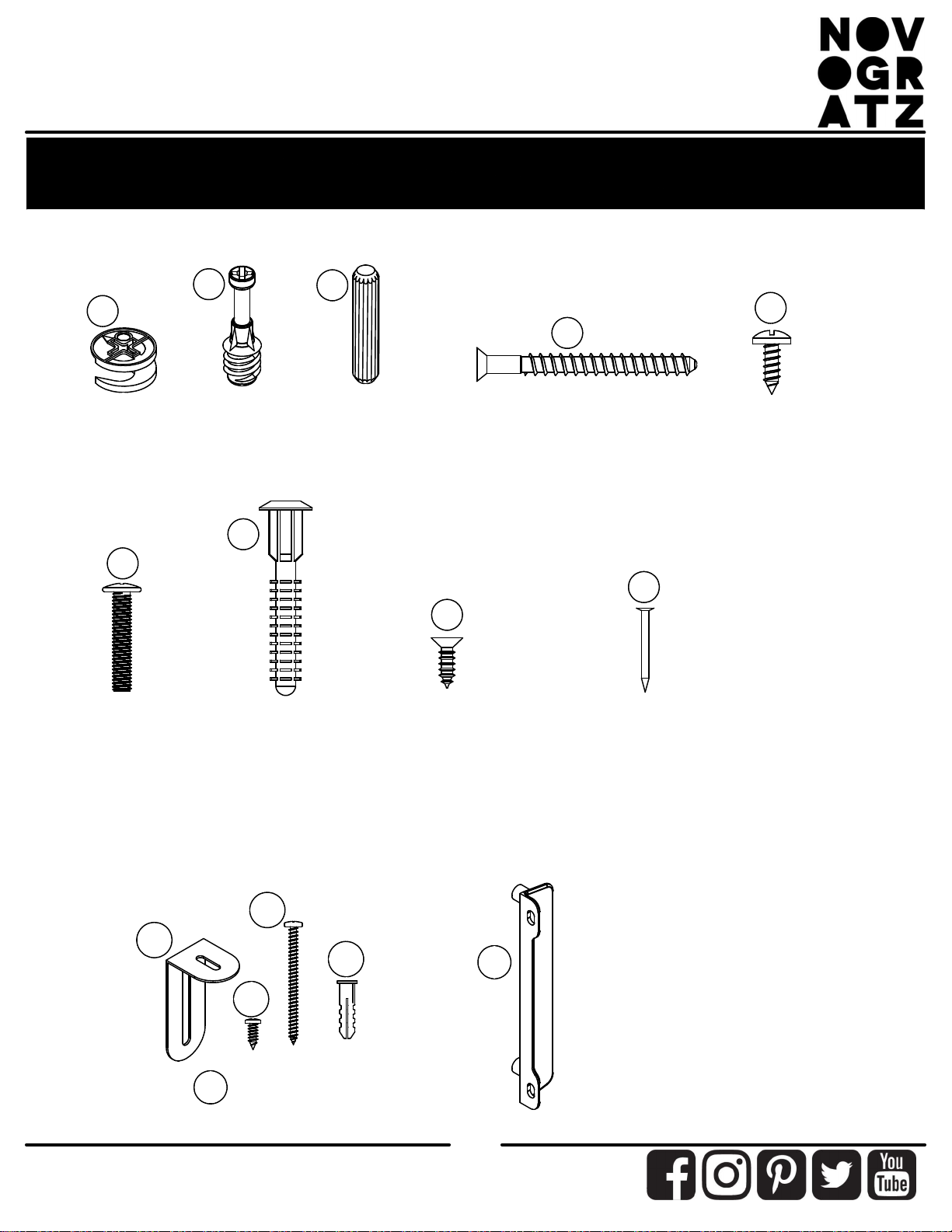

Part List

Actual Size

Not Actual Size

(x6)

#A22620

cam lock

(x6)

#A22610

cam bolt

(x6)

#A21670

wood dowel

(x60)

#A11080

#6 x 7/16" flat head

(x76)

#A12120

#8 x 7/16" pan head

(x36)

#A21110

nail

(x12)

#A17400

8-32 x 7/8" truss

(x24)

#A21970

drive fastener

(x6)

#A23030

confirmat

(x12)

#A54520

drawer bracket

10a

10b

10c

#A84050

safety bracket kit

ameriwoodhome.com

Part List

Not Actual Size

Left Cabinet Member

Right Cabinet Member

Left Drawer Member

Right Drawer Member

(x6)

#A56770

drawer slide pkg.

12a

12b

12c

12d

(x6)

#A51715

handle

(x6)

#A54900

drawer brace (x1)

#A95670

metal base kit

ameriwoodhome.com

STEP1

(x2)

#A22620

(x2)

#A21670

finished edge

Proper orientation of CAM LOCK

Tip

Assembly

Quick

12a

Left Cabinet Member

(x9)

#A11080

(x3)

#A56770

12a

ameriwoodhome.com

STEP2

(x2)

#A22620 (x2)

#A21670

finished edge

Proper orientation of CAM LOCK

Tip

Assembly

Quick

12b

Right Cabinet Member

(x9)

#A11080

(x3)

#A56770

12b
