Ameriwood HOME 5986333W Manual de usuario

B345986333W00

5986333W

STOP

1-800-489-3351

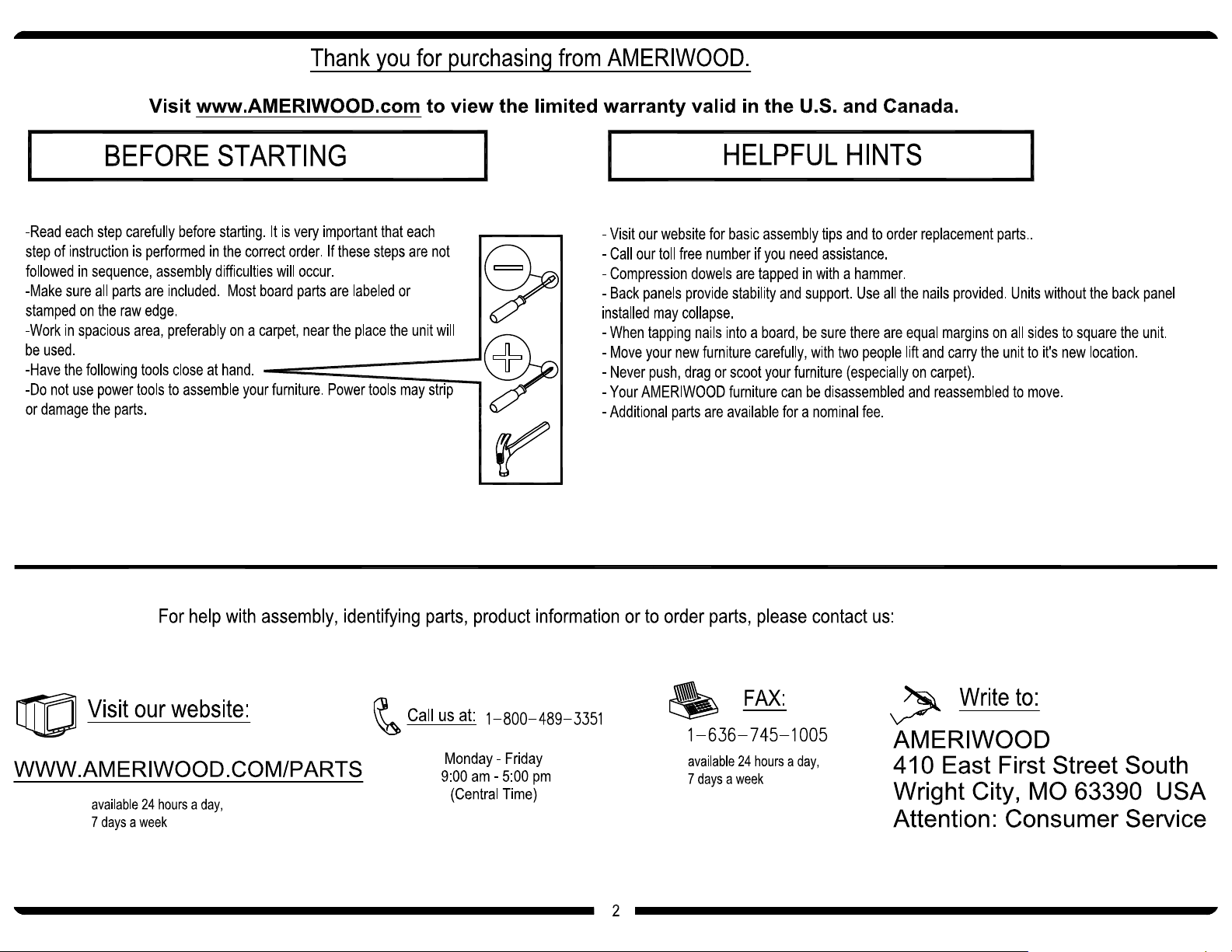

Need Parts or Assistance?

WWW.AMERIWOOD.COM/PARTS

If a part is missing or damaged, visit our website or call our toll-free

customer service line. We will gladly ship your replacement parts

FREE of charge.

For prompt, reliable service please have your assembly manual ready.

DO NOT RETURN PRODUCT TO THE STORE

Individual stores do not stock parts.

or call toll free:

Recommended # of people needed for assembly: 1

(however it is always better to have an extra hand.)

Estimated assembly time is 2 hours.

Se localizan las traducciones españolas en el centro de este

manual.

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT SAFETY INFORMATION. PLEASE

READ AND KEEP FOR FUTURE REFERENCE.

Date of Purchase

___ / ___ / ___

Please Recycle

Recicle Por Favor

0 29986598639

B345986333W00

3 /20

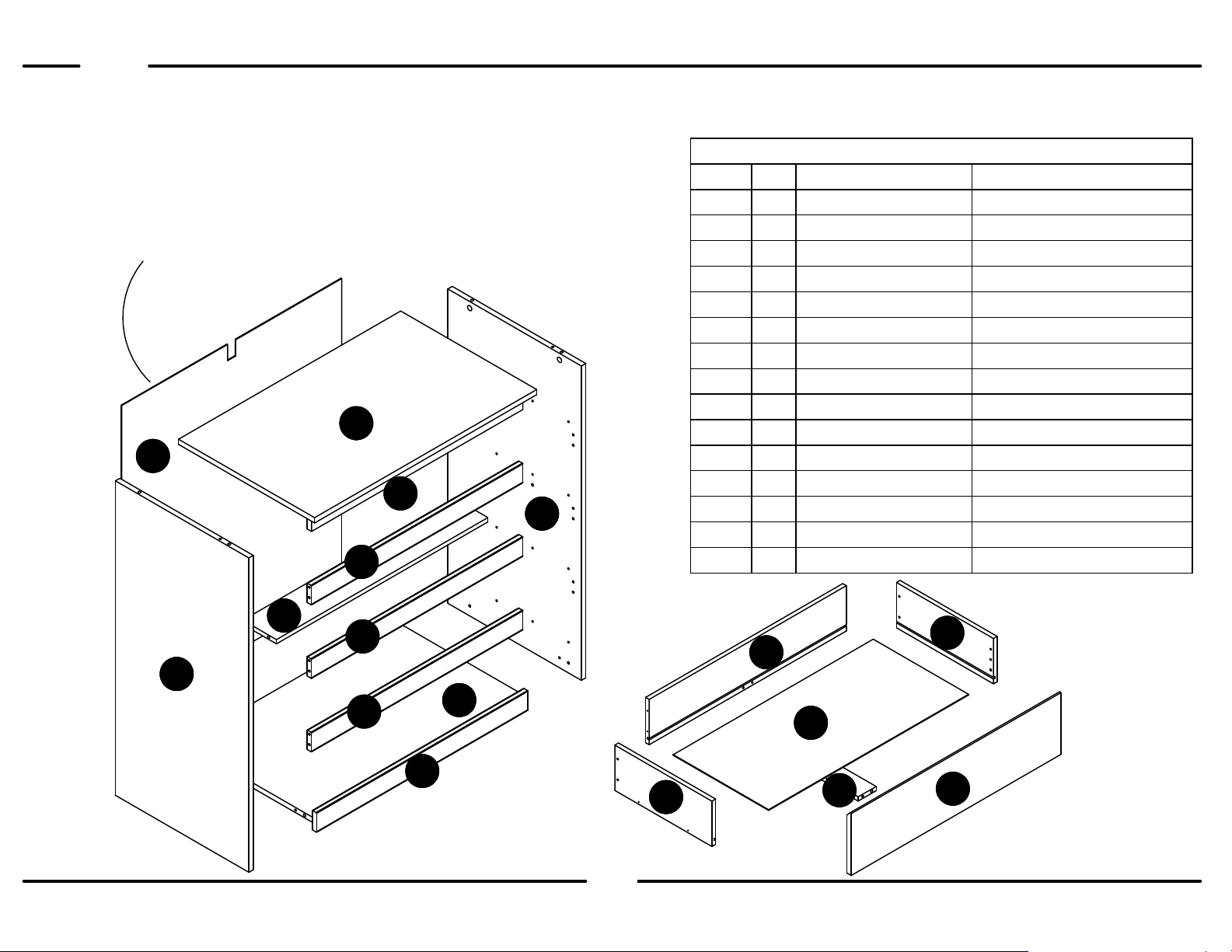

Parts

Parts List DESCRIPTION

PART NUMBER

QTY

ITEM LEFT PANEL

35986333010

1A RIGHT PANEL

35986333020

BTOP35986333030

CBOTTOM35986000040

DAPRON35986333050

1E KICK

35986333060

FBRACE359863330703G STRINGER35986000080

HDRAWER FRONT35986333090

4I LEFT DRAWER SIDEC1400346331010L

4J RIGHT DRAWER SIDEC1400346331010R

4K DRAWER BACKC1400704331510B

4L DRAWER BOTTOM35986331130

4M DRAWER BRACE35986000140

4N BACK PANELK598600000

This piece is of paperboard construction. It is not made from wood, but is

required for the assembly of your unit.

Parts shown are the base cabinet of your model. Please note, most parts are labeled with a sticker or have a letter stamped on a raw

edge.

B345986333W00

4 /20

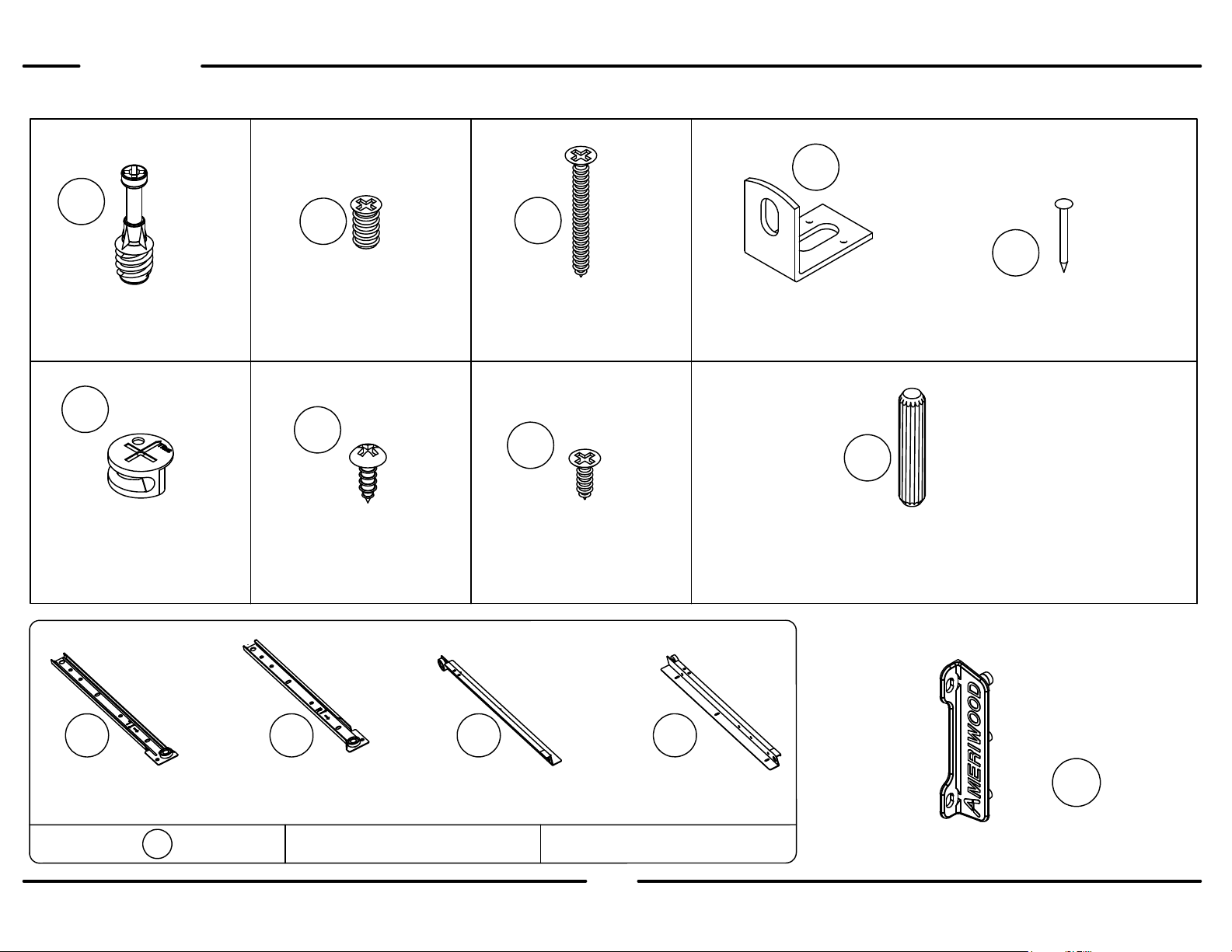

Hardware HARDWARE COMPARTMENT LAYOUT

right cabinet memberleft cabinet member left drawer runner right drawer runner

#A56750

10d

10c10b

10 4

10a

drawer bracket

#A54213

Qty: 8

cam bolt

#A22510

Qty: 14

wood dowel

#A21660

Qty: 22

1-1/4" screw

#A11600

Qty: 24

angle bracket

#A53600

Qty: 6

nail

#A21110

Qty: 40

euro screw

#A11070

Qty: 24

7/16" flat screw

#A11080

Qty: 16

7/16" pan screw

#A12120

Qty: 28

cam lock

#A22570

Qty: 14

243

B345986333W00

5 /20

½ turn to fully lock.

½ se vuelven a

totalmente

cerradura.

Tighten to fully seat. Do not over

tighten.

Apriétese a totalmente asiento. No

haga encima de apriétese.

Proper orientation of cam.

La orientación apropiada de leva.

This illustration shows how the cam fastening system works.

Esta ilustración muestra el sistema de fijación de leva y como funciona.

Lock

Apretar

Titus

safety bracket kit

#A84050

Qty: 1

12a

12b 12c

12d

Caution: If using a power drill or power screwdriver for

screwing, please be aware to slow down and stop when

screw is tight. Failure to do so may result in stripping the

screw.

Precaución: Si se utiliza un taladro o destornillador

eléctrico para atornillar, tenga en cuenta para frenar y

parar cuando el tornillo es apretado. El no hacerlo

puede resultar en la extracción del tornillo.

B345986333W00

6 /20

Screw four cam bolts (1) into the top (C).

Fasten the apron (E) to the top (C) with angle brackets (7) and screws (4).

Fasten the safety bracket (12a) to the top (C) with screw (12b).

Tap four wood dowels (3) into the braces (G).

12a

12b

12a

12b

x12

finished edge

borde acabado

raw surface

superficie cruda

B345986333W00

7 /20

Insert four cam locks (2) into the bottom (D) and two cam locks (2) into the stringer (H).

Tap two wood dowels (3) into the bottom (D) and the stringer (H) as shown.

Fasten the kick (F) to the bottom (D) with angle brackets (7) and screws (4).

center the holes in the Kick (F) with the Angle Brackets (7)

centrar los orificios del Retroceso (F) con los Soportes (7)

proper orientation of cam lock

posición correcta de la cerradura de leva

proper orientation of cam lock

posición correcta de la cerradura de leva 7

B345986333W00

8 /20

Insert two cam locks (2) and tap a wood dowel (3) into the left panel (A).

Screw three cam bolts (1) into the left panel (A).

Fasten four metal slides (10a) to the left panel (A) with euro screws (9).

marked with an "L"

marcado con un "L"

proper orientation of cam lock

posición correcta de la cerradura de leva

10a

x12

finished edge

borde acabado

B345986333W00

9 /20

Insert two cam locks (2) and tap a wood dowel (3) into the right panel (B).

Screw three cam bolts (1) into the right panel (B).

Fasten four metal slides (10b) to the right panel (B) with euro screws (9).

x12

marked with an "R"

marcado con un "R"

finished edge

borde acabado

10b

B345986333W00

10 /20

Attach the bottom (D), the three braces (G), and stringer (H) to the left and right panel (A&B) and tighten the cam locks.

LOCK

APRETAR

Titus

all finished edges and surfaces are facing upwards

todos los bordes y superficies acabadas estén mirando hacia arriba

note the orientation of the holes in the Brace (G)

notar la orientación de los orificios del Soporte (G)

GGGF
