AmeriWater STORAGE TANK Manual de usuario

PN: 98-0084C

STORAGE TANK

INSTALLATION & OPERATION MANUAL

Manufactured With Pride

In The USA

www.ameriwater.com • 800-535-5585

AmeriWater • 3345 Stop 8 Rd. • Dayton, OH 45414

PN: 98-0084C

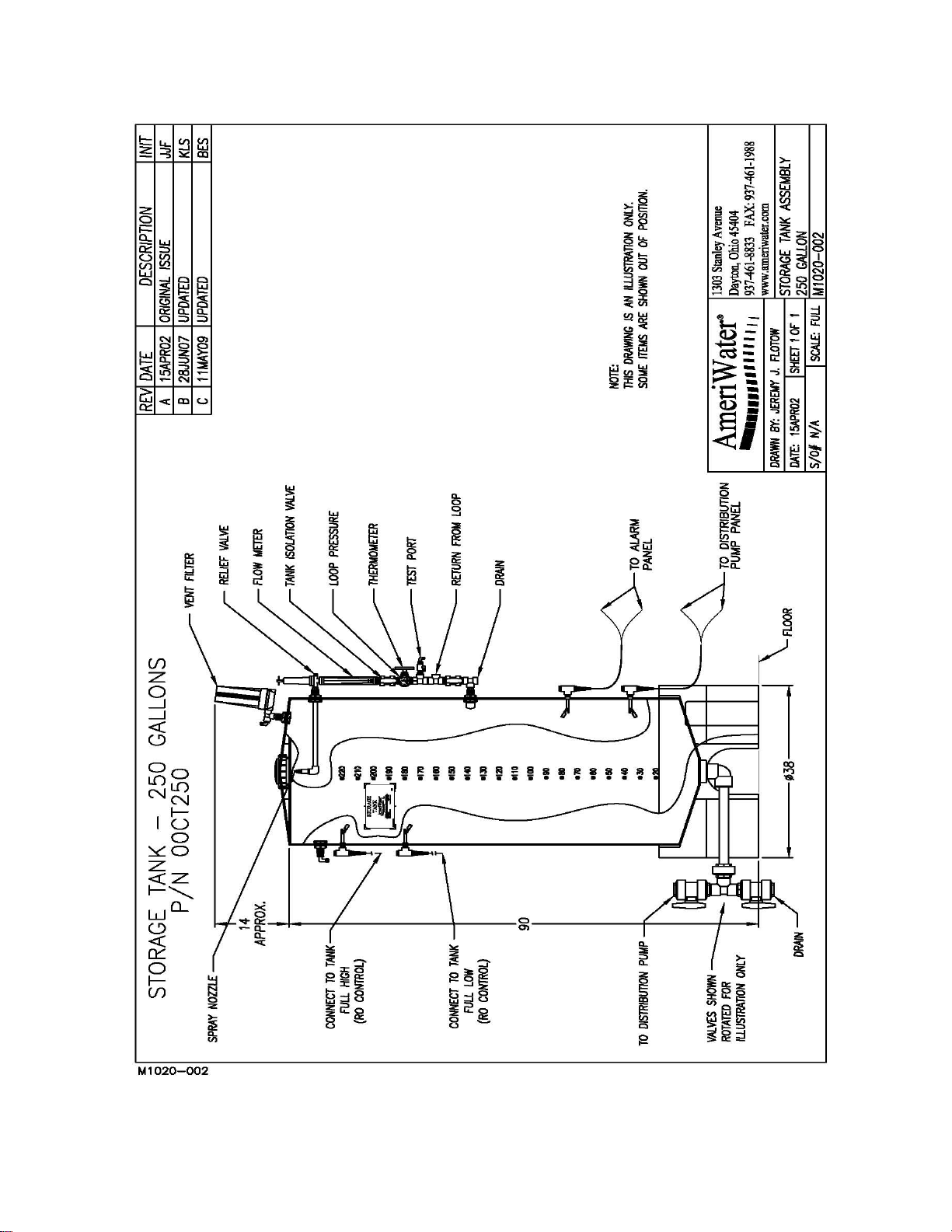

Theory of Operation

The reverse osmosis unit makes a limited amount of water at a time. It is

therefore necessary to store it in a storage tank. The storage tank is equipped

with float switches, which will turn the reverse osmosis unit off and on when the

water reaches a predetermined point in the storage tank.

This tank is also equipped with a spray nozzle on the return loop side of the tank.

This allows disinfectant to reach all parts of the tank when it is applied to the

tank, for faster disinfections.

The vent filter on the tank is designed to filter the air when water moves in and

out of the storage tank. It is equipped with a “rupture disk”, which will break if the

flow of air/water becomes too much for the filter or the tank to handle.

Installation

1. Locate the storage tank on a firm level floor.

2. Connect the RO product hose to the storage tank’s product water inlet.

3. Connect one of the outlets on the storage tank to the distribution pump

inlet.

4. Connect the RO OFF float wires to the RO control terminal marked “Tank

Full High”.

5. Connect the RO ON float wires to the RO control terminals marked “Tank

Full Low”.

6. Connect the Low Water Alarm Float wires to the Alarm Panel. (See alarm

panel wiring diagram for details.)

7. Connect the Low Water Pump Off Float wires to the Distribution Pump

Panel. (See distribution pump wiring diagram for details.)

8. Install the vent filter cartridge into the vent filter housing.

9. Insure the rupture disk is intact.

PN: 98-0084C

Maintenance

1. Replace the vent filter annually or when the filter cartridge gets wet.

2. Replace the rupture disk monthly.

3. It is recommended that a disinfection of the storage tank should be

preformed monthly.

REPLACEMENT PARTS

Description Part Number

Filter Cartridge

Submicron, 0.2 Micron, 2-½” x 10”,

Doe (1 Required) 20-3021

Flow Meter

0-10GPM, 3/4”FPT 41530604

Flow Meter

0-17GPM, 1”FPT 41F41017LN-12

Flow Meter

8-40GPM, 1.5”MPT 41-5002

Relief Valve

.5”NPT,POLYPRO 45760178

Relief Valve

.75”, MXF, In/Out 45601225

Relief Valve

1.5”NPT,ANGLE PATTERN 45760181

Float Switch Assembly

W/Spiral 0167-0010

Thermometer

.5”MPT,0-140F 39530708

PN: 98-0084C

OPTIONAL FLOW METER ASSEMBLY 8-40GPM 1½” RETURN

PN: 98-0084C

WARNING

This product can expose you to chemicals such as vinyl chloride (used in the

production of PVC) or Nickel (used in the production of stainless steel), that are

known to the State of California to cause cancer. For more information go to

www.P65Warnings.ca.gov.

Dear Valued Customer,

California Proposition 65 (Prop 65) is the Safe Water and Toxic Enforcement Act of 1986.

The State of California began enforcing amendments to California Prop 65 at the end of

August 2018. Prop 65 requires manufacturers to provide a clear and reasonable warning to

residents of California about chemicals used in products that they purchase that are

included on the Prop 65 Chemical List. The chemicals included on the list are chemicals that

are known to the State of California to cause cancer, birth defects, or other reproductive

harm. One such chemical is Vinyl Chloride, a compound used to produce Polyvinyl Chloride

(PVC). The AmeriWater system you have purchased may contain PVC or stainless steel

parts.

While warnings are only required in the State of California, AmeriWater has initiated the use

of Prop 65 labeling for all products to ensure compliance with California regulations. Please

note that the above warning does not necessarily mean that the product that you have

purchased is unsafe. Products that have been cleared for market by FDA have been

determined to be safe and effective by the United States Food and Drug Administration.

The warning is simply a requirement by the State of California. If you wish to obtain

additional information, please visit: p65warnings.ca.gov. You may also contact your

AmeriWater representative if you have any questions.

Thank you for your understanding and we look forward to continuing to serve you.
