American Time SiteSync IQ Instrucciones de funcionamiento

phone: 800-328-8996 fax: 800-789-1882 online: american-time.com

mail: 140 3rd St. So.; PO Box 707, Dassel, MN 55325-0707

Electric (AC) Analog Clocks

1. Take the clock to the area where it will be used.

2. To activate the clock, connect to AC power.

The LED on the back of the clock (see below)

will ash red within 30 seconds of power-up to

indicate receiver is looking for the wireless

signal.

When the signal is received, the LED will ash

green. Be patient. The clock hands will rapid

advance to the correct time. This may take

up to 7 minutes.

3. Hang the clock once signal reception is

veried and clock is operating correctly.

Note: If the LED does not ash within 30 seconds,

disconnect the barrel plug on the clock receiver, wait

10 seconds and reconnect. The LED will begin ashing

within 30 seconds.

Your SiteSync IQ system is now set up for proper operation.

For information on other features, see the Installation and

Operation Manual that was included with your system. If you

have any questions, please contact Technical Support at

American Time: 800-328-8996.

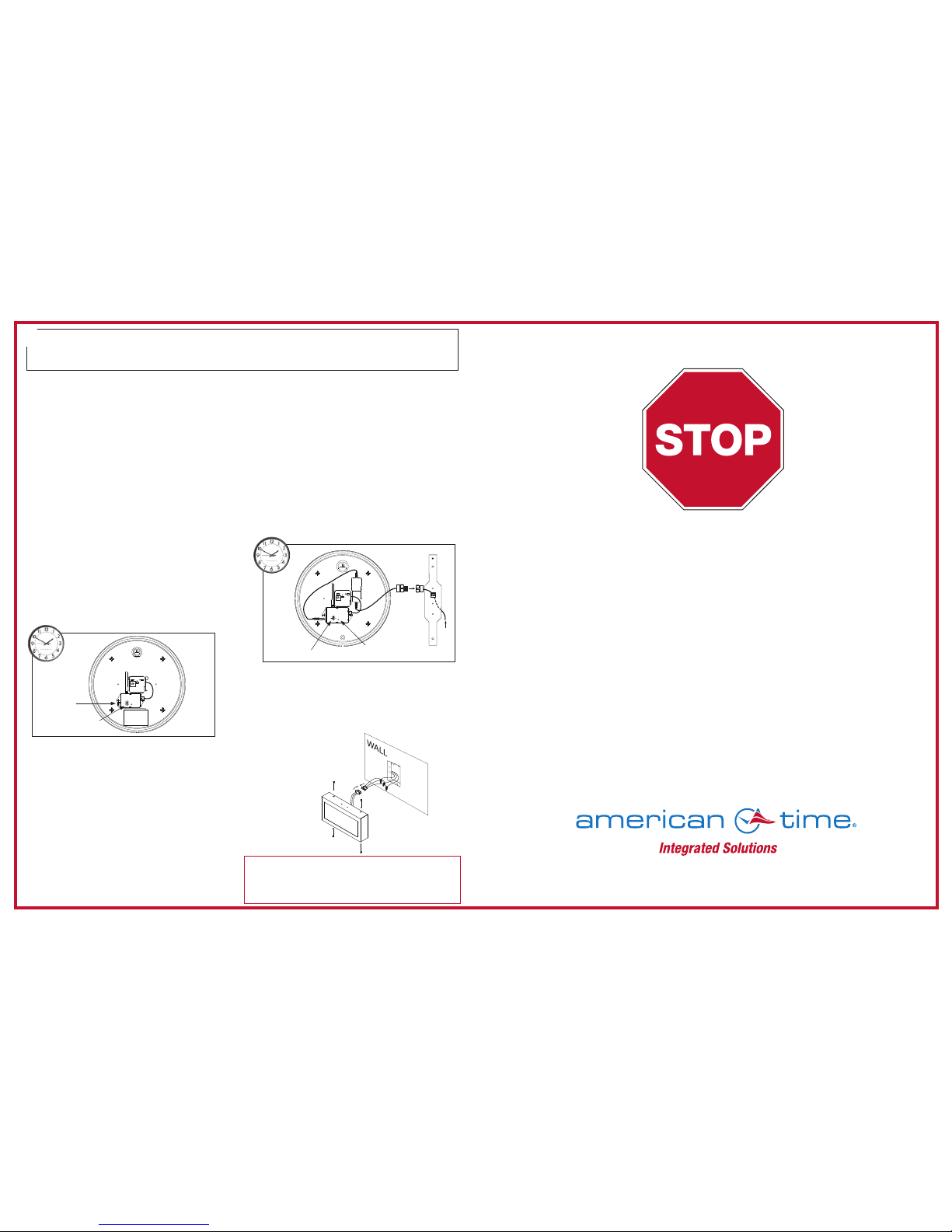

Activate and hang your clocks

Don't activate the battery or apply power to the clocks until the system controller is installed and

transmitting and the clock is in the intended location. See Activation Note.

wiring

box

Reset

Button

LED

Electric

American Series Digital Clocks

1. Take the clock to the area where it will be used.

2. To activate the clock, connect to 120vac power.

3. Display will ash “U40” or 1:00 o’clock until it

receives a signal.

4. Verify synchronization takes place within 2-5

minutes.

SiteSync IQ®Wireless Clock System

CDMA with Campus TX Antenna

INST-SSIQ-C-C Rev 9

Activation Note: Clocks should be installed within 24 hours

of installing the system controller. After 24 hours, the system

controller will enter Quiet Mode. Pressing 3-5-7 on the keypad

will disable Quiet Mode for 6 hours. Reference Appendix J in the

SiteSync IQ Installation and Operation Manual for more details

on Quiet Mode.

Please read this rst!

After determining the proper wattage for your facility, we guarantee the coverage of your SiteSync IQ

when you follow a few simple steps. If this is your rst installation or you have questions at any time

during this process, please call American Time toll free at 800-328-8996.

We're here to help!

This Quick Start Guide will help you avoid three common installation mistakes:

1. Improper location of transmitting (TX) antenna. A temporary install of the system controller

is recommended.

Don't drill holes for permanent installation and mounting until the system is working correctly.

2. Improper system controller start-up. A successful transmission is indicated by a TX in the

lower right-hand corner of the system controller screen.

Don't locate the campus TX antenna within 4' of the system controller.

3. Improper clock start-up. Activate clocks in their intended location.

Don't activate the clocks in one room and move them to another location as signal reception

will not be veried. Make sure the system controller is transmitting and is not in Quiet Mode.

Important Note: Clocks should be installed within 24 hours of installing the system controller. After

24 hours, the system controller will enter Quiet Mode. Pressing 3-5-7 on the keypad will disable Quiet

Mode for 6 hours. Reference Appendix J in the SiteSync IQ Installation and Operation Manual for

more details on Quiet Mode.

wiring

box

LED

Battery

Barrel

Jack

Input

Battery Analog Clocks

1. Take the clock to the area where it will be

used.

2. To activate the clock, connect barrel jack plug

of battery pack to wireless receiver. The

LED on the back of the clock will ash red

within 30 seconds of power-up to indicate

receiver is looking for the wireless signal.

When the signal is received, the LED will ash

green. Be patient. The clock hands will rapid

advance to the correct time. This may take up

to 7 minutes.

3. Hang the clock after hands are rapid

advancing.

Note: If the LED does not ash within 30 seconds,

remove the barrel jack plug of the battery pack from

the wireless receiver for 5 seconds and reconnect it.

This resets the receiver. The LED will begin ashing

within 30 seconds.

QUICK START INSTALLATION GUIDE SITESYNC IQ®WIRELESS CLOCK SYSTEM

Connect cables to the system controller

A. Connect the CDMA antenna to the CDMA ANT port.

B. Connect the System Controller power supply to the POWER

INPUT port.

C. Connect campus antenna to the TX ANT port. *Lightning

arrestor must be grounded per local electrical code.

Plug 110v cord into power source. Turn the POWER SWITCH on

the back of the system controller to the on position.

Use the Setup Wizard

1. Press 1to start the Setup Wizard (Page 9 in Installation Manual)

2. Create a 4 digit User Lock or enter 0000 to disable this

feature. Press O.Tip: Record this password.

3. Create a 4 digit Service Lock (for advanced features) or enter

0000 to disable this feature. Press O.

Tip: Record this password.

4. Select local time zone by using the <> keys. Press O.

USET=Eastern USCT=Central USMT=Mountain USPT=Pacic

Note: There are 40 options to choose from.

5. Press 8to select automatic DST (Daylight Saving Time) or

0to disable DST if your location doesn't observe DST.

Press O

6. Press 1for 12-hour mode - AM/PM (1:00PM).

Press

2for 24-hour mode - Military (13:00).

7. To conrm proper set up, press 8to sync.

• If successful, “CDMA Sync Successful” will display

• If not successful, “CDMA Sync Failed” will display. Re-try

by pressing 8again.

8. “Setup Wizard Successfully Completed” will display.

The system controller now shows the correct time and date. You

will no longer be prompted on power-up for setup information.

9. Verify the unit is transmitting. TX should display for about

three seconds every 30 seconds (approximately the top and

bottom of every minute) in the bottom right corner of the

screen.

MON MAR 10 2014

10:38:06 AM USCT

American Time

Status=AUTO TX

MON MAR 14 2016

10:38:06 AM USCT

American Time

Status=AUTO CDMA=S

1 4 5

Unpack the box

1. Remove the components and system controller from the box.

Save the packing materials in case you need them later.

Check the components

Your system kit comes with:

• System Controller

• Hinged screw-on CDMA antenna (A)

• Power supply (B)

• Campus TX antenna kit (C)

• Installation and Operation Manual

Choose your location

• Choose a location for the system controller that receives good

cellular reception. The easiest way to check reception is to

check signal strength on a cell phone.

Avoid high voltage equipment when choosing a location.

• Choose a location for your campus TX antenna either

outside or inside at the highest central location in your facility.

The TX antenna must be located at least 4' away from

the system controller

Set Menu LOCAL

Time Zone Code: 05

99=Custom USCT

<>=Scroll OK=Accept

To local

power

(110vac)

Note: If your system controller supports more than one time sync

option, refer to the SiteSync IQ Installation & Operation Manual

for detailed instructions.

TX Ant signal

out to clocks

CDMA signal

to facility

CDMA Ant

signal in

System controller

located high & central

Note: Screen

will advance

immediately

*See above

To ground
