American Standard Evolution 2425V-LHO Manual de usuario

H89

Components Required:

❏ Bath Filler*: (specify nish)

❏ Bath Drain: 1599.205.XXX (specify color)

Custom Accessories Available:

❏ Safe-T-Heater: 9075.120

For color/nish availability and other faucet choices, please

see the Product Selector and Pricing Guide.

NOTE: Whirlpool Heater is designed to maintain water

temperature during operation. It will not heat cold water to

desired bathing temperature.

SEE REVERSE FOR ROUGHING-IN DIMENSIONS

AND PRODUCT SPECIFICATIONS

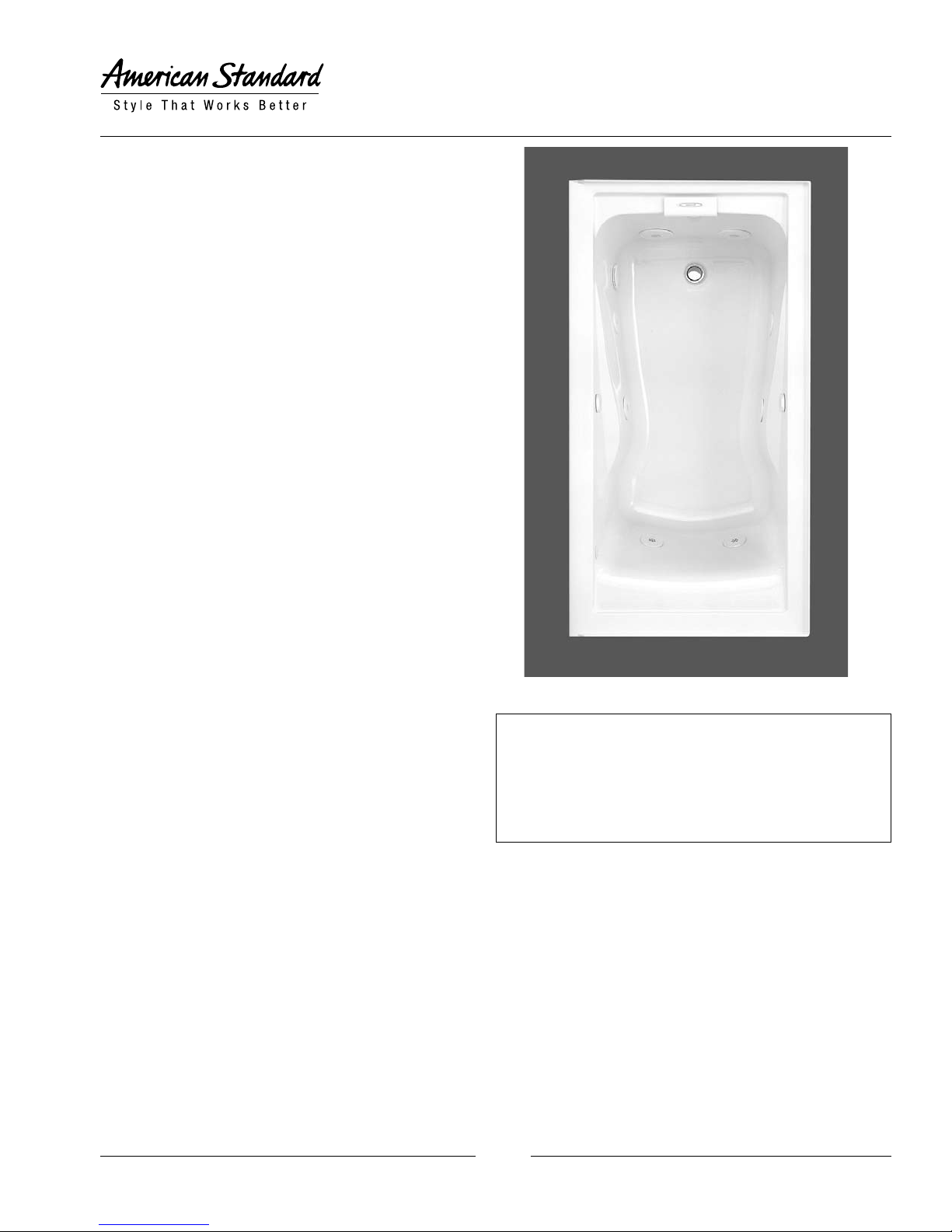

EVOLUTION™ 5' X 32" IA-LHO / RHO

Comfortable bathing design with form-tted

backrest and molded-in armrests

❏ 2425VC-LHO Built-In Integral Apron

Left Hand Drain Outlet (specify color)

❏ 2425VC-RHO Built-In Integral Apron

Right Hand Drain Outlet (specify color)

• EverClean® System

• Acrylic with berglass reinforcement

• Integral apron with removable access panel

• Integral three-sided, tiling/water retention ange

• 1.25 HP self-draining pump/motor

• Eight ow adjustable jets including:

- Two adjustable Comfort Jets™ Hi Flo

- Six adjustable Comfort Jets™

• Two silent air volume controls

• Side-mounted On/Off control

• Deep Soak Overow Drain for maximum

water depth

• Complete factory installed and tested

whirlpool system

❏ 2425V-LHO Built-In Integral Apron

Left Hand Drain Outlet (specify color)

❏ 2425V-RHO Built-In Integral Apron

Right Hand Drain Outlet (specify color)

• Same as above without the EverClean® System

❏ 2425V-LHO.002 Bathing Pool

❏ 2425V-RHO.002 Bathing Pool

Nominal Dimensions:

60" x 32" x 21-1/2"

(1524 x 813 x 546mm)

Compliance Certications -

Meets or Exceeds the Following Specications:

• Underwriters Laboratories - Hydromassage

Bathtubs UL 1795

• ASME A112.19.7M for Whirlpool Appliances

• ANSI Z124.1 for Plastic Bathtubs

• ASTM E162 for Flammability

• NFPA 258 for Smoke Density

American Standard whirlpools with EverClean®

incorporate a patented silver-ion additive right

into the circulation piping to protect the pipes

from mold, mildew, algae and fungus that could cause

deterioration or staining of the pipes.

* See American Standard Faucet Selector

EVOLUTION™ 5' X 32" IA-LHO / RHO

WHIRLPOOL AND BATHING POOL

HIGH GLOSS

H90

EVOLUTION™ 5' X 32" IA-LHO / RHO

WHIRLPOOL AND BATHING POOL

HIGH GLOSS

Revised 3/06

NOTES:

BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION.

SUPPORT OF BATH BY SUMP BEDDING. SUPPORT AND ENCLOSING MATERIAL BY OTHERS.

■REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.

GENERAL SPECIFICATIONS FOR 2425V WHIRLPOOL

WHIRLPOOL ELECTRICAL SPECIFICATIONS

PUMP 1.25 HP, 9.7 AMPS,120V.

60 x 32 x 20-1/2 (1524 x 813 x 521mm)

92 Lbs. (42 Kg.)

675 Lbs. (306 Kg.)

70 Gal. (265 L.)

39 Gal. (148 L.)

42 x 22 In. (1067 x 559mm)

53 x 25-1/2 In. (1346 x 648mm)

17-1/2 (445mm)

51 Lbs./Sq.Ft. (247 Kgs./Sq.m)

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

WHIRLPOOL MIN. OPERATING VOL.

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

32"

(813mm)

21-1/2"

(546mm)

20-1/2"(H)

(521mm)

19-1/8"(A)

(486mm)

DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY VARY WITHIN THE RANGE

OF TOLERANCES ESTABLISHED BY ANSI STANDARDS Z124.1 AND A112.19.7.

C/L OF

OVERFLOW

CUT OUT IN FLOOR

FOR DRAIN

60"

(1524mm)

32"

(813mm)

7-1/2"

(191mm)

10-1/2"

(267mm)

(76mm)

2-7/8"

(73mm)

(152mm)

13-1/2"

(343mm)

16"

(406mm)

Model 2425V-LHO

shown

GENERAL SPECIFICATIONS FOR 2425V BATHING POOL

60 x 32 x 20-1/2 (1524 x 813 x 521mm)

77 Lbs. (35 Kg.)

661 Lbs. (299 Kg.)

70 Gal. (265 L.)

42 x 22 In. (1067 x 559mm)

53 x 25-1/2 In. (1346 x 648mm)

17-1/2 (445mm)

50 Lbs./Sq.Ft. (242 Kgs./Sq.m)

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)
