American DJ Sparkle Manual de usuario

User Instructions

American DJ

4295 Charter Street

Los Angeles Ca. 90058

www.americandj.com

Introduction:

Thank you for purchasing the Sparkle™ by American DJ®. For your

convenience the Sparkle™ has been lamped and tested before being

shipped to you. The unit is ready to be used, there is no assembly

required. Please read the following instructions before attempting

installation or using your new Sparkle™.

Customer Support:

American DJ® provides a toll free customer support line, to provide set

up help and to answer any question should you encounter problems

during your set up or initial operation. You may also visit us on the web

at www.americandj.com for any comments or suggestions.

Service Hours are Monday through Friday 10:00 a.m. to 5:00 p.m.

Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2610

E-mail: suppor[email protected]

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

your nearest American DJ dealer.

Do not discard the shipping cartoon in the trash. Please recycle when

ever possible.

HALOGEN LAMP WARNING!

This fixture is fitted with a halogen lamp which is highly susceptible

to damage if improperly handled. Never touch lamp with your bare

fingers as the oil from your hands will shorten lamp life. Also, never

move the fixture until the lamp has had ample time to cool. Remember,

lamps are not covered under warranty conditions.

Sparkle™ Introduction

©American DJ Supply® - www.americandj.com - Sparkle™ Instruction Manual Page 2

Sparkle™

This unit is ready to be hung or set on flat surface. The Sparkle is a slow

rotating moon-flower unit that is not Sound-Active. For a great effect use the

Sparkle™ in multiples on a chase controller. We suggest using our CC-2016,

CC-3000 or CC-4000 chase controllers for the Sparkle.™ For best results,

use fog or special effects smoke when using this unit. This will enhance the

effect allowing you to see the beams of light.

Caution! Never open unit when in use. Allow ample time for the unit to cool

before performing any type of service. Always disconnect the main power

before serving or replacing the lamp. Remember to always replace with the

exact same type lamp and fuse, unless otherwise instructed to do so by an

authorized American DJ service technician.

Lamp Replacement: Loosen the two side thumb screws located in the

front of the unit. Lift the top cover to access

the lamp and remove the old lamp. Replace

the lamp and close the cover. Remember to

replace with the same type lamp.

SPECIFICATIONS: Sparkle™

Weight: 4.5 Lbs.

Size: 9.75” H x 6” W x 5” L

Lamp: ZB-64610 12v/50w

Fuse: 3A GMA

Voltage In: 120V

Working Position: Any Safe Position

Duty Cycle: None

Colors: Clear

Options: Z-DW, Z-DW1, & Z-DW-2 - Dichroic

color dishes

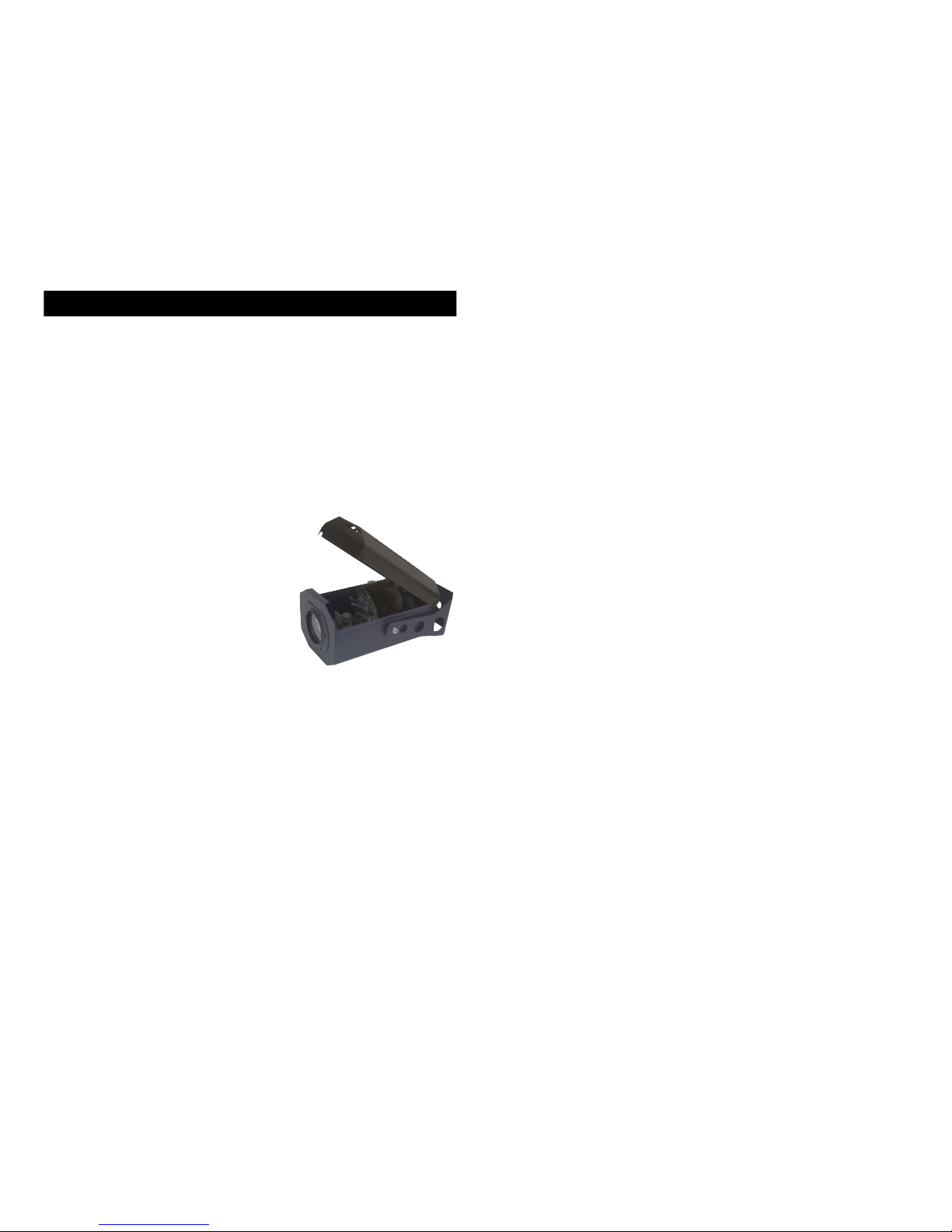

Quick change replaceable lamp!

This illustration detail the ease of

lamp replacement. The lift up cover

make changing lamps easy when

the unit is mounted.

Please Note: Specications and improvements in the design of

this unit and this manual are subject to change without any prior

written notice.

For service related issue please contact American DJ®.

Sparkle™ Operating Instructions

©American DJ Supply® - www.americandj.com - Sparkle™ Instruction Manual Page 3 ©American DJ Supply® - www.americandj.com - Sparkle™ Instruction Manual Page 4

Color Gels: The units comes with four color gels that may be used to

change the output color of the unit. These gels easily slip into the front lens

assembly. You may also purchase optional dichroic color dishes from you

American DJ dealer. These dishes will produce different color patterns and

produce more brilliant colors than the gels sheets.

Fixture Cleaning: Due to fog residue, smoke, and dust the internal and

external optics should be cleaned on regular basis to optimize light output.

1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.

2. Use a brush to wipe down the fan grill.

3. Clean the external optics with glass cleaner and a soft cloth every 20 days.

4. Clean the internal optics with glass cleaner and a soft cloth every 30-60

days.

5. Always be sure to dry all parts completely before reconnecting power.

Cleaning frequency will vary depending on the environment in which the

fixture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we

recommend cleaning on a monthly basis.
