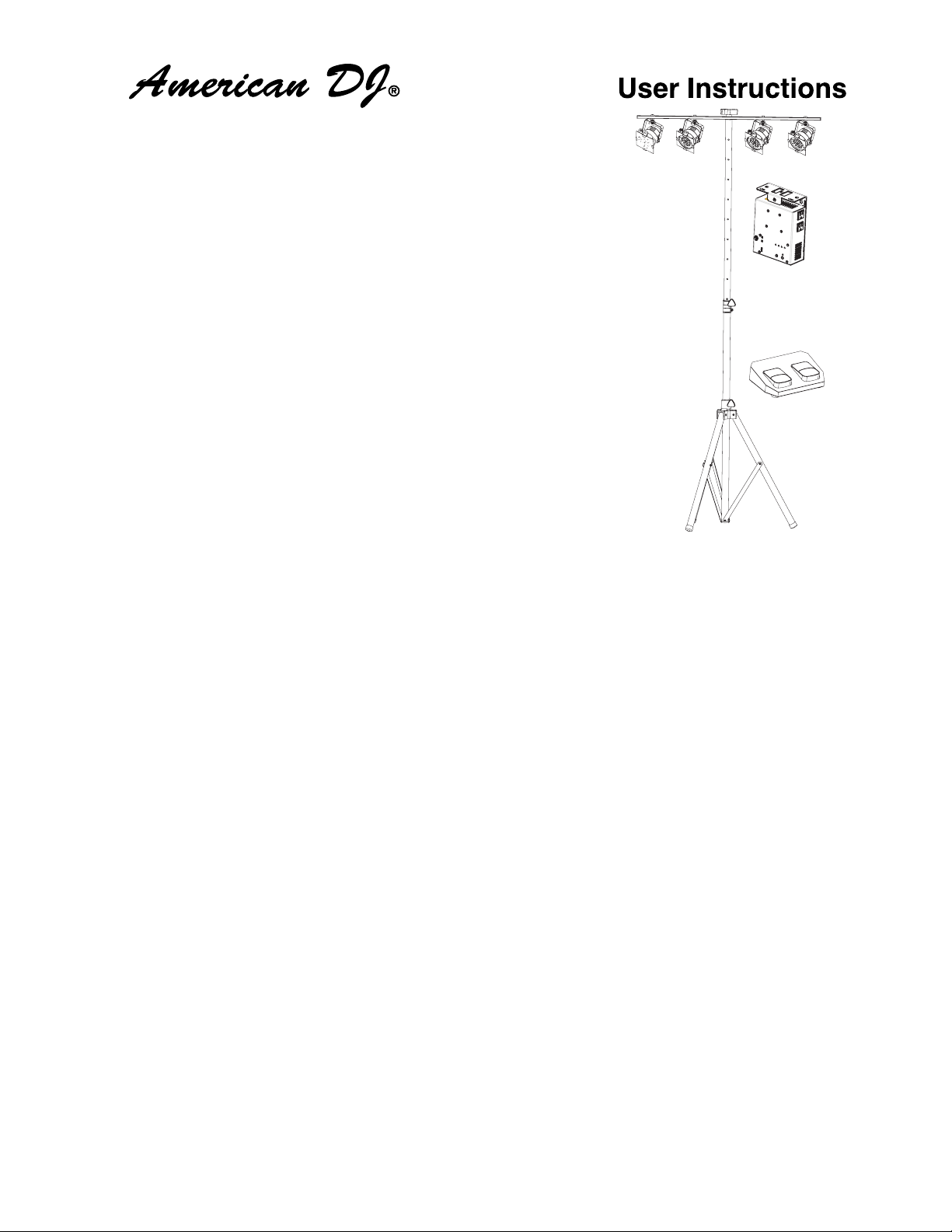

American DJ LS-80 Manual de usuario

LS-80 Parts List:

• 4 x Par 38 Polished Par Cans

1 x Red, 1 x Amber, 1 x Green, 1 x Blue

Each Par Can has 12 x 1W LEDs rated at 100,00 hr. life

25 Degree Beam Angle

Power Consumption is 70W max total system

• 1 x T20F Chase Controller

• 1 x LS-80™ Light Stand which includes:

1 x Tripod stand

1 x T-bar

1 x collars

1 x telescoping posts

2 x adjustment knobs

2 x bolts and wing nuts

Instructions for setting up your LS-80 Light Stand: (See reverse side for a set up diagram)

1. Set up the Tripod stand by adjusting the width of its legs. When the desired width has been se-

lected, tighten the knob on the base of the Tripod.

2. Adjust the telescopic center posts by loosening the knobs on the collars to the preferred height.

The posts will slide into one another going from the largest at the bottom to the smallest at the

top. Tighten the knobs in the collars.

3. Fasten the four bolts and four wing nuts into the T-bar. Finish by placing the T-bar connection

into the top-most center post. It will only t in the smallest post. Tighten the knob on the collar.

4. Reposition if needed, recheck all knobs, and tighten all fastners before mounting any xtures to

your completed LS-80 light stand.

Buttons and Switches:

1. Blackout Selector - The function of stand-by can be approved or forbidden by Blackout Selector.

2. Linkup Selector - Use this switch to select master or slave in a master/slave configuration.

3. Function Selector - This is used to select Audio/Fast/Medium/Slow mode for the patterns.

4. Channel LED - These LEDS indicate the intensity of the corresponding channel or activity of the

pattern or scene.

5. Stand By Button: This button has differnet functions. In Master mode, tap this button to activate

or deactivate Stand By (its LED flashes when Stand By is active). Press this button for three seconds

to activate one of 20 chase modes (10 fade chases or 10 random) or 7 fixed scenes. When chase

patterns are activated, each tap of Pattern button will select a chase pattern. When the scenes are

activated, each tap of Pattern button will forward a scene step by step.

6. Pattern Button: In Master mode, use this button to select chase pattern or scene.

©American DJ ® Los Angeles, CA 990040 USA

LS-80

Portable Lighting System

Customer Support: American DJ®provides a toll free customer support line, to provide help and to answer

any question should you encounter problems during your set up or initial operation. You may also visit us on

the web at www.americandj.com for any comments or suggestions. Service Hours are Monday through Friday

9:00 a.m. to 5:00 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: [email protected]

To purchase parts online visit http://parts.americandj.com

American DJ®

American DJ World Headquarters:

6122 S. Eastern Ave. Los Angeles, CA 90040 USA

Tel: 323-582-2650 / Fax: 323-725-6100

Web: www.americandj.com / E-mail: [email protected]

Specications:

Input Power: 120/60Hz

Line Output: 5A/Line, Total 15A

DMX Channels: 4 Ch.

Universal DMX Control: This function allows you to use a Elation® universal DMX-512 controller to

control the different scenes and modes. A DMX controller allows you to create unique programs tai-

lored to your individual needs.

1. The LS-80 System is a four channel DMX fixture. See the chart below for a description of the

DMX traits.

2. Put the Master/Slave switch into the Slave position. There is no need to set a DMX address, as

soon as you connect the DMX controller to the T20F the T20F will be assinged the DMX address

of 1. When DMX mode is the active the Stand By Button LED will glow.

3. For help operating in DMX mode consult the manual included with your DMX controller.

DMX Channel DMX Value Function

CH1 0-255 adjust the intensity of the first

light from 0%-100%

CH2 0-255 adjust the intensity of the

second light from 0%-100%

CH3 0-255 adjust the intensity of the

third light from 0%-100%

CH4 0-255 adjust the intensity of the

fourth light from 0%-100%
