AMD Geode™ NX Processor

and Heatsink

Installation Guide

The contents of this document are provided in connection with Advanced Micro Devices, Inc.

(“AMD”) products. AMD makes no representations or warranties with respect to the accuracy

or completeness of the contents of this publication and reserves the right to make changes to

specifications and product descriptions at any time without notice. No license, whether

express, implied, arising by estoppel or otherwise, to any intellectual property rights is

granted by this publication. Except as set forth in AMD’s Standard Terms and Conditions of

Sale, AMD assumes no liability whatsoever, and disclaims any express or implied warranty,

relating to its products including, but not limited to, the implied warranty of merchantability, fit-

ness for a particular purpose, or infringement of any intellectual property right.

AMD’s products are not designed, intended, authorized or warranted for use as components

in systems intended for surgical implant into the body, or in other applications intended to

support or sustain life, or in any other application in which the failure of AMD’s product could

create a situation where personal injury, death, or severe property or environmental damage

may occur. AMD reserves the right to discontinue or make changes to its products at any

time without notice.

Contacts

www.amd.com

Trademarks

AMD, the AMD Arrow logo, and combinations thereof, and Geode are trademarks of Advanced Micro Devices, Inc.

Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies.

Installation Guide 3

AMD Geode™ NX Processor and Heatsink32603A November 2004

1.0 Introduction

The AMD Geode™ NX 1250@6W processor*and the AMD Geode™ NX 1500@6W processor**

require only a heatsink and can be used in fanless applications. The AMD Geode™ NX 1750@14W

processor*** requires a heatsink and a fan for proper cooling. AMD provides an AVC 212BJ0 heatsink

for the Geode NX 1250@6W processor and Geode NX 1500@6W processor, and a Therma-Flo

E1305 heatsink and fan for the Geode NX 1750@14W processor. See 5.0 Heatsink Information for

heatsink part number information.

Figure 1. AVC Heatsink and Therma-Flo Heatsink with SUNON Fan

The purpose of this document is to provide installation instructions for the AMD Geode NX

processors, their heatsink and, when required, fan.

2.0 Processor Installation

1. Unlock the socket by lifting the lever on the side of the socket up to a 90oangle.

2. Position the processor directly above the socket such that its marked corner is towards the back

of the socket next to the base of the socket lever, as shown in Figure 2.

3. Carefully insert the processor into the socket until it fits in place. The processor only fits in the

correct orientation.

Note: DO NOT force the processor into the socket. Using force could bend the

processor pins.

4. When the processor is in place, hold it firmly in the socket while you push down the socket lever

to secure the processor. The lever clicks on the side tab to indicate that it is locked.

* This processor operates at 667 MHz. Model numbers reflect performance as described here: http://

www.amd.com/connectivitysolutions/geodexpbenchmark.

** This processor operates at 1 GHz. Model numbers reflect performance as described here: http://www.amd.com/

connectivitysolutions/geodexpbenchmark.

***This processor operates at 1.4 GHz. Model numbers reflect performance as described here: http://

www.amd.com/connectivitysolutions/geodexpbenchmark.

AVC Heatsink Therma-Flo Heatsink with Fan

4Installation Guide

32603A November 2004AMD Geode™ NX Processor and Heatsink

Figure 2. Installing the Processor

3.0 AVC Heatsink Installation

1. Before installing the Heatsink, make sure the Heatsink clip pivot is placed in the twelfth gap,

between heatsink fins twelve and thirteen, as shown in Figure 3. The clip fits down in the large

slot that runs across the heatsink. Use caution to not disturb the white thermal paste on the bot-

tom of the heat sink.

2. Carefully mount the heatsink over the processor in the orientation shown in Figure 3.

Figure 3. Mounting the Heatsink over the Processor

3. Connect the metal heatsink clip at the front-side of the processor socket as shown in Figure 4.

Figure 4. Connecting the Heatsink Clip at the Front of the Processor Socket

Processor Locked in PlaceMarked Corner of ProcessorEmpty Socket with Lever Raised

Socket Back

Socket Front

Short Segment Long Segment

Twelfth Gap Notch in Heatsink

Socket Lever in

Locked Position

Notch in Heatsin

Socket Front

Installation Guide 5

AMD Geode™ NX Processor and Heatsink32603A November 2004

4. Connect the other end of the metal heatsink clip at the back-side of the processor socket using a

flat head screw driver, as shown in Figure 5.

Figure 5. Connecting the Heatsink Clip at the Back of the Processor Socket

4.0 Therma-Flo Heatsink Installation

1. Before installing the Heatsink, remove the thin plastic cover attached to the thermal paste. Be

careful NOT to remove the thermal paste.

Figure 6. Removing the Thermal Paste Covering

2. Carefully mount the heatsink over the CPU in the orientation shown in Figure 7. Center the

heatsink over the processor with the metal thumb clip towards the back-side of the processor

socket.

Figure 7. Placing the Heatsink Over the Processor

To p V i ew

Side View

Socket Front

6Installation Guide

32603A November 2004AMD Geode™ NX Processor and Heatsink

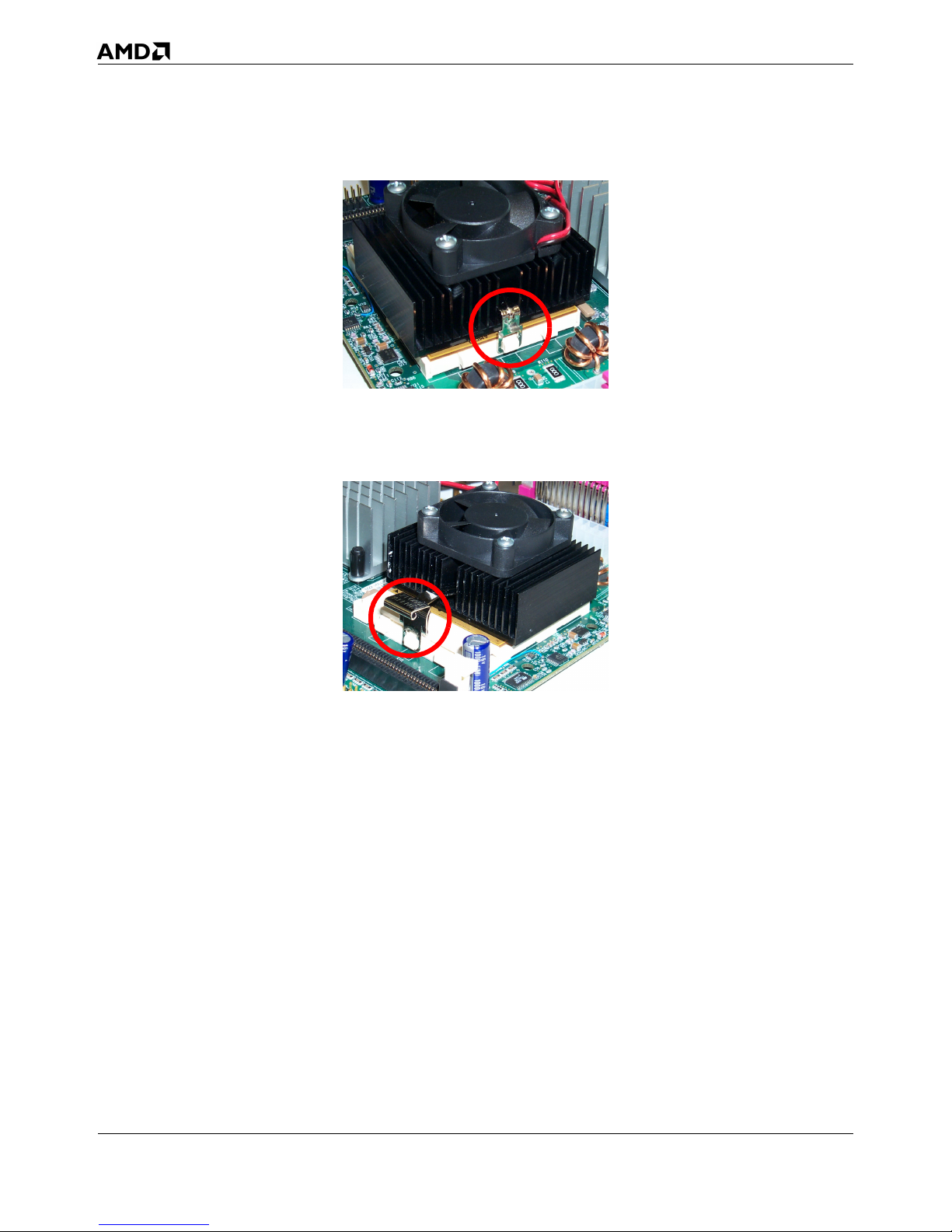

3. Connect the metal heatsink clip at the front-side of the processor socket as shown in Figure 8.

Figure 8. Heatsink Clip Connected to Front of Processor Socket

4. Connect the other end of the metal heatsink clip at the back-side of the processor socket, as

shown in Figure 9.

Figure 9. Heatsink Clip Connected to Back of Processor Socket

5.0 Heatsink Information

5.1 AVC Heatsink Assembly Part Numbers

• Heatsink Assembly Reference Number – S7YBJ00001

• Heatsink Part Number – 212BJ0

• Heatsink Clip Part Number – 50209064

• Thermal Grease Part Number – CL10012 (size: 16X16mm, DC340)

• Vacuum Cover Part Number – A717000006

5.2 Therma Flo Heatsink Assembly Part Numbers

• Heatsink Part Number – E1305

• Heatsink Clip Part Number – 3125FCPU69MM

5.3 SUNON Part Number

• Fan Part Number – KD1204PFS
