MIC iMIX page station user manual
USER MANUAL MIC iMIX page station
Front panel

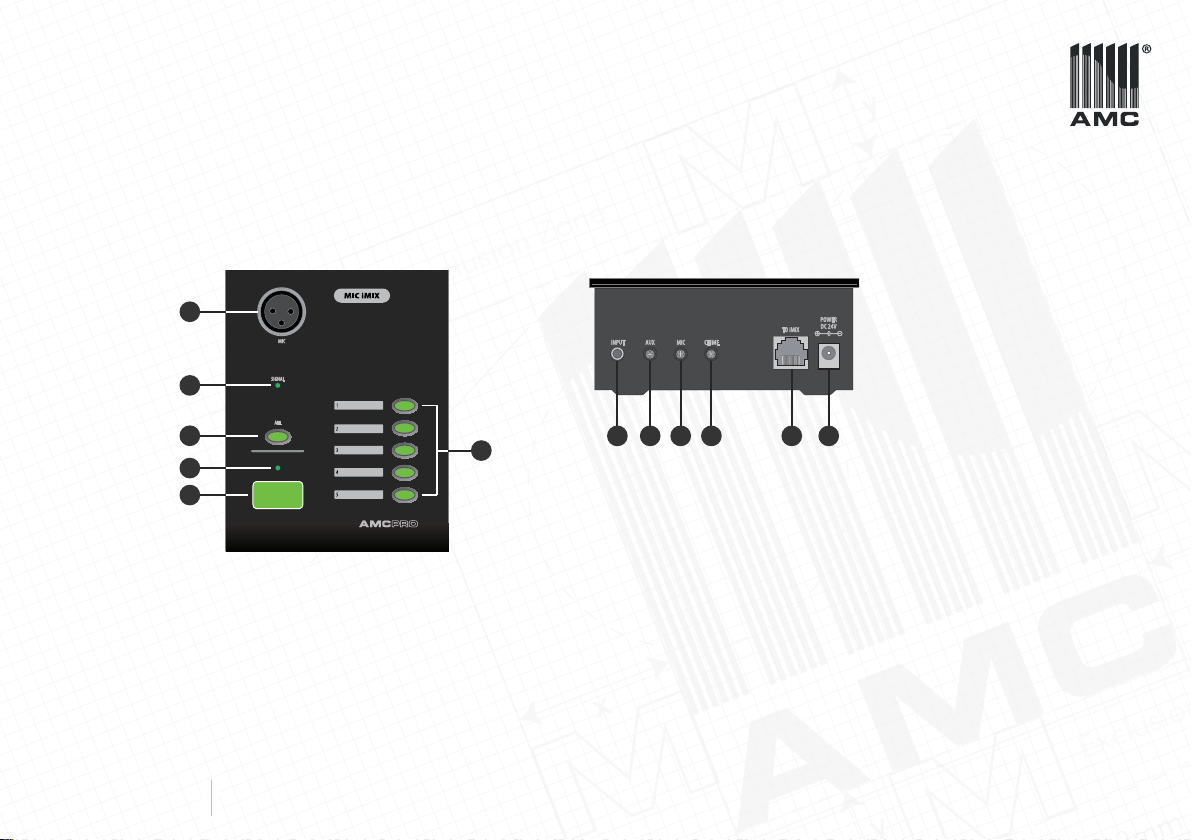

1. Microphone connector |2. Signal LED |3. All button | 4. Talk indication | 5. Talk button | 6. Zone selector
7. AUX input |8. AUX level control |9. Microphone level control |10. Chime volume |11. RJ45 port |12. Power connector
1
2
3
4
5
6
7 8 9 10 11 12
Rear panel
y
y
x
25
o
Minimum Usage 18mm
Minimum Usage 18mm
y
y
25
x
y
age 18mm
m
m
25
25
o
x
x
y
y
18
18m
8m
8m
y
mm
y
y
m
m
m
m
m
m
USER MANUAL MIC iMIX page station
Front/Rear panel operation
MICROPHONE CONNECTOR
Designed to connect gooseneck microphone to the page station. Supports
condensed microphone.
SIGNAL LED
Indicates audio signal in the page station output.
ALL BUTTON
This switch activates all zones for broadcasting announcement. There are three
way how to use this button:
Quick - hold button till Talk LED became green. This method plays chime sound
before enabling microphone. Page station turns off microphone automatically
after button release.
Lock mode - click All button in order to select all iMX5 zones. After selection
click talk button. This method also play chime sound before enabling micro-
phone and lock talk button in order to make announcement without holding
button all the time.
No chime mode - click All button in order to select all iMX5 zones. After selec-
tion click and hold talk button. This mode mute’s chime for current announce-
ment. Page station turns off microphone automatically after button release.
TALK INDICATION
LED for showing page station status. Green color - page station is ready to
transmit announcement. Red color - data line busy. Usually it takes 2-3 seconds
till systems returns to normal stage and indicator change color to green.
TALK BUTTON
Talk button - activates microphone. Every time before talk button zone for
receiving announcement must be selected.
ZONE SELECTOR
These switches controls output in order to broadcast announcement to the
desired zone.
AUX INPUT
AUX input Designed to connect external audio signal.
y
y
x
25
o
Minimum Usage 18mm
Minimum Usage 18mm
y
y
25
x
y
age 18mm
m
m
25
25
o
x
x
y
y
18
18m
8m
8m
y
mm
y
y
m
m
m
m
m
m
USER MANUAL MIC iMIX page station
AUX LEVEL CONTROL
External audio volume control.
MICROPHONE GAIN CONTROL
Turn clockwise to increase or counterclockwise to decrease the gain station
microphone gain.
CHIME VOLUME
Potentiomeater for adjusting Chime loudness.
RJ45 PORT
RJ45 port is designed to connect WC iMIX page station to iMIX5 by using
standard LAN cable.
POWER CONNECTOR
Power connector designed to connect additional power supply. If distance
between call station and iMIX5 is more than 100m. external power supply is
recommended.
Chime
MIC iMIX page station supports several chime options. All chime settings can be
adjusted by using DIP switch located in the call station the bottom.
Mode 000 means all DIP switch are set to position OFF.
Mode 010 means that only midle DIP swich is set to position ON.
Front/Rear panel operation
