Amazon B005PJJ89U Manual de usuario
B005PJJ89U
▼▲
SET
2
▼▲
SET
Set button
Up/Down buttons
LCD display
Flashlight power button
Nozzle
A
B
C
D
E
E
C
B
AD
Turns gauge on/sets choices
Increases/decreases setting options
Displays selections/readings
Turns LED ashlight on/off
Releases air/reads tire pressure
Instruction Manual
AmazonBasics Programmable Digital Tire Gauge
3
Features
• Program your vehicle’s tire pressure volume
• Fine tune tire pressure with air-bleed function
• Reach awkward angles with the swivel head
• Easy-to-read, extra large backlight display
• Built-in white LED flashlight on tip
4
To use:
Measuring pressure
1. Press Set. The display lights and “0.0” appears. The default
unit of measure is PSI.
2. Remove the cap from your tire valve.
3. Push and hold the nozzle on the gauge against the valve stem
until the pressure reading is displayed and locked.
4. Remove the gauge from the valve stem. The pressure
reading stays on the display for 10 seconds. The display
returns to the “0.0” reading, then turns off after 10 seconds.
5
Over range error
If your tire pressure is more than 99.5psi/ 6.90bar,
the display will show an “E.”
Setting a target for tire pressure level
Note: The target numbers you set are reminders of your vehicle manufacturer’s
suggested tire pressure levels. They cannot be used to test for or indicate
actual pressure in tires.
To find your vehicle manufacturer’s suggested tire pressure levels see
your vehicle owner’s manual.
1. Press Set. The display lights and “0.0” appears.
6
2. Press Set again and hold for 3 seconds. The unit “PSI” or
“BAR” appears and blinks. Press or to switch between
PSI and BAR. Then, press Set to conrm your selection.
The icon indicating front or rear tire lights and blinks.
3. Press or to choose front or rear tire, then press Set to
conrm.
7
4. Press or to change the target number you want, then
press Set to conrm. The icon for the next tire is displayed.
5. Press or to to select your target number, then press Set
to conrm.
8
6. Your target numbers for both tires light for about 2 seconds,
then the display returns to “0.0”.

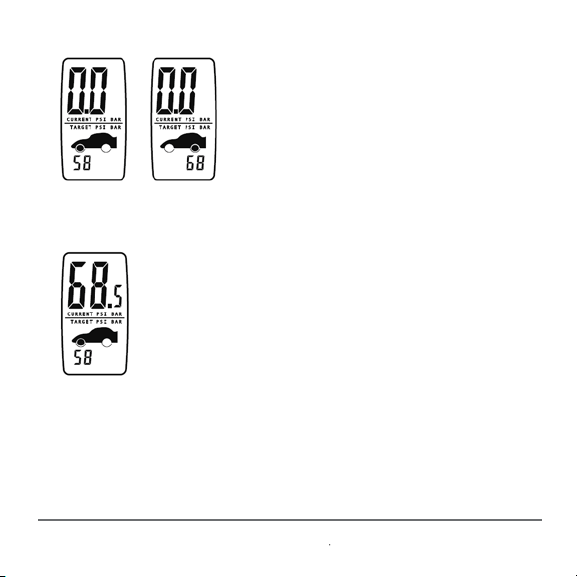

Measuring pressure with a preset target
1. Press Set. The display lights and “0.0” appears.
9
2. Pressor to choose between the front and rear tires.
3. Push and hold the nozzle on the gauge against the valve
stem until the pressure reading is displayed and locked.
4. Remove the gauge from the valve stem. The current
pressure reading appears on the top of the display and
your target reading appears on the bottom for 10 seconds.
5. When the display returns to “0.0”, repeat steps for the
other tires.
6. After your nal reading the display returns to “0.0” and
turns off after 10 seconds.
Using the white LED ashlight
Press and hold the power button to turn on the light.
Release the power button to turn off the light.
Low battery warning:
When the batteries are nearly expended the panel will display
“Lo.”
10
