Amano TCX-85 Manual de usuario

TCX-85 www.amano.com/time •1-800-253-9836

TCX-85

Atomic Time Clock

Quick-Start Guide

2-2 www.amano.com/time •1-800-253-9836 TCX-85

Proprietary Notice

This document contains proprietary information and such information

may not be reproduced in whole or part without the written permission

from Amano Cincinnati, Inc. 140 Harrison Ave., Roseland, New Jersey

07068.

Amano Cincinnati, Inc. reserves the right to make equipment changes

and improvements, which may not be reflected in this document.

Portions of this document may have been updated to include the latest

hardware or firmware version, if applicable.

To ensure safe use of this time recorder/stamp, be sure to thoroughly

read this manual in its entirety before any attempt is made to operate

the equipment. After you have finished reading this manual, be sure to

store it in a safe place for future reference.

Thank You….

For purchasing another fine product from Amano Cincinnati, Inc.

For Safe and proper operation, please carefully read the

manual before using the time clock and save it for reference.

Warranty Notice

Any claim for warranty, express or implied, due to the clocks failure to

properly receive the radio signal because of interference, whatever

may be the source of this interference, are hereby expressly excluded.

The TCX-85 has the atomic clock (radio-controlled clock) feature

which displays the current time precisely by automatically receiving

time code signals on long wave radio from the transmitting station.

The unit receives the time code signal via its built-in antenna system.

Note: This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

TCX-85 www.amano.com/time •1-800-253-9836 2-3

Table of Contents

GUIDELINES FOR SAFE OPERATION….. .................................5

Step 1..............................................................................7

Remove the Cover & Packing Material .............................7

Step 2..............................................................................8

Setting the Time..............................................................8

Step 3..............................................................................9

Changing the Print Format (P4)........................................9

Voice Programming.......................................................10

Voice Programming Print Format Example ....................12

Button Programming.....................................................13

Setting the Time (P1)......................................................13

Setting the Date [Month/Date/Year](P2) ......................13

Enabling or Disabling Daylight Saving Time (P3)............14

Enabling/Disabling Auto Print (P508) .............................15

Wall Mounting ...............................................................16

Operation ......................................................................17

Enable/Disable Atomic Clock Feature (P512) ...................17

Ribbon Cartridge Replacement ......................................17

Parts .............................................................................19

Error Messages..............................................................20

TCX-85 Cleaning............................................................21

Resetting Clock After Extended Loss of Power ..............21

TCX-85 Power Modes ....................................................21

TCX-85 Time Display Modes ..........................................21

Wall Mounting Template................................................22

Specifications ................................................................23

2-4 www.amano.com/time •1-800-253-9836 TCX-85

Important! Do not return this clock to the retailer. If

you have any questions or need assistance, please call us

toll free at 1-800-253-9836

Need Ribbons, Keys and Accessories?

Visit

www.amano.com/time

Or call 1-800-253-9836

External View

Internal View

TCX-85 www.amano.com/time •1-800-253-9836 2-5

GUIDELINES FOR SAFE OPERATION…..

To ensure safe operation, please carefully read the following warnings and

cautions prior to using the TCX-85 Electronic time recorder/stamp.

Warning

Do not disassemble the unit. There is a high voltage present inside,

possibly leading to an electric shock.

Do not modify the unit. Modifications may cause a fire and/or electric

shock.

If any anomaly occurs, for example, heat or smoke is generated or an

odor is emitted, unplug the unit immediately and contact your dealer

for servicing. There is a danger that further use may cause a fire or

electric shock.

Do not use any voltage of the power source other than designated.

Do not share a single outlet with another plug. These may lead to fire

or shock hazards.

Do not damage, break, or modify the power cord. Do not put a

heavy object on, pull, or

forcefully bend the cord, either. These may

damage the cord, possibly resulting in a fire or electric shock.

If foreign matter should get in the unit (including a piece of metal,

water, or liquid), disconnect the plug from the outlet immediately and

contact your dealer for servicing. There is a danger that further use

may cause a fire or electric shock.

Do not plug or unplug the unit with a wet hand. You may get an

electric shock.

！

2-6 www.amano.com/time •1-800-253-9836 TCX-85

Caution

Do not place the unit on an uneven or tilted surface. This may result

in injuries due to the unit dropping or falling off.

Do not put a water-filled container or a metal object on top of the unit.

If water is spilled or the metallic object slips inside, a fire or shock

hazard may occur.

Do not install the unit in a humid or dusty environment. It may cause

a fire or electric shock.

Do not place the unit near kitchen counter or humidifier. Oil, smoke,

or steam generating from them may cause fire or shock hazards.

Do not yank the power cord to disconnect from the outlet. Hold the

plug with your hand to do so, or the cord may be damaged, possibly

leading to a fire or electric shock.

Remove the line cord plug from the outlet before transferring the unit,

or it may damage the cord, possibly leading to a fire or electric shock.

Be careful not to contact the print head, as you may get hurt or

burned.

Make sure to insert the power plug as far as it will go. Improper

insertion of the plug may develop fire or shock hazards.

Do not insert or drop any other time card than specified into the slot.

Such misuse may cause a fire or electric shock.

If the unit should be dropped or the case is broken, unplug the unit

and contact your dealer for servicing. Further use may lead to a fire or

shock hazard.

Relation to the Health and the Environment

The plastic currently used for the outer enclosure of this apparatus does not

contain the halogen substance.

！

TCX-85 www.amano.com/time •1-800-253-9836 2-7

Step 1

Remove the Cover & Packing Material

1. Insert the key provided into keyhole on the top of the clock,

turn clockwise ¼ turn to unlock the cover and lift the cover

to remove.

2. Remove the

cardboard spacer

located above the

ribbon cartridge by

pulling straight out

(see right-hand

Figure).

3. Lift up the printer

carriage by placing

your fingers

under the metal

motor on the left-

hand side and

remove the foam

spacer (white)

located under the

print head (see

right-hand Figures).

Release the printer

carriage.

4. After removing the foam spacer with the cover off plug in

the clock!

5. The TCX-85 will announce “Voice mode

enabled” and display the time with Setup on

the bottom line.

Note –Should the clock not power up,

verify that the AC Adapter is plugged

into the rear of the clock.

2-8 www.amano.com/time •1-800-253-9836 TCX-85

Step 2

Setting the Time

1. Press the HOUR button to advance hour by increments of

one (1) until the correct hour appears.

2. Press the MINUTE button to advance minutes by

increments of one (1) until the correct minute appears.

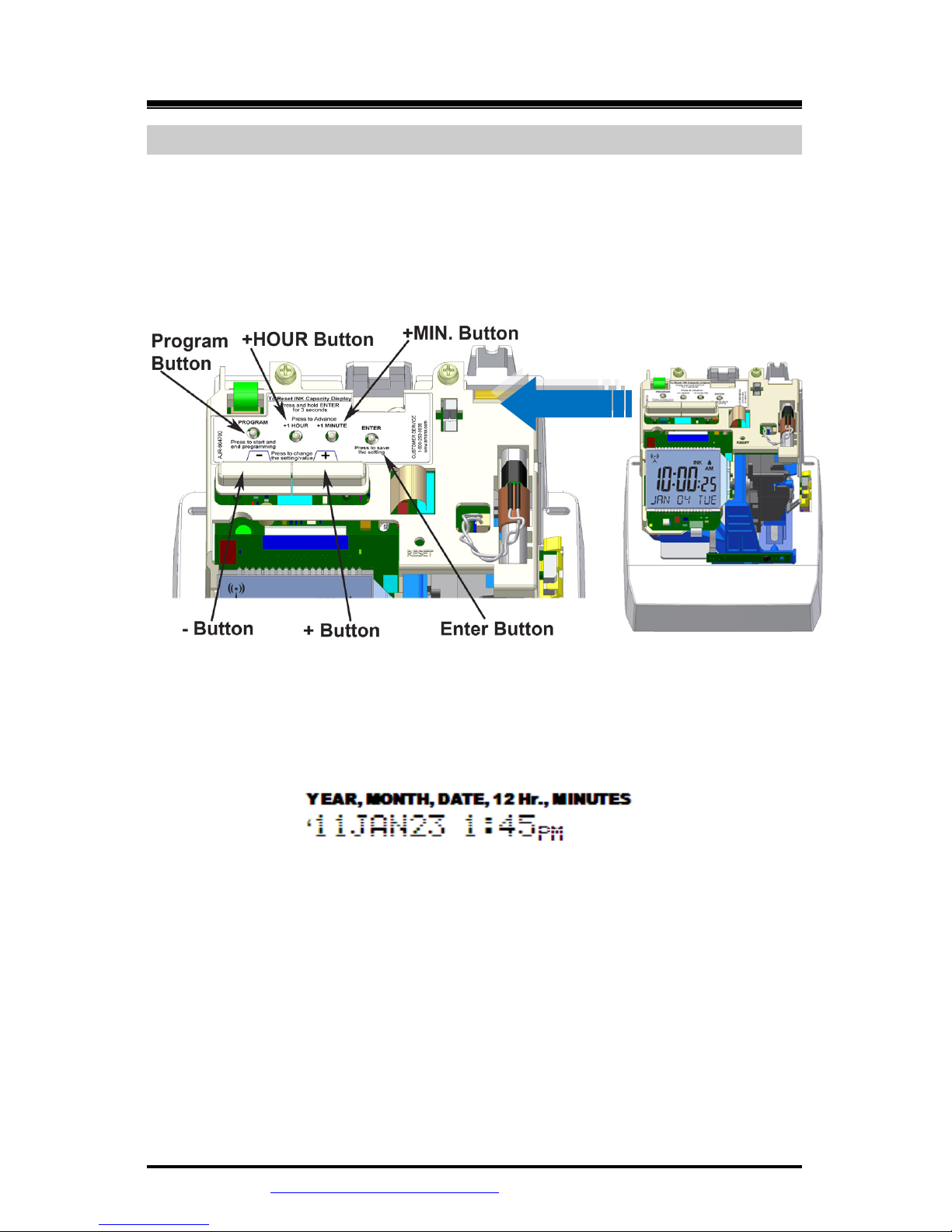

Figure 1: Programming Button Locations.

3. The default print format is Format-1 (YEAR, MONTH, DATE

and TIME with AM or PM).

If this format is acceptable replace the cover and the clock

is ready for use. If you need to change the print format

proceed to Step 3 on the next page.

TCX-85 www.amano.com/time •1-800-253-9836 2-9

Step 3

Changing the Print Format (P4)

1. With the cover removed, press the PROGRAM button to

begin button program mode and P1 TIME will appear.

2. Press the +button to change the current

programming mode until the display shows

P4 PRint FORMAT.

3. Press the ENTER button once and the clock

will flash the current print format. The default setting =

FORMAT-1.

4. Press the + or – button to increase or decrease the print

format value to 1, 2, 3, 4, 5, or 6. See the following for

examples of Print Format:

5. Press the ENTER button once to accept the current value.

6. Replace the cover for normal operation.

2-10 www.amano.com/time •1-800-253-9836 TCX-85

Should you want to change anything else, i.e., disabling

auto print, disabling daylight savings, etc., the clock can

now be programmed using voice commands (see below)

or through the program buttons (see starting page 1-9).

Voice Programming

1. With the cover off say “Hello Clock”to begin voice

programming the clock. The clock will respond by saying

“Welcome, to the Amano time clock, what would you

like to change?” and the

clock willBEEP.

You must wait for the BEEP

before saying command!!

2. Voice commands can be

entered in any order. See

voice commands on the

following page.

Only valid commands will be

accepted by the clock.

1. Say “Time” to enter into the set time mode.

Sequence for Time Entry with Voice Commands

2. The clock will announce, “Current time is……” followed

by, “Please tell me the new time” followed by a BEEP.

3. After the BEEP, say the desired time, i.e., “Two Twenty

PM” to set the current time as 2:20 PM. The user must end

the sentence with “AM” or “PM” to complete time entry.

When entering a time for the top of the hour you must say

the hour followed by o’clock. For example, for 7:00 AM,

please say, “seven o’clock AM”. In another example, for

10:02 PM, please say “ten o’ two PM”.

Upon acceptance of the voice entry, the clock will announce

“New time is……”

Note – If the clock does not accept the new setting, it will

announce an error message and keep asking the user every

3 - 4 seconds to speak the new value until the new value is

accepted. During voice program mode the buttons on

top of the clock will be ignored.

“Welcome…, what

would you like to

change?” followed

by a BEEP.

“Hello Clock”

Tabla de contenidos

Otros manuales de Reloj de Amano

Amano

Amano BX-1600 Guía de inicio rápido

Amano

Amano PIX-75 Instrucciones de funcionamiento

Amano

Amano EX3000N Manual de usuario

Amano

Amano PIX-25 Instrucciones de funcionamiento

Amano

Amano Time Partner TCX-11 Manual de usuario

Amano

Amano MTX-30F Instrucciones de funcionamiento originales

Amano

Amano PIX-200 Manual de usuario

Amano

Amano PIX-10 Manual de usuario

Amano

Amano Amano TCX 21 Manual de usuario

Amano

Amano PIX-15 Manual de usuario

Amano

Amano MJR-8500 SERIES Manual de usuario

Amano

Amano MJR-8000 Series Guía de solución de problemas

Amano

Amano 4700 Series Manual de usuario

Amano

Amano NS 5000 Series Manual de usuario

Amano

Amano PIX-10 Manual de usuario

Amano

Amano TCX-22 Manual de usuario

Amano

Amano MJR-7000EZ Manual de usuario

Amano

Amano MJR-8000 Series Instrucciones de montaje

Amano

Amano PIX-75 Instrucciones de funcionamiento

Amano

Amano PIX-75 Manual de usuario

Amano

Amano PIX-21 Manual de usuario

Amano

Amano PIX-3000x Series Manual de usuario

Amano

Amano PIX-3000x Series Manual de usuario

Amano

Amano CP-5000 Manual de usuario

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

La Crosse Technology

La Crosse Technology WS-8256-AL Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

La Crosse Technology

La Crosse Technology WT-3141b Manual

La Crosse Technology

La Crosse Technology W86531 Manual de usuario

Sharp

Sharp SPC900 Manual de usuario

La Crosse Technology

La Crosse Technology 404-50447 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario
