Altimium FO1HD-4K Manual de usuario

FO1HD-4K

4K Optical Fiber Extender

Version: FO1HD-4K_2015V1.2

User Manual

4K Optical Fiber Extender

Preface

Read this user manual carefully before using this product. Pictures shown in this manual

is for reference only, different model and specifications are subject to real product.

This manual is only for operation instruction only, not for any maintenance usage. The

functions described in this version are updated till July 2015. Any changes of functions

and parameters since then will be informed separately. Please refer to the dealers for

the latest details.

All product function is valid till 2015-7-7.

Trademarks

Product model, ALTIMIUM and its logo are trademarks of Altimium. Any

other trademarks mentioned in this manual are acknowledged as the properties of the

trademark owner. No part of this publication may be copied or reproduced without the

prior written consent of Altimium.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. It has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a commercial

installation.

Operation of this equipment in a residential area is likely to cause interference, in which

case the user at their own expense will be required to take whatever measures may be

necessary to correct the interference.

Any changes or modifications not expressly approved by the manufacture would void

the user’s authority to operate the equipment.

4K Optical Fiber Extender

SAFETY PRECAUTIONS

To insure the best from the product, please read all instructions carefully before using

the device. Save this manual for further reference.

Unpack the equipment carefully and save the original box and packing material for

possible future shipment

Follow basic safety precautions to reduce the risk of fire, electrical shock and injury

to persons.

Do not dismantle the housing or modify the module. It may result in electrical shock

or burn.

Using supplies or parts not meeting the products’ specifications may cause damage,

deterioration or malfunction.

Refer all servicing to qualified servicepersonnel.

To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this

product near water.

Do not put any heavy items on the extension cable in case ofextrusion.

Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

Install the device in a place with fine ventilation to avoid damage caused by

overheat.

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If

an object or liquid falls or spills on to the housing, unplug the module immediately.

Do not twist or pull by force ends of the optical cable. It can causemalfunction.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to

the device before cleaning.

Unplug the power cord when left unused for a long period of time.

Information on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electricalwastes.

4K Optical Fiber Extender

Introduction

FO1HD-4K is a mini optical fiber extender for 4K resolution. It contains a transmitter

module and a receiver module. Compatible with multi-mode and single-mode fiber, it

extends graphic TMDS signals up to 400m/300m via single-mode cable/ multi-mode

cable. With its HDMI1.4& HDCP compliance design, FO1HD-4K supports high

definition (up to 4096x2160@30Hz, 1080p 3D) signal.

Package List

1*FO1HD-4K (Tx and Rx are

included) 2* Power Adapter

1*Optical Fiber Cable (single-mode)

1*User Manual

Notes：Check whether all the items listed above are included in your package. If not,

contact your dealer to make up.

Appearances

FO1HDT-4K:

PWR led: illuminate when powered up

LINK led: Illuminate when connecting

Tx& Rx

USB: Insert a DC 5V 1A power adapter

here

OUT: Connect with IN of Rx

4K Optical Fiber Extender

FO1HDR-4K:

PWR led: illuminate when powered up

LINK led: Illuminate when connecting

Tx& Rx

USB: Insert a DC 5V 1A power adapter here

IN: Connect with OUT of Rx

Connection:

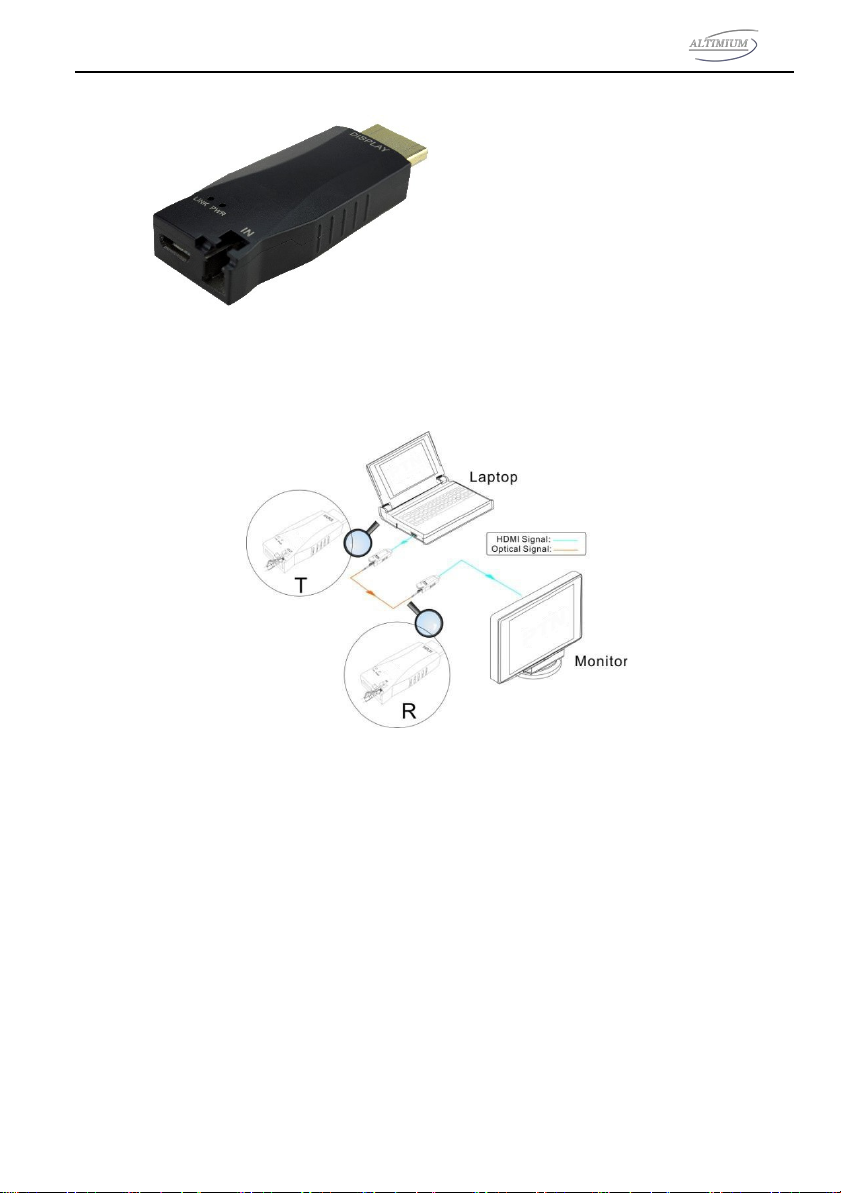

The figure below illustrates a typical connection that can be utilized with FO1HD-4K:

Step1. Insert the transmitter into the HDMI port of a HDMI source device (e.g. a PC).

Step2. Connect the OUT port of the transmitter to the IN port of the receiver with an

optical fiber cable.

Step3. Insert the receiver into the HDMI port of a HDMI sink device (e.g. a monitor).

Step4. Plug DC 5V power adapters to the USB ports of both the transmitter and the

receiver.

Note: Connect the transmitter/ receiver with HDMI source/ sink directly or through a

HDMI cable.

4K Optical Fiber Extender

Specification

Model

Spec FO1HD-4K FO1HDR-4K

Input

Input Signal

1 HDMI

1 Optical Fiber

Input Connector

19-pin Type A male HDMI

LC connector

Signal

HDMI1.4

Optical Fiber

Output

1 Optical Fiber

1 HDMI

Output Connector

LC connector

19-pin Type A male HDMI

Signal

Optical Fiber

HDMI1.4

General

Resolution

4k (max)

Audio Format

PCM, Dolby Digital, DTS, DTS-HD

HDMI Standard

Support HDMI1.4 and HDCP1.4

Transmission Distance

≤

400m via single-mode fiber

≤

300m via multi-mode fiber

Temperature

0 ~ 50

℃

Reference Humidity

10% ~ 90%

Power Supply

Input: AC 100~240V, 50/60Hz; Output: DC 5V 1A

Power Consumption

≤

2.5w

≤

2.3w

Dimension (W*H*D)

60*10*22 mm

Weight

26g

4K Optical Fiber Extender

Troubleshooting & Maintenance

Problems Causes Solutions

Color losing or vague/

double image in HDMI

display

Poor quality of the HDMI

cable (if used)

Change for qualified cable.

Power led is off, operations

don’t work

Not been powered Power up the unit

Poor contact of USB port Make sure power adapter

is in well contact

No output on the display

Source/ Display is off Turn on the source/ display

Poor contact of HDMI ports

Check the HDMI ports one

by one to make sure

they’re in well contact.

If your problem persists after following the above troubleshooting steps, seek further

help from authorized dealer or our technical support.

4K Optical Fiber Extender

After-sales Service

If there appear some problems when running the device, please check and deal with the

problems referring to this user manual.

Product Limited Warranty: ALTIMIUM warrants that its products will be free from

defects in materials and workmanship for two years, which starts from the first day

the product leaves warehouse (check the SN mark on the product).

Proof of purchase in the form of a bill of sale or receipted invoice must be presented

to obtain warranty service.

What the warranty does not cover (servicing available for afee):

Warranty expiration.

Factory applied serial number has been altered or removed from the product.

Damage, deterioration or malfunction causedby:

Normal wear and tear

Use of supplies or parts not meeting ourspecifications

No certificate or invoice as the proof of warranty.

The product model showed on the warranty card does not match with the

model of the product for repairing or had beenaltered.

Damage caused by force majeure.

Servicing not authorized by ALTIMIUM

Any other causes which does not relate to a productdefect

Delivery, installation or labor charges for installation or setup of the product

Technical Support: Email to our after-sales department or make a call, please

inform us the following information about yourcases.

Product version and name.

Detailed failure situations.

The formation of the cases.

Remarks: For any questions or problems, please try to get help from your local

distributor, or email ALTIMIUM at: contact@altimium.com

4K Optical Fiber Extender

ALTIMIUM

587 Avenue Blaise Pascal

77550 MOISSY-CRAMAYEL

Tél : 01.64.13.31.00

Fax: 01.60.29.62.70

Mail: contact@tesca-audio.com

Web: www.altimium.com
