Alpine KTX-PRS8-S Manual de usuario

Mobile

Media

Solutions

Perfect Fit

201

0-up

Toyota Prius {Excluding

V and

models

with

Factory Navigation

JBL)

KTX-PRS8

Ford Trim Panel x 1

(Panel 7304) Power Harness x 1 Steering Wheel Remote

Control Module x 1

Left Bracket x 1

(Panel 7306) Right Bracket x 1

(Panel 7305)

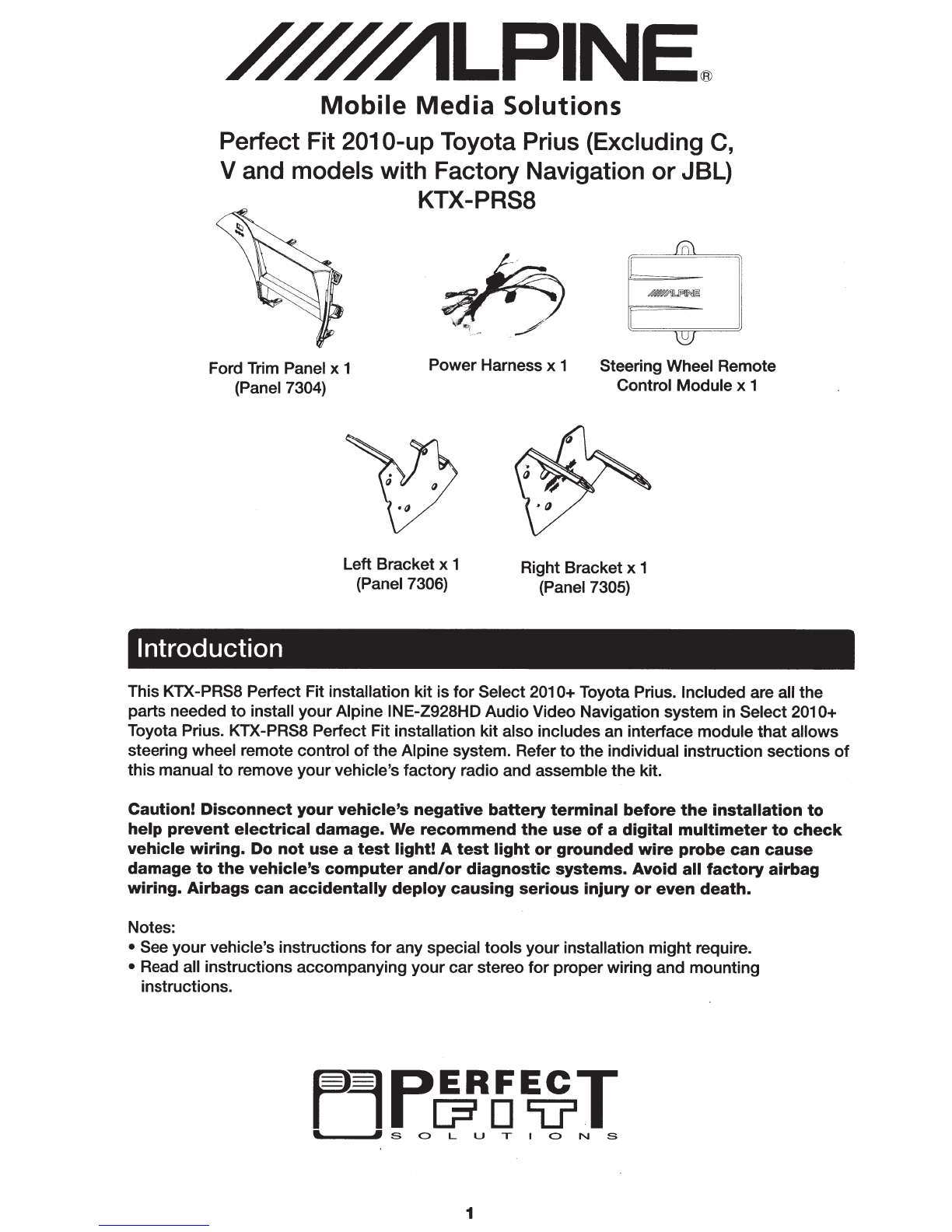

Introduction

This KTX-PRS8 Perfect Fit installation kit is

for

Select

201

0+ Toyota Prius. Included are all the

parts needed

install your Alpine INE-Z928HD Audio Video Navigation system in Select

201

Toyota Prius. KTX-PRS8 Perfect Fit installation kit also includes

interface module that allows

steering wheel remote control

the Alpine system. Refer

the individual instruction sections

this manual

remove your vehicle's factory radio and assemble the kit.

Caution!

Disconnect

your

vehicle's

negative

battery

terminal

before

the

installation

help

prevent

electrical

damage. We

recommend

the

use

digital

multimeter

check

vehicle

wiring.

not

use

test

light!

test

light

grounded

wire

probe

can

cause

damage

the

vehicle's

computer

and/or

diagnostic

systems.

Avoid

all

factory

airbag

wiring.

Airbags

can

accidentally

deploy

causing

serious

injury

even

death.

Notes:

• See your vehicle's instructions

for

any special tools your installation might require.

• Read all instructions accompanying your car stereo for proper wiring and mounting

instructions.

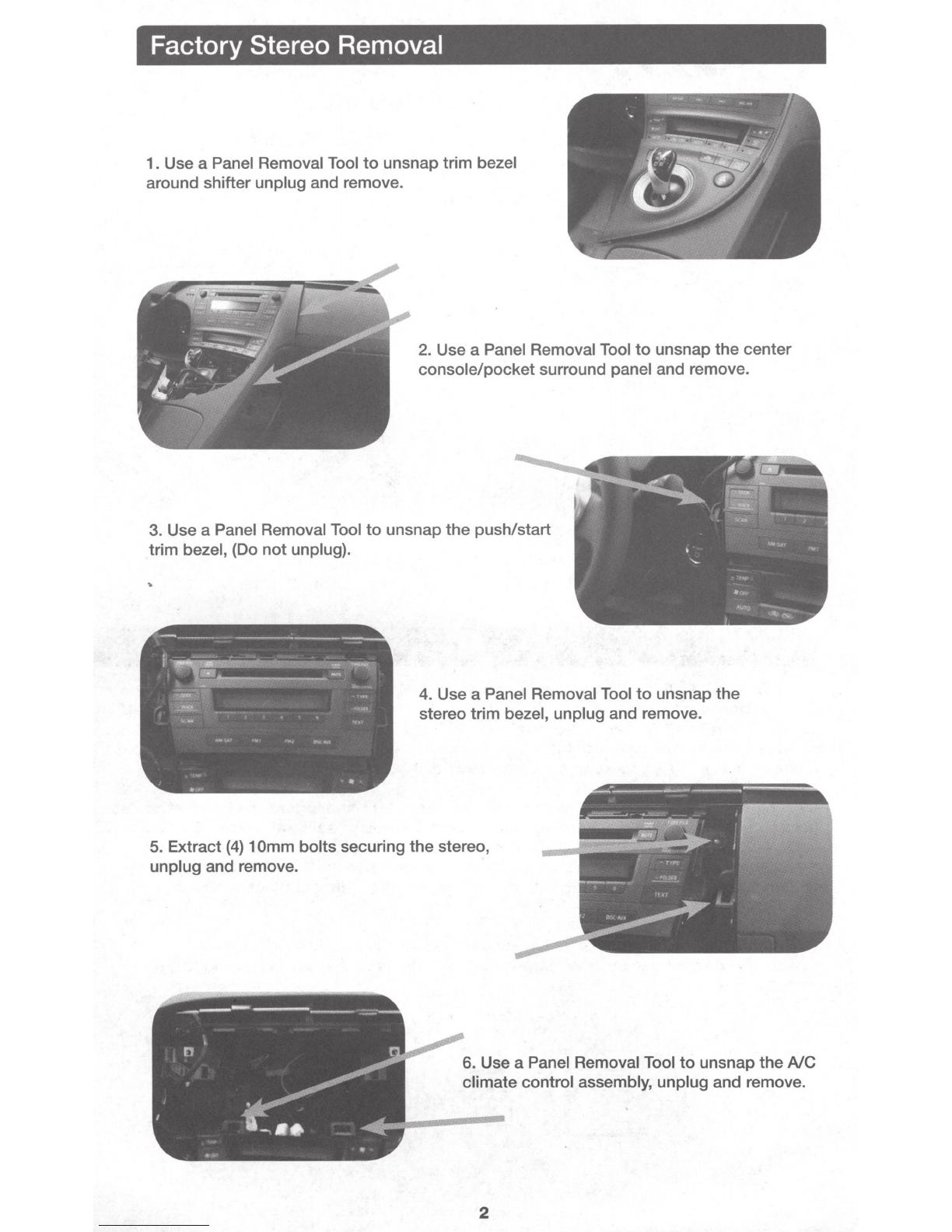

Factory Stereo Removal

1. Use a Panel Removal Tool

unsnap trim bezel

around shifter unplug and remove.

2. Use a Panel Removal Tool

unsnap the center

console/pocket surround panel and remove.

3. Use a Panel Removal Tool

unsnap the push/start

trim bezel, (Do

not

unplug).

Use a Panel Removal Tool

unsnap the

stereo trim bezel, unplug and remove.

5. Extract

(4)

Omm

bolts securing the stereo,

unplug and remove.

Use a Panel Removal Tool

unsnap the A/C

climate control assembly, unplug and remove.

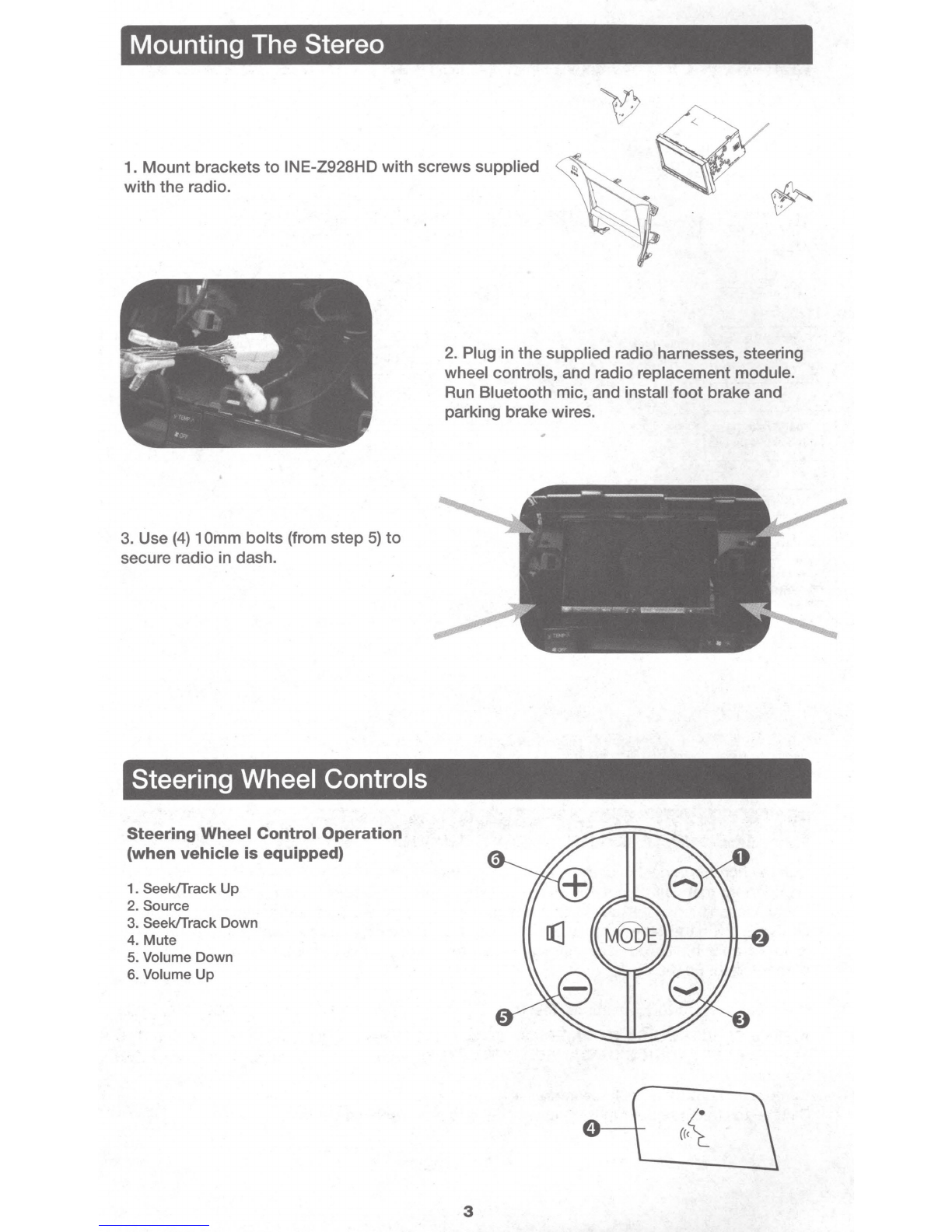

Mounting The Stereo

Mount

brackets

INE-Z928HD with screws supplied

with the radio.

Use

(4)

Omm

bolts (from step

secure radio in dash.

Steering Wheel Controls

Steering Wheel Control Operation

(when vehicle is equipped}

Seekffrack

2. Source

Seekffrack

Down

Mute

Volume Down

Volume

Plug in the supplied radio harnesses, steering

wheel controls, and radio replacement module.

Run Bluetooth mic, and install

foot

brake and

parking brake wires.

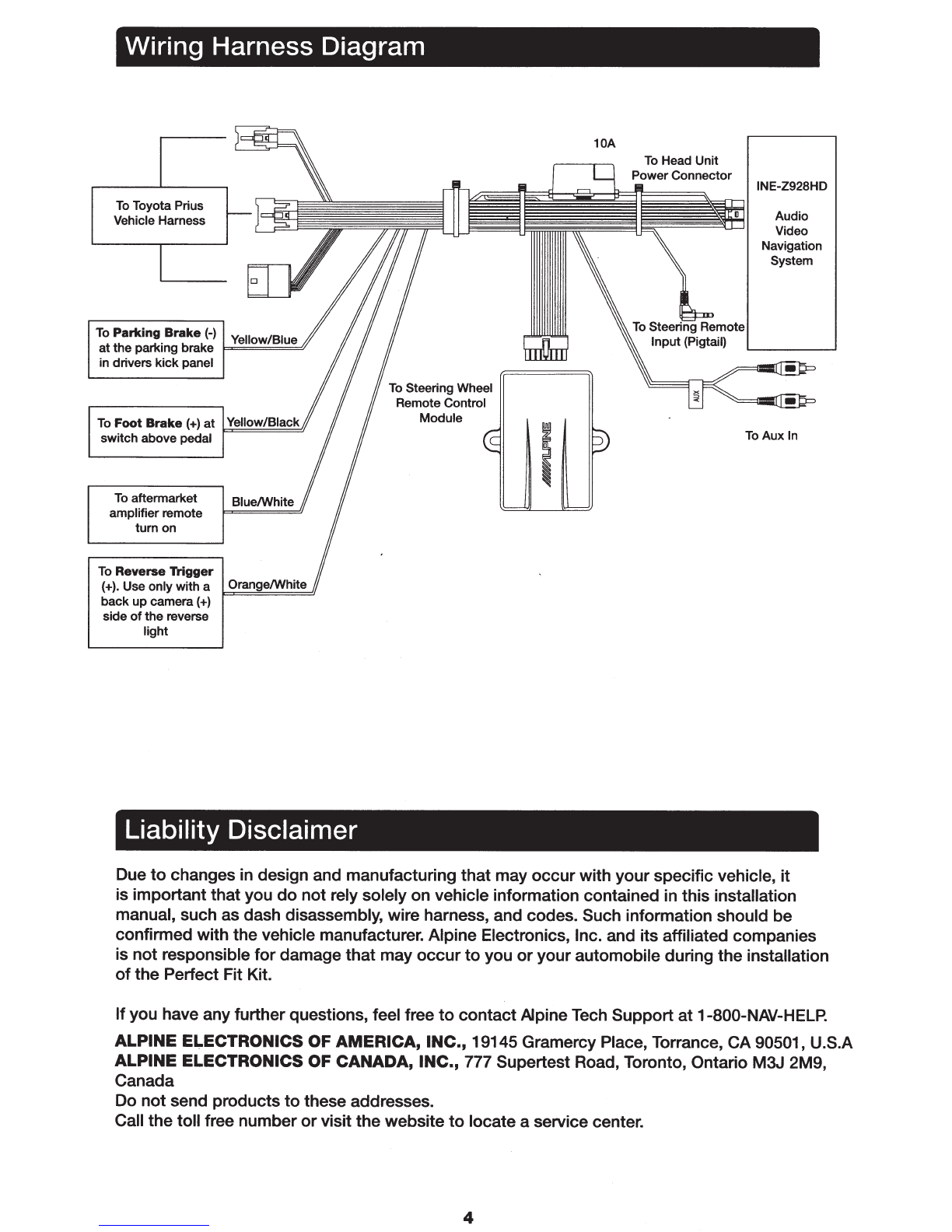

Wiring Harness Diagram

Toyota Prius

Vehicle Harness

Parking

Brake

{-)

Yellow/Blue

the parking brake

F====~

in drivers

kick

panel

aftermarket

amplifier remote

turn on

Reverse

Trigger

Blue/White

{+).Use only with a Orange/White

back

camera

{+)

side

the reverse

light

Liability Disclaimer

Steering Wheel

Remote Control

Module

10A

Head Unit

INE-Z928HD

Audio

Video

Navigation

System

AuxIn

Due

changes in design and manufacturing that may

occur

with your specific vehicle, it

is important that you

not rely solely on vehicle information contained in this installation

manual, such as dash disassembly, wire harness, and codes. Such information should be

confirmed with the vehicle manufacturer. Alpine Electronics, Inc. and its affiliated companies

is not responsible

for

damage that may occur

you

your automobile during the installation

the Perfect Fit Kit.

you have any further questions, feel free

contact Alpine Tech Support at 1-800-NAV-HELP.

ALPINE ELECTRONICS OF AMERICA, INC., 19145 Gramercy Place, Torrance, CA 90501, U.S.A

ALPINE ELECTRONICS OF CANADA, INC., 777 Supertest Road, Toronto, Ontario M3J 2M9,

Canada

Do not send products

these addresses.

Call the toll free number

visit the website

locate a service center.

-.-

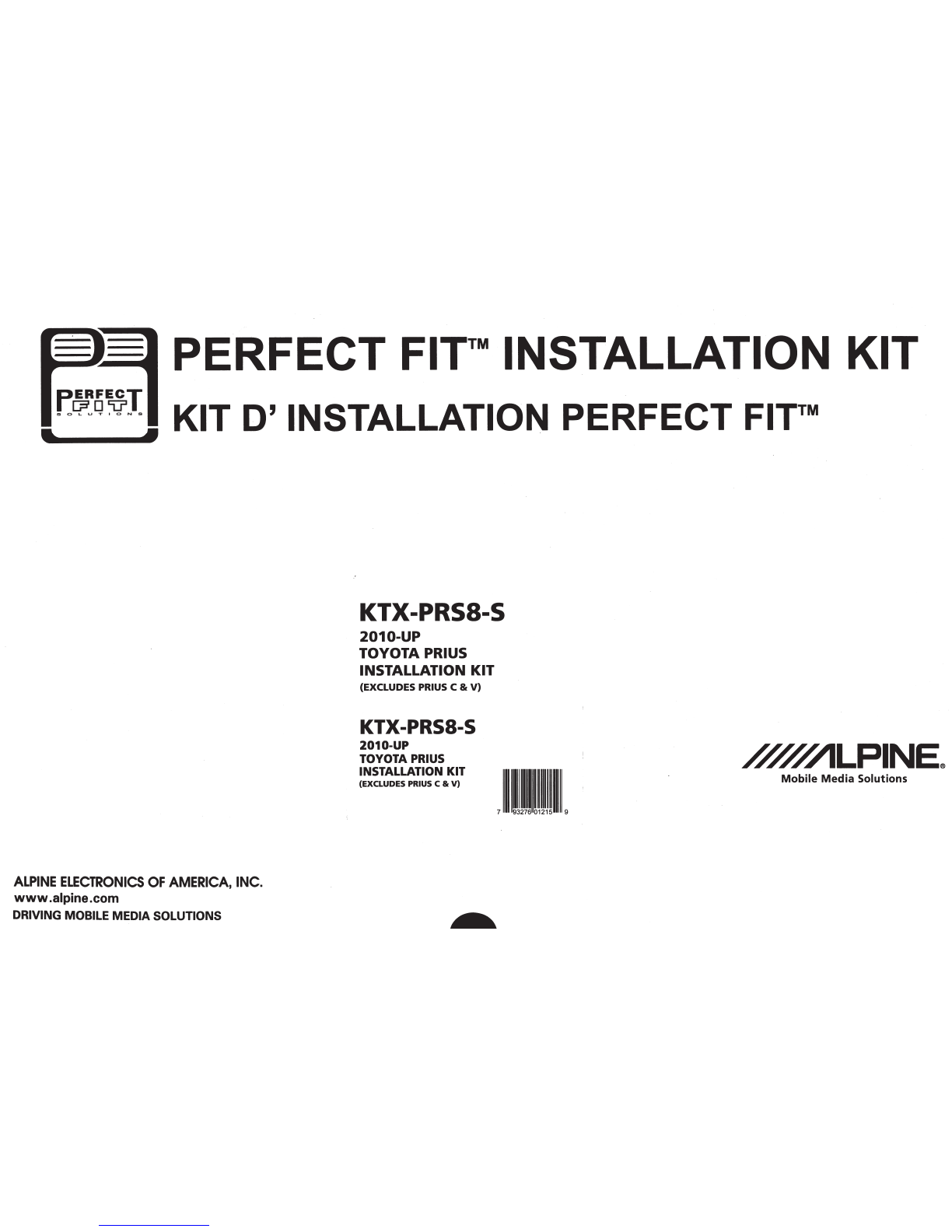

PERFECT

'oQiu[J

• • PERFECT

FIT™

INSTALLATION KIT

KIT D' INSTALLATION PERFECT

FIT™

ALPINE

ELECTRONICS

AMERICA,

INC.

www

.alpine.com

DRIVING MOBILE MEDIA SOLUTIONS

KTX-PRSS-5

2010-UP

TOYOTA PRIUS

INSTALLATION

KIT

(EXCLUDES PRIUS C & V)

KTX-PRSS-5

2010-UP

TOYOTA PRIUS

INSTALLATION KIT

(EXCLUDES PRIUS C &

#/ff/ILPINE

Mobile

Media

Solutions

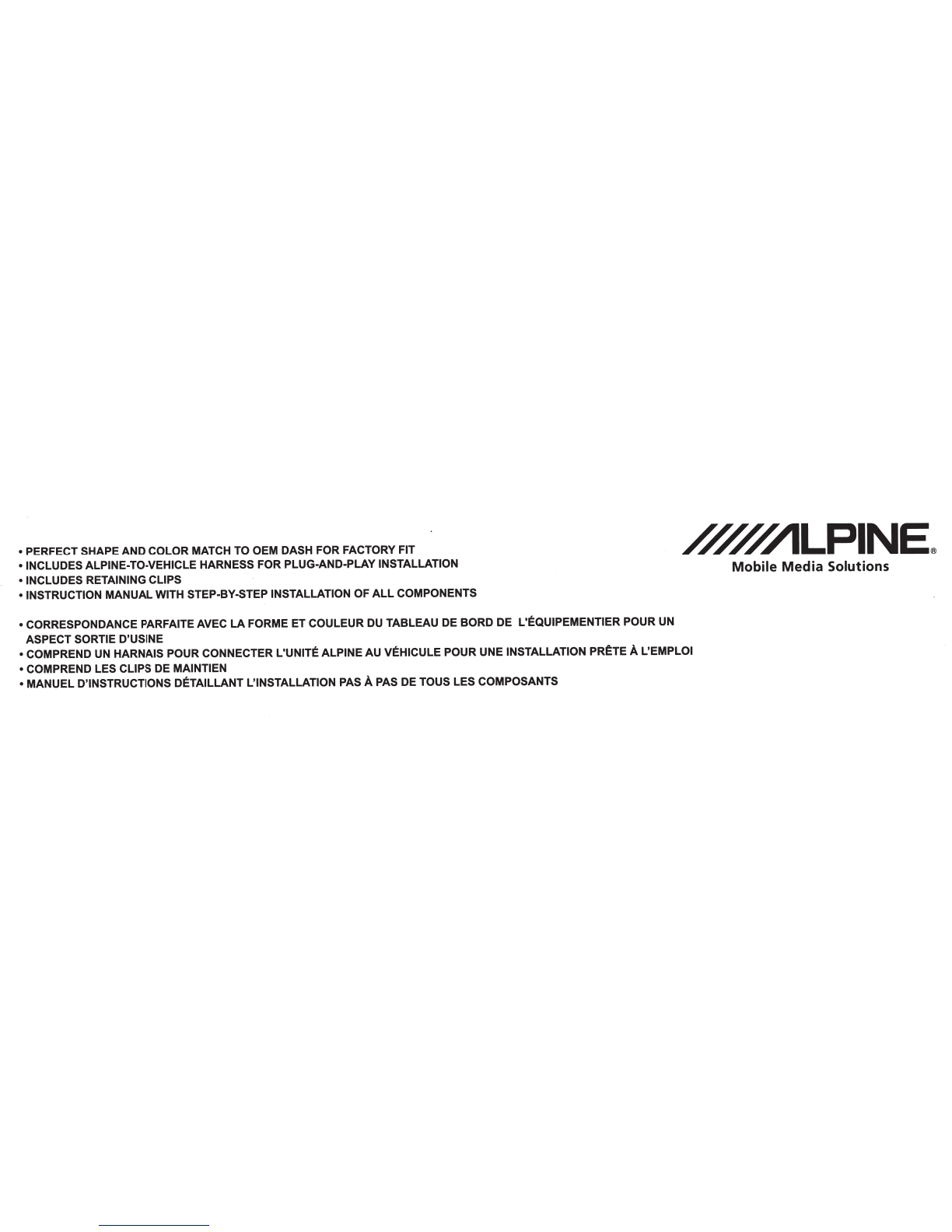

• PERFECT SHAPE

AND

COLOR MATCH TO OEM DASH FOR FACTORY FIT

##MLPINE

• INCLUDESALPINE-TO-VEHICLE HARNESS FOR PLUG-AND-PLAY INSTALLATION

• INCLUDES RETAINING CLIPS

Mobile

Media

Solutions

• INSTRUCTION

MANUAL

WITH STEP-BY-STEP INSTALLATION OF

ALL

COMPONENTS

• CORRESPONDANCE PARFAITE AVEC

FORME ET COULEUR

TABLEAU DE BORD DE L'EQUIPEMENTIER POUR UN

ASPECT SORTIE D'USINE

• COMPREND UN HARNAIS POUR CONNECTER L'UNITE ALPINE

VEHICULE POUR UNE INSTALLATION

PR~TE

L'EMPLOI

• COMPREND LES CLIPS DE MAINTIEN

• MANUEL D'INSTRUCTIONS DETAILLANT L'INSTALLATION PAS

PAS DE TOUS LES COMPOSANTS

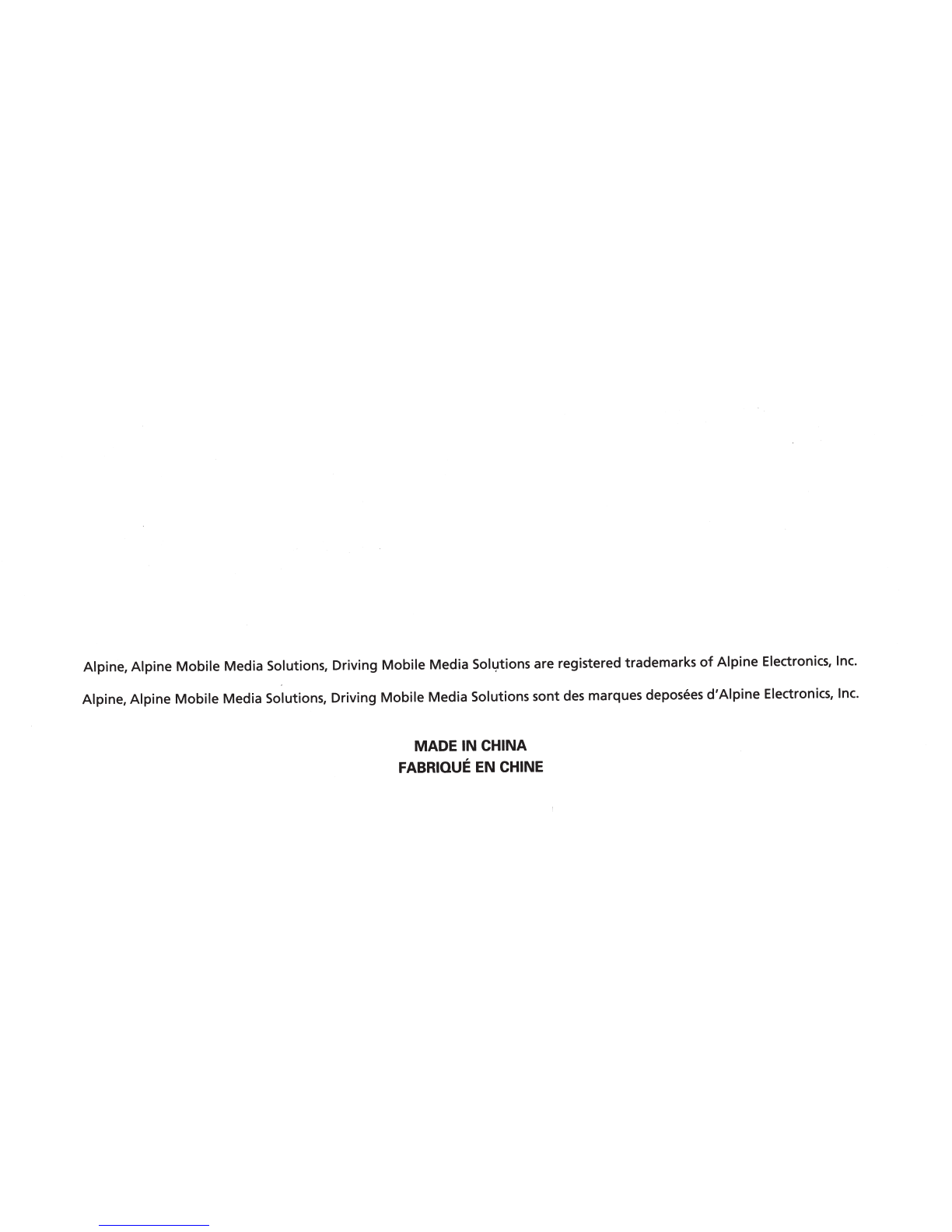

Alpine, Alpine Mobile Media Solutions, Driving Mobile Media

Sol~.:~tions

are registered trademarks

Alpine Electronics, Inc.

Alpine, Alpine Mobile Media Solutions, Driving Mobile Media Solutions sont

des

marques deposees d'Aipine Electronics,

Inc.

MADE IN CHINA

FABRIQUE EN CHINE
