ALLPOWER 1000W 2 Stroke Generator Manual de usuario

Item No. APG3004A

www.allpoweramerica.com

HAVE QUESTIONS OR NEED SERVICE

DO NOT RETURN TO STORE!

PLEASE CALL TOLL FREE: 888.896.6881

Please read and save these instructions.

www.allpoweramerica.com

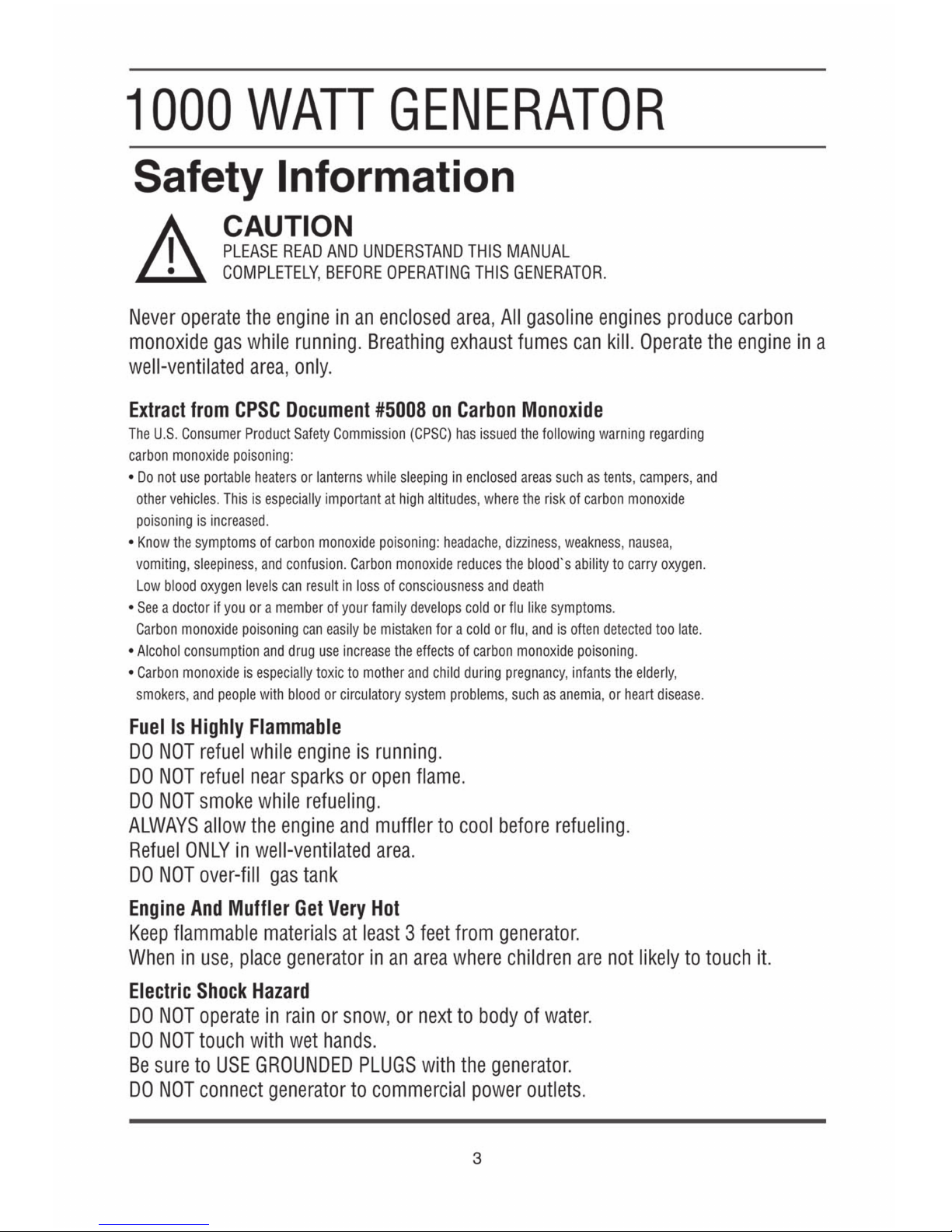

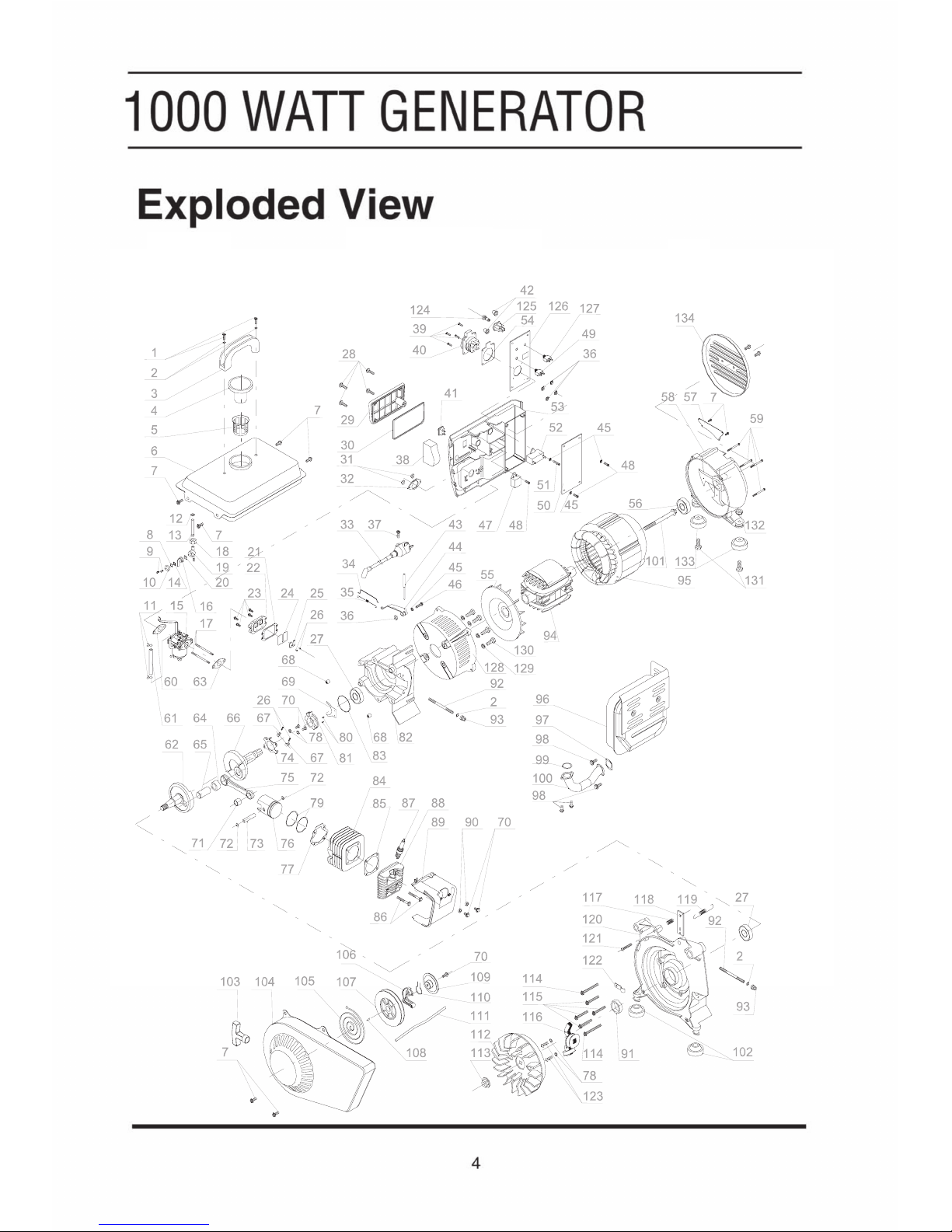

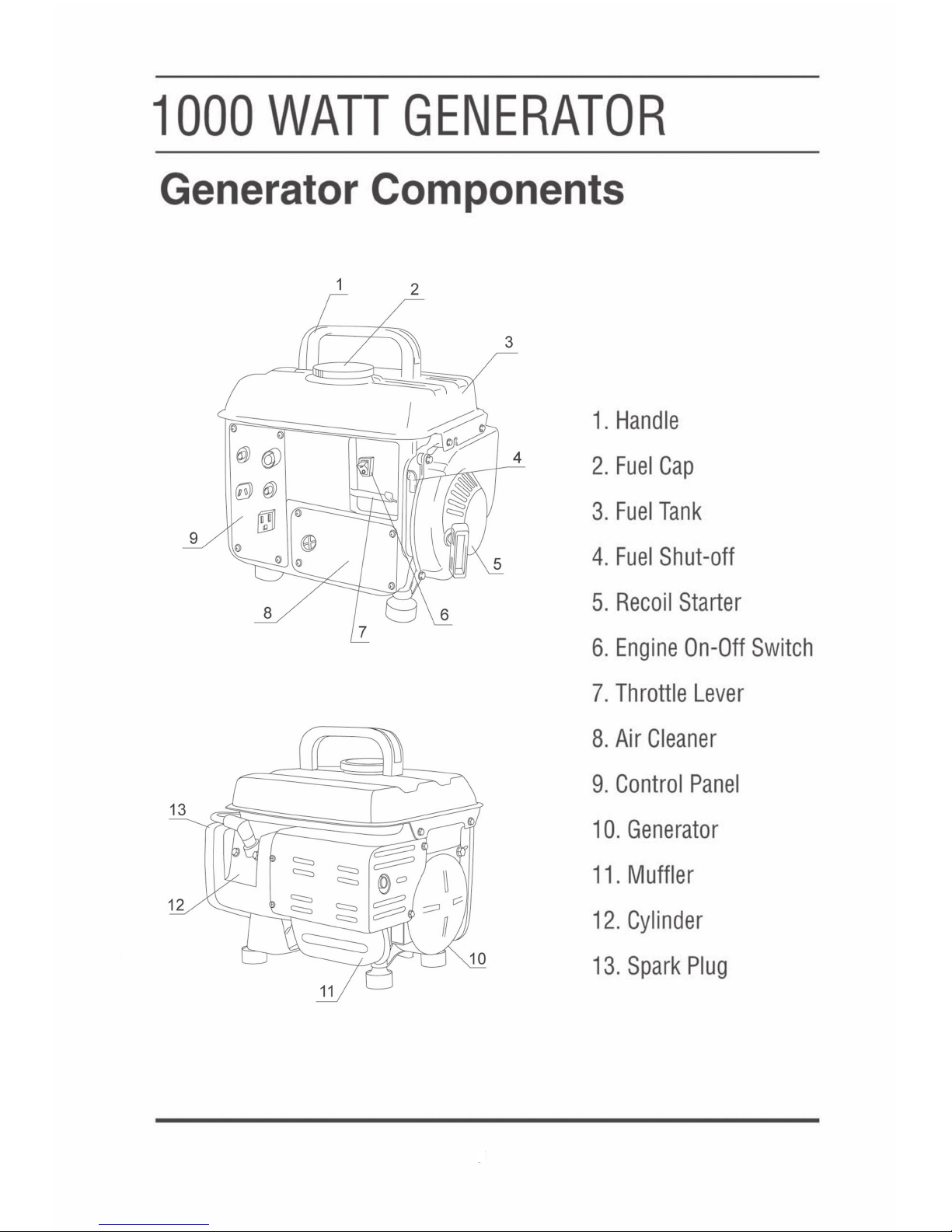

Generator Theory Diagram

APG3004A-A-01-WD GB818-85

Bolt M6x35 (2)

APG3004A-A-02-WD GB97.1-85

Washer Ø6 (3)

APG3004A-A-03-WD F1040001

Handle

APG3004A-A-04-WD F1020200

Sump cover subassembly

APG3004A-A-05-WD F1020300

Filtering net

APG3004A-A-06-WD F1020100

Fuel tank

APG3004A-A-07-WD GB5787-86

Bolt M6x12 (7)

APG3004A-A-08-WD F1020401

Wave washer

APG3004A-A-09-WD F1020402

Screw M3x4 (2)

APG3004A-A-10-WD F1020403

Seal cover

APG3004A-A-11-WD F1020404

Spring clamp (2)

APG3004A-A-12-WD F1020405

Rubber washer Ø8

APG3004A-A-13-WD F1020406

Plastic filter tube

APG3004A-A-14-WD F1020407

Seal

APG3004A-A-15-WD LY63-06100

Carburetor

APG3004A-A-16-WD F1020408

Switch grip

APG3004A-A-17-WD GB900

Double end studs M6x73 (2)

APG3004A-A-18-WD GB6175-86

Nut M14

APG3004A-A-19-WD F1020409

Switch grip cover

APG3004A-A-20-WD F1020410

Special rubber gasket

APG3004A-A-21-WD LY63Fa-06200

Gasket 1

APG3004A-A-22-WD LY63Fa-06200

Pedestal

APG3004A-A-23-WD LY63Fa-06200

Bolt M6x20 (4)

APG3004A-A-24-WD LY63Fa-06200

Reed

APG3004A-A-25-WD LY63Fa-06200

Plate stopper

APG3004A-A-26-WD LY63Fa-06200

Screw M3x10 (4)

APG3004A-A-27-WD GB276/6004

Ball bearing 6004.RS (2)

APG3004A-A-28-WD GB818-85

Screw M6x25 (2)

APG3004A-A-29-WD F1010001

Air cleaner cap

APG3004A-A-30-WD GB1235

Dust seal

APG3004A-A-31-WD GB6175-86

Nut M6 (2)

APG3004A-A-32-WD LY63-01012

Gasket 2

APG3004A-A-33-WD LY64-07300 Spark plug cover

APG3004A-A-34-WD LY63-05006

Steel wire pull rod

APG3004A-A-35-WD LY63-05009

Small tension spring

APG3004A-A-36-WD GB6175-86

Nut M4 (5)

APG3004A-A-37-WD GB5787

Bolt M6x16

APG3004A-A-38-WD F10100100

Air cleaner filter

APG3004A-A-39-WD GB818-85

Screw M4x10 (4)

APG3004A-A-40-WD E-08

Electrical outlet

APG3004A-A-41-WD KCD1

Switch

APG3004A-A-42-WD KGZ-01-1

Rubber cap

APG3004A-A-43-WD LY63-05001

Pin for pole

APG3004A-A-44-WD LY63-05005

Pole

APG3004A-A-45-WD GB97.1-85

Washer Ø4 (3)

APG3004A-A-46-WD GB5787

Bolt M4x30

APG3004A-A-47-WD LY63Fa-07200

Protector

APA PART NO.

PART NO.

DESCRIPTION

APG3004A-A-48-WD GB845-85

Screw ST4x12 (3)

APG3004A-A-49-WD SCP-3.5A

AC Set

APG3004A-A-50-WD F1010004

Plate thrust

APG3004A-A-51-WD GB845-85

Screw ST4x18

APG3004A-A-52-WD CBB61 12 F Condenser 12 F 350V

APG3004A-A-53-WD F1010100

Pedestal air cleaner

APG3004A-A-54-WD E-08-1

Rubber gasket

APG3004A-A-55-WD LY160-0.65-1

Fan assy

APG3004A-A-56-WD LY160-0.65-2

Ball bearing 6202.2RZ

APG3004A-A-57-WD F1020002

Hold of fuel tank

APG3004A-A-58-WD F1050002

Cover left

APG3004A-A-59-WD GB5787

Bolt M6x80 (3)

APG3004A-A-60-WD LY63-01002

Gasket 3

APG3004A-A-61-WD LY63Fa-06101

Rubber fuel tube

APG3004A-A-62-WD LY63-04102

Crankshaft right

APG3004A-A-63-WD LY63-01003

Air intake pipe gasket

APG3004A-A-64-WD LY63-04105

Oil bearing KZK 16 22 11.5

APG3004A-A-65-WD LY63-04103

Crankshaft`s pin

APG3004A-A-66-WD LY63-04101

Crankshaft left

APG3004A-A-67-WD LY63-05102

Centrifugal block (2)

APG3004A-A-68-WD LY63-02103

Centring pin (2)

APG3004A-A-69-WD LY63-05002

Fork for regulator

APG3004A-A-70-WD GB5787

Bolt M6x10 (5)

APG3004A-A-71-WD GB5801-94

Oil bearing KBK 10x14x12.5

APG3004A-A-72-WD LY63Fa-04205

Piston`s pin circlip (2)

APG3004A-A-73-WD LY63-04202

Piston`s pin

APG3004A-A-74-WD ly63-05101

Bracket

APG3004A-A-75-WD LY63-04104

Connecting rod

APG3004A-A-76-WD LY63-04201

Piston

APG3004A-A-77-WD LY63-01006

Gasket for cylinder

APG3004A-A-78-WD GB93-87

Spring washer Ø6 (4)

APG3004A-A-79-WD LY63-04203

Piston`s ring (2)

APG3004A-A-80-WD GB818-85

Screw M3x8 (2)

APG3004A-A-81-WD LY63-05003

Block adjuster

APG3004A-A-82-WD LY63-02102

Crankcase, right

APG3004A-A-83-WD GB893.2

Circlip Ø45

APG3004A-A-84-WD LY63Fa-03201a

Cylinder

APG3004A-A-85-WD LY63-01006

Cylinder head gasket

APG3004A-A-86-WD GB5787

Bolt M6x100 (2)

APG3004A-A-87-WD LY63-07400

Spark plug

APG3004A-A-88-WD LY63-03202

Cylinder head

APG3004A-A-89-WD LY63Fa-08201

Wind diversion

APG3004A-A-90-WD LY63Fa-08202a

Collar (2)

APG3004A-A-91-WD LY63-01008

Oil seal (2)

APG3004A-A-92-WD GB900

Double end studs M6x113 (2)

APG3004A-A-93-WD LY63Fa-01014

Nut M6 (2)

APG3004A-A-94-WD LY160-0.65

Armature

APA PART NO.

PART NO.

DESCRIPTION

APG3004A-A-95-WD LY160-0.65

Stator

APG3004A-A-96-WD LY63-09000

Muffler weldment assy

APG3004A-A-97-WD LY63-09000

Gasket 5

APG3004A-A-98-WD LY63-09000

Bolt M6x18 (4)

APG3004A-A-99-WD LY63-09000

Gasket 6

APG3004A-A-100-WD LY63-09000

Exhaust pipe assy

APG3004A-A-101-WD GB5787

Bolt M8x140

APG3004A-A-102-WD LY63-00102F2

Pad (2)

APG3004A-A-103-WD LY63Fa-10004 Starting handle

APG3004A-A-104-WD LY63Fa-10101

Starter cover

APG3004A-A-105-WD LY63Fa-10005a Start coil-spring

APG3004A-A-106-WD LY63Fa-10002

Block return

APG3004A-A-107-WD LY63Fa-10001 Starter wheel

APG3004A-A-108-WD LY63Fa-10104

Wheel reinforcement

APG3004A-A-109-WD LY63Fa-10003

Wheel stopper

APG3004A-A-110-WD LY63-10006

Fixing spring

APG3004A-A-111-WD LY63-10007

Rope

APG3004A-A-112-WD LY63-08100

Fly wheel assy

APG3004A-A-113-WD GB6175-86

Nut M10

APG3004A-A-114-WD GB5787

Bolt M6x55 (2)

APG3004A-A-115-WD GB5787

Bolt M6x45 (4)

APG3004A-A-116-WD LY63Fa-07100a Ignition coil

APG3004A-A-117-WD LY63-05007

Spring

APG3004A-A-118-WD LY63-05005

Fixing plate

APG3004A-A-119-WD LY63-05008

Tension spring

APG3004A-A-120-WD LY63-02101

Crankcase, left

APG3004A-A-121-WD GB818-85

Screw M6x40

APG3004A-A-122-WD LY63-01013

Clip

APG3004A-A-123-WD GB818-85

Screw M6x14 (2)

APG3004A-A-124-WD PL220

Indicator

APG3004A-A-125-WD CZ-01

ENG.SW

APG3004A-A-126-WD F1010007

PANEL

APG3004A-A-127-WD SCP-10A

DC RESET

APG3004A-A-128-WD F1050001

Front Cover

APG3004A-A-129-WD GB862.1

FASTEN GASKET

APG3004A-A-130-WD GB5780-86

BOLT M8x20(4)

APG3004A-A-131-WD GB5780-86

BOLT M8x30(2)

APG3004A-A-132-WD GB6175-86

Flange Nut M8(2)

APG3004A-A-133-WD LY160-0.65-3

Pad (2)

APG3004A-A-134-WD LY160-0.65-4

Right side cover

APA PART NO.

PART NO.

DESCRIPTION

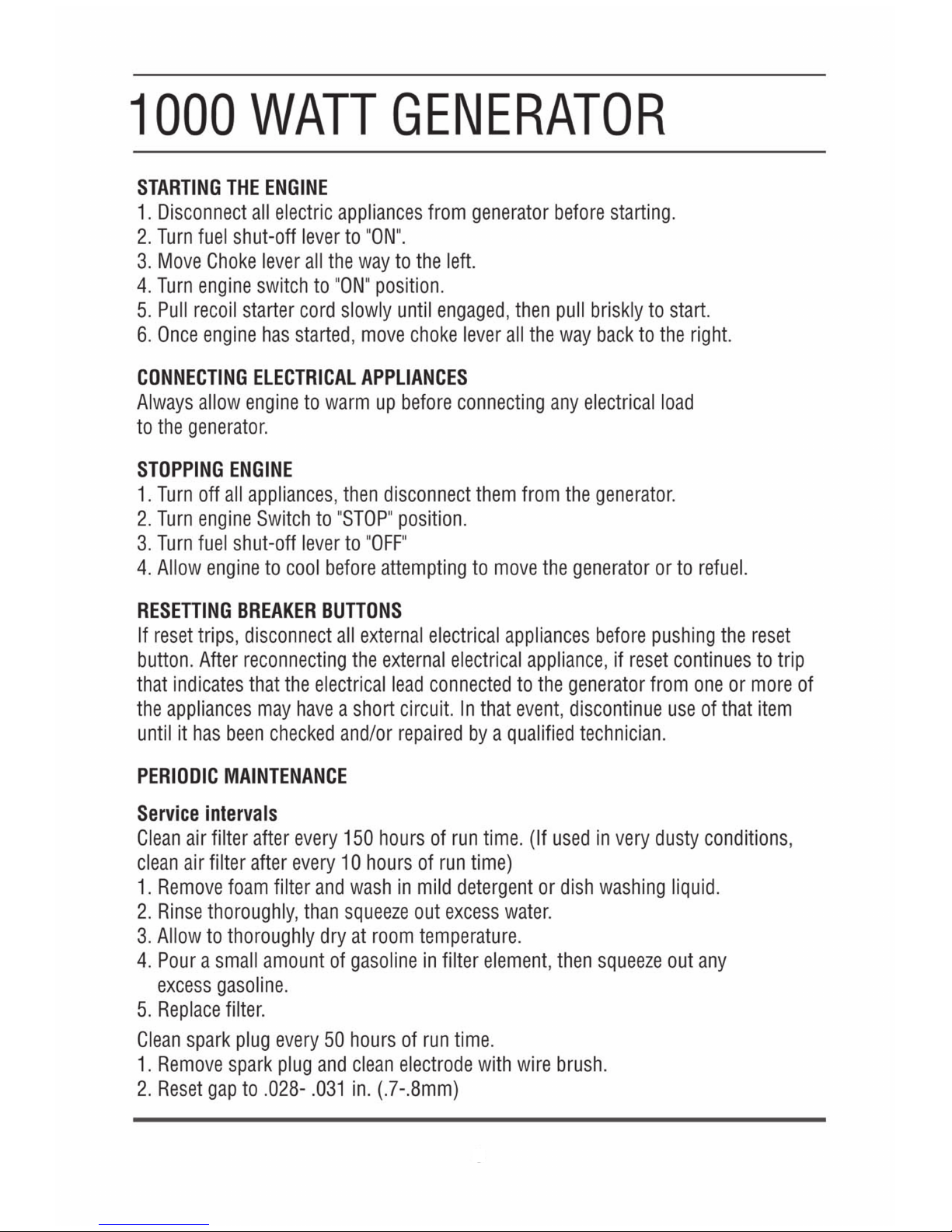

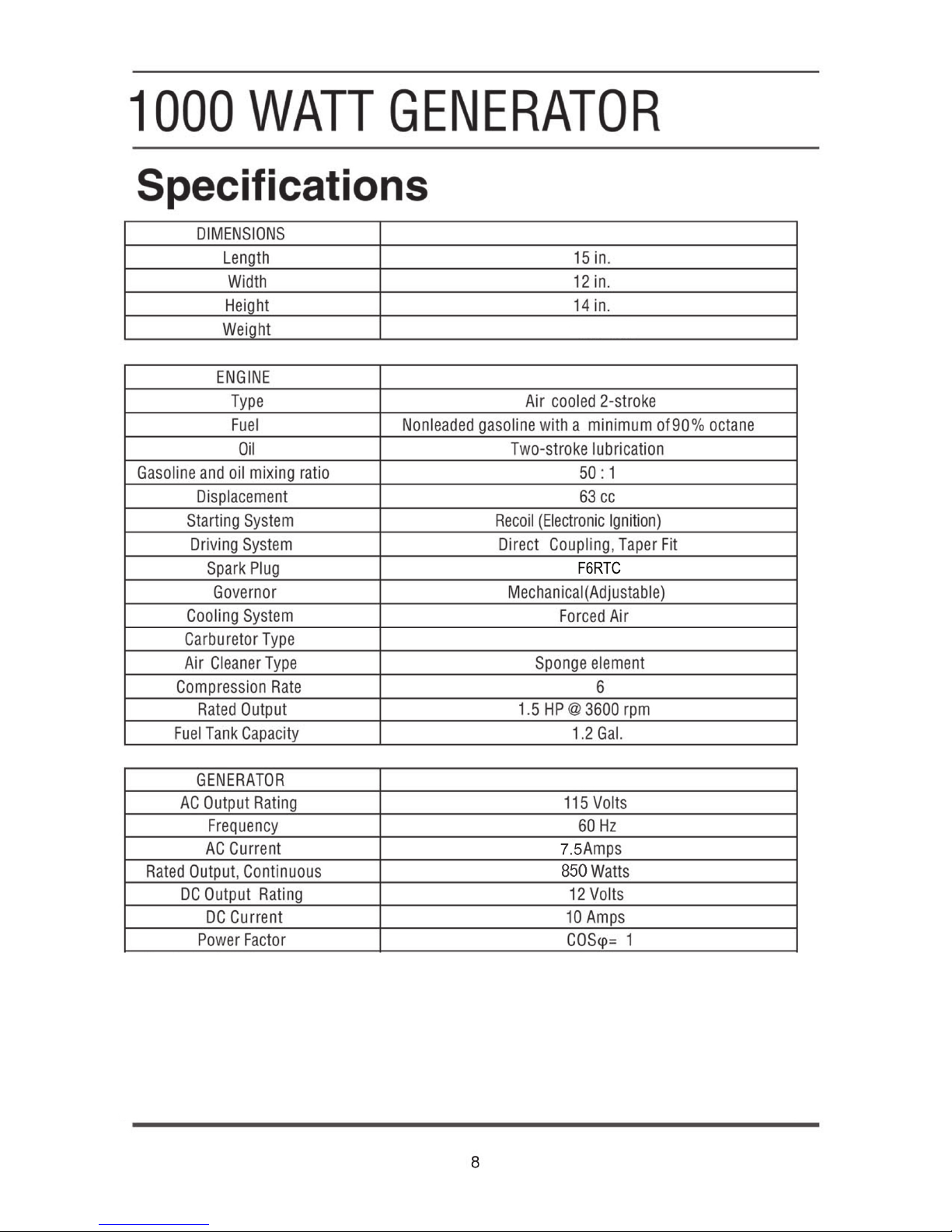

44.0 lbs
