Allied Telesis X530 Series Manual de usuario

613-003075 Rev. A

*613-003075 Rev A*

x530 Series

Stackable Multi-Gigabit Layer 3 Ethernet Switches

AlliedWare Plus™

x530-28GTXm

x530-28GPXm

x530-52GTXm

x530-52GPXm

Quick Installation Guide

2 x530 Series Quick Installation Guide

Introduction

This Quick Installation Guide contains a short version of the

installation instructions for the x530 Series of Multi-Gigabit Layer 3

Ethernet Switches. For more instructions, refer to the x530 Series

Installation Guide for Standalone Switches and x530 Series

Installation Guide for Virtual Chassis Stacking on the Allied Telesis

web site at www.alliedtelesis.com/us/en/services-support. This

guide contains the following sections:

“Front Panels” next

“PoE+ Power Budgets” on page 5

“VCStack™ Feature” on page 5

“Beginning the Installation” on page 6

“Installing the Switch” on page 9

“Ports” on page 14

“Powering On the Switch” on page 16

“LEDs” on page 18

“Starting a Local Management Session” on page 21

“Disabling the VCStack Feature” on page 22

“Troubleshooting” on page 23

Front Panels

Here are the front panels of the switches in the x530 Series.

x530-28GTXm

x530-28GPXm

1 2

5 6

x530 Series Quick Installation Guide 3

Here are the 10/100/1000Mbps Ethernet copper ports.

1 10/100/1000Mbps Ethernet copper ports

2 100M/1/2.5/5Gbps Ethernet copper ports

3 10/100/1000Mbps Ethernet copper ports with PoE+

4 100M/1/2.5/5Gbps Ethernet copper ports with PoE+

5 1/10Gbps SFP+ transceiver ports

6 Management panel

Switch 10/100/1000Mbps

Ports

10/100/1000Mbps

Ports with PoE+

x530-28GTXm 1 to 20 -

x530-28GPXm - 1 to 20

x530-52GTXm 1 to 40 -

x530-52GPXm - 1 to 40

x530-52GTXm

x530-52GPXm 1256

4 x530 Series Quick Installation Guide

Here are the 100M/1/2.5/5Gbps Ethernet copper ports.

Here are the 1/10Gbps SFP+ ports.

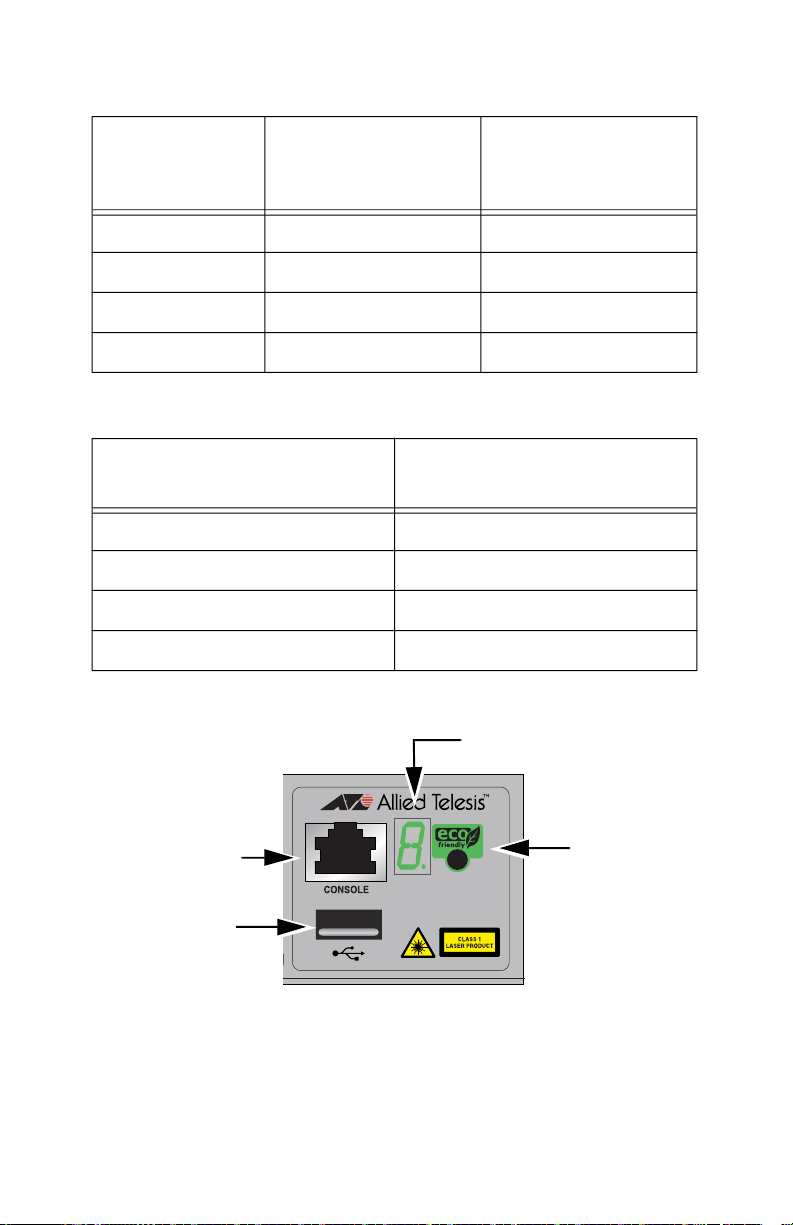

The management panel is shown here.

Switch 100M/

1/2.5/5Gbps Ports

100M/

1/2.5/5Gbps Ports

with PoE+

x530-28GTXm 21 to 24

x530-28GPXm - 21 to 24

x530-52GTXm 41 to 48 -

x530-52GPXm - 41 to 48

Switch Number of

1/10Gbps SFP+ Ports

x530-28GTXm 25 to 28

x530-28GPXm 25 to 28

x530-52GTXm 49 to 52

x530-52GPXm 49 to 52

USB Port

eco-friendly

Button

Console

Management

Port

Switch ID LED

x530 Series Quick Installation Guide 5

PoE+ Power Budgets

The PoE+ power budgets of the x530-28GPXm and x530-52GPXm

Switches are listed here. Power budgets are the maximum amounts

of power that PoE+ switches can provide to powered devices on the

Ethernet copper ports.

The x530-28GPXm and x530-52GPXm Switches support IEEE

802.3at Classes 0 to 4 devices. (Maximum 30.0W at the switch

ports.)

Note: The maximum number of powered devices that the switches

can support simultaneously will depend on the power requirements

of the devices.

VCStack™ Feature

The VCStack feature lets you manage up to eight switches as a

single virtual unit. The switches synchronize their actions so that

switching operations (such as spanning tree protocols, virtual LANs,

and static port trunks) span across all the ports and switches. Two

advantages of stacks are:

You can manage multiple units simultaneously, which can

simplify network management.

You can add redundancy to your network topology by distributing

functions across multiple switches. For instance, static port

trunks on standalone switches have to consist of ports from the

same switch. In contrast, static port trunks in a stack can have

ports from different switches.

Note: For instructions, refer to the x530 Series Installation Guide for

Virtual Chassis Stacking.

Switch PoE+ Budget

x530-28GPXm 740W (370W per power supply)

x530-52GPXm 740W (370W per power supply)

6 x530 Series Quick Installation Guide

Beginning the Installation

Reviewing Safety Precautions

Review the following safety precautions before installing the product.

Note: The  symbol indicates that a translation of the safety

statement is available in the PDF document “Translated Safety

Statements” on the Allied Telesis website at

www.alliedtelesis.com/us/en/documents/translated-safety-

statements.

Warning: Class 1 Laser product.



Warning: Do not stare into the laser beam.



Warning: Power cord is used as a disconnection device.

To de-energize equipment, disconnect the power cord.

 E3

Warning: To prevent electric shock, do not remove the

cover. No user-serviceable parts inside. This unit

contains hazardous voltages and should only be opened

by a trained and qualified technician. To avoid the

possibility of electric shock, disconnect electric power to

the product before connecting or disconnecting the

cables.  E1

Warning: Class I Equipment. This equipment must be

earthed. The power plug must be connected to a

properly wired earth ground socket outlet. An improperly

wired socket outlet could place hazardous voltages on

accessible metal parts.  E4

Warning: The device is heavy. Always ask for

assistance before moving or lifting it to avoid injuring

yourself or damaging the equipment.  E122

x530 Series Quick Installation Guide 7

Installation Options

This figure illustrates the installation options.

Unpacking the Switch

Here are the accessory items that come with the switches.

Warning: To reduce the risk of electric shock, the PoE

ports on this product must not connect to cabling that is

routed outside the building where this device is located.



E40

Table

Standard 19-inch

equipment rack

Wood or concrete

wall

One 2m (6.6 ft) local

management cable with

RJ-45 (8P8C) and DB-9

(D-sub 9-pin) connectors.

Two AC power cords

Four bumper feet with rivets

8 x530 Series Quick Installation Guide

Choosing a Site for the Switch

Review these site recommendations and requirements.

Before installing the switch in an equipment rack, check that the

rack is safely secured so that it will not tip over. Devices in a rack

should be installed starting at the bottom of the rack, with the

heavier devices near the bottom.

Before installing the switch on a table, verify that the table is level

and stable.

Before installing the switch on a wall, verify that the wall’s material

is strong enough to hold the switch’s weight. You should position

the device so that it can be screwed into the wall’s framing timber

or equivalent structural element.

The power outlet should be located near the switch and be easily

accessible.

The site should allow for easy access to the ports on the front of

the switch so that you can easily connect and disconnect cables,

and view the port LEDs.

Two power cord retaining clips

Wall/equipment rack brackets:

2 brackets - x530-28GTXm and x530-28GPXm

4 brackets - x530-52GTXm and x530-52GPXm

Bracket screws: 3x6mm

8 screws - x530-28GTXm and x530-28GPXm

16 screws - x530-52GTXm and x530-52GPXm

Wood and concrete wall screws: 4x32.3mm

2 screws - x530-28GTXm and x530-28GPXm

4 screws - x530-52GTXm and x530-52GPXm

Wall anchors - 6x4x29.6mm:

2 anchors - x530-28GTXm and x530-28GPXm

4 anchors - x530-52GTXm and x530-52GPXm

x530 Series Quick Installation Guide 9

The site should allow for adequate air flow around the unit and

through the cooling vents on the front and rear panels. (The

ventilation direction is from front to back.)

Do not place objects on top of the switch.

The site should not expose the switch to moisture or water.

The site should be a dust-free environment.

The site should use dedicated power circuits or power

conditioners to supply reliable electrical power to the network

devices.

Do not install the switch in a wiring or utility box without adequate

airflow. The switch might overheat and shutdown.

Ventilation Direction in the Switches

The direction of ventilation in the switches is from front to back.

Installing the Switch

Installing the Switch on a Desk or Table

To install the switch on a desk or table, perform the following

procedure:

1. Place the switch upside down on a table.

2. Inset a rivet housing into a bumper foot.

3. Place the bumper foot on one of the corner holes in the bottom

panel of the switch.

4. Insert the rivet to secure the bumper foot to the base.

Warning: Switches should not be stacked on a table or

desktop. They could present a physical safety hazard if

you need to move or replace switches.  E91

10 x530 Series Quick Installation Guide

5. Repeat steps 2 to 4 to install the remaining bumper feet.

6. Turn the switch over.

7. Go to “Ports” on page 14.

Installing the Switch in an Equipment Rack

The following items are required to install the switch in an equipment

rack:

Two equipment rack brackets (included with the switch)

Eight M3x6mm bracket screws (included with the switch)

Cross-head screwdriver (not provided)

Four standard equipment rack screws (not provided)

To install the switch, perform the following procedure:

1. Place the switch on a table.

2. If the bumper feet are attached to the bottom of the switch,

remove them using a flat-head screwdriver.

3. Attach two brackets to the sides of the switch with eight bracket

screws included with the unit. The following figures illustrate the

four possible positions of the brackets on the switch for a

standard 19-inch equipment rack.
