Alliance Laundry Systems BWNBC2PP112TW01 Manual del propietario

Programming

MDC

Topload Washer

Refer to Page 6 for Model Identification

TLW1R_SVG

Original Instructions

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

www.alliancelaundry.com Part No. 202713ENR1

December 2016

WARNING

Failure to install, maintain, and/or operate this ma-

chine according to the manufacturer's instructions

may result in conditions which can produce bodily

injury and/or property damage.

W030

WARNING

For your safety and to reduce the risk of fire or an

explosion, do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or

any other appliance.

W022

NOTE: The WARNING and IMPORTANT instructions ap-

pearing in this manual are not meant to cover all possi-

ble conditions and situations that may occur. It must

be understood that common sense, caution, and care-

fulness are factors which cannot be built into these

washers. These factors MUST BE supplied by the per-

son(s) installing, maintaining, or operating the washer.

Always contact the distributor, service agent, or the manufacturer

about any problems or conditions you do not understand.

Read all instructions before using washer.

DO NOT COPY or TRANSMIT

3 Part No. 202713ENR1

Table of Contents

Model Indentification............................................................................. 6

Preliminary Information.........................................................................7

About the Control........................................................................................... 7

Glossary of Terms...........................................................................................7

Power Failure Recovery.................................................................................. 7

Card Reader Communications (Card Models Only)............................................7

Control Identification............................................................................. 8

SELECT CYCLE Keypads..............................................................................8

START Keypad.............................................................................................. 8

Display Identification..............................................................................9

Light Emitting Diodes (LEDs)......................................................................... 9

Four 7-Segment Digits.................................................................................... 9

Washer Operation.................................................................................10

Start Up....................................................................................................... 10

Ready Mode.................................................................................................10

Opening the Washer Lid................................................................................ 10

Signals.........................................................................................................10

Special Features ................................................................................... 11

Programming Control....................................................................................11

Collecting Audit Information......................................................................... 11

Testing Machine and MDC Functions............................................................. 11

Rapid Advance Feature..................................................................................11

Coin Drop.................................................................................................... 11

Start Pulse Operation.....................................................................................11

Service Door and Coin Vault Openings........................................................... 11

Opening the Service Door..................................................................... 12

Coin Models.................................................................................................12

Card Reader Models......................................................................................12

Entering the Manual Mode................................................................... 13

How to Enter the Manual Mode......................................................................13

Manual Mode Features.................................................................................. 13

written consent of the publisher.

DO NOT COPY or TRANSMIT

4 Part No. 202713ENR1

Programming Control...........................................................................14

What Can Be Programmed?........................................................................... 14

Programmable Options Available................................................................... 14

Vend Price AtS............................................................................................. 14

Coin #1 Amount dEn1...................................................................................15

Coin #2 Amount dEn2...................................................................................15

Start Pulse Value PLSE..................................................................................16

Cycle Time CyCL......................................................................................... 17

Configuration Display CnFg.......................................................................... 17

Configuration Programming....................................................................... 18

Default Cycle dCyC...................................................................................... 20

How to Exit Programming Feature..............................................................21

Collecting Audit Information................................................................ 22

How to Enter Audit Feature........................................................................... 22

How to Read Audit Data................................................................................22

How to Exit Audit Feature When Using Manual Mode.....................................22

Testing Machine and MDC Functions................................................... 23

How to Enter Testing Feature.........................................................................23

How to Start Tests.........................................................................................23

How to Exit Testing...................................................................................... 23

Diagnostic Test Descriptions..........................................................................23

Production Test Cycle....................................................................................23

Error Codes..........................................................................................25

Rapid Advance Feature.........................................................................26

How to Enter Rapid Advance from Ready Mode..............................................26

How to Enter Rapid Advance During an Active Cycle......................................26

How to Use Rapid Advance........................................................................... 26

How to Exit Rapid Advance Feature............................................................... 26

Power Fail Recovery............................................................................. 27

Default Washer Settings........................................................................28

Default Cycle............................................................................................... 28

DO NOT COPY or TRANSMIT

5 Part No. 202713ENR1

Model Indentification

Information in this manual is applicable to these washer models:

BWNBC2PP112TW01 HWNBX2SP122DW01 SWNBX1SP542DW01

BWNBX2PP112TW01 HWNBY2PP112TW01 SWNBX2PP112TW02

BWNBX2PP302AW01 HWNBY2SP112CW01 SWNBX2SP082JW01

BWNBY2PP112TW01 NWNBX2SP302NW22 SWNBX2SP112FW27

HWNBC2PP112TQ01 PWNBC2PP112TG02 SWNBX2SP112TQ01

HWNBC2PP112TW01 PWNBX2PP112TG02 SWNBX2SP112TW01

HWNBD2SP112CQ01 PWNBX2PP302AG02 SWNBX2SP122DW01

HWNBD2SP112CW01 SWNBC2PP112TQ01 SWNBX2SP302AW01

HWNBE2SP112CW01 SWNBC2PP112TW01 SWNBX2SP302NQ22

HWNBX1SP122DW01 SWNBC2PP112TW02 SWNBX2SP302NW22

HWNBX1SP542DW01 SWNBC2SP112TQ01 SWNBY2PP112TW01

HWNBX2SP112CW01 SWNBC2SP112TW01 SWNBY2SP112TW01

HWNBX2SP112FW28 SWNBX1SP122DW01 TWNBX2SP302NW22

Model Indentification

DO NOT COPY or TRANSMIT

6 Part No. 202713ENR1

Preliminary Information

About the Control

MDC on the commercial washer is a programmable control that

lets the owner control machine features by pressing a sequence of

keypads.

MDC allows the owner to program cycle time, set vend prices,

retrieve audit information and run diagnostic tests. Washers ship-

ped from the factory have a programmable default cycle (PERM

PRESS/WARM) built in.

IMPORTANT: In the event of a power failure, the control

will not have to be reprogrammed. It is designed with a

memory system that will remember how it was pro-

grammed (for up to 10 years) until the electrical power

is restored.

IMPORTANT: It is extremely important that the washer

has a positive ground connection and that all mechani-

cal and electrical connections to the control are made

before applying power to or operating the washer.

Glossary of Terms

The following are a few terms and abbreviations to learn. These

are referred to throughout the instructions.

Four-Digit Display – This term refers to the window area of the

control that displays words and values.

LED (Light Emitting Diode) – This term refers to the lights next

to the keypads and status words of the control.

Power Failure Recovery

If power fails during an active cycle, the cycle status is saved in

memory. If the European Community (EC) Power Recovery is

disabled, control will automatically resume the cycle (washer lid

must be closed). If EC Power Recovery is enabled and power is

restored in less than two seconds, the washer will automatically

resume the cycle (washer lid must be closed). If the length of the

power failure is greater than two seconds, the user must press the

START keypad to resume the cycle.

Card Reader Communications (Card

Models Only)

The control will communicate with a third party card reader,

available at extra cost from various card reader manufacturers.

Contact the card reader manufacturer of your choice for availabil-

ity and additional information.

Preliminary Information

DO NOT COPY or TRANSMIT

7 Part No. 202713ENR1

Control Identification

SELECT CYCLE Keypads

SELECT CYCLE keypads are used to select the specific washer

cycle. These keypads include NORMAL/HOT, NORMAL/

WARM, PERM PRESS/ WARM, and DELICATES/COLD. The

selection of one of these keypads will light up the corresponding

LED. The default cycle is PERM PRESS/WARM as shipped

from the factory. The SELECT CYCLE keypads are not active

after the first fill cycle of the washer. Pressing the flashing

START keypad will confirm selection and cycle will begin.

START Keypad

The START keypad is used to start the washer after the full vend

price has been satisfied and the washer lid is closed.

Both the START keypad and the SELECT CYCLE keypads are

used in various combinations for programming cycles, retrieving

audit information, running diagnostic tests, and other operations

described in How to Enter the Manual Mode.

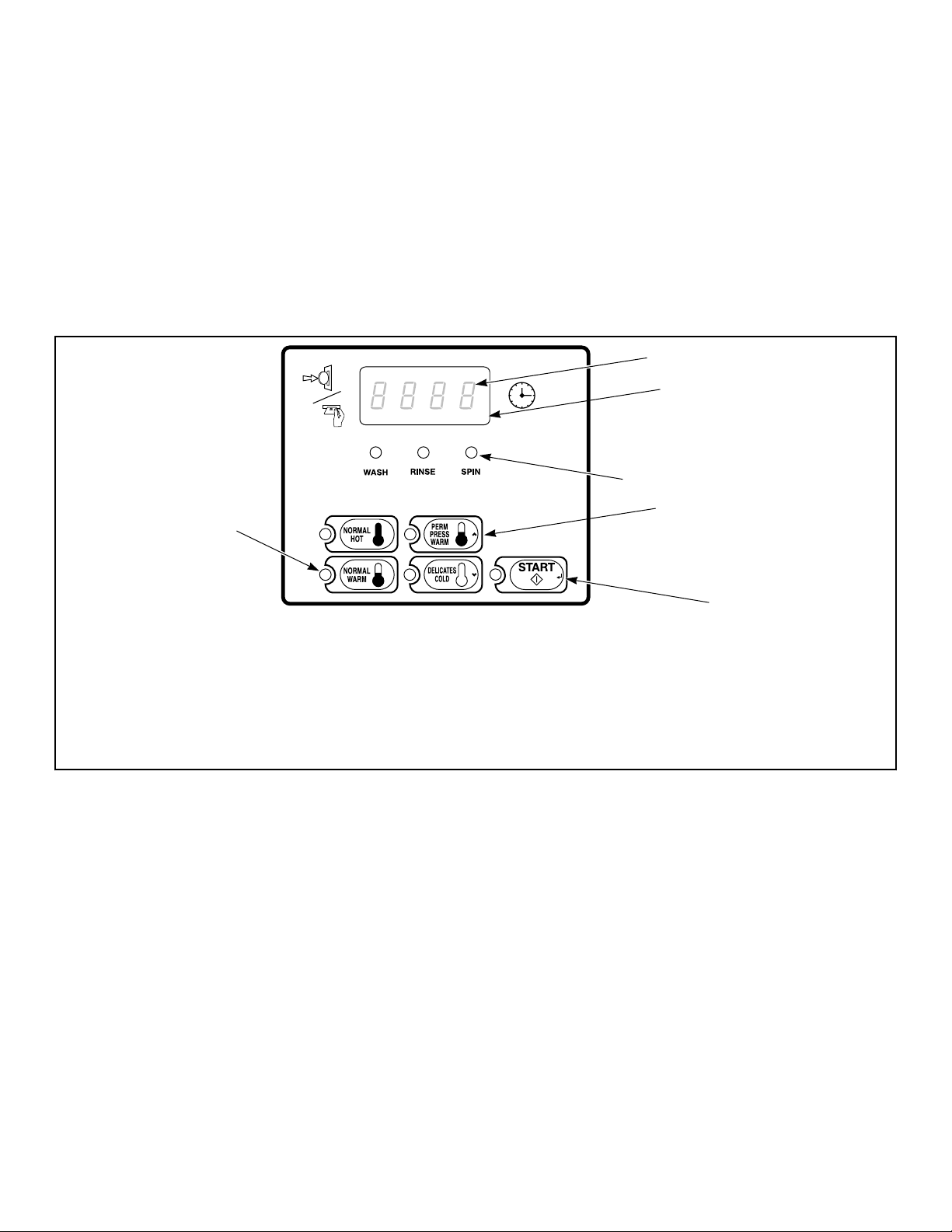

TLW1R_SVG1

1. Four 7-Segment Digits

2. Four-Digit Display

3. LED Status Lights

4. SELECT CYCLE Keypads

5. START Keypad

6. LED Light

Figure 1

Control Identification

DO NOT COPY or TRANSMIT

8 Part No. 202713ENR1

Display Identification

Light Emitting Diodes (LEDs)

LIGHT EMITTING DIODES (LEDs) are used to indicate the

chosen cycle and cycle status. See below for information on each

LED.

START LED

The START keypad LED flashes whenever the washer is not in a

cycle, the full vend price has been satisfied, and the washer lid is

closed. When the START keypad is pressed, the cycle will begin

or resume. The START LED will shut off when the START key-

pad is pressed.

WASH LED

WASH LED is lit at the beginning of a wash portion of the cycle

and will remain lit until the wash is complete.

RINSE LED

RINSE LED is lit at the beginning of a rinse portion of the cycle

and will remain lit until the rinse is complete.

SPIN LED

The SPIN LED is lit for all spin cycles.

Four 7-Segment Digits

The 7-SEGMENT DIGITS are used to display the time remain-

ing in a cycle, vend price, error messages and descriptive codes.

During diagnostic testing or manual programming of the control,

these digits will display descriptive codes and values.

When displaying the time remaining, the time value is displayed

on the right side of the display. When displaying the vend price,

the value is displayed on the left side of the display.

Display Identification

DO NOT COPY or TRANSMIT

9 Part No. 202713ENR1

Washer Operation

Start Up

When power is applied to the washer, the control will display its

software version as S--- (--- is the version number) for two

seconds. If the control was not powered down during a running

cycle, it will enter the Ready Mode.

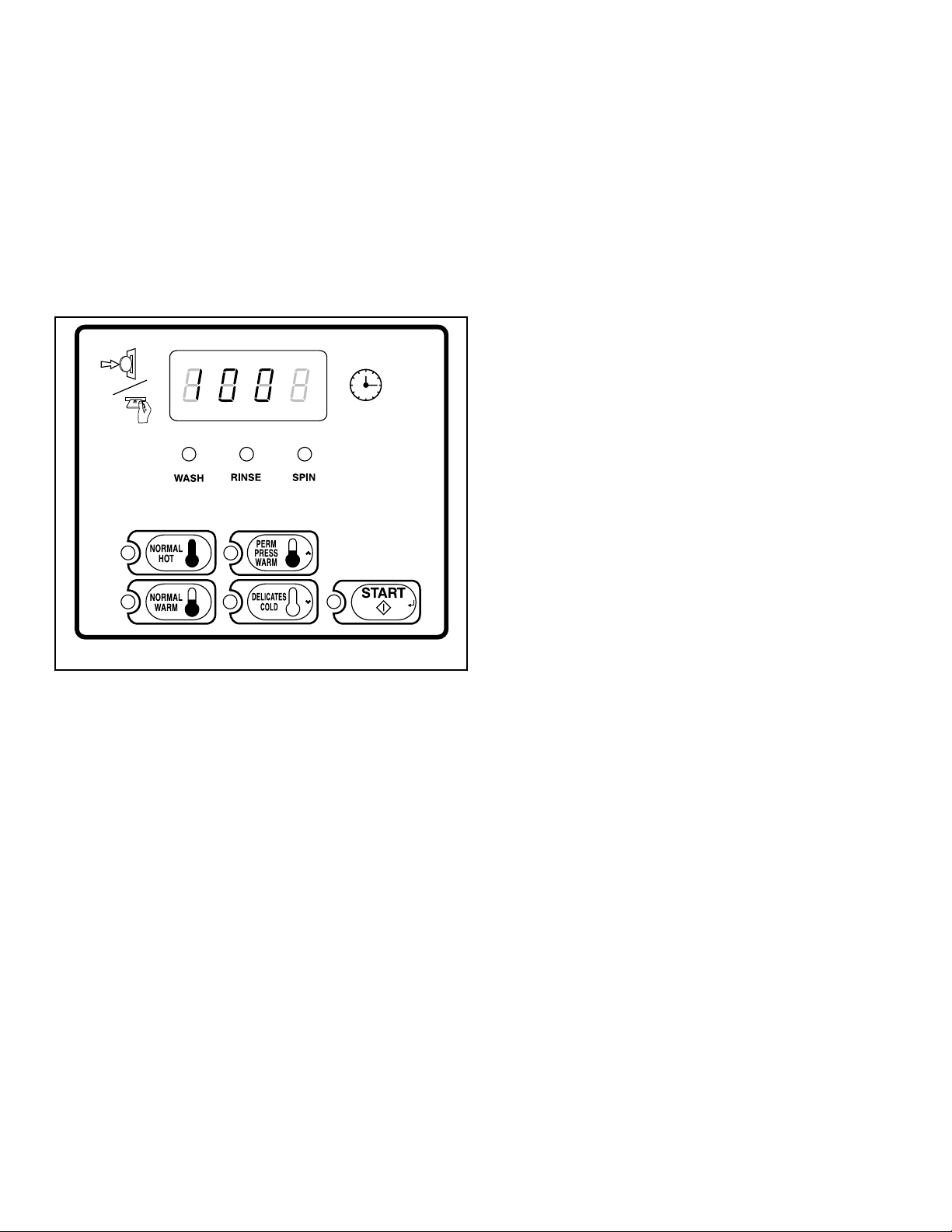

Ready Mode

TLW2R_SVG

Figure 2

In Ready Mode, the PERM PRESS/WARM (default cycle) LED

is lit, and the full vend price is displayed as left justified. The

user may select a different cycle, if desired. (In card reader ma-

chines, if the current cycle has a vend price which differs from

the default cycle, the display will be updated to show the new

price.) If another cycle is selected, the control will flash the

amount needed to satisfy the vend shown on the display. If the

vend price is not satisfied within one minute, the washer control

will stop flashing the vend price and return to the default cycle.

The display will continue to show the remaining vend needed to

start a cycle and will credit any vend entered by the user.

Vends may be satisfied by a coin drop, start pulses, or by a third

party card reader. If a coin drop is used, the remaining vend price

will decrease with each coin entry. If start pulses are used, the re-

maining vend price will decrease with each received pulse. Once

the vend is satisfied, the START LED will begin to flash. If a

third party card reader is used, the START LED will begin to

flash when a valid cash card is entered into the reader.

When the START keypad is pressed, the washer will start. The

START LED will stop flashing and the WASH LED will be lit.

The display will change to show the remaining cycle time on the

right side of the display. The appropriate LEDs will light while

the machine passes through different cycle steps. Any coin en-

tered after the first fill cycle will be added to the total coin coun-

ter, but the user will not be able to change cycles.

When a cycle is complete, the Four-Digit Display will show 00

until the lid is opened, a key is pressed, a coin or card is entered,

or a start pulse is received. When one of these instances occurs,

the Four-Digit Display will revert back to the Ready Mode.

Opening the Washer Lid

Opening the washer lid in a running cycle will automatically stop

the cycle, the Four-Digit Display will show LId, and the timer

will stop. Once the lid is closed, the cycle will resume from the

point it was interrupted. If the washer lid is opened in the last

three minutes of the cycle, the timer will continue to count down

to the end of the cycle. When the timer control reaches 0 mi-

nutes, the control will return to the Ready Mode.

Signals

There are three instances when a signal may sound during washer

operation. The owner may program the signal to be turned on or

off (refer to Configuration Display CnFg). These three instances

are listed below:

1. Keypad Depression Signal - The signal will sound for .25 sec-

onds each time a keypad is pressed.

2. Coin Input/Start Pulse Input/Card Insertion Signal - The sig-

nal will sound for .25 seconds each time a coin or start pulse

is received or a card is entered.

3. Machine Error Signal - The signal will sound for 15 seconds

if an error occurs.

Washer Operation

DO NOT COPY or TRANSMIT

10 Part No. 202713ENR1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems SFNBXFSP122DW01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems UX55PVXF6 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems LTS97A*N1500 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems UM202 Series Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems AFNE9BSP113TN01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LWS01A* series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 801529 Manual de servicio

Alliance Laundry Systems

Alliance Laundry Systems SVN255P Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems SF135PV Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Commercial Automatic Washer Manual de uso y mantenimiento

Alliance Laundry Systems

Alliance Laundry Systems F232136R5 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen TLW24C-SVG1 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 801455R2 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems PMC360T Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CHM1772C Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems FLW700C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TR5000WN Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems D1627ENR5 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems Washer-Extractor Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LWS04M Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HD60 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 802749r1 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CS2000 Manual de lista de piezas

Alliance Laundry Systems

Alliance Laundry Systems C003292ENR1 Manual del propietario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
