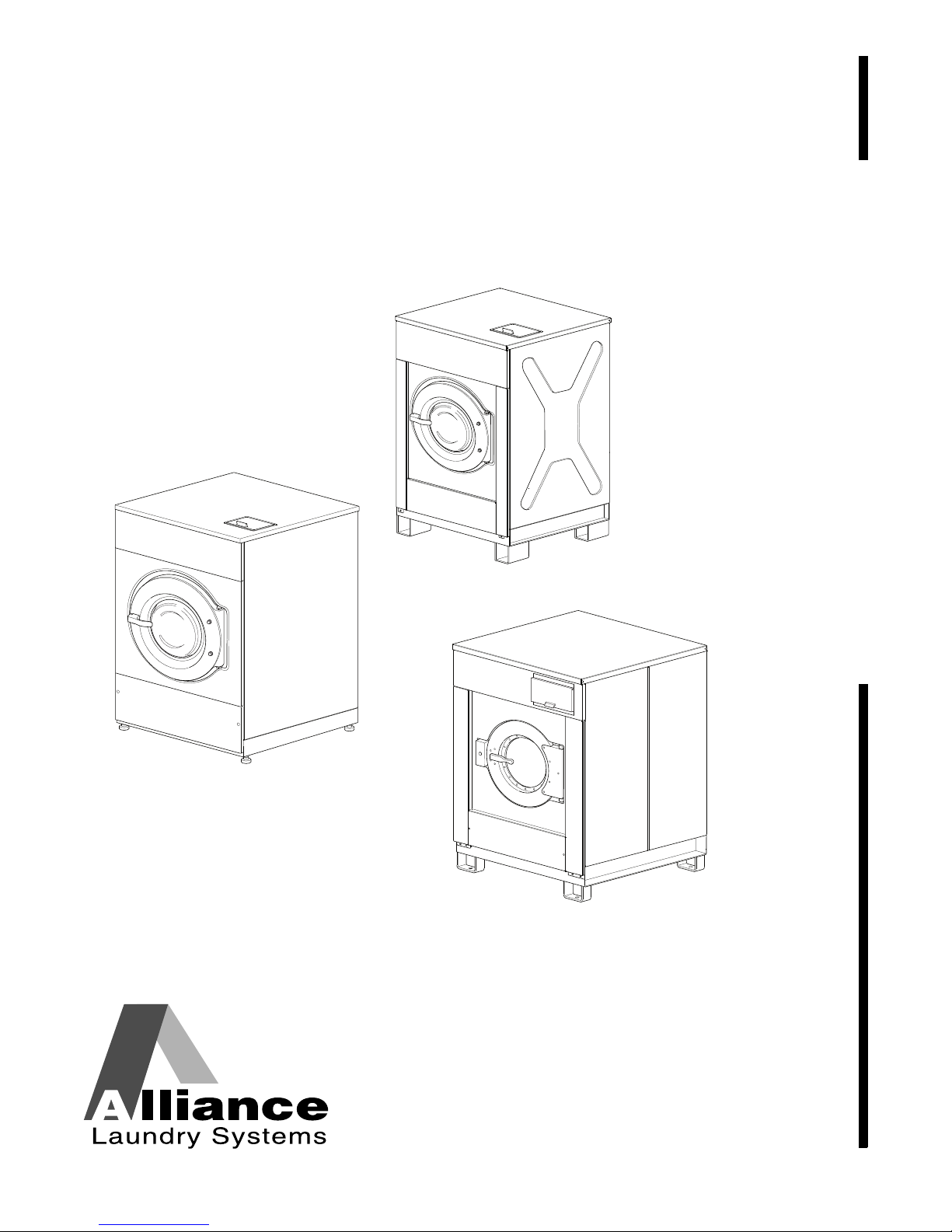

Alliance Laundry Systems 33 Guía de instalación

Operation/Maintenance

www.comlaundry.com

CFD24C

CFD23C

Washer-Extractors

Cabinet Freestanding

Refer to Page 2 for Model Identification

Part No. 9002107

September 2011

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

CFD24C

18, 25, 30 and 35 Models

CFD25C

100, 135, 165 and 200 Models

CFD23C

33, 40, 55 and 75 Models

means without the expressed written consent of the publisher.

9002107 1

Table of

Contents

Introduction......................................................................................... 2

Model Identification ............................................................................. 2

Nameplate Location.............................................................................. 4

Replacement Parts ................................................................................ 4

Customer Service.................................................................................. 4

Safety Information.............................................................................. 5

Explanation of Safety Messages........................................................... 5

Important Safety Instructions ............................................................... 5

Safety Decals ........................................................................................ 7

Operator Safety..................................................................................... 8

Operation............................................................................................. 9

WE-8 Control Panel (OPL Models) ..................................................... 9

Load the Machine ................................................................................. 10

Start a Program ..................................................................................... 10

Special Options in Run Mode............................................................... 11

Advance Mode...................................................................................... 11

Chemical Hold Feature ......................................................................... 11

Stop the Machine .................................................................................. 12

Error Messages ..................................................................................... 13

Operation............................................................................................. 17

B-Control Panel (Coin-Operated Models)............................................ 17

Summary of Major Features ................................................................. 17

Load the Machine ................................................................................. 18

Start a Program ................................................................................ 18

Maintenance ........................................................................................ 20

Daily ..................................................................................................... 20

Weekly.................................................................................................. 21

Monthly................................................................................................. 21

Yearly ................................................................................................... 22

9002107

2© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Introduction

Model Identification

Information in this manual is applicable to these

models:

HX018PVQM7

HX018PVXM7

HX18PVQM6

HX18PVQM7

HX18PVQU6

HX18PVXM6

HX18PVXM7

HX18PVXU6

NX018BVPA7

NX018BVQA7

NX018BVXA7

NX018BVXM7

NX18BVPA6

NX18BVPA7

NX18BVQA6

NX18BVQA7

NX18BVXA6

NX18BVXA7

NX18BVXM6

NX18BVXM7

SX018BVPA7

SX018BVQA7

SX018BVXA7

SX018BVXM7

SX018PVPA7

SX018PVQM7

SX018PVXM7

SX18BVPA7

SX18BVQA7

SX18BVXA7

SX18BVXM7

SX18PVPA7

SX18PVQM6

SX18PVQM7

SX18PVQU6

SX18PVXM6

SX18PVXM7

SX18PVXU6

UX018PVNA7

UX018PVPA7

UX018PVQA7

UX018PVQM7

UX018PVXA7

UX018PVXM7

UX18PVNA6

UX18PVNA7

UX18PVNU6

UX18PVPA6

UX18PVPA7

UX18PVPU6

UX18PVQA6

UX18PVQA7

UX18PVQM6

UX18PVQM7

UX18PVQU6

UX18PVXA6

UX18PVXA7

UX18PVXM6

UX18PVXM7

UX18PVXU6

HX025PVQM7

HX025PVXM7

HX25PVQM6

HX25PVQM7

HX25PVQU6

HX25PVXM6

HX25PVXM7

HX25PVXU6

SX025PVQM7

SX025PVXM7

SX25PVQM6

SX25PVQM7

SX25PVQU6

SX25PVXM6

SX25PVXM7

SX25PVXU6

UX025PVNA7

UX025PVPA7

UX025PVQA7

UX025PVQM7

UX025PVXA7

UX025PVXM7

UX25PVNA6

UX25PVNA7

UX25PVNU6

UX25PVPA6

UX25PVPA7

UX25PVPU6

UX25PVQA6

UX25PVQA7

UX25PVQM6

UX25PVQM7

UX25PVQU6

UX25PVXA6

UX25PVXA7

UX25PVXM6

UX25PVXM7

UX25PVXU6

NX030BVPA7

NX030BVQA7

NX030BVXA7

NX030BVXM7

NX30BVPA6

NX30BVPA7

NX30BVQA6

NX30BVQA7

NX30BVXA6

NX30BVXA7

NX30BVXM6

NX30BVXM7

SX030BVPA7

SX030BVQA7

SX030BVXA7

SX030BVXM7

SX30BVPA7

SX30BVQA7

SX30BVXA7

SX30BVXM7

33 SX33BVPA7

SX33BVQA7

SX33BVXA7

SX33BVXM7

UX33PVNA7

UX33PVPA7

UX33PVQA7

UX33PVQM7

UX33PVXA7 UX33PVXM7

HX035PVQM7

HX035PVXM7

HX35PVQM6

HX35PVQM7

HX35PVQU6

HX35PVXM6

HX35PVXM7

HX35PVXU6

SX035PVNM7

SX035PVQM7

SX035PVXM7

SX35PVNM7

SX35PVQM6

SX35PVQM7

SX35PVQU6

SX35PVXM6

SX35PVXM7

SX35PVXU6

UX035PVNA7

UX035PVPA7

UX035PVQA7

UX035PVQM7

UX035PVXA7

UX035PVXM7

UX35PVNA6

UX35PVNA7

UX35PVPA6

UX35PVPA7

UX35PVQA6

UX35PVQA7

UX35PVQM6

UX35PVQM7

UX35PVXA6

UX35PVXA7

UX35PVXM6

UX35PVXM7

UX35PVNU6

UX35PVPU6

UX35PVQU6

UX35PVXU6

40 SX40BVPA7

SX40BVQA7

SX40BVXA7

SX40BVXM7

UX40PVNA7

UX40PVPA7

UX40PVQA7

UX40PVQM7

UX40PVXA7

UX40PVXM7

HX055PVNU7

HX055PVQU7

HX055PVXU7

HX55PVNU6

HX55PVNU7

HX55PVQU6

HX55PVQU7

HX55PVXU6

HX55PVXU7

SX055PVNU7

SX055PVPU7

SX055PVQU7

SX055PVXU7

SX55PVNU6

SX55PVNU7

SX55PVPU6

SX55PVPU7

SX55PVQU6

SX55PVQU7

SX55PVXU6

SX55PVXU7

UX055PVNU7

UX055PVPU7

UX055PVQU7

UX055PVXF7

UX055PVXU7

UX55PVNU6

UX55PVNU7

UX55PVPU6

UX55PVPU7

UX55PVQU6

UX55PVQU7

UX55PVXF6

UX55PVXF7

UX55PVXU6

UX55PVXU7

HX075PVNU7

HX075PVPU7

HX075PVQU7

HX75PVNU6

HX75PVNU7

HX75PVPU7

HX75PVQU6

HX75PVQU7

SX075PVNU7

SX075PVPU7

SX075PVQU7

SX75PVNU6

SX75PVNU7

SX75PVPU7

SX75PVQU6

SX75PVQU7

UX075PVNU7

UX075PVPU7

UX075PVQU7

UX75PVNU6

UX75PVNU7

UX75PVPU6

UX75PVPU7

UX75PVQU6

UX75PVQU7

(continued)

Introduction

9002107

(continued)

100

HX100PVNU6

HX100PVNU7

HX100PVPU7

HX100PVQU6

HX100PVQU7

SX100PVNU6

SX100PVNU7

SX100PVPU7

SX100PVQU6

SX100PVQU7

UX100PVNU6

UX100PVNU7

UX100PVPU6

UX100PVPU7

UX100PVQU6

UX100PVQU7

135

HX135PVNU6

HX135PVNU7

HX135PVPU7

HX135PVQU6

HX135PVQU7

SX135PVNU6

SX135PVNU7

SX135PVQU6

SX135PVQU7

SX135PVPU7

UX135PVNU6

UX135PVNU7

UX135PVPU6

UX135PVPU7

UX135PVQU6

UX135PVQU7

165

HX165PVNU6

HX165PVNU7

HX165PVPU7

HX165PVQU6

HX165PVQU7

SX165PVNU6

SX165PVNU7

SX165PVPU7

SX165PVQU6

SX165PVQU7

UX165PVNU6

UX165PVNU7

UX165PVPU6

UX165PVPU7

UX165PVQU6

UX165PVQU7

200 HX200PVNU7

HX200PVPU7

HX200PVQU7

SX200PVNU7

SX200PVPU7

SX200PVQU7

UX200PVNU7

UX200PVPU7

UX200PVQU7

Introduction

9002107

Nameplate Location

The nameplate is located at the rear of the machine.

Always provide the machine’s serial number and

model number when ordering parts or when seeking

technical assistance. Refer to Figure 1.

Replacement Parts

If literature or replacement parts are required, contact

the source from which the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Customer Service

For technical assistance, contact your local distributor

or contact:

Alliance Laundry Systems

Shepard Street

P. O . B o x 9 9 0

Ripon, Wisconsin 54971-0990

U.S.A.

www.coinlaundry.com

Phone: +1 (920) 748-3121

+3256412054

Wevelgem, Belgium

1Nameplate

Figure 1

CFD24C

CFD23C

CFD2

CFD24C

18, 25, 30 and 35 Models

CFD25C

CFD23C

33, 40, 55 and 75 Models 100, 135, 165 and 200 Models

111

9002107

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING,”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Install the washer according the

INSTALLATION instructions. Refer to the

EARTHING (grounding) instructions in the

INSTALLATION manual for the proper earthing

(grounding) of the washer. All connections for

water, drain, electrical power and earthing

(grounding) must comply with local codes and be

made by licensed personnel when required. It is

recommended that the machine be installed by

qualified technicians.

3. Do not install or store the washer where it will be

exposed to water and/or weather.

4. To prevent fire and explosion, keep the area

around machine free from flammable and

combustible products. Do not add the following

substances or textiles containing traces of the

following substances to the wash water: gasoline,

kerosene, waxes, cooking oils, vegetable oils,

machine oils, dry-cleaning solvents, flammable

chemicals, thinners, or other flammable or

explosive substances. These substances give off

vapors that could ignite, explode or cause the

fabric to catch fire by itself.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas

is flammable, do not smoke or use an open flame

during this time.

6. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power

source.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023

WARNING

Safety Information

9002107

7. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This appliance

is not intended for use by young children or

infirm persons without supervision. Young

children should be supervised to ensure that they

do not play with the appliance. This is a safety

rule for all appliances.

8. DO NOT reach and/or climb into the tub or onto

the washer, ESPECIALLY if the wash drum is

moving. This is an imminently hazardous

situation that, if not avoided, will cause severe

personal injury or death.

9. Never operate the washer with any guards, panels

and/or parts removed or broken. DO NOT bypass

any safety devices or tamper with the controls.

10. Use washer only for its intended purpose,

washing textiles. Never wash machine parts or

automotive parts in the machine. This could

result in serious damage to the basket or tub.

11. Use only low-sudsing, no-foaming types of

commercial detergent. Be aware that hazardous

chemicals may be present. Wear hand and eye

protection when adding detergents and

chemicals. Always read and follow

manufacturer’s instructions on packages of

laundry and cleaning aids. Heed all warnings or

precautions. To reduce the risk of poisoning or

chemical burns, keep them out of the reach of

children at all times (preferably in a locked

cabinet).

12. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

13. Always follow the fabric care instructions

supplied by the textile manufacturer.

14. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT bypass

the loading door switch by permitting the washer

to operate with the loading door open. Do not

attempt to open the door until the washer has

drained and all moving parts have stopped.

15. Be aware that hot water is used to flush the

supply dispenser. Avoid opening the dispenser lid

while the machine is running.

16. Do not attach anything to the supply dispenser’s

nozzles, if applicable. The air gap must be

maintained.

17. Do not operate the machine without the water

reuse plug or water reuse system in place, if

applicable.

18. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

19. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a

qualified service person.

20. DANGER: Before inspecting or servicing

machine, power supply must be turned OFF. The

servicer needs to wait for at least 10 minutes after

turning the power OFF and needs to check for

residual voltage with a voltage meter. The

inverter capacitor or EMC filter remains charged

with high voltage for some time after powering

OFF. This is an imminently hazardous situation

that, if not avoided, will cause severe personal

injury or death.

21. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out. ALWAYS disconnect the

washer from electrical, power and water supplies

before attempting any service.

22. Disconnect the power cord by grasping the plug,

not the cord. Replace worn power cords and/or

loose plugs. If the supply cord is damaged, it

must be replaced by a special cord or assembly

available from the service agent.

23. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

24. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Always contact your dealer, distributor, service agent

or the manufacturer on any problems or conditions you

do not understand.

Safety Information

9002107

IMPORTANT: Ensure that the recommended

clearances for inspection and maintenance are

provided. Never allow the inspection and

maintenance space to be blocked.

Safety Decals

Safety decals appear at crucial locations on the

machine. Failure to maintain legible safety decals

could result in injury to the operator or service

technician.

Use manufacturer-authorized spare parts to avoid

safety hazards.

This machine must be installed, adjusted,

and serviced by qualified electrical

maintenance personnel familiar with the

construction and operation of this type of

machinery. They must also be familiar

with the potential hazards involved.

Failure to observe this warning may result

in personal injury and/or equipment

damage, and may void the warranty.

SW004

WARNING

Never touch internal or external steam

pipes, connections, or components.

These surfaces can be extremely hot and

will cause severe burns. The steam must

be turned off and the pipe, connections,

and components allowed to cool before

the pipe can be touched.

SW014

WARNING

Safety Information

9002107

Operator Safety

The following maintenance checks must be performed

daily:

1. Verify that all warning signs are present and

legible, replace as necessary.

2. Check door interlock before starting operation of

the machine:

a. Attempt to start the machine with the door

open. The machine should not start.

b. Close the door without locking it and attempt

to start the machine. The machine should not

start.

c. Attempt to open the door while a cycle is in

progress. The door should not open.

If the door lock and interlock are not functioning

properly, call a service technician.

3. Do not attempt to operate the machine if any of

the following conditions are present:

a. The door does not remain securely locked

during the entire cycle.

b. Excessively high water level is evident.

c. Machine is not connected to a properly

grounded circuit.

Do not bypass any safety devices in the machine.

NEVER insert hands or objects into

basket until it has completely stopped.

Doing so could result in serious injury.

SW012

WARNING

Operating the machine with severe out-of-

balance loads could result in personal

injury and serious equipment damage.

W728

WARNING

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems DCG020ND Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems AWN43RSN115CW01 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems FLW1548C SVG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TLW12C_SVG Guía

Alliance Laundry Systems

Alliance Laundry Systems 9002062R3 Guía de instalación

Alliance Laundry Systems

Alliance Laundry Systems Metered models Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HC18PC2 Manual de programación

Alliance Laundry Systems

Alliance Laundry Systems HX18PVQM6 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems A-Control Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems LTS84A*H Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CABINET FREESTANDING 9001889R7 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems PHM1397C Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems POCKET HARDMOUNT UW50P4 Guía de mantenimiento y servicio

Alliance Laundry Systems

Alliance Laundry Systems HA1000 Instrucciones de montaje

Alliance Laundry Systems

Alliance Laundry Systems FLW1511C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 802750R2 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems B-Series Manual de instalación y operación

Alliance Laundry Systems

Alliance Laundry Systems CTLW-35A Guía

Alliance Laundry Systems

Alliance Laundry Systems LTS97A*N1500 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems F232182R1 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems NetMaser Series Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems F232179R5 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems W001C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems D1528ENR3 Guía de solución de problemas

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
