Alienware 17 R5 Manual de operación y mantenimiento
Alienware 17 R5
Setup and Specications
Computer Model: Alienware 17 R5
Regulatory Model: P31E
Regulatory Type: P31E002
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make
better use of your product.
CAUTION: A CAUTION indicates either potential damage to
hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
© 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other
trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be
trademarks of their respective owners.
2018 - 01
Rev. A00
Contents
Set up your computer.................................................... 5
Set up the Virtual Reality (VR) headset—optional..............................5
HTC Vive.................................................................................... 5
Oculus Rift..................................................................................6
Oculus Rift with touch................................................................. 8
Alienware Graphics Amplier..........................................................10
Views............................................................................ 12
Base............................................................................................... 12
Display........................................................................................... 13
Front.............................................................................................. 14
Back...............................................................................................14
Left................................................................................................15
Right.............................................................................................. 16
Specications............................................................... 17
Computer model............................................................................. 17
System information.......................................................................... 17
Operating system............................................................................ 17
Dimensions and weight....................................................................17
Memory..........................................................................................18
Ports and connectors....................................................................... 18
Communications..............................................................................19
Wireless module........................................................................ 19
Audio............................................................................................. 19
Storage..........................................................................................20
3
Intel Optane storage................................................................. 20
Keyboard.......................................................................................20
Camera...........................................................................................21
Touchpad........................................................................................21
Touchpad gestures.....................................................................21
Battery...........................................................................................22
Video.............................................................................................22
Power adapter................................................................................23
Display...........................................................................................24
Computer environment...................................................................24
Keyboard shortcuts..................................................... 26
Getting help and contacting Alienware..................... 28
Self-help resources......................................................................... 28
Contacting Alienware..................................................................... 28
4
Set up your computer
Connect the power adapter and press the power button.
Set up the Virtual Reality (VR) headset—
optional
NOTE: The VR headset is sold separately.
NOTE: If you are using Alienware Graphics Amplier with your
computer, see Alienware Graphics Amplier.
HTC Vive
1 Download and run the setup tools for your VR headset at www.dell.com/
VRsupport.
2 Connect the HDMI cable of the HTC Vive headset to the back of your
computer.
5
3 Connect the USB cable from the Vive hub to the USB 3.1 Gen 1 port at the
right side of your computer.
4 Follow the on-screen instructions to complete the setup.
Oculus Rift
NOTE: The USB dongles are only shipped with computers that are Oculus
certied.
1 Download and run the setup tools for your VR headset at www.dell.com/
VRsupport.
2 Connect the HDMI cable of the Oculus Rift headset to the back of your
computer.
3 Connect the Oculus Rift headset to the USB Type-A port at the right side of
your computer.
6
4 Connect the Oculus Rift tracker to the USB Type-A port at the left side of
your computer.
5 Connect a USB Type-C to Type-A dongle to the Thunderbolt 3 (USB Type-C)
port at the back of your computer.
6 Connect the XBOX controller to the USB Type-A port on the USB dongle.
7 Follow the on-screen instructions to complete the setup.
7
Oculus Rift with touch
NOTE: The USB dongles are only shipped with computers that are Oculus
certied.
1 Download and run the setup tools for your VR headset at www.dell.com/
VRsupport.
2 Connect the HDMI cable of the Oculus Rift headset to the back of your
computer.
3 Connect the Oculus Rift headset to the USB Type-A port at the right side of
your computer.
8

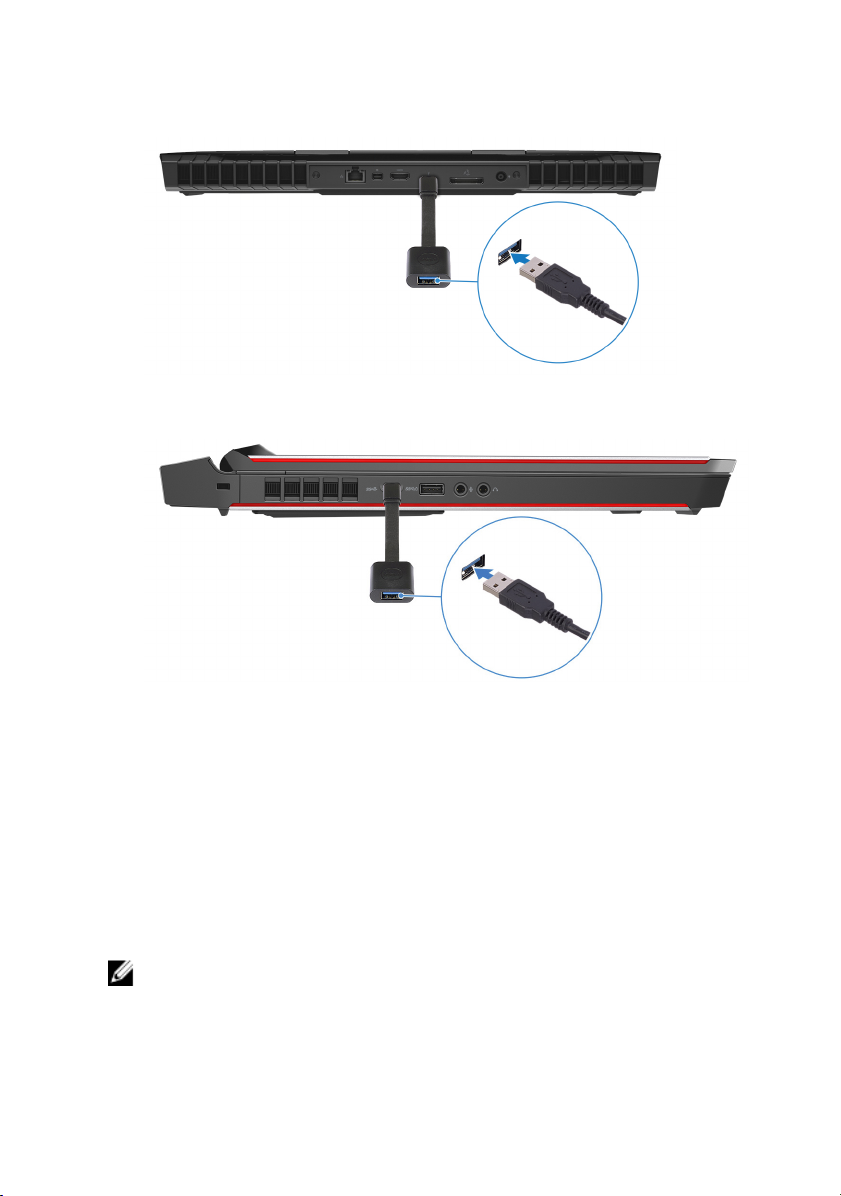

4 Connect a USB Type-C to Type-A dongle to the Thunderbolt 3 (USB Type-C)
port on the back of your computer.
5 Connect the Oculus Rift tracker to the USB Type-A port at the left side of
your computer.
6 Connect a USB Type-C to Type-A dongle to the USB 3.1 Gen 2 (Type-C)
port at the left side of your computer.
9
7 Connect the XBOX controller to the USB Type-A port on the USB dongle.
8 Connect the Oculus Rift tracker for Touch to the USB Type-A port on the
dongle.
9 Follow the on-screen instructions to complete the setup.
Alienware Graphics Amplier
Alienware Graphics Amplier enables you to connect an external graphics card to
your computer.
When using the Virtual Reality (VR) headset, connect the HDMI cable to the
graphics card installed on your Alienware Graphics Amplier. The USB cables
from the VR headset can be connected either to your computer or your Alienware
Graphics Amplier.
NOTE: The USB dongle is not required, if you are connecting the USB 3.1
Gen 1 cables on your VR headset to the USB 3.1 Gen 1 Type-A port on
your Alienware Graphics Amplier.
10
