ALFAtron ALF-WP70T/RS Manual de usuario

www.alfatronelectronics.com

ALFATRON ELECTRONICS GmbH GERMANY

ALF-WP70T/RS

FCC Statement

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

---Reorient or relocate the receiving antenna.

---Increase the separation between the equipment and receiver.

---Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

---Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the

equipment.

Radiation Exposure

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

1- this device may not cause interference, and

2- this device must accept any interference, including interference that may

cause undesired operation of thedevice.

ALF-WP70T/RS

Radiation Exposure:

This equipment complies with IC radiation exposure limits set forth for an

uncontrolled environment.

Do not dispose of this product with the normal household waste at the end of its

life cycle. Return it to a collection point for the recycling of electrical and

electronic devices. This is indicated by the symbol on the product, user manual or

packaging. The materials are reusable according to their markings. By reusing,

recycling or other forms of utilisation of old devices you make an important

contribution to the protection of our environment. Please contact your local

authorities for details about collection points.

Preface

This manual describes the functions, installation and operation principles and

methods of the product in detail. Before installing and using this product, please

read it carefully.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged due to

electrical spikes, surges, electric shock, lighting strikes, etc. The use of surge

protection systems is highly recommended in order to protect and extend the life of

your equipment.

ALF-WP70T/RS

Table of Contents

1. Introduction. ............................................................................................. 1

2. Features. ................................................................................................... 1

3. Package Contents. ..................................................................................... 1

4. Specifications. ........................................................................................... 2

5. Product Dimensions................................................................................... 4

6. Operation Controls and Functions. ............................................................. 5

6.1 Transmitter Panel................................................................................ 5

6.2 Receiver Panel..................................................................................... 6

7. Application Example. ................................................................................. 7

8. After-Sales Service……………………………………………………………………………………….8

9. Warranty……………………………………………………………………………………………………..9

- 1 -

ALF-WP70T/RS

1. Introduction

The ALF-WP70T/RS wall plate is a 2x1 switcher and HDBaseT transmitter with

HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall

plate openings with interchangeable black and white wall plates and faceplates.

Supports video resolution up to 4K2K@50/60Hz 4:4:4. It supports bidirectional RS-

232 pass-through, and the RS-232 control signal can be transmitted up to 131ft /

40m. The product is remotely powered by the receiver or other HDBaseT-

equipped devices via POE.

2. Features

•Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a

•HDMI input supports 18Gbps video bandwidth; USB-C input supports 5.4Gbps

video bandwidth

•Video resolution up to 4K2K@50/60Hz 4:4:4

•HDBaseT output can extend video transmission distance up to 230ft / 70m for

1080P@60 or 131ft / 40m for 4K@60 via a single CAT6/6a/7 cable

•Support 3D, HDR10 and Dolby Vision

•HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,

DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

•Supports HDMI and USB-C input

•With USB-C charging port

•US one-gang enclosure for Decora-style wall plate openings

•Input signal selection supports automatic mode and manual mode

•Support POE function (only from Receiver to Transmitter)

•Available in white or black coating

3. Package Contents

•1 × 18Gbps HDBaseT 230 ft / 70M with USB-C/HDMI Wall Plate Transmitter

•1 × 3pin-3.81mm Phoenix Connector (male)

•1 × User Manual

- 2 -

ALF-WP70T/RS

4. Specifications

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2

DP Compliance

Display Port 1.2a

Video Bandwidth

USB-C: 5.4 Gbps

HDMI: 18 Gbps

Video Resolution

480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz

Color Space

RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0

Color Depth

8/10/12-bit (1080P@60Hz)

8-bit (4K@60Hz)

HDR

Support

HDMI Audio Formats

LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-

EX, DTS-96/24, DTS High Res, DTS-HD

Master Audio, DSD

Transmission

Distance

Max distance (1080P): 230ft / 70m over CAT6/6a/7 Max

distance (4K): 131ft / 40m over CAT6/6a/7

ESD Protection

Human body model — ±8kV (Air-gap discharge) &

±4kV (Contact discharge)

Connection

Transmitter

Inputs: 1x HDMI Type A [19-pin female]

1x USB-C

Outputs: 1x HDBaseT Out [RJ45, 8-pin female]

1x USB-C (only for charging)

Controls: 1x RS-232 [3-pin phoenix connector]

1x FW [Micro USB, Update port]

- 3 -

ALF-WP70T/RS

Receiver

Inputs: 1x HDMI IN [Type A, 19-pin female]

1x HDBaseT IN [RJ45, 8-pin female]

Outputs: 1x HDMI OUT [Type A, 19-pin female]

1x AUDIO OUT [Phoenix jack]

Controls: 1x RS-232 [3-pin phoenix connector]

1x FW [Micro USB, Update port]

Mechanical

Housing

Metal Enclosure

Color

White / Black

Dimensions

Wall plate:

33.3mm [W] x 65.7mm [D] x 68.7mm [H]

Faceplate:

69.9mm [W] x 3mm [D] x 114.3mm [H]

Receiver:

200mm [W] x 102.8mm [D] x 22mm [H]

Weight Wall plate: 197g, Receiver: 517g

Power Supply

POE (only from Receiver to Transmitter)

Power Consumption

Wall plate: 7.92W (Max), Receiver: 6W (Max)

Operating

Temperature

32 - 104°F / 0 - 40°C

Storage Temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)

- 4 -

ALF-WP70T/RS

5. Product Dimensions

69.9

Front

60.9

Side

33.3

Back

Unit: mm

114.3

68.7

- 5 -

ALF-WP70T/RS

6. Operation Controls and Functions

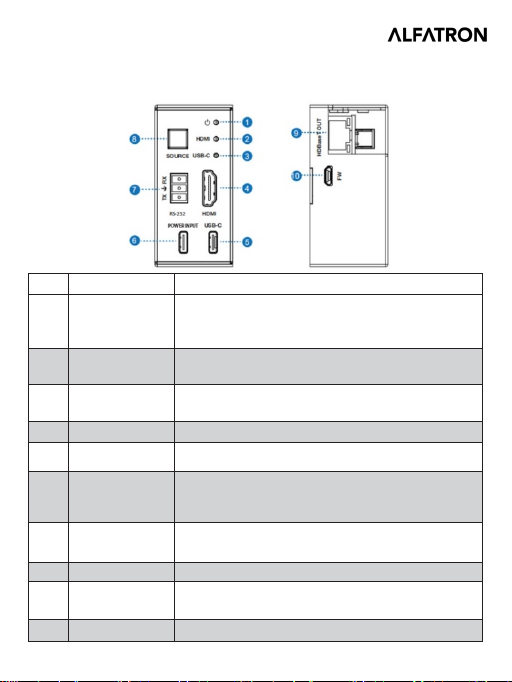

6.1 Transmitter Panel

No.

Name

Function Description

Power LED

The power LED indicator will illuminate green when

the

device is powered on, and red when the unit is

in standby.

2 HDMI LED

When the HDMI input port is active and the HDMI

signal is detected, the green LED will be on.

3 USB-C LED

When the USB-C input port is active and USB-C

signal is detected, the green LED will be on.

HDMI port

HDMI input port, connect to an HDMI source device.

USB-C port

(1) USB-C signal input port.

6 Power Input port

Connect this port to a compatible power supply,

the USB

-C port will charge the connected device

from the USB-C port (5).

7 RS-232 port

Connect to PC or control system for bidirectional RS-

232 control signal passthrough.

SOURCE button

Used to switch between HDMI / USB-C input signal.

HDBaseT OUT

Connect to the HDBaseT IN port of Receiver with a

CAT6/6a/7 cable.

FW port

Firmware update port.

- 6 -

ALF-WP70T/RS

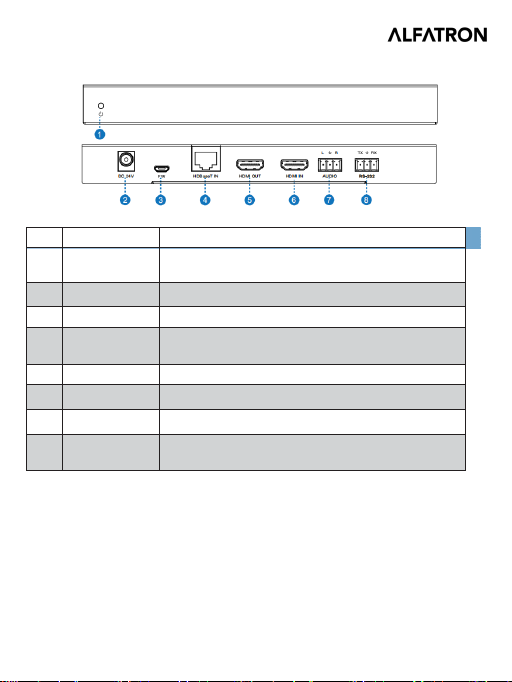

6.2 Receiver Panel

No.

Name

Function Description

1 Power LED

When the product is powered on, the red LED

indicator will be on.

2 DC 24V

DC 24V power supply port.

Firmware update port.

4 HDBaseT IN

Connect to the HDBaseT OUT port of the Transmitter

with a CAT6/6a/7 cable.

HDMI OUT

HDMI output port, connect to HDMI display device.

6 HDMI IN HDMI input port, connect to HDMI source device.

7 AUDIO OUT Analog audio output port.

8 RS-232 port

Connect to PC or control system for bidirectional

RS-232 control signal pass-through.

Note:

This transmitter supports automatic/manual mode for source signal input. In

manual switching mode, press the SOURCE button to select HDMI/ USB-C input

source.

In automatic switching mode, the last connected or the currently connected

source signal will be selected automatically. When both HDMI and USB-C ports are

connected to active signal, HDMI signal input takes preference. When both HDMI

and USB-C ports are not connected to an active signal, it will switch to the source

signal of the Receiver.
