Alcatel-Lucent M8 Manual de usuario

M8 DeskPhone

User Manual

Version 1.0

Nov, 2021

M8 User Manual 1.0

2/79

Introduction

Thank you for choosing an Alcatel-Lucent Enterprise phone.

This document describes the services offered by the M8 DeskPhones connected to a SIP server.

Alcatel-Lucent Enterprise M8 DeskPhone(M8)

The phones described in this document are supported on different SIP servers, and some features described in

this document depend on the SIP server to which the phone is connected. If more information about system

compatibility or about the level of features for a given SIP server is needed, please contact your system

administrator.

The labels and icons displayed depend on the type and the skin of the set. The label will not be displayed if the

corresponding feature is not configured on your telephone system. Depending on the size of the display, some

labels may be truncated.

M8 User Manual 1.0

3/79

The main features of the phones are listed as follows:

Multiple accounts

5-inch color screen

Adjustable screen brightness

Adjustable phone angle

HD handset

RJ9 headset

USB headset

Bluetooth hedset

2.4G &5G Wi-Fi

Dual 1000 Mbps Ethernet ports (POE)

Add-on module EM20

Add-on module EM200

External power supply

Wall-mounted

Switching among multiple audio modes

Local 12-party conference

IP Call

Web management

OpenVPN

Easy Device Management (EDM)/ Easy Provisioning Server (EPS)

The labels and icons presented in this document are not contractually binding and may be modified without prior

warning.



M8 User Manual 1.0
4/79

Getting to know your desk phone 8
2.1 Installing the foot 8
2.2 Connecting your desk phone 8
2.3 Installing a wired handset 9
Getting to know your telephone 10
Using your telephone 21
1.1 Information about the events 21
1.2 Information about the phone status 21
2.1 Configuring the programmable keys for an account 22
2.2 Defining the default SIP Account 22
3.1 Opening the dialer 23
3.2 Dialing the phone number 23
3.3 Calling by name 23
3.4 Calling from the call log 24
3.5 Calling using your personal directory 24
3.6 Calling using Speed Dial key 25
3.7 Making a peer to peer SIP call 25
6.1 Redial list 26
7.1 Contacts 26
7.2 Contacts management 27
7.3 Calling your contact 28
7.4 Creating a new contact 28
7.5 Creating a new group 29
7.6 Modifying a contact 29
7.7 Delete a contact. 29
7.8 Deleting all contacts 29
7.9 Deleting a group in the local directory 30
7.10 Deleting all groups in the local directory 30
8.1 Calling a contact 32



M8 User Manual 1.0
5/79

8.2 Displaying missed calls only 32
8.3 Deleting the call log of a contact 32
8.4 Clearing the call log 32
9.1 Creating a Speed Dial key 33
9.2 Making a call using speed dial 33
16.1 Locking your desk phone 36
16.2 Unlocking your desk phone 36
16.3 Activating or deactivating the automatic keypad lock 36
23.1 Transferring a call to another contact on hold 39
23.2 Transferring your call to another contact 39
23.3 Blind transfer 41
24.1 End conf 41
24.2 Leaving your two contacts talking together after the conference 41
25.1 End conf 42
33.1 Set a paging key 45
33.2 Set a paging group 46
33.3 Receive multicast paging 47
33.4 Manage a paging call 47
Doing more with your desk phone 48
1.1 Installation 48
1.2 Using your phone as an audio hub 51



M8 User Manual 1.0
6/79

4.1 Configuring the wireless network 53
4.2 Managing wireless networks 53
5.1 Log on to Hot Desking 55
5.2 Log off from Hot Desking 55
Customizing your desk phone 56
1.1 Selecting the ringing 56
1.2 Adjusting the ringing volume 56
1.3 Configuring the ring mode 57
1.4 Configuring the beep mode 57
1.5 Configuring the seat mode 57
8.1 Creating a programmable key 61
8.2 Deleting a programmable key 61
8.3 Type of supported programmable keys 61
12.1 Installing a Bluetooth® device 65
12.2 List connected devices 65
12.3 Removing a Bluetooth® accessory (headset, handset, etc.) 66
12.4 Removing all Bluetooth® accessories 66
12.5 Edit the name of your desk phone 66
Contacting your administrator (technical support) 67
3.1 Default password 68
3.2 Advanced Settings 68
3.3 Web Based Management (WBM) 68
Accessories 71
Technical specifications 73
Ordering information 74
Guarantee and clauses 75

M8 User Manual 1.0

7/79

M8 User Manual 1.0

8/79

1Getting to know your desk phone

1.1 Packaging list

Desk phone

Handset

Phone stand

Handset cord

Ethernet cable

Safety manual and

quick installation guide

1.2 Installing your desk phone

1.2.1 Installing the foot

Clip the foot into its compartment behind the phone. Your deskp hone provides a 2-degree foot. Depending on

the way you insert the foot into the phone, your desk phone will have a different angle:55°or 40°.The angle

noted on the top of the foot (face up) corresponds to the angle that the phone will have after having instert the

foot.

To unclip the foot, pull it straight back until it separates from the phone.

1.2.2 Connecting your desk phone

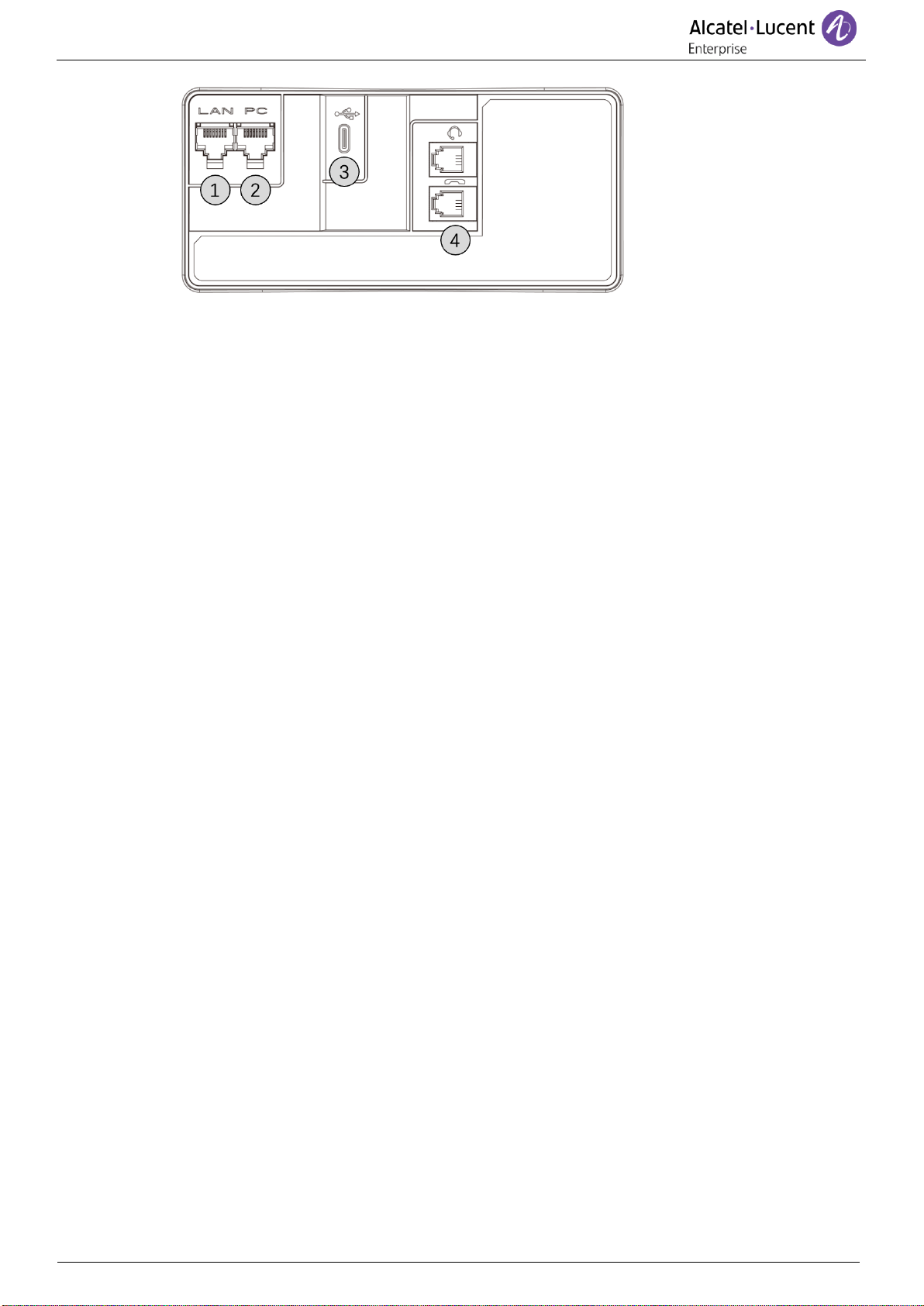

Firstly, connect the handset cord to the lower notch (4) if it is not correctly connected (your phone is usually

provided with the handset cord connected).

If your desk phone is not correctly configured, you can connect it to the network (1) ((2) is used to connect to your

PC). If your desk phone is not powered by PoE (Power over Ethernet), you have to connect the phone to the

external power supply which supports USB-C connector (3). The power adapter is sold separately. For more

information, contact your administrator.

40°/55°

M8 User Manual 1.0

9/79

1.2.3 Installing a wired handset

By default, your handset cord is correctly connected to the phone. If you have to replace it:

•Please refer to the previous section, then plug-in the wired handset to the appropriate connector.

•Make sure you position and fix the cord correctly in the compartment intended for that purpose.

M8 User Manual 1.0

10/79

2Getting to know your telephone

2.1 M8 DeskPhone

M8 DeskPhone is part of the new Alcatel-Lucent Enterprise DeskPhones. With its color display associated to 9

programmable line keys with LED and 1 page key, M8 DeskPhone delivers excellent user experience and optimum

calling effect. M8 DeskPhone is compatible with remote working VPN. By this way, it is perfect for use at your

office in your enterprise or at home (remote working).

5-inch color screen.

Navigation key(touch

sensitive).

36 virtual programmable keys (navigating through 4 pages) can be

configured to various features including SIP accounts and speed

dial. You can navigate through pages on the screen with the

navigation key to use different programmable keys. (touch

sensitive).

•Super wideband

loudspeaker for optimized

sound.

Soft keys: provide menu options and relevant features. Soft keys

can be configured to different options by the administrator.

•In the Idle state: you can press soft keys to enter menus in

different levels to operate and manage the phone.

•In the conversation mode: soft keys provide different actions

depending on the application scenarios.

HD wide-band wired handset.

Function keys: quick access to the phone’s features. (touch

sensitive).

2-degree foot (55°, 55°).

LED

Flashing blue: incoming calls, new events displayed on the screen (voice messages, missed calls).

Blue steady: ongoing call.
