This document describes the services offered by the 8254 DECT Handset connected to an OmniPCX

Enterprise system.

Your phone can be connected to an IBS or an IP-Dect radio base station depending on the company

telephone system. Some features depend on the type of radio base station you are connected to. The main

document describes features when connected to an IBS radio base station. A specific chapter is used to

describe features when connected to an IP-Dect radio base station.

Operating conditions

This approved DECT telephone is intended to be used with an Alcatel-Lucent cordless PABX. The following

conditions must be respected, notably concerning the use of radioelectric frequencies:

•Changes or modifications to the equipment not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

•To limit the risk of interference, people with pacemakers must keep the wireless telephone away from

their equipment (minimum distance of 15 cm/6 inches).

•It is recommended to follow the standard acceptance procedures before using this equipment in

human safety critical areas (hospitals...).

•DECT equipment can only be used to establish links between fixed points if these links are temporary.

•The conditions of access to a DECT equipment telepoint network shall be stipulated by contract with

the operator of the authorized telepoint network concerned.

•Do not expose your telephone to severe conditions (rain, sea air, dust, etc.).

•Switch off the telephone before changing the battery.

•You must not switch on or use your telephone near gas or inflammable liquids.

•The headset includes magnetic elements that may attract sharp metallic objects.

•There is a danger of explosion if the battery is replaced incorrectly. Use only recommended battery:

Alcatel-Lucent 3BN67332AA (Dongguan DRN New Energy Co. Ltd. RTR001FXX - Li-ion 3.7V

1100mAh 4.1Wh).

•The mains power socket used must be close to the charger/holder and easily accessible, so that it

can be used as an 'on/off' facility.

•Charge the battery for about 6 hours before initial use.

•You can charge the device by connecting it to a USB 2.0 port (type A).

•To prevent possible hearing damage, do not listen at high volume levels for long periods...

The labels and icons presented in this document are not contractually binding and may be modified without

prior warning. The labels and icons displayed on your phone depend on the system to which you are

connected and may differ from those specified in this document.

Error! Use the Home tab to apply Titre 1 to the text that you want to appear here.


8AL90387ENAAed0a

/60
1Getting to know your telephone 6
1 Phone components 6
2 Technical details of the phone 6
3 Technical details of the charger 7
4 Phone description 8
5 Status icons 10
6 MENU icons 11
7 Call icons 12
8 Accessing the MENU and navigating 13
2Getting started 14
1 First start 14
2 Installing the battery in the telephone 15
2.1 Place or remove the battery in the telephone 15
3 Charging your telephone battery 16
3.1 Charging the battery on a single charger 16
3.2 Charging the battery on a dual charger 16
3.3 LED 17
3.4 Autonomy of your telephone 17
4 Switching on your telephone 17
5 Switching off your telephone 17
3Using your telephone 18
1 Identify the terminal you are on 18
2 Messaging portal 18
3 Call log 19
4 Making a call 20
5 Calling from your personal directory 20
6 Calling your caller by name (company directory) 21
7 Receiving a call 21
8 Redialing 22
9 Requesting automatic callback if internal number is busy 22
10 Sending text message if internal number is busy 22
11 Speaking on the loudspeaker of a busy internal contact 23
4During a conversation 24
1 Make a second call 24
2 Receiving a second call 25
3 Switching between two calls (Broker call) 25
4 Transferring a call 25
5 Three-way conference with internal and/or external contacts (conference) 26
6 Placing an outside call on hold (parking) 26
7 Activate/deactivate voice frequency 27
5Sharing 28
1 Answering the general bell 28
2 Call pick-up 28
3 Hunting groups 29
3.1 Hunting group call 29
3.2 Temporary exit from your hunting group / Return into your group 29
4 Sending a text message to an internal contact 30
5 Send a voice message copy 30
6 Sending a recorded message to a number or a distribution list 31
6Keep in touch 32
1 Forwarding calls to another number (immediate forward) 32
2 Different types of diversions / Example of diversion on busy 32
2.1 Different types of diversions 32
2.2 Example of diversion on busy 33

Error! Use the Home tab to apply Titre 1 to the text that you want to appear here.


8AL90387ENAAed0a

/60
3 Diverting calls to your voice mailbox 33
4 Consulting your voice mailbox 33
5 Display an absence message 34
6Program your associate number 34
7 Define an overflow number 35
8 Cancelling all forwards 36
9 Consulting text messages 36
7Programming your telephone 37
1 Identify the terminal you are on 37
2 Initializing your voice mailbox 37
3 Change your voice mailbox password 38
4 Adjusting the audio functions 38
4.1 Choose the tune 38
4.2 Adjusting the ringer volume 38
4.3 You can adjust the buzzer/ringer mode according to your needs 39
5 Activating headset mode 39
6 Adjusting your telephone functions 39
7 Selecting language 40
8 Programming your personal directory 41
9 Modifying a record in the personal directory 41
10 Erase a record from the personal directory 42
11 Programming an appointment reminder 42
12 Locking your telephone 43
13 Modifying your personal code 44
8Registering the telephone 45
1 Registering the telephone on a system for the first time 45
2 Registering the telephone on other systems 46
2.1 To make a new registration, when the telephone has already been registered on one or more
systems, proceed as follows: 46
2.2 Selecting your telephone system 47
9Using the telephone in GAP mode 48
1 Getting to know your telephone 49
1.1 Phone description 49
1.2 MENU icons 50
1.3 Call icons 50
1.4 Accessing the MENU and navigating 51
2 Making a call 51
3 Receiving a call 52
4 Calling from your personal directory 52
5 Redialing the last number dialed (redial) 52
6 Call log 53
6.1 Manage the call log 53
7 Sending DTMF signals 54
8 Sending a calibrated cut-off 54
9 Programming your personal directory 54
9.1 Add new contact 54
9.2 Modify a contact 55
9.3 Deleting a card 55
10 Customizing and adjusting your telephone 56
10.1 Choosing your melody 56
10.2 Adjusting the ringer volume 56
10.3 Selecting language 56
10.4 Other features 57
List of accessories 58
1 Belt clip 58

Error! Use the Home tab to apply Titre 1 to the text that you want to appear here.

8AL90387ENAAed0a

5 /60

10.2 Chargers 58

10.2.1 How to dock your phone on the desk support 59

10.3 Power supply (Optional) 59

10.4 Presentation of the battery pack 60

10.4.1 Autonomy of your telephone 60

10.4.2 Initial charge: 60

10.4.3 Battery charge level 60

10.5 Headphone / external microphone 60

10.6 Cleaning your telephone 60

10.7 Transporting and protecting your telephone 60

11 Declaration of compliance 64

Quick guide 61

Error! Use the Home tab to apply Titre 1 to the text that you want to appear here.

8AL90387ENAAed0a

6 /60

1 Getting to know your telephone

1.1 Phone components

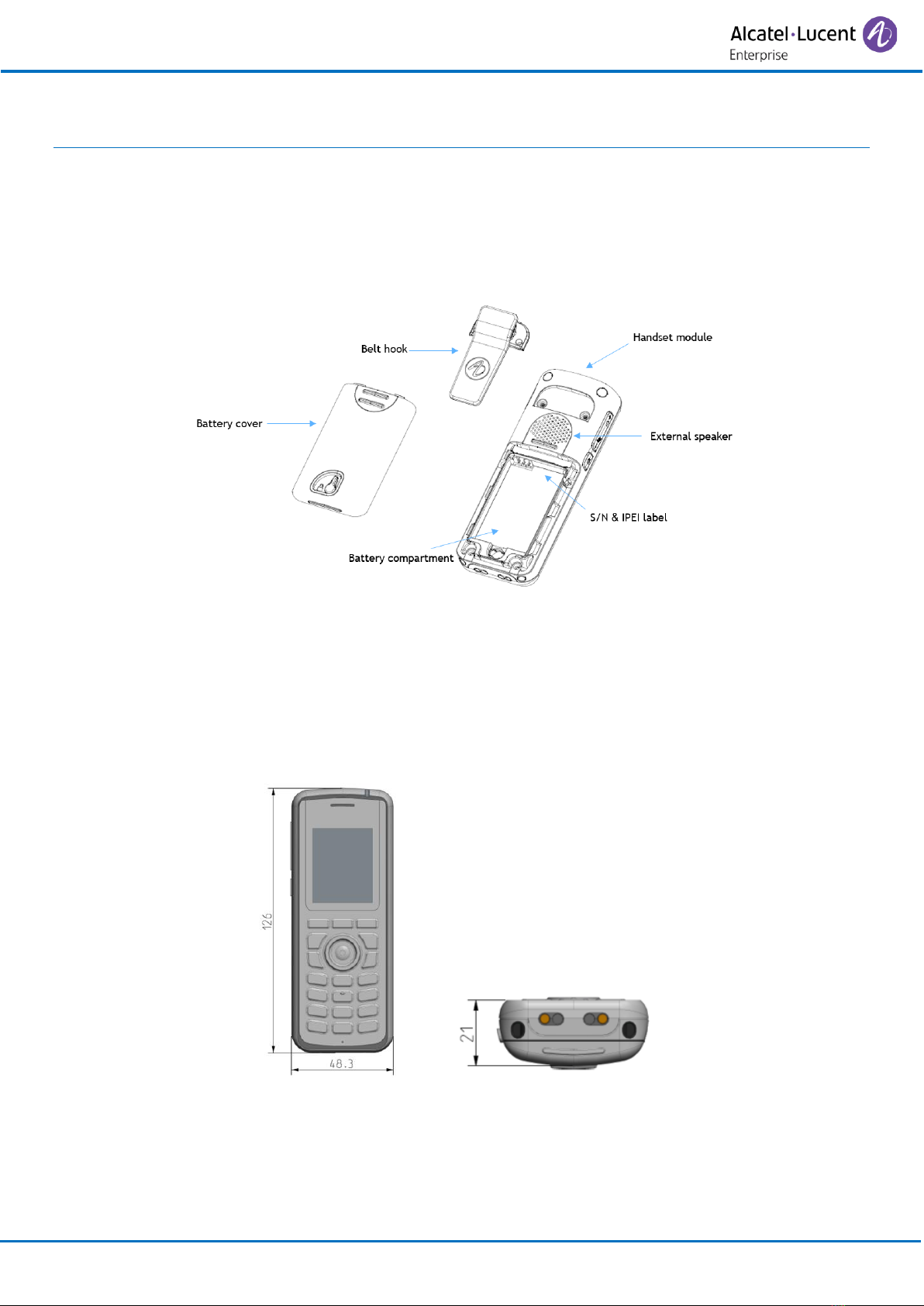

The phone has a few components, illustrated on the image below. Please make sure all of them are

present in the unit’s package.

1.2 Technical details of the phone

It is a ruggedized phone with a drop height of 2.0 meters. The size of the unit allows the user to simply

hold and operate the phone with one hand.

Error! Use the Home tab to apply Titre 1 to the text that you want to appear here.

8AL90387ENAAed0a

7 /60

1.3 Technical details of the charger

The charger of the phone has an advanced design. It can fit to any desk, due to it’s ideal measurments.

For further details, please refer to subchapter 2.3 and 10.2.

Error! Use the Home tab to apply Titre 1 to the text that you want to appear here.

8AL90387ENAAed0a

8 /60

1.4 Phone description

•Return to previous menu.

•Erase a character.

•Delete an entire field.

•Switch off ringer.

•Hang up.

•Long press: Switch on the

phone / Switch off the phone.

•Answer the call.

•Long press (feature

depending on the system):

redial last number or access

the redial list.

•Switching between two calls

(Broker call).

•Short press: Access MENU.

•Long press: Back to

homepage.

•Access MENU.

•Confirm.

•Navigate.

•Access to personal speed dial

(Down navigation key).

•Short press: Press on this key to light up the screen when the phone is in

idle state.

•Long press: Lock/unlock keypad.

•Short press: Access the company directory (Access the dial by name

feature).

•Long press: Identify the terminal you are on.

•In communication mode: Activate/deactivate the mute feature (Short

press). No feature is associated with this key in idle mode.

•Short press in idle state: Access the ringer and vibrate adjustment

feature.

•Long press in idle state: activate/deactivate vibrate feature..

•Short press during incoming call (ringing) : Off hook the incoming call in

loudspeaker mode.

•Short press during communication: Activate/deactivate the loudspeaker.

•Long press (Features depending on the system): Access to personal speed

dial / Access the DTMF feature during a conversation.

GAP mode: When you are on a call, you can initiate a second call.

Error! Use the Home tab to apply Titre 1 to the text that you want to appear here.

8AL90387ENAAed0a

9 /60

LED

•Green steady: the phone is on the charger and the battery is fully

charged.

•Red steady: the phone is on the charger and the battery is charging.

•Green steady: the phone is on the charger and the battery is fully

charged.

•Slow orange flashing: Telephonic event such as unread message,

missed call, etc.

•Rapid orange flashing: Incoming call.

•Slow Red flashing: Out of coverage.

•Rapid red flashing: low battery warning (Low battery is signaled when

battery level reaches 10%). Put the handset on it's charger.

•Short press: Increase the volume of ring tone during an incoming call (4 steps) or

increase volume of loudspeaker during a conversation (8 steps).

•Long press in conversation: Activate/deactivate the loudspeaker.

•Short press: Decrease the volume of ring tone during an incoming call (4 steps) or

decrease volume of loudspeaker during a conversation (8 steps).

•Long press during communication: Activate/deactivate the mute feature.

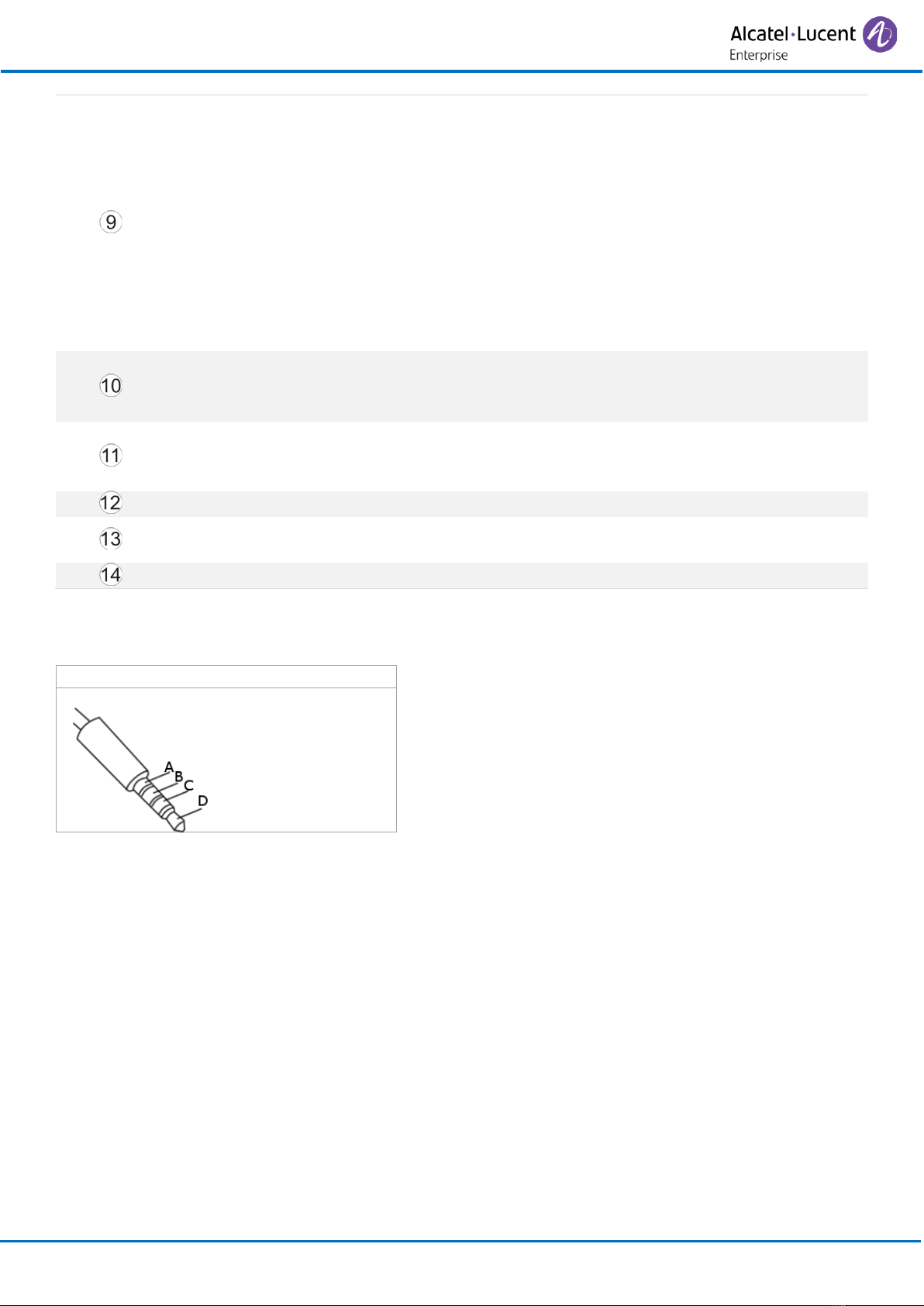

•3.5 mm, 4 pole jack (TRRS standards: CTIA).

•Clip to hook your phone on your belt. You can remove the clip and instead use the

cover that is provided in the phone package.

•Microphone.

Jack connector - CTIA standards

Microphone

Ground

Audio (right)

Audio (left)

Error! Use the Home tab to apply Titre 1 to the text that you want to appear here.

8AL90387ENAAed0a

10 /60

1.5 Status icons

The status icons are displayed on the welcome screen and indicate the status of the telephone.

Battery charge level ( > > > ).

In charge (Flashing icon).

New messages, callback request.

Missed calls.

Call diversion activated.

Vibrate mode active.

Ringer active.

Ringer disabled.

Radio reception quality - Normal Mode.

Radio reception quality - 50 mW power.

Loudspeaker on (in conversation).

Mute on (in conversation).

Economy mode activated and used (green).

Economy mode activated (gray).

You can obtain details on the status icons from the tooltips that appear on the welcome screen

when you use the navigator:

Tabla de contenidos

Otros manuales de Auricular de Alcatel-Lucent

Alcatel-Lucent

Alcatel-Lucent 8038 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8068s Premium Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8AL90330ENADed01 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent IP Touch WLAN Handset 310 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8232 DECT Handset Manual de usuario

Alcatel-Lucent

Alcatel-Lucent IP Touch 610 WLAN Handset Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8232 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8262Ex Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 400 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniTouch 8128 SE Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 400 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8252 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8244 DECT Handset Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8242 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent IPTouch 4028 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8212 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 400 DECT Manual de usuario

Alcatel-Lucent

Alcatel-Lucent IPTOUCH 300 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 300 DECT Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8242 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8242 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8234 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent VitalQIP 500 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 8212 Manual de usuario

Manuales populares de Auricular de otras marcas

Swissvoice

Swissvoice ePure HD Manual de usuario

Philips

Philips TD6736/BH051P Manual de usuario

ASCOM

ASCOM I62 - Manual de usuario

LG-Ericsson

LG-Ericsson LIP-9010 Manual de usuario

GE 1583 Manual de usuario

iiNet

iiNet Handset Manual de usuario

ASCOM

ASCOM 9p23 Manual de usuario

AT&T

AT&T DLP70110 Manual de usuario

AirCell

AirCell ST 3100 Manual de usuario

Eaton

Eaton HHIR-LCD-PROG Instrucciones de montaje

Mitel

Mitel 112 Manual de usuario

SBC

SBC SBC-381H Manual de usuario

Mitel

Mitel 5602 Manual de usuario

ASCOM

ASCOM d81 Messenger Instrucciones de instalación

SpectraLink

SpectraLink 7522 Manual de usuario

Avaya

Avaya L100 Series Cómo utilizar

ooma

ooma HD2 Handset Manual de usuario

Yealink

Yealink IPW56 Manual de usuario
