Albatron PI852 Manual de usuario

PI852

All rights are reserved. No part of this publication may be reproduced, transmitted, transcribed, stored

in a retrieval system or translated into any language or computer language, in any form or by any

means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior

written permission of the company. Brands and product names are trademarks or registered

trademarks of their respective companies.

The vendor makes no representations or warranties with respect to the contents herein and especially

disclaim any implied warranties of merchantability or fitness for any purpose. Further the vendor

reserves the right to revise this publication and to make changes to the contents herein without

obligation to notify any party beforehand. Duplication of this publication, in part or in whole, is not

allowed without first obtaining the vendor’s approval in writing.

Trademark

All the trademarks or brands in this document are registered by their respective owner.

Disclaimer

We make no warranty of any kind with regard to the content of this user’s manual. The content is

subject to change without notice and we will not be responsible for any mistakes found in this user’s

manual. All the brand and product names are trademarks of their respective companies.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits of a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense. However, there is no guarantee that interference will not occur in a

particular installation.

CE Mark

The device is in accordance with 89/336 ECC-ENC Directive.

Mainboard PI852

PI852

Intel®852GM & ICH4

Support Socket 479

Intel®Mobile Celeron®Processor

User Manual

Dimensions (Mini-ITX form-factor):

170 mm x 170 mm ( W x L )

Operating System:

Windows®XP/ 2000

er: EG10

Mainboard PI852

Things You Have To Know

0The images and pictures in this manual are for reference only and may vary from the

product you received depending on specific hardware models, third party components

and software versions.

0This mainboard contains very delicate IC chips. Always use a grounded wrist strap

when working with the system.

0Do not touch any IC chip, lead, connector or other components.

0Always unplug the AC power when you install or remove any device on the mainboard

or when confuguring pins and switches.

Packing List

PI852 Mainboard

I/O Bracket

Mainboard Setup Driver & User Manual CD

Mainboard Quick Installation Guide

Symbols

Attention- Im

ortant Information

Follow the procedures below…

Refer to other sections in this manual…

Troubleshooting Tips

Mainboard PI852

Table of Contents

CHAPTER 1. GETTING STARTED.................................................................. 1

INTRODUCTION.......................................................................................................1

SPECIFICATION .......................................................................................................2

CONFIGURATION ....................................................................................................5

Layout of PI852 (Right Side) ..........................................................................5

Layout of PI852 (Back Side)...........................................................................6

HARDWARE INSTALLATION ...................................................................................7

CPU Processor Installation..............................................................................7

Memory Installation: DIMM1.........................................................................9

Back Panel Configuration..............................................................................10

Front Panel Headers: FPSWLED1, SPK1..................................................... 11

Connectors.....................................................................................................12

Headers & Jumpers........................................................................................13

Audio Configuration......................................................................................16

Slot.................................................................................................................17

Power Supply Attachments............................................................................18

CHAPTER 2. BIOS SETUP............................................................................ 19

INTRODUCTION.....................................................................................................19

MAIN MENU .........................................................................................................20

CHAPTER 3: SOFTWARE SETUP ................................................................ 22

SOFTWARE LIST ...................................................................................................22

SOFTWARE INSTALLATION...................................................................................22

CHAPTER 4: TROUBLESHOOTING............................................................. 25

APPENDIX I: SUPER 5.1 CHANNEL AUDIO EFFECT SETUP....................................28

Mainboard PI852

Chapter 1. Getting Started

Introduction

Thanks for choosing PI852 Mainboard. It is based on Intel®852GM Northbridge chipset

and Intel®ICH4 Southbridge chipset. It supports Intel®Mobile Celeron®processors with

FSB (Front Side Bus) frequencies of 400 MHz.

The PI852 provides one DIMM (Dual In-Line Memory Modules) socket. It allows you

installing 184-pin DDR 266/ DDR 200 SDRAM which supports a total memory capacity of

1GB.

This mainboard provides one VGA (=D-Sub) connector, one Printer port (Parallel port),

and three COM ports (Serial ports) on the back panel for use.

The PI852 provides one IDE connector for IDE hard drives, and one Mini IDE connector for

Mini IDE hard drives both supporting Ultra ATA 100/66/33. Moreover, this mainboard

comes with the Silicon®Image chip supporting two SATA connectors which provide up to

1.5 Gbps data transfer rates. In addition, one standard PCI slots for use with standard PCI

expansion cards is also allowed.

The onboard AC’ 97 audio codec supports high quality 6-channel audio play (Super 5.1

Channel Audio Effect) (See Appendix I) and supports the Sony/Philips Digital Interfaces

(SPDIF) specifications (Optional).

The PI852 also comes with an onboard 10/100 Mbps Ethernet LAN chip. There is a LAN

port on the back panel of your case that you can directly plug into an Internet cable.

There are maximal six USB2.0/ 1.1 ports which can be set up on this mainboard.

All the information (including hardware installation and software installation) in this

manual are for reference only. The contents in this manual may be updated without notice.

The company will not assume any responsibility for any errors or mistakes within.

Mainboard PI852

Specification

CPU:

Support Socket 479

Support Intel®Mobile Celeron®processors

Support Hyper-Threading Technology

Support 400 MHz FSB (Front Side Bus) Frequencies

Chipset:

Northbridge Chipset – Intel®852GM

Southbridge Chipset – Intel®ICH4

I/O Controller – Winbond®W83627UHG

AC’97 Audio Codec – Realtek®ALC655

LAN Controller – Realtek®RTL 8100C

SATA Controller – Silicon®Image Sil3512

Memory:

One DIMM socket

Supports DDR 266/ DDR 200 SDRAM

Supports a total memory capacity of up to 1 GB

Onboard AC’ 97 Audio CODEC:

High performance CODEC with high S/N ratio (>90 db)

Compliant with AC’ 97 2.3 specification

Support 6-channel playback capability (Super 5.1 Channel Audio Effect)

Support 3D stereo enhancement

Support Sony/ Philips Digital Interfaces (S/PDIF) functionality

Slot:

One standard PCI slot for PCI standard expansion card

Supporting one-way bandwidth up to 133 MB/s

IDE Connectors:

One IDE connector for two IDE devices

Mainboard PI852

One Mini IDE Connector for two Mini IDE hard disk drives

Supports Ultra ATA 33/66/100

Supports high capacity hard disk drives

Serial ATA Connectors:

Two SATA connectors

Supports SATA 1.0 specification and with 1.5 Gbps data transfer rates

One SATA connector can only support one SATA HDD

Onboard LAN Chip:

10/ 100 Mbps Ethernet LAN supported

I/O facility Connectors

Supports one PS/2 mouse port and one PS/2 keyboard port

One multi-mode Parallel Port is capable to support as the following:

1. Standard & Bi-direction Parallel Port

2. Enhanced Parallel Port (EPP)

3. Extended Capabilities Port (ECP)

Supports one VGA port (=D-Sub)

Supports three serial ports (COM ports)

Supports one LVDS connector, one S/PDIF header and one COM port header to

connect compliant devices for use

Universal Serial Bus:

Four onboard USB 2.0/ 1.1 ports

One front USB header comes with this mainboard for additional two USB ports

Support a maximum of six USB ports to connect USB compliant devices

BIOS:

Phoenix-Award™ BIOS

Support APM1.2

Support ACPI 2.0 power management

Green Function:

Mainboard PI852

Supports Phoenix-Award™ BIOS power management function

Supports system-wake-from-power-saving-mode by keyboard or mouse touching

Shadow RAM:

Integrated memory controller provides shadow RAM functionality and supports

ROM BIOS

Flash Memory:

Supports flash memory functionality

Supports ESCD functionality

Hardware Monitor Function:

Monitors CPU/ Chassis Fan Speed

Monitors CPU and system temperature

Monitors system voltages

Mainboard PI852

Configuration

Layout of PI852 (Right Side)

Mainboard PI852

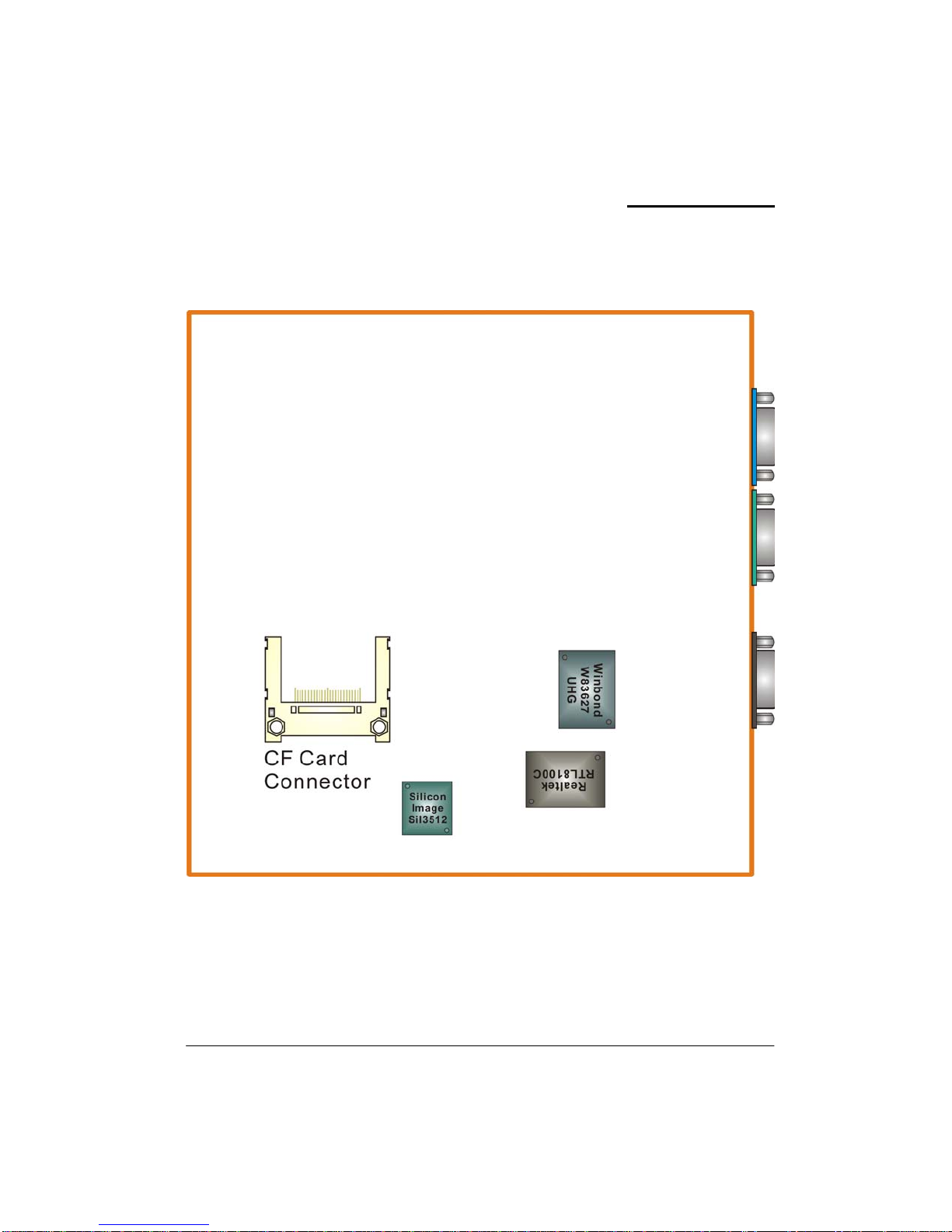

Layout of PI852 (Back Side)
