USER MANUAL
Alb Filter® DUO
...naturally better water
Blaufaktor GmbH & Co. KG
Riedweg 12
D-78607 Talheim
www.alb-filter.com
info@alb-filter.com
EN
Thank you very much for purchasing our
Alb Filter®DUO
To ensure correct installation and ecient operation
of the water filter, please follow the installation
instructions below.
MEANING OF PICTOGRAMS
Increased attention required
Additional information
Note
Tool required
Purchase additionally
INHALT
Meaning of pictograms............................................................... 2
Preamble.......................................................................................... 4
Description....................................................................................... 5
Scope of delivery .......................................................................... 6
Specifications.................................................................................. 7
Components – Alb Filter®
DUO................................................ 8
Please note before installation................................................ 10
Determine connection thread.................................................. 10
Installation Alb Filter®
DUO ....................................................... 12
Changing the filter cartridge.................................................... 16
Filter cartridges for the Alb Filter® DUO............................... 20
Cartridge replacement interval ............................................... 20
Maintenance and care ................................................................ 21
General safety informations ..................................................... 22
Reminder to change the filter cartridge.............................. 24
2 3
PREAMBLE
Alb Filter® - a maer of heart.
We are pleased that you have chosen Alb filter.
Since 2001 we can look back on a great experience in the
field of water treatment.
At a time when even the smallest part seems to come from
the Far East, we at Alb Filter stand for quality from the
centre of the Swabian Alb. A production site in southern
Germany, which is characterized by the highest standards
and precision in many areas.
We feel commied to our region and manufacture our pro-
ducts with our partners in the surrounding area.
A real piece of home - Made in Germany.
DESCRIPTION
The Alb Filter® DUO - a high quality water filter for
installation directly on the tap.
Alb Filter® DUO is ideal for:
• Drinking water treatment
• Preparation of food (cooking water)
• Cleaning of food
The water filter is installed directly on the kitchen faucet. For
this purpose the bypass is screwed to the standardized out-
let (M22 AG/M24 IG) instead of the jet regulator.
By means of a practical switch lever, it is possible to choose
between filtered and unfiltered water.
4 5
SPECIFICATIONS
• Design:
Water filter system for installation on fiings
• Material: Special alloy anodized, food grade
• Cartridge and capacity:
Depending on the selected version
• Connection of the inlet of the fiing:
Standard connection for fiings with M22x1 outlet thread
(female thread)
• Flow rate: approx. 5-11 liters per minute - depending on
cartridge type (at approx. 2-3 bar water pressure)
• Dimensions WxHxD: 115 x 125 x 69 mm
• Weight without cartridge: approx. 450 g
SCOPE OF DELIVERY
Note:
Please check that the delivery is complete before
commissioning - it consists of
• Alb Filter® DUO filter housing with aerator bypass and
changeover function
• Alb Filter® Cartridge
Further accessories as well as replacement filter cartrid-
ges, thread adapters and discount oers can be found at
www.alb-filter.com
6 7
Alb
f i lter
®
Made in Germany
Active
Alb
f i lter
®
Made in Germany
S/N 0000001
2
1. Upper cap
2. Sealing ring (top)
3. Threaded screw connection (upper sealing cap)
4. Filter body with internal thread on top and boom
5. Threaded connection with ripped union nut and head
seal for water filter fiings with standard connection
M22 x 1 female thread
6. Switching lever: Unfiltered water / filtered water
7. Aerator thread (external thread: M22 x 1)
8. Aerator with head seal (unfiltered water)
9. Inlet bridge for filter housing with 4 mm allen hollow
screw and sealing ring.
10. Threaded screw connection (lower sealing cap)
11. Sealing ring (boom)
12. Lower cap with faucet aerator thread
13. Wrench width 24 mm for open-end wrench
14. Aerator thread (external thread: M22 x 1)
15. Aerator with head seal (filtered water)
COMPONENTS – ALB FILTER®DUO
1
12
13
14
15
11
2
10
5
6
8
7
9
4
3
8 9
PLEASE NOTE BEFORE INSTALLATION
The Alb Filter® DUO has a standard M22 female thread, suitable
for most taps with M22 male thread. If your faucet does not
have a M22 external thread, you will need an adapter.
Adapter available at www.alb-filter.com
Shop Category: Accessories
DETERMINE CONNECTION THREAD
The two most common jet control variants are called M22 or
M24 in technical terms. Furthermore there are further sizes
e.g. M16, M18 and M21, which are however less common.
Online thread guide for more details at
www.alb-filter.com

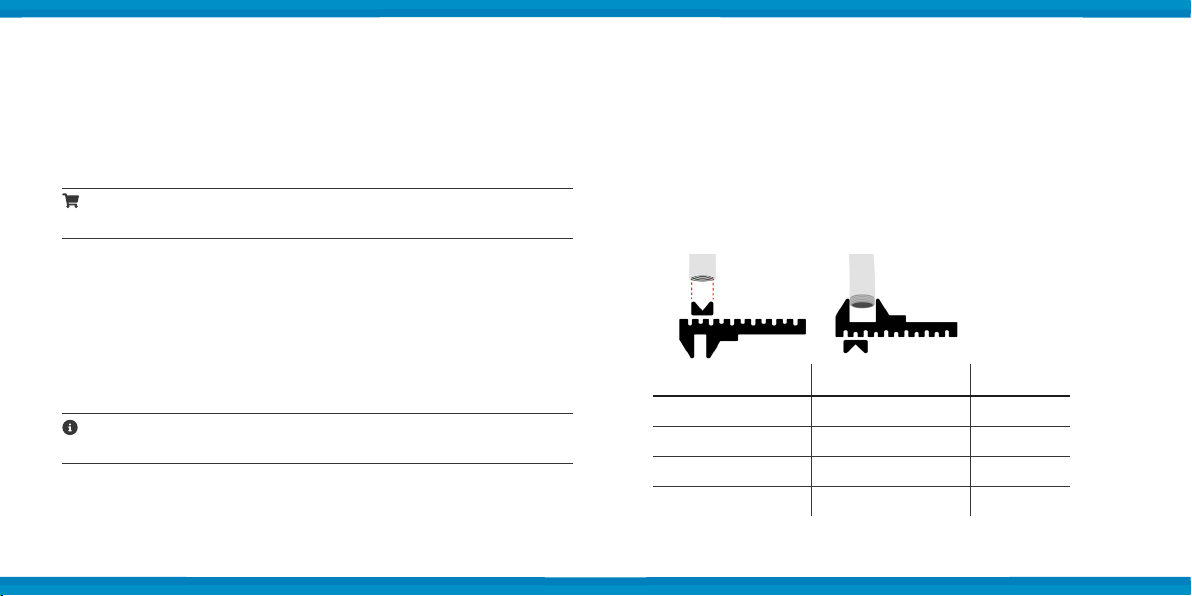

Procedure for determining their connection thread:
1. Remove your aerator from the fiing. If necessary, use a
pipe wrench with jaw protection or a mounting key.
2. Measure the diameter of the thread on the tap.
Alternatively, measure the diameter at the unscrewed
aerator.
Ø (inner) mm Ø (outer) mm Type
16,9 17,8 M18 x 1
18,9 18,8 M19 x 1
20,9 21,8 M22 x 1
22,9 23,8 M24 x 1
10 11
Alb
f i lter
®
Made in Germany
Active
Alb
f i lter
®
Made in Germany
S/N 0000001
2
D
INSTALLATION ALB FILTER®DUO
Procedure:
1. Make sure that your water tap is closed (A). Remove the
Alb Filter® DUO from its packaging.
If the cartridge is not pre-installed, please follow the
instructions for changing the cartridge on page 16.
2. Remove the aerator of your faucet using a suitable tool.
(B)
3. Check the condition of the thread of your fiing and, if
necessary, remove lime and other deposits.
4. If your armature does not have a standard M22 external
thread, screw the previously determined thread adapter
into your armature. (C)
If you have any questions about the thread adapters, you
can contact us using the contact details on our website.
5. Screw the Alb Filter® DUO to your
faucet or adapter by turning the
serrated union nut. (D)
Aention: Avoid placing the union nut
on the thread at an angle.
B
A
Alb
f i lter
®
Made in Germany
Active
Al b
f i lter
®
Made in Germany
S/N 0000001
2
C
ATTENTION!
An adapter is
required!
12 13

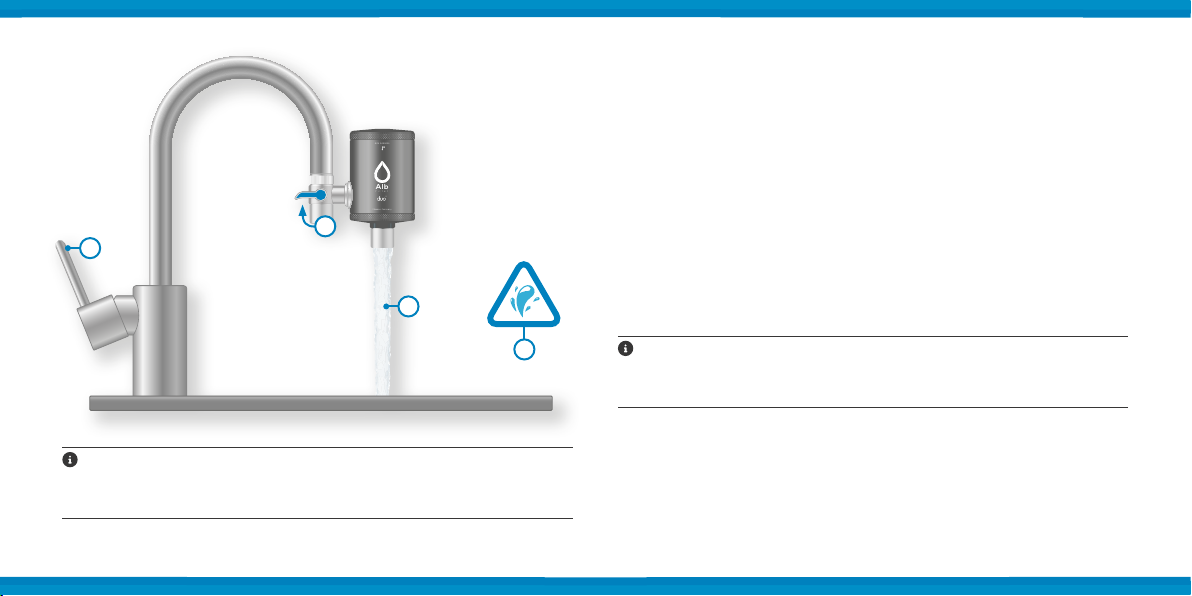

6. Check that the Alb Filter® DUO is correctly and firmly
aached to your faucet. If necessary, use a pair of pliers
with jaw protection to tighten the union slightly.
7. Before opening the water inlet of your faucet, make sure
that the switch lever is in vertical (downward) position.
Mode: Unfiltered.
8. Set the switch lever to horizontal position (Mode:
Filtered) (E). Then slowly open the water inlet of your
faucet. (F)
9. Now let the water run through the water filter for 5
minutes to activate it. (G)
Production-related activated carbon dust may dissolve
during rinsing and slightly cloud the water during the
cartridge activation process.
10. Check the water filter housing and all connected
components for leaks. (H)
11. The Alb Filter® DUO is now ready for use.
Al b
f i lter
®
Made in Germany
Active
Alb
f i lter
®
Made in Germany
S/N 0000001
2
H
E
F
We recommend to mount the Alb Filter® DUO on the
right side or aligned to the front to make the switchover
function (filtered/unfiltered) easier to operate.
G
14 15
CHANGING THE FILTER CARTRIDGE
Procedure:
1. Close the inlet of your faucet.
2. Unscrew the lower cap of the Alb Filter® DUO from the
filter body. (A)
3. Pull the cap downwards. The filter cartridge becomes
visible. (B)
Please use a 24 mm open-end wrench if the cover is
tight. Use a cloth to avoid scratches.
The filter cartridge sits in the lower sealing lid with the
help of two O-rings (press fit).
4. Now pull the filter cartridge out of the lower cap with a
slight turning movement. (C)
5. Press the new filter cartridge into the receptacle of the
lower cap with slight turning movements. (D)
Alb
f i lter
®
Made in Germany
S/N 0000001
2
B
Alb
f i lter
®
Made in Germany
Active
Alb
f i lter
®
Made in Germany
S/N 0000001
2
A
Alb
f i lter
®
Made in Germany
Active Plus+
Alb
f i lter
®
Made in Germany
Active Plus+
Alb
f i lter
®
Made in Germany
S/N 0000001
2
C
Alb
f i lter
®
Made in Germany
Active Plus+
Alb
f i lter
®
Made in Germany
Active Plus+
Alb
f i lter
®
Made in Germany
S/N 0000001
2
DAlb
f i lter
®
Made in Germany
Active Plus+
Alb
f i lter
®
Made in Germany
Active Plus+
Alb
f i lter
®
Made in Germany
S/N 0000001
2
16 17

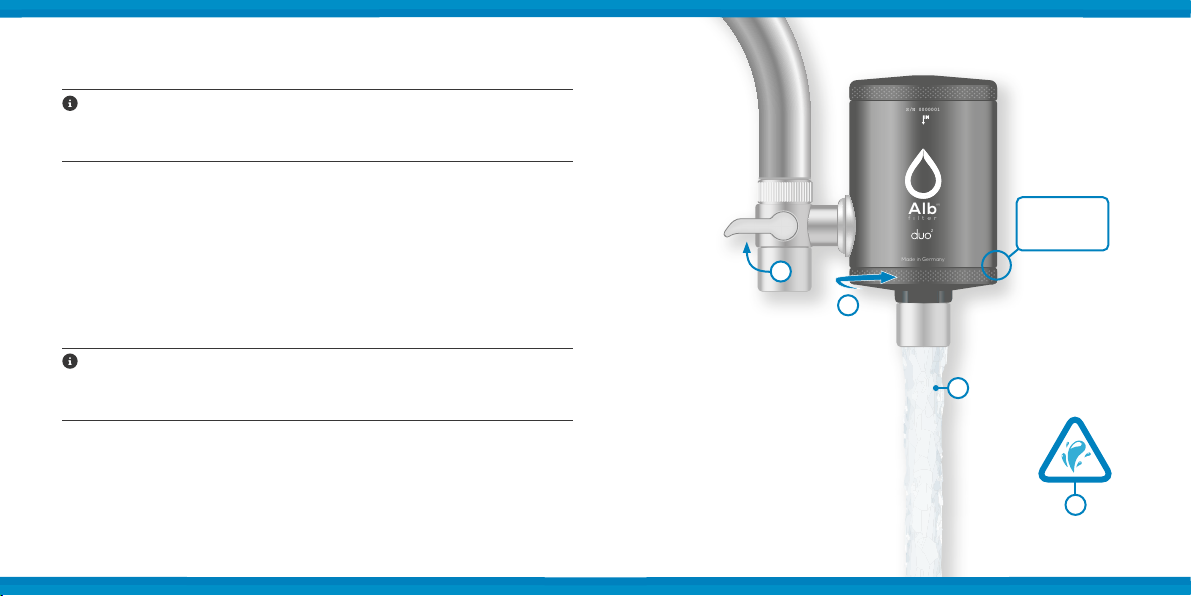

If the filter cartridge is dicult to install, the sealing rings
of the filter cartridge should be weed with water or
vaseline/milking grease (food safe).
6. Screw the lower cap back onto the filter body and
tighten it hand-tight. A gap (1 mm) may be visible! (E)
7. Move the switch lever to the horizontal position (Mode:
Filtered) (F). Then slowly open the water inlet of your
faucet.
8. Now let the water run through the water filter for 5
minutes to activate it. (G)
Production-related activated carbon dust may dissolve
during rinsing and slightly cloud the water during the
cartridge activation process.
9. Check the water filter housing and all connected
components for leaks. (H)
10. The Alb Filter® DUO is now ready for use.
Al b
f i lter
®
Made in Germany
Active
Alb
f i lter
®
Made in Germany
S/N 0000001
2
F
H
E
G
ATTENTION!
Avoid a slanted
positioning of
the threads.
18 19
