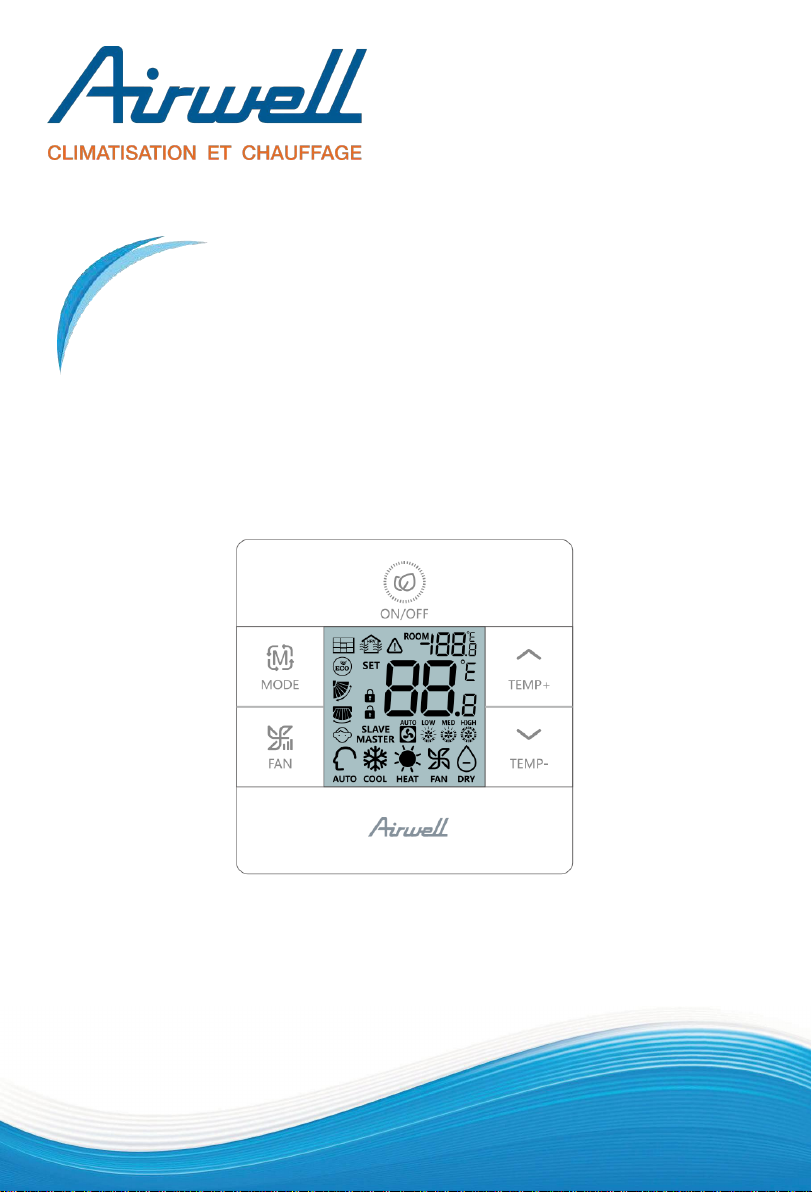

Airwell RWV03 Manual de usuario

Installation Manual

IMPORTANT NOTE:

Read this manual carefully before installing or operating your new air conditioning unit. Make sure to

save this manual for future reference.

RWV1-20200114-Rev01

Wired Controller

English Manual

Model : RWV03 （7ACELH032）

CONTENT

Parts and Functions............................................................ 1

Operation............................................................................ 6

Wired Controller Wiring Instruction................................... 21

Wired Controller

Operation & Installation Manual

RWV03

Parts and Functions

Interface Display

Full display

Parts and Functions

ON display

Parts and Functions

OFF display

Parts and Functions

Icon

Room temp. display; ECO parameter display;

Historic error code display; Parameter

display; Central address display; Temp.

compensation setting display; Mode

combination setting display.

Set temp. display; Forced cooling LL/ forced

heating HH icon display; Current error code/

unit No. display; Parameter checking unit No.

display.

Filter

HRV(Heat Reclaim Ventilation), if HRV

function is set, it will display this icon.

Error icon

ECO icon, if ECO function is set, it will display

this icon.

/ Central/lock

UP/DOWN swing

LEFT/RIGHT swing

Child lock

Parts and Functions

/ Master/slave wired controller

/ / / Auto/low/middle/high fan speed

Auto mode

Cooling mode

Heating mode

Fan mode

Dry mode

Special function operation index

Function Operational approach

Function

selection

Under ON state, after turning on the back

light, press for 5s.

Forced

cooling

Under cooling mode OFF state, press

for 5s, buzzer buzzing 2 times, and screen

displaying LL

Forced

heating

Under heating mode OFF state, press

for 5s, buzzer buzzing 2 times, and screen

displaying HH

Child lock

Under ON state, press together for

5s to set or cancel child lock function.

Under OFF state,after turning on the back

light, press together for 5s to set or

cancel child lock, buzzer buzzing 1 time.

Temp.

compensation

Under OFF state, after turning on the back

light, press for 5s, then adjust by /

, and conrm by .

Operation

Function Operational approach

Forced

defrosting.

Under state of ON + heating mode + 30°C(if

ECO mode is set, change temp. to max limit)

+ high fan speed, press 6 times within

5s, buzzer buzzing 3 times.

ECO- cooling

Eco cooling mode parameter adjusting:

under ON state, cooling mode, 30°C set

temp., press together for 5s to enter

adjustment; Parameters will be shown at rst

two 8 segments on the upper right corner of

room temp. display area; Press / to

adjust and press to conrm.

ECO- heating

Eco heating mode parameter adjusting:

under ON state, heating mode, 16°C set

temp., press together for 5s to enter

adjustment; Parameters will be shown at rst

two 8 segments on the upper right cornerof

room temp. display area; Press / to

adjust and press to conrm.

Operation

Function Operational approach

Error inquiry

After turning on back light, press for 5s

to enter error inquiry state; under error inquiry

state, press for 5s to clear current and

historic error code.

Wired

controller

mode setting

Under OFF state, press for 10s to enter

setting, then press / for adjustment

and press for conrmation.

Shift from

Celsius

degree to

Fahrenheit

degree

Adjust set temp. to 30 degree Celsius (if ECO

temp. limit is set, change to max temp.), then

press for 15s to change to Fahrenheit

degree.

Shift from

Fahrenheit

degree to

Celsius

degree

Adjust set temp. tolowest degree Fahrenheit

(if ECO temp. limit is set, change to min.

temp.), then press for 15s to change to

Celsius degree.
