Multi Split Trio Quattro DCI

Indoor Units Outdoor Units

FLO 9 DCI

TRIO-72 DCI

QUTTRO-80 DCI

FLO 12 DCI

FLO 18 DCI

SX 9 DCI

SX 12 DCI

SX 18 DCI

BS 12 DCI

K 9 DCI

K 12 DCI

K 18 DCI

OCTOBER – 2008

REFRIGERANT

R410A HEAT PUMP

SM TQDCI 1-A.1 GB

CONTENTS

LIST OF EFFECTIVE PAGES

SM TQDCI 1-A.1 GB

LIST OF EFFECTIVE PAGES

Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page

(when none indicates no changes in the relevant page). All pages in the following list represent

effected/ non effected pages divided by chapters.

Dates of issue for original and changed pages are:

Original ....... 0 ........ June 2005

Total number of pages in this publication is 107 consisting of the following:

Page

No.

Revision

No. #

Page

No.

Revision

No. #

Page

No.

Revision

No. #

Title ....................... 1

A ........................... 1

i............................. 1

1-1 - 1-4 ................ 1

2-1 - 2-4 ................ 1

3-1 - 3-2 ................ 1

4-1 - 4-2 ................ 1

5-1 - 5-10 .............. 1

6-1 - 6-2 ................ 1

7-1 - 7-2 ................ 1

8-1 - 8-2 ................ 1

9-1 - 9-2 ................ 1

10-1-10-2 .............. 1

11-1-11-18............. 1

12-1-12-6 .............. 1

13-1-13-2 .............. 1

Appendix -A ...........1

● Zero in this column indicates an original page.

*Due to constant improvements please note that the data on this service manual can be modiﬁed

with out notice.

**Photos are not contractual

CONTENTS

TABLE OF CONTENTS

SM TQDCI 1-A.1 GB

Table of Contents

1. INTRODUCTION ...................................................................................................1-1

2. PRODUCT DATA SHEET......................................................................................2-1

3. RATING CONDITIONS..........................................................................................3-1

4. OUTLINE DIMENSIONS .......................................................................................4-1

5. PERFORMANCE DATA .......................................................................................5-1

6. PRESSURE CURVES ...........................................................................................6-1

7. ELECTRICAL DATA..............................................................................................7-1

8. WIRING DIAGRAMS & ELECTRICAL CONNECTIONS ......................................8-1

9. REFRIGERATION DIAGRAMS.............................................................................9-1

10. TUBING CONNECTIONS......................................................................................10-1

11. CONTROL SYSTEM .............................................................................................11-1

12. TROUBLESHOOTING ..........................................................................................12-1

13. EXPLODED VIEWS AND SPARE PARTS LISTS.................................................13-1

14. APPENDIX A .........................................................................................................14-1

1-1

INTRODUCTION

SM TQDCI 1-A.1 GB

1. INTRODUCTION

1.1 General

The Trio/Quattro DCI Multi series is a full line multi-tubing system with 3 to 4 connected indoor

units. The multi-split inverter is a high level technology product for residential and commercial

application offering comfort, low noise operation and energy saving.

1.2 Main Features

1.2.1 High Technology

• Sine wave form in both OFAN and Compressor drives.

• DC-BL-SL (Sensor less) Inverter Compressor drive.

• DC-BL Inverter OFAN drive in the controller.

• DSP Power (Digital Signal Processing) – High speed calculation for accurate Sine wave

form vector control.

• Smart PFC control.

• Fuzzy Logic Control

1.2.2 System Features

• R410A

• High COP (“A” class energy rating)

• Low noise leveBS

• IAQ (Indoor Air Quality) features (FLO series)

• Lego concept - Products line of wall mounted, ﬂoor/ceiling, cassette, ducted with capacity

modeBS of 2.5, 3.5 and 5.0 kW.

• Networking connectivity.

• Pre-charged system.

• Dry contact inputs:

o STBY

o Night (in cool mode only)

o Power Shedding

o Forced Mode operation

• Dry contact output – Alarm.

• Ready for Base heater connection and logic.

• Cooling operation at outdoor temperature down to -100C.

• Heating operation at outdoor temperature down to -150C.

• HMI Display Board (Human-Machine Interface) – 3x7-segment display shows both indoor

and outdoor diagnostics and setting up features.

• Monitoring softwear (PC port).

• EEV (Electronic Expansion Valve) for each indoor unit.

1.3 Tubing Connections

Flare type interconnecting tubing to be produced on site.

For further detaiBS please refer to APPENDIX A on this manual, and to the relevant indoor service

Manual.

1.4 Inbox Documentation

Each indoor unit is supplied with its own installation and operation manuaBS.

CONTENTS

1-2

INTRODUCTION

SM TQDCI 1-A.1 GB

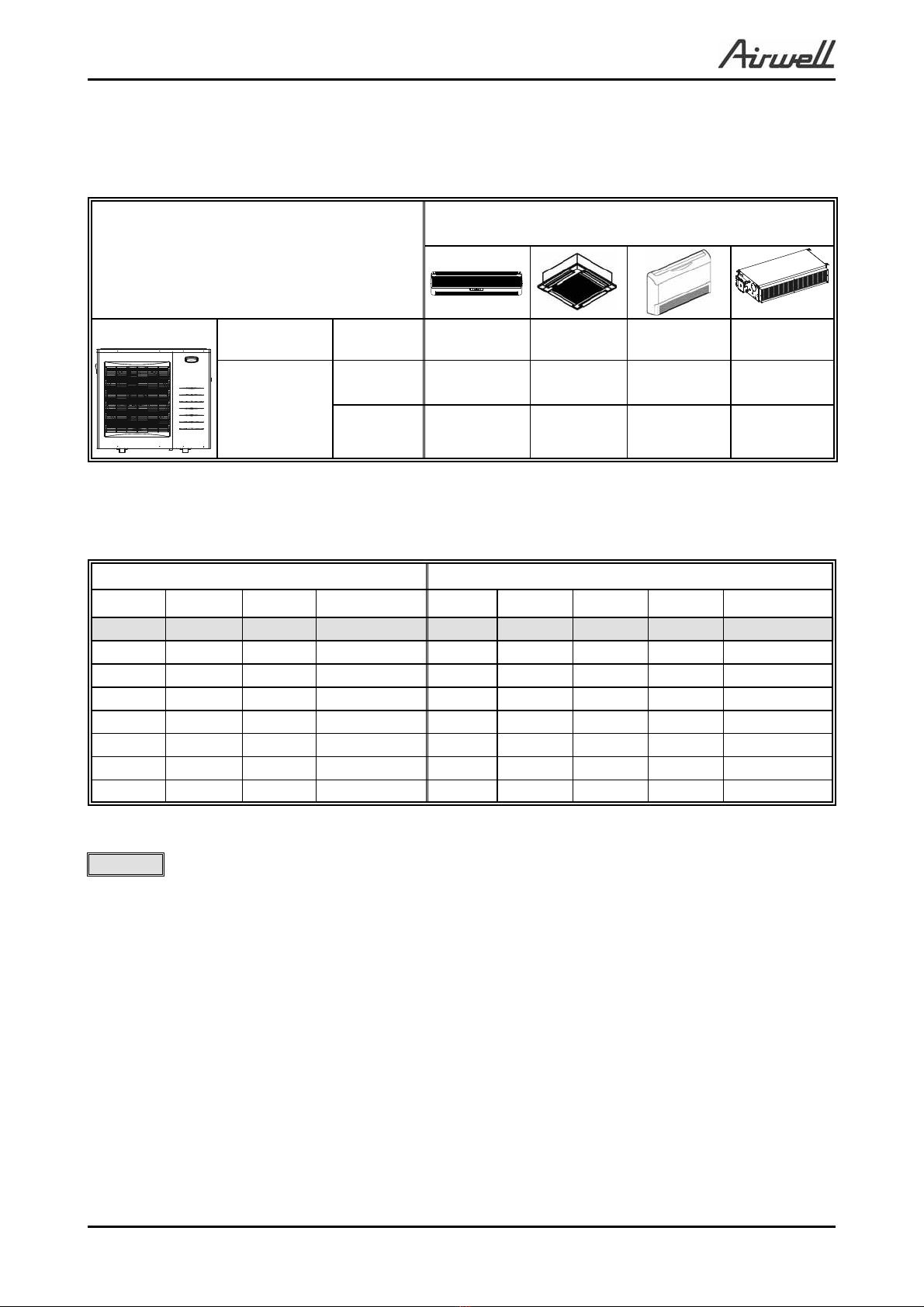

1.5 Matching Table

R410A

OUTDOOR UNITS

DCI INDOOR UNITS

MODEL REFRIGER. FLO 9/12/18 K 9/12/18 SX 9/12/18 BS 12

Trio-72 DCI

Quattro-80 DCI

R410A √√√√

1.6 Indoor Unit combinations

Trio Quattro

Unit A Unit B Unit D Code Sum Unit A Unit B Unit C Unit D Code Sum

999 39999 4

9912 3.5 99 912 4.5

9918 49 9 12 12 5

91212 499 918 5

12 12 12 4.5 991218 5.5

12 12 18 4.5 9 121212 5.5

12 12 18 59 121218 6

12 12 12 12 6

Nominal Indoor Units Combination

CONTENTS

2-1

PRODUCT DATA SHEET

SM TQDCI 1-A.1 GB

2. PRODUCT DATA SHEET

2.1 Outdoor TRIO-72 DCI Speciﬁcations.

Model TRIO-72 DCI R410A

Operation Mode Cooling Heating

Capacity (1), (2)

Kcal/hr 6,190(1,120~7,740) 7,740 (820~9,460)

Btu/hr 24,570(4,440~30,710) 30,710 (3,240~37,530)

W7,200 (1,300~9,000) 9,000 (950~11,000)

Total Input W 2,240 (500~3,000) 2,370 (500~3,000)

E.E.R (Cooling) / C.O.P (Heating) W/W 3.21 3.80

Running Current (3) A9.7 9.8

Starting Current A 10

Inrush Current A <35.0

Power Supply V/Ph/Hz 220-240V/ 1PH / 50Hz

OUTDOOR UNIT

Refrigerant control Electronic expansion valve

Compressor type Twin Rotary DC Inverter

Model MELCO TNB220FLBM

Starter type ---

Protection device Outdoor SW control

Heat exchanger Hydrophilic corrugated ﬁns ,Grooved tubes

Fan x No. Propeller x 1

Airﬂow m3/hr 3,200

Motor output W 90

Defrost method Reverse cycle

Noise level

(4)

Pressure dB(A) 53 54

Power 63 64

Dimensions W*D*H mm 950*835*340

Weight Kg 69

Package W*D*H mm 1,070X510X940

Unit stacking # 3

TUBING

Refrigerant Charge Kg R410A - 3,200

Tube size

O.D.

Liquid mm 3x 6.35

Suction mm 2x 9.53 + 1x 12.7

Connection

method

between

the indoor

and outdoor

units

Indoor & outdoor Flared

Height difference between

indoor units Max.15m

Height difference between

indoor & outdoor Max.15m

Tubing length Max.25m for one unit and 50m total

Additional charge No need

Note:

(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).

(2) Nominal capacity is measured with the combination of 4x FLO 25 DCI (Quattro) or 3x FLO 25 DCI (Trio) and 5m tubing each unit.

Maximum capacity is measured with the combination of FLO 25 DCI + 2x FLO 35 DCI + FLO 50 DCI (Quattro) or 2x FLO 35 DCI +

FLO 50 DCI (Trio) and 5m tubing each unit.

Minimum capacity is measured with FLO 25 DCI (Quattro/Trio) and 5m tubing.

(3) Running Current is measured in nominal conditions at 230V.

(4) Sound pressure level measured at 1 meter distance from unit at nominal (cool/heat) conditions

CONTENTS

2-2

PRODUCT DATA SHEET

SM TQDCI 1-A.1 GB

2.2 Outdoor QUATTRO-80 DCI Speciﬁcations.

Model QUATTRO-80 DCI R410A

Operation Mode Cooling Heating

Capacity (1), (2)

Kcal/hr 6,880 (1,200~7,910) 8,170 (820~9,460)

Btu/hr 27,300 (4,780~31,390) 32,410 (3,240~37,530)

W8,000 (1,400~9,200) 9,500 (950~11,000)

Total Input W 2,490 (500~3,000) 2,380 (400~3,000)

E.E.R (Cooling) / C.O.P (Heating) W/W 3.21 4.00

Running Current (3) A10.8 10.3

Starting Current A 11

Inrush Current A <35.0

Power Supply V/Ph/Hz 220-240V/ 1PH / 50Hz

OUTDOOR UNIT

Refrigerant control Electronic expansion valve

Compressor type Twin Rotary DC Inverter

Model MELCO TNB220FLBM

Starter type ---

Protection device Outdoor SW control

Heat exchanger Hydrophilic corrugated ﬁns ,Grooved tubes

Fan x No. Propeller x 1

Airﬂow m3/hr 3,200

Motor output W 90

Defrost method Reverse cycle

Noise level

(4)

Pressure dB(A) 53 54

Power 63 64

Dimensions W*D*H mm 950*835*340

Weight Kg 70

Package W*D*H mm 1,070X510X940

Unit

stacking 3

TUBING

Refrigerant Charge Kg R410A - 3,400

Tube size

O.D.

Liquid mm 4x 6.35

Suction mm 3x 9.53 + 1x 12.7

Connection

method

between

the indoor

and outdoor

units

Indoor & outdoor Flared

Height difference between

indoor units Max.15m

Height difference between

indoor & outdoor Max.15m

Tubing length Max.25m for one unit and 70m total

Additional charge No need

Note:

(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).

(2) Nominal capacity is measured with the combination of 4x FLO 25 DCI (Quattro) or 3x FLO 25 DCI (Trio) and 5m tubing each unit.

Maximum capacity is measured with the combination of FLO 25 DCI + 2x FLO 35 DCI + FLO 50 DCI (Quattro) or 2x FLO 35 DCI +

FLO 50 DCI (Trio) and 5m tubing each unit.

Minimum capacity is measured with FLO 25 DCI (Quattro/Trio) and 5m tubing.

(3) Running Current is measured in nominal conditions at 230V.

(4) Sound pressure level measured at 1 meter distance from unit at nominal (cool/heat) conditions.

CONTENTS

2-3

PRODUCT DATA SHEET

SM TQDCI 1-A.1 GB

2.3 Indoor Units Data

2.3.1 FLO 9 DCI Speciﬁcations

Model Indoor Unit / Type FLO 9 DCI / Wall Mounted

Installation Method FLARE

Power Supply V/Ph/Hz 220-240 / 1/ 50

INDOOR

Fan Type & Quantity Crossﬂow *1

Airﬂow(2)

Cooling / Heating H/M/L m3/hr

530/570

430/460

330/350

Sound Power Level(3)

Cooling / Heating L - H dB (A) 39-50 / 39-51

Sound Pressure Level (4)

Cooling / Heating L - H dB (A) 26-38 / 26-39

Condensate Drain Tube I.D. mm 16

Dimensions W/H/D mm 810 285 202

Weight kg 11

Package Dimensions W/H/D mm 885 360 285

Stacking Height Units 7

Heating Elements kW N/A

Moisture Removal L/hr 1

2.3.2 FLO 12 DCI Speciﬁcations

Model Indoor Unit / Type FLO 12 DCI / Wall Mounted

Installation Method FLARE

Power Supply V/Ph/Hz 220-240 / 1/ 50

INDOOR

Fan Type & Quantity Crossﬂow *1

Airﬂow(2)

Cooling / Heating H/M/L m3/hr

550/580

450/480

350/370

Sound Power Level(3)

Cooling / Heating L - H dB (A) 39-52 / 39-52

Sound Pressure Level (4)

Cooling / Heating L - H dB (A) 26-39 / 26-40

Condensate Drain Tube I.D. mm 16

Dimensions W/H/D mm 810 285 202

Weight kg 11

Package Dimensions W/H/D mm 885 360 285

Stacking Height Units 7

Heating Elements kW N/A

Moisture Removal L/hr 1.5

NOTE:

1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.

(2) Airﬂow in ducted units; at nominal external static pressure.

(3) Sound power in ducted units is measured at air discharge.

(4) Sound pressure level measured at 1 meter distance from unit.

CONTENTS

2-4

PRODUCT DATA SHEET

SM TQDCI 1-A.1 GB

2.3.3 FLO 18 DCI Speciﬁcations

Model Indoor Unit / Type FLO 18 DCI / Wall Mounted

Installation Method FLARE

Power Supply V/Ph/Hz 220-240 / 1/ 50

INDOOR

Fan Type & Quantity Crossﬂow *1

Airﬂow(2)

Cooling / Heating H/M/L m3/hr 850 760 620

Sound Power Level(3) L - H dB (A) 47 - 55

Sound Pressure Level (4) L - H dB (A) 34 -43

Condensate Drain Tube I.D. mm 16

Dimensions W/H/D mm 1060 295 210

Weight kg 15

Package Dimensions W/H/D mm 1125 360 280

Stacking Height Units 8

Heating Elements kW N/A

Moisture Removal L/hr 2

2.3.4 K 9 DCI Speciﬁcations

Model Indoor Unit / Type K 9 DCI / Cassette

Installation Method FLARE

Power Supply V/Ph/Hz 220-240 / 1/ 50

INDOOR

Fan Type & Quantity Centifugal *1

Airﬂow(2)

Cooling / Heating H/M/L m3/hr 530/600 500/530 435/450

Sound Power Level(3)

Cooling / Heating L - H dB (A) 42-48 / 42-47

Sound Pressure Level (4)

Cooling / Heating L - H dB (A) 32-38 / 32-37

Condensate Drain Tube I.D. mm 16

Dimensions W/H/D mm 571 287 571

Weight kg 22.7

Package Dimensions W/H/D mm 685 415 685

Stacking Height Units 5

Heating Elements kW N/A

Moisture Removal L/hr 1

NOTE:

1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.

(2) Airﬂow in ducted units; at nominal external static pressure.

(3) Sound power in ducted units is measured at air discharge.

(4) Sound pressure level measured at 1 meter distance from unit.

CONTENTS

2-5

PRODUCT DATA SHEET

SM TQDCI 1-A.1 GB

2.3.5 K 12 DCI Speciﬁcations

Model Indoor Unit / Type K 12 DCI / Cassette

Installation Method FLARE

Power Supply V/Ph/Hz 220-240 / 1/ 50

INDOOR

Fan Type & Quantity Centifugal *1

Airﬂow(2)

Cooling / Heating H/M/L m3/hr 580/620 510/560 435/450

Sound Power Level(3)

Cooling / Heating L - H dB (A) 42-49 / 42-48

Sound Pressure Level (4)

Cooling / Heating L - H dB (A) 32-38 / 32-38

Condensate Drain Tube I.D. mm 16

Dimensions W/H/D mm 571 287 571

Weight kg 24.4

Package Dimensions W/H/D mm 685 415 685

Stacking Height Units 5

Heating Elements kW N/A

Moisture Removal L/hr 1.5

2.3.6 K 18 DCI Speciﬁcations

Model Indoor Unit / Type K 18 DCI / Cassette

Installation Method FLARE

Power Supply V/Ph/Hz 220-240 / 1/ 50

INDOOR

Fan Type & Quantity Centifugal *1

Airﬂow(2) H/M/L m3/hr 730 630 510

Sound Power Level(3) L - H dB (A) 46 - 59

Sound Pressure Level (4) L - H dB (A) 36 – 48.5

Condensate Drain Tube I.D. mm 16

Dimensions W/H/D mm 571 287 571

Weight kg 28

Package Dimensions W/H/D mm 685 415 685

Stacking Height Units 5

Heating Elements kW N/A

Moisture Removal L/hr 2

NOTE

1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.

(2) Airﬂow in ducted units; at nominal external static pressure.

(3) Sound power in ducted units is measured at air discharge.

(4) Sound pressure level measured at 1 meter distance from unit.

CONTENTS

Otros manuales para FLO 9 DCI

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Airwell

Airwell

Airwell Delta 25 Manual de usuario

Airwell

Airwell AW-WHPMA18-H93 Manual de usuario

Airwell

Airwell YEVFD Series Manual de usuario

Airwell

Airwell Aqu@Scop Advance R410A Manual de usuario

Airwell

Airwell RC3-LCD Manual de usuario

Airwell

Airwell AWSI-HZDE009-H11 Manual de usuario

Airwell

Airwell DSD 40 RCA Series Manual de usuario

Airwell

Airwell AWSI-HGF009-H11 Manual de usuario

Airwell

Airwell Flow Logic II R410A Manual de usuario

Airwell

Airwell AWWR-WDF009-C11 Manual de usuario

Airwell

Airwell AWSI-XAD012-N11 Manual de usuario

Airwell

Airwell HDL Manual de usuario

Airwell

Airwell ELECTRA JKD DCI Series Manual de usuario

Airwell

Airwell DDMX-035N-09M25 Manual de usuario

Airwell

Airwell PNX009 Manual de usuario

Airwell

Airwell FVVA-025N-01M22 Manual de usuario

Airwell

Airwell YBZE218-324-430 Manual de usuario

Airwell

Airwell HDMB-025N-09M22 Guía

Airwell

Airwell AWAU-YWC220-H13 Manual de usuario

Airwell

Airwell HKD Manual de usuario

Airwell

Airwell May series Manual de usuario

Airwell

Airwell AW-YHDM009-H91 Manual de usuario

Airwell

Airwell IU-MINV-HW-9H Manual de usuario

Airwell

Airwell DFMD-100N-01M25 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
