Airwell AWSI-HDDE009-H11 Manual de usuario

HDDE009/012/018/024

Indoor Units

Outdoor Units

AWSI-HDDE009-H11

AWAU-YDDE009-H11

AWSI-HDDE012-H11

AWAU-YDDE012-H11

AWSI-HDDE018-H11

AWAU-YDDE018-H11

AWSI-HDDE024-H11

AWAU-YDDE024-H11

REFRIGERANT

R410A HEAT PUMP

SM HDDE 1-A.1 GB MAY-2013

Version:1

LIST OF EFFECTIVE PAGES

SM HDDE 1-A.1 GB

LIST OF EFFECTIVE

PAGES

Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page

(when none indicates no changes in the relevant page). All pages in the following list represent

effected/ non effected pages divided by chapters.

Dates of issue for original and changed pages are:

Original ....... 01 ........

22-May-2013

Total number of pages in this publication is 74 consisting of the following:

Page

Revision

Page

Revision

Page

Revision

No.

No. #

No.

No. #

No.

No. #

* Zero in this column indicates an original page.

SM HDDE 1-A.1 G

Table of Contents

TABLE OF CONTENTS

1. INTRODUCTION............................................................................................................................. 1-1

2. PRODUCT DATA SHEET............................................................................................................... 2-1

3. RATING CONDITIONS................................................................................................................... 3-1

4. OUTLINE DIMENSION ................................................................................................................... 4-1

5. PERFORMANCE DATA ................................................................................................................. 5-1

6. PRESSURE CURVES..................................................................................................................... 6-1

7. SOUND LEVEL CHARACTERISTICS ........................................................................................... 7-1

8. ELECTRICAL DATA....................................................................................................................... 8-1

9. WIRING DIAGRAM......................................................................................................................... 9-1

10. REFRIGERATION DIAGRAMS...................................................................................................... 10-1

11. TUBING CONNECTIONS............................................................................................................... 11-1

12. CONTROL SYSTEM....................................................................................................................... 12-1

13. TROUBLESHOOTING.................................................................................................................... 13-1

14. CHARACTERISTICS OF SENSOR................................................................................................ 14-1

15. EXPLODED VIEW & SPARE PART LIST...................................................................................... 15-1

16. SERVICING..................................................................................................................................... 16-1

INTRODUCTIONINTRODUCTION

1-1

SM HDDE 1-A.1 GB

1. INTRODUCTION

1.1 General

HDDE series is a mono-split DCI inverter air conditioner. This high-wall mounted

type indoor are mainly designed for residential buildings.

The ODU YDDE product is a DC inverter outdoor with high technology. By using

DC compressor sine wave torque control technology, this product provides more

comfort and economical operating.

The whole series includes 4 models 09/12/18/24 in cooling capacity.

1.2 Main Features

The unit benefits from the most advanced technological innovations, namely:

•

DC inverter technology.

•

R410A models

•

Microprocessor control and indoor LED display

•

High SEER/SCOP , A/A level with Average climate.

•

Torque control for compressor running in lower Frequency but with low vibration

and little sound.

•

Max allowing tubing distance of 25m(Model HDDE024).

•

Up to 10 m vertical high between indoor and outdoor units

•

Cooling operation at outdoor temperature up to 46ºC.

•

Heating operation at outdoor temperature down to -15ºC.

•

Easy installation and service.

•

Sleep mode from remote control to save energy

•

ON/OFF timer and clock display

•

Vertical auto swing with motorized flap (any position stop)

•

Intelligent Deicing

•

Memory from power failure

•

Rapid cooling/heating

•

I-Feel function

•

Cold air prevention in heating

•

Clean function (Blow dry)

•

Self diagnostic (Error indications) for ease of maintenance

INTRODUCTIONINTRODUCTION

1-2

SM HDDE 1-A.1 GB

1.3 Indoor Unit

The indoor unit is wall mounted, and can be easily fitted to many types of residential

locations. It includes:

•

LED display

•

Variable speed with PG motor

•

Motorized flap

•

High efficiency filtration to ensure a best Air Quality : Advanced filtering combine

mechanical, Photo-catalytic + Bi-anti bacterial and observe bad gaseous and

smokes.

1.4 Control

The microprocessor indoor controller, and an infrared remote control, supplied as

standard, provide complete operating function and programming.

Remote control RC 8A：

Compact and economically design, it offers excellent user comfort. Combining modern

design with high technology, the RC8A remote control offers powerful functions of real

considering of user comfort and energy saving of air-conditioner.

For detail of functions, please refer to Appendix 1

INTRODUCTIONINTRODUCTION

1-3

SM HDDE 1-A.1 GB

1.5 Outdoor Unit

The outdoor units can be installed as floor or wall mounted units by using a wall

supporting bracket. The metal sheets are protected by anti- corrosion paintwork

allowing long life resistance. All outdoor units are pre-charged. For further information

please refer to the Product Data Sheet, Chapter 2.

It includes:

•

Compressor mounted in a soundproofed compartment :

•

Axial fan.

•

Outdoor coil with hydrophilic louver fins for RC units.

•

Outlet air fan grill.

•

Interconnecting wiring terminal block.

1.6 Tubing Connections

Flare type interconnectingtubing to be produced on site.

For further details please refer to the Installation Manual.

1.7 Inbox Documentation

Each unit is supplied with its own installation, operation and remote control manuals.

INTRODUCTIONINTRODUCTION

1-4

SM HDDE 1-A.1 GB

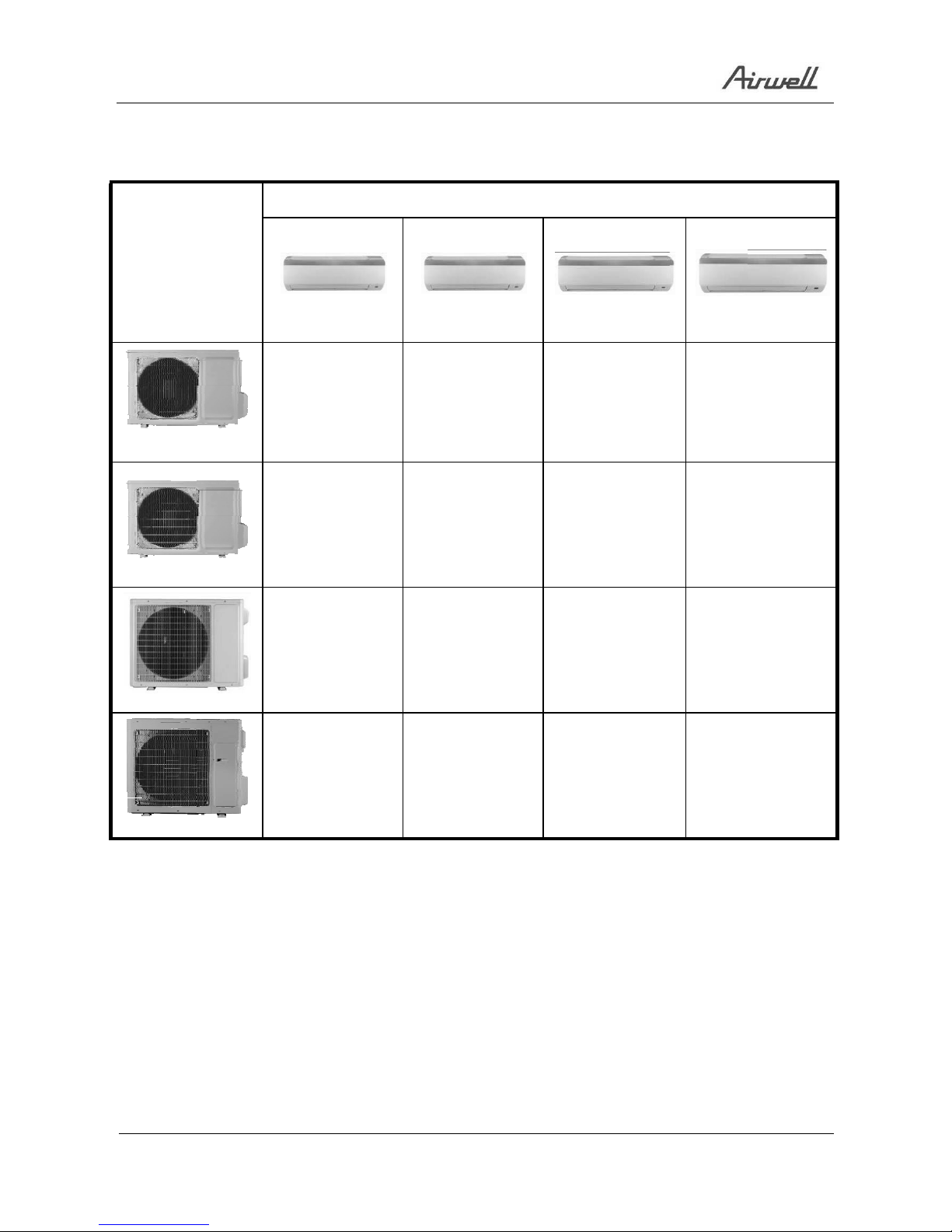

1.8 Matching Table

INDOOR

UNITS

OUTDOOR UNITS

AWSI-HDDE009-H11 AWSI-HDDE012-H11 AWSI-HDDE018-H11 AWSI-HDDE024-H11



AWAU-YDDE009-H11



AWAU-YDDE012-H11



AWAU-YDDE018-H11



AWAU-YDDE024-H11

RATING CONDITIONS

INTRODUCTION

2-1

SM HDDE 1-A.1 GB

2. PRODUCT DATA SHEET

Model Indoor Unit

AWAU-HDDE009-N11

Model Outdoor Unit

AWAU-YDDE009-H11

Installation Method of Pipe

lared

Characteristics

Units

Cooling

Heatin

Average

Warmer

Capacity (1)

2,6 (0,45-3,23)

3,0 (0,45-4,1)

Pdesign

2,6

2,8

SEER / SCOP (2)

W/W

5,6

3,8

4,4

Energy efficiency class

A+

Annual energy consumption

kWh

163

958

891

Tbiv

N/A

-7

Tol

N/A

-15

-10

Power supply

V/Ph/Hz

220-240V/Single/50Hz

Circuit breaker rating

INDOOR

Fan type & quantity

Cross flow fan x1

Fan speeds

H/M/L

RPM

1350/1100/900/700

1350/1140/980/820

Air flow (3)

H/M/L

m3/hr

600/520/370/280

External static

pressure

Min-Max

Sound power level (4)

H/M/L

dB(A)

55/48/40/34

Sound pressure level (5)

H/M/L

dB(A)

43/38/30/24

Moisture removal

l/hr

0,8

Condensate drain tube I.D

Dimensions

WxHxD

770x283x201

Weight

Package dimensions

WxHxD

855x280x360

Packaged weight

Units per pallet

units

21 units per pallet

Stacking height

units

7 levels

OUTDOOR

Refrigerant control

EEV

Compressor type, model

Rotary DC Inverter

Fan type & quantity

Axial x 1

Fan speeds

H/L

RPM

850

Air flow

H/L

m3/hr

1800

Sound power level(4)

H/L

dB(A)

Sound pressure level(5)

H/L

dB(A)

Dimensions

WxHxD

776x540x320

Weight

Package dimensions

WxHxD

851x595 x363

Packaged weight

Units per pallet

Units

9 units per palle

Stacking height

units

3 levels

Refrigerant type

R410

Refrigerant charge (standard connecting

tubing length)

kg(5m)

0.8

Additional charge per 1 meter

gr / 1m

5m<L<15m 20g/m

Connections

between units

Liquid line

In.(mm)

1/4"(6.35)

Suction line

In.(mm)

3/8"(9.53)

Max.tubing length

Max

Max.height difference

Max.10

Operation control type

Remote control

Heating elements

Others

(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).

(2) SEER / SCOP calculation accordance with EN14825.

PRODUCT DATA SHEET

2-2

SM HDDE 1-A.1 GB

OUTDOOR

INDOOR

Model Indoor Unit AWAU-HDDE012-N11

Model Outdoor Unit AWAU-YDDE012-H11

Installation Method of Pipe Flared

Characteristics Units Cooling Heating

Avera

e Warmer

Capacity (1) kW 3,5 (0,6-3,96) 3,8 (0,6-5,13)

Pdesign kW 3,5 2,7 3,5

SEER / SCOP (2) W/W 5,1 3,8 4,2

Energy efficiency class A

A A+

Annual energy consumption kWh 240 995 1149

Tbiv oC N/A -7 ??

Tol oC N/A -15 -10

Power supply V/Ph/Hz 220-240V/Single/50Hz

Circuit breaker rating A 16

Fan type & quantity Cross flow fan x1

Fan speeds H/M/L RPM 1350/1150/950/750 1350/1190/1020/850

Air flow (3) H/M/L m3/hr 680/560/410/300 680/560/410/300

External static

pressure Min-Max Pa 0

Sound power level (4) H/M/L dB(A) 56/49/41/35

Sound pressure level (5) H/M/L dB(A) 44/39/31/25

Moisture removal l/hr 1,4

Condensate drain tube I.D mm 16

Dimensions WxHxD mm 770x283x201

Weight kg 9

Package dimensions WxHxD mm 855x280x360

Packaged weight kg 12

Units per pallet units

21 units per pallet

Stacking height units

7 levels

Refrigerant control

EEV

Compressor type, model Rotary DC Inverter

Fan type & quantity Axial x 1

Fan speeds H/L RPM 900

Air flow H/L m3/hr 1800

Sound power level(4) H/L dB(A) 62

Sound pressure level(5) H/L dB(A) 53

Dimensions WxHxD mm 848x540x320

Weight kg 40

Package dimensions WxHxD mm 881x595 x363

Packaged weight kg 45

Units per pallet Units 9 units per pallet

Stacking height

units 3 levels

Refrigerant type

R410A

Refrigerant charge (standard connecting

tubing length) kg(5m) 1.0

Additional charge per 1 meter gr / 1m 5m<L<20m 20g/m

Liquid line In.(mm) 1/4"(6.35)

Connections

between units Suction line In.(mm) 3/8"(9.53)

Max.tubing length m.

Max.20

Max.height difference m. Max.10

Operation control type Remote control

Heating elements kW

Others

(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).

(2) SEER / SCOP calculation accordance with EN14825.

RATING CONDITIONS

INTRODUCTION

2-3

SM HDDE 1-A.1 GB

OUTDOOR

INDOOR

Model Indoor Unit AWAU-HDDE018-N11

Model Outdoor Unit AWAU-YDDE018-H11

Installation Method of Pipe Flared

Characteristics Units Cooling Heating

Avera

e Warmer

Capacity (1) kW 5,3 (1,2-6,3) 5,6 (1,1-6,4)

Pdesign kW 5,3 4,8 5,3

SEER / SCOP (2) W/W 5,4 3,8 4,6

Energy efficiency class A

A++

Annual energy consumption kWh 345 1768 1611

Tbiv oC N/A -7 ??

Tol oC N/A -15 -10

Power supply V/Ph/Hz 220-240V/Single/50Hz

Circuit breaker rating A 25

Fan type & quantity Cross flow fan x1

Fan speeds H/M/L RPM 1350/1100/950/800 1400/1200/1050/900

Air flow (3) H/M/L m3/hr 800/680/560/460 800/680/560/460

External static

pressure Min-Max Pa 0

Sound power level (4) H/M/L dB(A) 60/55/51/46

Sound pressure level (5) H/M/L dB(A) 49/44/40/35

Moisture removal l/hr 1,8

Condensate drain tube I.D mm 16

Dimensions WxHxD mm 865x305x215

Weight kg 12

Package dimensions WxHxD mm 948x310x383

Packaged weight kg 15

Units per pallet units 18 units per pallet

Stacking height units

6 levels

Refrigerant control Capillary

Compressor type, model Twin Rotary DC Inverter

Fan type & quantity

Axial x 1

Fan speeds H/L RPM 750

Air flow H/L m3/hr 3200

Sound power level(4) H/L dB(A) 65

Sound pressure level(5) H/L dB(A) 55

Dimensions WxHxD mm 955x700x396

Weight kg 46

Package dimensions WxHxD mm 1029x750x458

Packaged weight kg 50

Units per pallet Units 6 units per pallet

Stacking height units 2 levels

Refrigerant type

R410A

Refrigerant charge (standard connecting

tubing length) kg(5m) 1.3

Additional charge per 1 meter gr / 1m 5m<L<25m 20g/m

Liquid line In.(mm) 1/4"(6.35)

Connections

between units Suction line In.(mm) 1/2"(12.7)

Max.tubing length m.

Max.25

Max.height difference m. Max.10

Operation control type Remote control

Heating elements kW

Others

(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).

(2) SEER / SCOP calculation accordance with EN14825.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Airwell

Airwell

Airwell XLM36IRCB Hoja de especificaciones

Airwell

Airwell AW-YHDL009-H91 Manual de usuario

Airwell

Airwell DNC 955 Manual de usuario

Airwell

Airwell MFH Guía

Airwell

Airwell IU-MINV-HW-9H Manual de usuario

Airwell

Airwell CD DCI Series Manual de usuario

Airwell

Airwell May series Manual de usuario

Airwell

Airwell Comfort Series Manual de usuario

Airwell

Airwell FLO 24 series Manual de usuario

Airwell

Airwell AWSI-HBV016-N11 Guía

Airwell

Airwell CDM009X Manual de usuario

Airwell

Airwell MAY Series Manual de usuario

Airwell

Airwell MAY 180 Manual de usuario

Airwell

Airwell FDMX-050N-09M25 Guía

Airwell

Airwell CVQA-015N-01M22 Guía

Airwell

Airwell AWSI-DCV048-N11 Manual de usuario

Airwell

Airwell GCD 036 DCR Manual de usuario

Airwell

Airwell AWSI-HDD009-H11 Manual de usuario

Airwell

Airwell AW-WHPMA04-H91 Manual de usuario

Airwell

Airwell XLM30RCB Manual de usuario

Airwell

Airwell XLM12 Manual

Airwell

Airwell YCV280 Manual de usuario

Airwell

Airwell ODU VRF VVEA Series Manual de usuario

Airwell

Airwell FVVA-025N-01M22 Guía

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
