AirLive WL-5460AP v2 Manual de usuario

Quick Setup Guide

WL-5460AP v2

802.11g Multi-function

Wireless Access Point

English ●●●

Polski ●●●

Español ●●●

Deutsch ●●●

Česky ●●●

Русский ●●●

Português ●●●

日本語 ●●●

Slovensky ●●●

Wireless Access Point

WL5460AP v

English

Declaration of Conformity

We, Manufacturer/Importer

OvisLink Corp.

5F., NO.6, Lane 130, Min-Chuan Rd.,

Hsin-Tien City, Taipei County, Taiwan

Declare that the product

802.11g Multi-function Wireless Access Point

WL-5460AP , WL-5450AP

is in conformity with

In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive

Clause Description

■ EN 300 328 V1.6.1 Electromagnetic compatibility and Radio spectrum Matters (ERM)

(2004-11) Wideband transmission equipment operating in the 2.4GHz ISM band

And using spread spectrum modulation techniques; Part 1：technical

Characteristics and test conditions Part2：Harmonized EN covering

Essential requirements under article 3.2 of the R&TTE Directive

■ EN 301 489-1 V1.4.1 Electromagnetic compatibility and Radio spectrum Matters (ERM);

(2002-08) Electromagnetic compatibility(EMC) standard for radio equipment and

■ EN 301 489-17 V1.2.1 Services; Part 17：Specific conditions for wideband data and

(2002-08) HIPERLAN equipment

■ EN 55022: 1998/A1 Limits and methods of measurement of radio disturbance

:2000/A2:2003 Characteristics of information technology equipment

■ EN 55024:1998/A1 Information Technology equipment-Immunity characteristics-Limits and

:2001/A2:2003 Methods of measurement

■ EN 50385 Product standard to demonstrate the Compliance of radio base

Stations and fixed terminal stations for Wireless Telecommunication

System with the Basic restrictions or the reference levels related to

Human exposure to radio Frequency electromagnetic fields ( 110 MHz

– 40 GHz ) - General public

■ EN 60950-1:2001/ Safety for information technology equipment including electrical

A11:2004 Business equipment

■ CE marking

Manufacturer/Importer

Signature： ______________

Name ： Albert Yeh____

Position/ Title : Vice President

Date： 2007/4/18_____

English

Wireless Access Point

WL5460AP v

English

Note on the FCC standard

This equipment has been tested and found to comply with the limits for a

Class B digital device pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interferences

when the equipment is operating in a commercial area. This equipment

generates, uses and may radiate radio frequency energy, and if not installed

in accordance with the user guide, may cause interference in the

transmission of radio communications. If operating in a residential area, it is

probable this equipment will cause harmful interference, in which case the

user will be required to try to correct this interference using his own means.

Note on CE Marking

This is a Class B product. In a residential area this product may cause radio

interference, in which case the user can be required to take the appropriate

measures. OvisLink Corp. hereby declares that WL-5460APv2 meets the

basic requisites of directive 99/05/CE, and is therefore liable for the accuracy

of these data: OvisLink Corp.

5F, No.6 Lane 130,

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: +886-2-2218-6888

Warranties

This product has undergone various quality controls to ensure proper

operation.

This product is covered by a two-year warranty for countries inside European

Union. For other countries, the warranty period is one year only. In the

event of any manufacturing fault or breakdown, it will be repaired by OvisLink

Corp. Please contact your supplier for details on the procedure to follow.

This warranty shall not be applicable in the event of damage caused by

improper use of the product, accidents, faulty handling or manipulation nor

any future incompatibility with third party products.

English

Wireless Access Point

WL5460AP v

English

Important Information



The AP mode’s default IP address is 192.168.100.252



The default Subnet Mask is 255.255.255.0



The default SSID is airlive



The default Channel is 13



In AP, Client, Bridge, and Repeater mode, the default DHCP Server is

disabled. Please set your PC's IP address to the same subnet as the

AP to access the AP.



In WISP mode and WISP+Universal mode, the DHCP server is

enabled. Please restart your PC to renew the IP address.



Support of all 7 modes of wireless functions :

AP,Client,Bridge,WDS Repeater,Universal Repeater,

WISP(Client Router),and WISP + Universal Repeater

Note: If you setup the wireless mode and push the setup button, but

can’t pop-up window, please disable the pop-up block function

of the Yahoo or Google toolbar to allow pop-up window on your

browser.



GPL Compliance: Part of the device's firmware use GPL licensed

code. There is no warranty for the GPL software. You can get a copy

of the GPL source code from our website at

http://www.airlive.com/gpl.htm.

English

Channel

Countries Allowable Channel

USA (FCC) Channel 1~11

Europe (ETSI) Channel 1~13

Wireless Access Point

WL5460AP v

English

LED Indicators

LED Status

Indicator Color Solid Flashing

Power Green Turns solid green when power is

applied to this device. N/A.

Status Red

Turns solid red when the device is

booting, after boot successfully, the

light turn off.

Link/Act. Green

Turns solid green when connected

and associated to at least a client

station.

Receiving/

Sending data

WEP/WPA Orange Turns solid orange when wireless

security is enabled. N/A

MAC Ctrl Orange Turns solid orange when MAC

Control is enabled. N/A

Bridge /

Repeater Orange Turn solid orange when Bridge or

Repeater is enabled. N/A

LAN 1

LAN 2 Green Turns solid green when linked to a

local network.

Receiving/

Sending data

English

Wireless Access Point

WL5460AP v

English

Wireless Mode Setup

This page include all primary and major parameters for the wireless mode

setting. Any parameter change will cause the device to reboot for the new

setting to take effect.

Wireless Modes: AP,Client,Bridge,WDS Repeater,

Universal Repeater, WISP(Client router),and

WISP+Universal Repeater

The default mode is set to AP. You can change it to another mode.

Network Type: When in Client mode, you can select between Ad-Hoc or

Infrastructure.

Installation Steps

1. Please install your network cards first before the AP device

2. Screw-in the antenna (clockwise) into the Antenna connector

3. Connect the power and LAN cable to the back

4. Use your wireless card to do a site survey, the default SSID is

airlive and Channel is 13

5. If you need to change AP’s configuration, please follow the

procedure below:

■The AP’s default IP address is 192.168.100.252. Please

make sure your computer IP is in the same subnet as the AP

(i.e. 192.168.100.x)

■Open the web browser and enter http://192.168.100.252/.

English

Wireless Access Point

WL5460AP v

English

Client / Bridge Mode Setup

Device B:

Mode: Bridge mode

MAC Address: Device A’s

AP MAC Address

Device A:

Mode: Bridge mode

MAC Address: Device B’s

AP MAC Address

Please make sure both A and B are set to the same channel.

Device B:

WISP Outdoor AP

Network Type: Infrastructure

Device A:

Mode: Client mode

Please make sure both A and B are set to the same ESSID and channel.

Client Mode

Brid

e Mode

English

Wireless Access Point

WL5460AP v

English

Device A:

Mode: WDS Repeater

MAC Address: Device B’s

AP MAC Address

WDS Repeater Mode Setup

Device B:

WDS Wireless AP/ Router

MAC Address: Device A’s

AP MAC Address

WDS Repeater Mode

1. Please make sure both A and B are set to the same channel number.

2. Add other’s AP MAC Address(BSSID) that the repeater want to connect.

(Please make sure remote wireless AP/Router Support WDS function)

3. Setup wireless security function:

Wireless Client: WDS Repeater ÆSecurity

WDS Security: WDS Repeater ÆWDS Security

WDS Repeater and Wireless Client use different authentication and encryption

for wireless connection. For detail, Please refer to the user’s manual.

English

Wireless Access Point

WL5460AP v

English

Universal Repeater doesn’t require the remote device to have WDS function.

Universal Repeater Setup

Device B:

Wireless Router

Device A:

Mode: Universal Repeater

Note: the device SSID and the SSID of Extended Interface can be the same or

different. When you are using the universal repeater mode, please make

sure the remote AP/Router WDS function is turned off.

Device B:

WISP Outdoor AP

Device A:

Mode: WISP (Client Router)

WISP Mode Setup

1. Please make sure both A and B are set to the same channel number.

2. Type the other’s AP/Router’s SSID in the “SSID of Extended Interface” field

that the repeater want to connect.

Universal Re

eater Mode

WISP (Client Router) Mode

English

Wireless Access Point

WL5460AP v

English

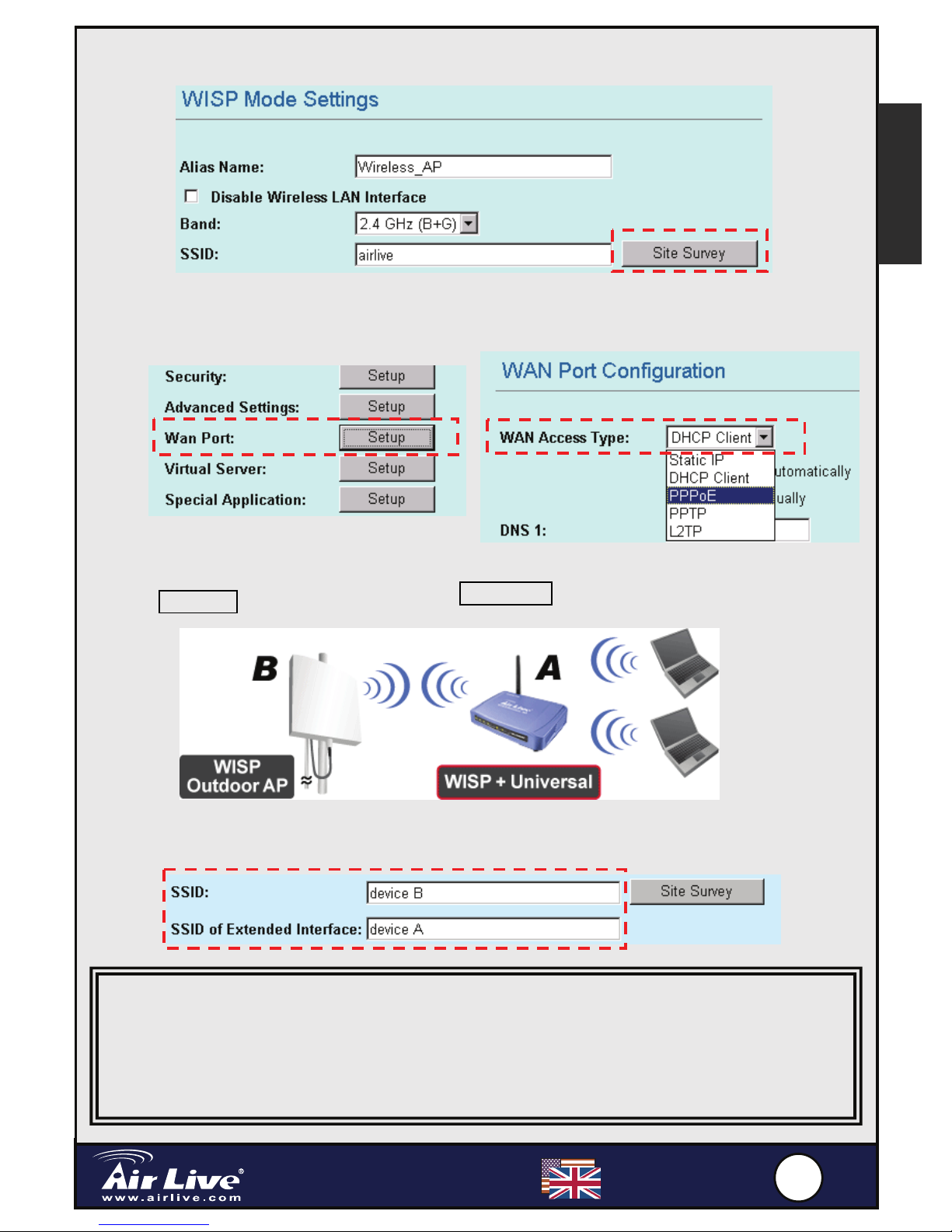

1. Please click the “Site Survey” button to search and connect the WISP

OutdoorAPdevice.

2. IN WISP mode, please click the WAN Port Setup button for WAN port

configuration. Choose the WAN Access Type and type some information

in other field. For detail, please refer to the user manual.

WISP+Universal Re

eater Mode

Device B:

WISP Outdoor AP

Device A:

Mode: WISP+Universal

In this mode,WL-5460APv2 behaves virtually the same as in WISP mode, but

the AP can also send wireless signal to the Wireless LAN side.

The output-power is divided between 2 wireless sides, and proper antenna

installation can significantly improve the performance.

Please enter “Device B” SSID in the “SSID” field for the WISP connection, and enter

“Device A” SSID in the “SSID of Extended Interface” field for the PC side connection.

English

Otros manuales para WL-5460AP v2

Tabla de contenidos

Idiomas:

Otros manuales de Punto de acceso inalámbrico de AirLive

AirLive

AirLive WHP-1100 Manual de usuario

AirLive

AirLive WL-5450AP Manual de usuario

AirLive

AirLive WHA-5500CPE Manual de usuario

AirLive

AirLive WH-5420CPE Manual de usuario

AirLive

AirLive WL-5470POE Manual de usuario

AirLive

AirLive N.TOP Manual de usuario

AirLive

AirLive AirDual-AC12 Manual de instalación y operación

AirLive

AirLive AC.Top1 Guía de configuración

AirLive

AirLive WLA-9000AP Manual de usuario

AirLive

AirLive WMU-6000FS Manual de usuario

AirLive

AirLive WL-5480PAP Manual de usuario

AirLive

AirLive AIRLIVE WL-5430AP Manual de usuario

AirLive

AirLive WLA-500AP Manual de usuario

AirLive

AirLive AirLive WMU-6500FS Manual de usuario

AirLive

AirLive WHA-5500CPE-NT Manual de usuario

AirLive

AirLive WHB-5854A Manual de usuario

AirLive

AirLive WH-9200AP Manual de usuario

AirLive

AirLive WMM-3000AP Manual de usuario

AirLive

AirLive N.MINI Manual de usuario

AirLive

AirLive AP60 Manual de usuario

AirLive

AirLive G.DUO Manual de usuario

AirLive

AirLive WLA-5200AP Manual de usuario

AirLive

AirLive TOP-12AC Manual de instalación y operación

AirLive

AirLive WLA-9000AP Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario
