AirLive FE-201DM Manual de usuario

FE-201DM

Network Camera

Quick Installation Guide

Support

You can download the

complete guides and

supporting programs from

<http://www.airlivesecurity.c

om/product/fe-201dm/downl

oad>, or scan the QR code

here.

Please consult with the FAQs

<http://www.airlivesecurity.c

om/product/fe-201dm/faq>

before writing to OvisLink

Tech Support Team for further

assistance

For any other question, please read the user

manual in the CD or mail to [email protected]

for technical support.

FE-201DM Package Contents

Please check the package contents and contact

your distributor if any part is missing.

FE-201DM

Quick

Installation

Guide

User

Manual

Drill Template

BracketScrew Pack

Declaration of Conformity

We, Manufacturer/Importer

Declare that the product

5MP Fisheye Indoor PoE Dome Camera

AirLive FE-201DM

is in conformity with

In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive

Clause

Manufacturer/Importer

Description

OvisLink Corp.

5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist.,

New Taipei City 231, Taiwan

■

■CE marking

Signature：

Name：Albert Yeh

Position/ Title : Vice President Date：2014/09/26

EN 55022: 2010(Class B)

EN 55024: 2010

EN 60950-1:2006+

A11:2009+A1:2010

A12:2011

Information technology equipment - Radio disturbance characteristics -

Limits and methods of measurement

Information technology equipment - Immunity characteristics -

Limits and methods of measurement

Information technology equipment - Safety -- Part 1: General

requirements

Place : Taiwan

VER.20140926

5MP Fisheye Indoor PoE Dome Camera

FE-201DM

I/O Interface

MIC

Reset

Button

Speaker

Light

Sensor

Focus

Adjustment

RJ-45

DC 12V

MICRO SD

Audio In

GPIO

Audio Out

Before Using the Camera

Important: Please insert a MicroSD card for

recording, we strongly suggest to format the SD

to prevent any unexpected error. The capacity

of SD card may up to 64GB and class 10 is

recommended.

MicroSD64GB/ Class10

64GB

Attach the camera with the bracket and use the

drill template to fix it onto the wall with screws.

Mount the Camera

Mounting Bracket

Bottom of the camera

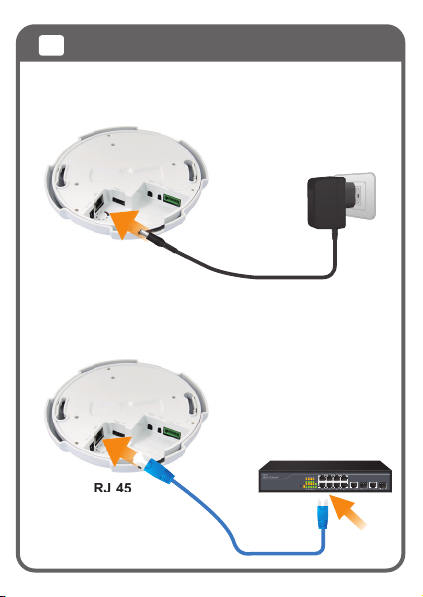

Connect the 12V1A adaptor to power up the

camera.

You can also use RJ45 ethernet cable to power

up the camera if you have PoE switch.

RJ-45

Power up the Camera

12V DC

PoE Switch

7531

8642

8-portPOE + 2 Combo Gigabit 802.3at

DeviceGuard Web Smart Switch

POE-FSH1008AT

7531

8642

LNK

PoE

LNK/ACT

PoE

LNK/ACTPWRRST

G1 G1 G2

a. Connect camera to the LAN port of the switch.

b. Connect switch to the LAN port of the router.

c. Connect the PC/NB to the LAN port of the

switch.

Connect Camera to the Network

Camera

Switch

PC/NB Router

7531

8642

8-portPOE + 2 Combo Gigabit 802.3at

DeviceGuard Web Smart Switch

POE-FSH1008AT

7531

8642

LNK

PoE

LNK/ACT

PoE

LNK/ACTPWRRST

G1 G1 G2

The default IP address of Airlive camera is

192.168.1.100.Camera will get IP address

automatically if it is connected to modem/router

by DHCP function or you can assign it a static

IP if you want to.

Set up the Network Environment

Camera

Switch

DHCP

PC/NB Router

7531

8642

8-portPOE + 2 Combo Gigabit 802.3at

DeviceGuard Web Smart Switch

POE-FSH1008AT

7531

8642

LNK

PoE

LNK/ACT

PoE

LNK/ACTPWRRST

G1 G1 G2

192.168.1.100

192.168.1.254192.168.1.101

Please use the CD which in package to install

IP wizard

Install the Airlive IP Wizard

VER.20140926

5MP Fisheye Indoor PoE Dome Camera

FE-501DM
