WN-360USB English

English

Declaration of Conformity

We, Manufacturer/Importer

OvisLink Corp.

5F, NO.6, Lane 130, Min-Chuan Rd.,

Hsin-Tien City, Taipei County, Taiwan

Declare that the product

High Power Wireless 11N USB Dongle

AirLive WN-360USB

is in conformity with

In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive

Clause Description

■ EN 300 328 V1.7.1 Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission equipment operating in the 2.4GHz ISM band

(2006-10) and using spread spectrum modulation techniques; Part 1：technical characteristics and test conditions Part2：Harmonized EN covering

Essential requirements under article 3.2 of the R&TTE Directive

■ EN 301 489-1 V1.6.1 Electromagnetic compatibility and Radio spectrum Matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and

(2005-09) Services; Part 17：Specific conditions f or wideband data and HIPERLAN equipment

■ EN 301 489-17 V1.2.1

(2002-08)

■ EN 50392:2002 Generic standard to demonstrate the compliance of low power electronic and electrical apparatus with the basic restrictions related

to human exposure to electromagnetic field (10MHz – 300GHz)

■ EN 60950-1:2001+All

:2004 Safety for information technology equipment including electrical business equipment

■ CEmarking

Manufacturer/Importer

Signature： ______________

Name ： Albert Yeh

Position/ Title：Vice President

Date： 2008/12/24

2 English WN-360USB

English

Note on the FCC standard

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferences

when the equipment is operating in a commercial area. This equipment generates, uses and may radiate radio

frequency energy, and if not installed in accordance with the user guide, may cause interference in the

transmission of radio communications. If operating in a residential area, it is probable this equipment will cause

harmful interference, in which case the user will be required to try to correct this interference using his own

means.

Note on CE Marking

This is a Class B product. In a residential area this product may cause radio interference, in which case the user

can be required to take the appropriate measures. OvisLink Corp. hereby declares that AirLive WN-360USB

meets the basic requisites of directive 99/05/CE, and is therefore liable for the accuracy of these data:

OvisLink Corp.

5F, No.6 Lane 130,

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: +886-2-2218-6888

Warranties

This product has undergone various quality controls to ensure proper operation.

This product is covered by a two-year warranty for countries inside European Union. For other countries, the

warranty period is one year only. In the event of any manufacturing fault or breakdown, it will be repaired by

OvisLink Corp. Please contact your supplier for details on the procedure to follow. This warranty shall not be

applicable in the event of damage caused by improper use of the product, accidents, faulty handling or

manipulation nor any future incompatibility with third party products.

WN-360USB English

LED Name Light Status Description

Flash The network card has linked to a

wireless access point and is

receiving or transferring data.

Link/

Activity

Off No wireless activity.

Insert the USB wireless network card into

an empty USB 2.0 port of your computer

when computer is switched on.

Hardware Installation

English

4 English WN-360USB

Driver & Utility Installation

1. Exit all Windows programs. Insert the CD-ROM

into the CD-ROM drive of your computer. If the

CD-ROM is not launched automatically, please

run “D:\autorun.exe” where D is the letter of

your CD-ROM drive.

2. The Main screen of the CD-ROM appears. Select

Install Driver & Utility to start installation.

Utility Installation

1. Please read the end user license agreement and select

“I accept the terms of the license agreement” to accept

license agreement. Click Next.

Please select ‘Allow’ if Windows indicates that ‘an

unidentified program wants access to your computer’.

English

WN-360USB English

2. Please select ‘AirLive Configuration Tool’; then

click Next.

3. Please select ‘Optimize for WiFi mode’ for wireless

compatibility, then click Next.

If you want to enhance wireless performance, please

select ‘Optimize for performance mode’. However,

wireless compatibility is not guaranteed in this mode.

Please refer to user manual for details of

performance mode.

If you see ‘Found New Hardware’ message again,

please ignore it and wait.

English

6 English WN-360USB

4. Click Install. 5. Click Continue Anyway.

6. When you see this message, please

click Finish to complete the driver

installation process.

English

WN-360USB English

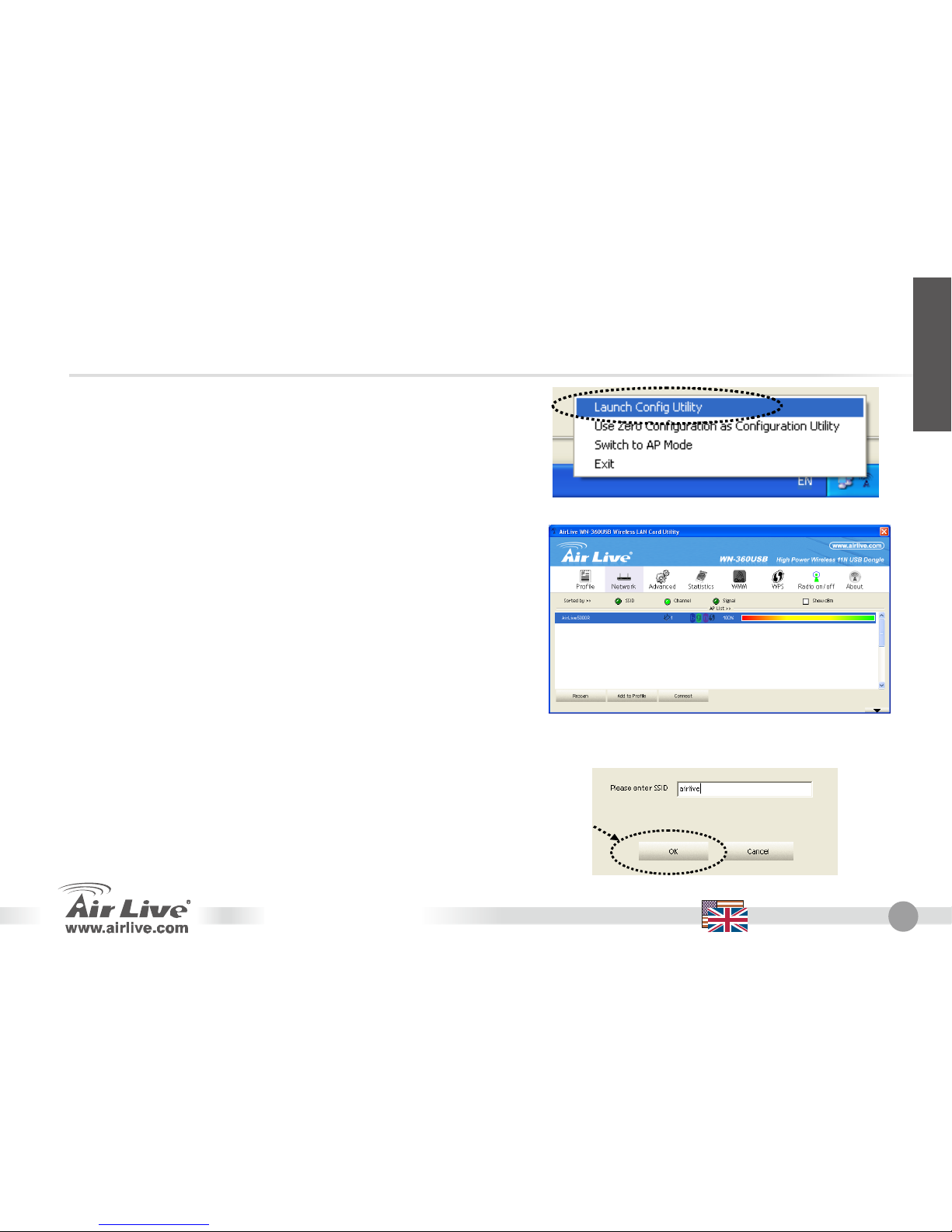

Connect to Wireless Access Point

Using Configuration Utility to Connect to Wireless Access Point

1. After installation is complete, wireless

configuration utility will be shown as an icon at

the lower-right corner of your windows desktop.

Please click the icon by right mouse key, and

select Launch Config Utilities.

2. Configuration utility will scan for wireless

access points automatically, and all found

access points will be displayed. Please

select an access point you wish to connect,

and click Connect.

If the wireless access point you want to connect

does not show here, please click Rescan.

3. You’ll be prompted to input the SSID (the name

of wireless access point) if the SSID of the

access point you want to connect is hidden,

then click OK.

English

The SSID you input here must be identical to the

SSID setting of the wireless access point you want

to connect.



8 English WN-360USB

4. If the wireless access point uses encryption, you have

to input WEP passphrase or WPA preshared key.

Please ask the owner of the wireless access point

you want to connect, and input the correct

passphrase/preshared key here, then click OK. If the

value you inputted here is wrong, you will not be able

to connect to wireless access point.

Authentication type is selected automatically,

please don’t change it.

5. If the wireless access point is successfully

connected, you’ll see a ‘Connected’ message

displayed at the lower-left corner of wireless

configuration utility window. Click OK to exit.

For advanced settings and other features of

this PCI wireless network card, please refer to

user manual enclosed in the supplied CD-ROM

English
