Airlink101 AWLL3055 Manual de usuario

802.11g USB Adapter

with +10dBi Antenna

Model # AWLL3055

User’s Manual

Ver. 1A

Table of Contents

1. INTRODUCTION .................................................................................................. 4

1.1 Features.........................................................................................................................4

1.2 Package Contents...........................................................................................................4

2. INSTALLATION PROCEDURES .............................................................................. 5

2.1 Install Utility Software ..................................................................................................5

2.2 Install Driver .................................................................................................................8

3. CONFIGURING USB ADAPTER AS A WIRELESS CLIENT ......................................... 9

3.1 Configuring General Settings.......................................................................................13

3.2 Configuring Encryption Security..................................................................................14

3.3 Configuring Profile......................................................................................................17

3.4 Advanced Settings .......................................................................................................18

3.5 Information..................................................................................................................19

4. CONFIGURING USB ADAPTER AS AN ACCESS POINT........................................... 20

4.1 Configuring Access Point.............................................................................................20

4.2 Configuring Encryption Security..................................................................................22

4.3 Configuring MAC Address Filter .................................................................................23

5. APPENDIX ....................................................................................................... 24

5.1 Specifications..............................................................................................................24

5.2 Troubleshooting...........................................................................................................24

Technical Support..............................................................................................................27

Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution

This equipment must be installed and operated in accordance with provided

instructions and a minimum 5 cm spacing must be provided between computer

mounted antenna and person’s body (excluding extremities of hands, wrist and feet)

during wireless modes of operation.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the authority to operate equipment.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled

environment. In order to avoid the possibility of exceeding the FCC radio frequency

exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches)

during normal operation.

1. Introduction

The 802.11g USB 2.0 Adapter with +10dBi Patch Antenna (hereafter called USB

adapter), compliant with IEEE 802.11b/g, is a high-efficiency wireless adapter for

wireless networking at home, in office, or in public places. This USB adapter connects

directly to any USB-ready desktop/notebook computers, so that you can share files,

printers, and high-speed access to the Internet over your existing wireless network

easily, without disassembling your computer. The attached +10dBi patch antenna

helps you to receive stronger wireless signal and highly increases the wireless

connection stability and reliability. The light-weight and low profile design makes it the

best choice for notebook travelers.

The USB adapter has a data rate of up to 54Mbps, and can auto-negotiate to 54, 48,

36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1Mbps to be compatible with any IEEE 802.11b/g

device.

The USB adapter is compatible with Windows 98SE/ME/2000/XP and can be used in

either Ad-hoc mode (computer-to-computer, without a wireless router) or

Infrastructure mode (computer-to-wireless router, a wireless router is required).

1.1 Features

•High gain +10dBi for wireless range extender and strongly boost the wireless

signal

•Antenna to Vertical:110˚and Horizontal: 60˚emission of your highly amplified

wireless signal. 270˚Tilt-and-swivel design for best reception

•Compact size and light weight working best for notebook traveler

•USB 2.0 standard up to 8 times faster than USB 1.1

•Supports Plug-and-Play with Windows 98SE, 2000, ME, and XP

•Supports wireless security WEP 64/128/256 bits, WPA-PSK (TKIP) and

WPA-PSK2 (AES) encryption

•Supports software AP function

1.2 Package Contents

Before you begin the installation, please check the items of your package. The

package should include the following items:

•One Wireless USB Adapter

•One Quick Installation Guide

•One Driver & Utility CD (with User’s Manual)

If any of the above items is missing, contact your supplier as soon as possible.

2. Installation Procedures

2.1 Install Utility Software

Note: Before installing the utility software, DO NOT insert the USB adapter into your

computer. If the adapter is inserted already, Windows will detect the adapter and

request for a driver. Click Cancel to quit the wizard and remove the adapter from your

computer.

Step 1 Insert the provided Driver and Utility CD into your CD drive.

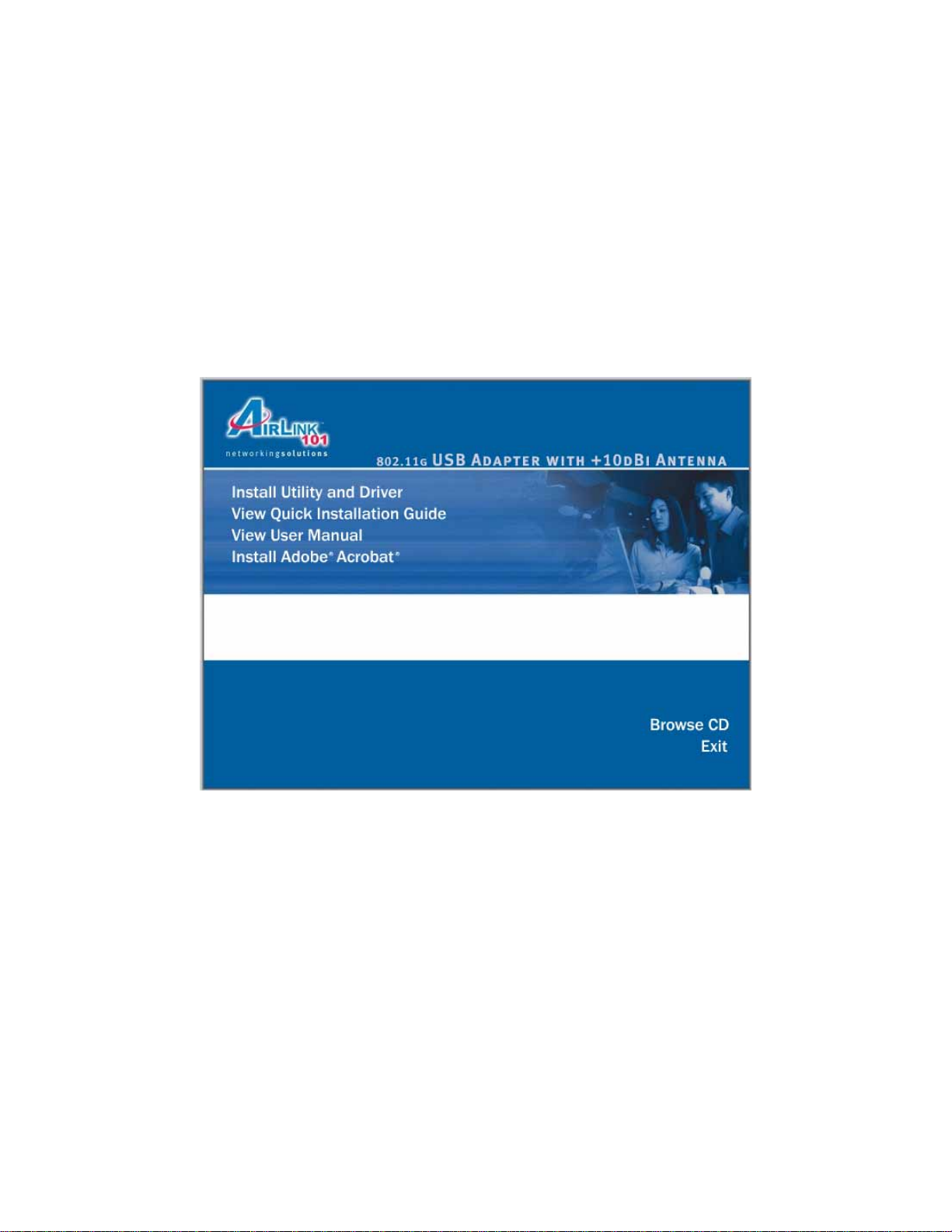

Step 2 Click Install Driver and Utility from the Setup menu.

Note: If the Setup menu does not appear automatically, go to Start, Run, type

D:\Utility\Setup.exe (where Dis the letter of your CD drive) and click OK.

Step 3 Click Next at the welcome screen.

Step 4 Click Next to accept the default destination location for the driver to be

installed in or click Browse to select the desired location.

Step 5 For Windows XP, click Continue Anyway at the Windows Logo Compatibility

screen.

For Windows 2000, click Yes at the Digital Signature screen.

Step 6 Remove the Driver & Utility CD from your CD drive and then restart your

computer.

2.2 Install Driver

Note: In most cases, Windows will automatically install the driver after the computer is

restarted. If the Found New Hardware Wizard appears, follow the instructions below.

The Found New Hardware Wizard will look different depending on your operating

system. Follow the on-screen instructions to complete the installation. For Windows

98SE and ME users, you may be prompted to insert the Windows 98SE or ME CD

during the driver installation. Be sure to have your Windows 98SE or ME CD ready.

Step 1 After the computer is restarted, insert the USB adapter into the USB port of the

computer. If there is not enough room to insert the adapter directly to the USB port,

you may use the supplied USB extension cable for more space.

Step 2 Select Install the software automatically and click Next.

Step 3 For Windows XP, click Continue Anyway at the Windows Logo Compatibility

screen.

For Windows 2000, click Yes at the Digital Signature screen.

For Windows 98SE or ME, insert the Windows 98SE or ME CD if prompted to do so

and click OK.

Step 4 Click Finish. Restart the computer if you are prompted to do so.

3. Configuring USB Adapter as a Wireless Client

The USB adapter can be set to either Station or Access Point Mode from the Mode

drop-down menu. Station mode is the default selection and should be selected if you

want to connect to a wireless router/access point or conduct peer-to-peer networking.

To open the utility, go to Start, (All) Programs, IEEE 802.11g USB Wireless LAN

Adapter, IEEE 802.11g USB Wireless LAN Utility.

Note to Windows XP Users:

If you encounter the Wireless Zero Configuration dialog box, click Yes to enable the

Wireless LAN Utility to configure your USB adapter.

Step 1 Select the SSID of your wireless router/access point from the Available

Network list and click on the Connect this site button.
