Ahlborn ALMEMO 710 Manual de usuario

www.ahlborn.com

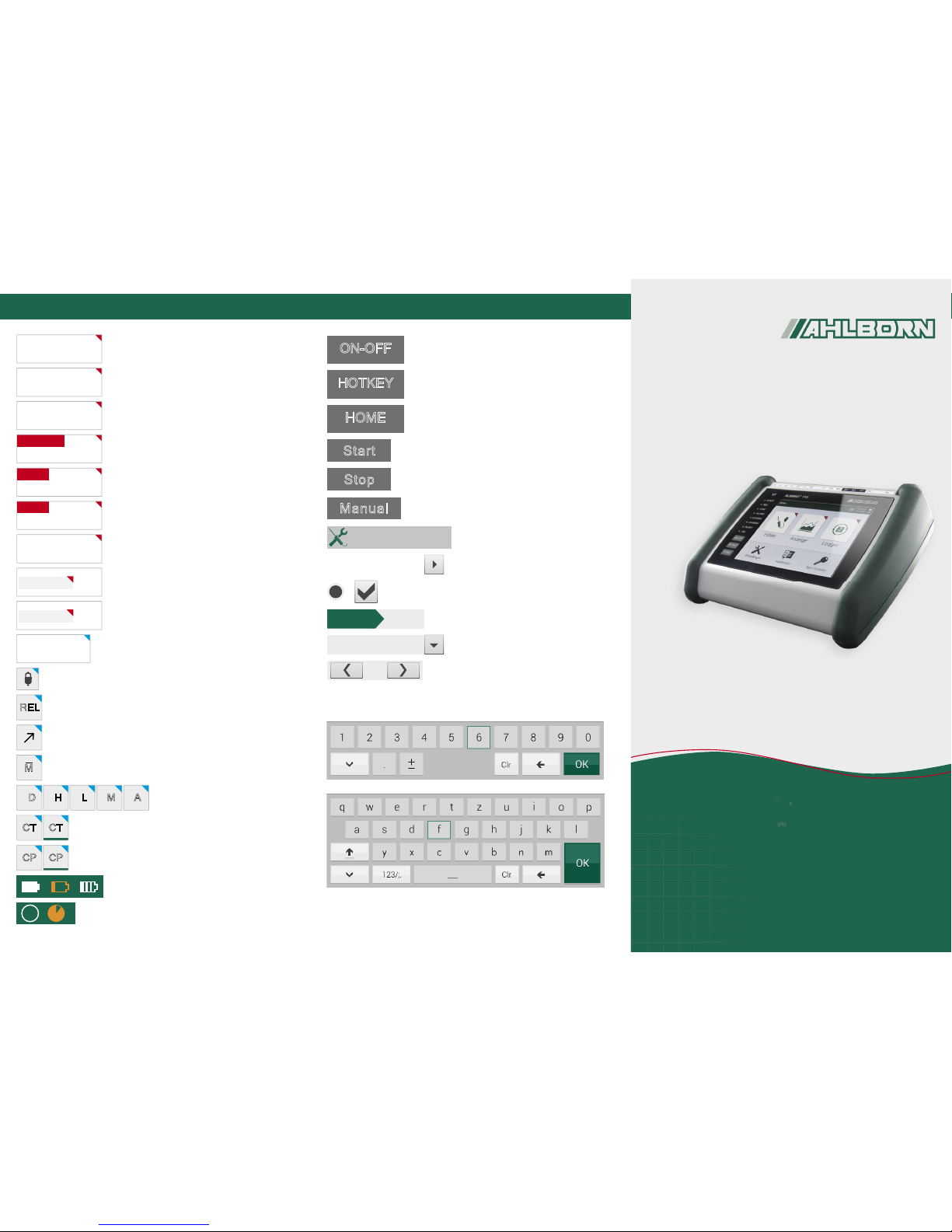

Quick start guide

ALMEMO® 710

22.31 °C Measured value

50.7 %H Limit value overshot red

35.9 %H Limit value undershot blue

10000 g/kg

OVERRANGE

Outside of measuring range

----- ---

BREAK

Sensor breakage

----- ---

U-LOW

Sensor voltage too low

----- --- Red triangle -

further menus available

------- %H Parameters can be -

but are not yet - programmed

45,0 %H Parameters can be -

and are already - programmed

Units Blue triangle -

help text available

Measured value smoothed

REL Relative to reference value

Measured value corrected

or scaled

MAveraging in progress

DHLMAOutput function

Diff, Hi, Lo, M(t), alarm

CT CT Temperature compensation

fixed, measured

CP CP Atm. pressure compensation

fixed, measured

Rechargeable battery status

full / almost empty / being charged

Memory status empty / almost full

ON-OFF Press and hold down

the ON / OFF switch

HOTKEY Call up desired menu;

Press and hold down: save menu

HOME Call up home menu

Start Start the meas. operation; pro-

gramming is no longer possible

Stop Stop the measuring operation

Manual Manual measuring

Settings Call up local menu

Clear memory Call up a function

Activate a function

ON OFF Switch the function ON / OFF

Select channel Selection box

1/4 Page back / forward

Keyboards

KeysList of parameters

mbar

°C

%rF

m/s

g/m

g/kg

lux

mbar

°C

%rF

m/s

g/m

g/kg

lux

mbar

°C

m/s

lux

mbar

°C

%rF

m/s

g/m

g/kg

lux

mbar

Ahlborn Mess- und Regelungstechnik GmbH

Eichenfeldstr. 1 • 83607 Holzkirchen • Germany

29.09.13

10:12:03

Sensors Display Logger Settings General

device

settings

Power

supply

Memory

List of

channels

Bar chart Line chart User menu Data logger OutputSensor

overview

Sensor

channels

Measuring

channel

Channel functions

Channel designation

Meas. value smoothing

Max. / min. values

Averaging functions

Meas. value output

Channel locking

Limit values

Actions if limit values

are infringed

Analog output

Scaling values

Correction values

Units

Range

Element flags

Compensation

Channel parameters

Display all values

Channel designation

Meas. value smoothing

Averaging mode

Cycle factor

Minimum sensor voltage

Locking level

Limit values - max/min

Actions if limit

values are infringed

Relays - max/min

Analog - start / end

Base value

Factor

Decimal point shift

Zero point

Gain

Units

Output function

Range

Reference meas. points

Multiplexer

Element flags

Calibration offset

Calibration factor

Sensor

settings

Scales and channels

Channels

Colors

Units

Axis scaling

Left

Right

Time axis

Display options

Grid

Add

Name

Template

Function selection

Channel selection

Edit

Data logger 1

Conversion rate

Scan cycle

Output cycle

Data logger 2

Scan mode

File name

Number

Comments

Data logger 3

Start mode

Stop mode

Data logger 4

Memory total

Memory free

Ring memory

Clear memory

Sensor settings

Channels, Ranges

Sensor configuration

D6, D7

Calibration data

Channel functions

Display settings

Data loggers 1-4

Display settings

Wizards

Data logger

Limit value

Scaling

Two-point adjustment

Averaging functions

Volume flow

Analog output

Blocking function

Function block

Menu block

Channels

Scaling

Output modules

Blocking function

Device settings

Communication

Macros

Operating parameters

Compensation

Calibration data

General device settings

Info Power

supply

Memory

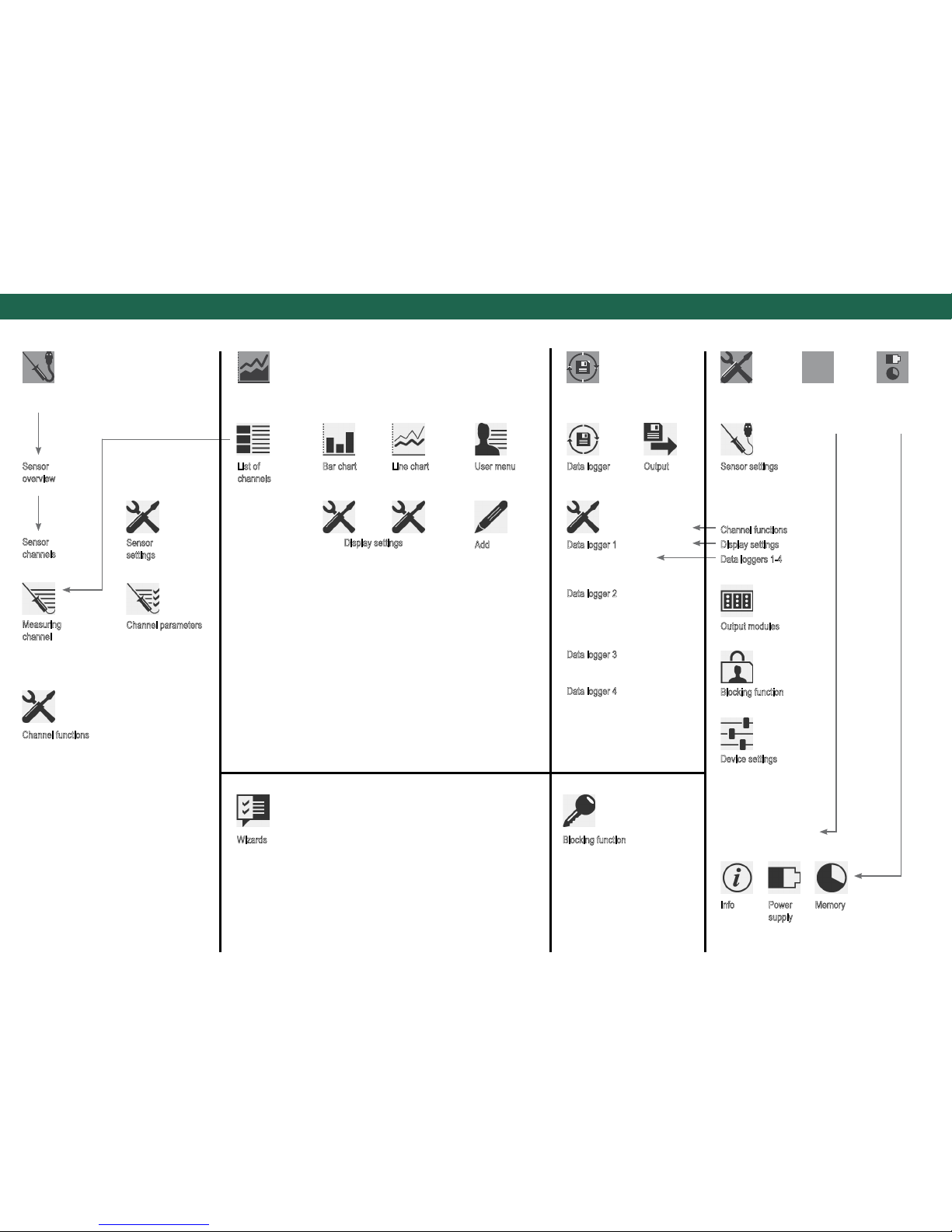

ALMEMO® 710 symbols and menu structure
