Agilent Technologies E4430B Manual de instalación y operación

Part Number E4400-90167

Printed in USA April 2000 Supersedes August 1999

Installation Note

Agilent Technologies ESG-D Series Signal Generators

Digital Upgrade Kit (Option UN3 to UN8)

Kit Part Number E4400-60160

Models: E4430B, E4431B, E4432B and E4433B

Notice

The information contained in this document is subject to change without notice.

Agilent Technologies makes no warranty of any kind with regard to this material, including but not limited

to, the implied warranties of merchantability and ﬁtness for a particular purpose. Agilent Technologies

shallnotbeliableforerrorscontainedhereinorforincidentalorconsequentialdamagesinconnectionwith

the furnishing, performance, or use of this material.

Installation Note E4400-90167 3

E4400-60160 Digital Upgrade Kit (Option UN3 to UN8)

Introduction

The Option UN8, Real-Time I/Q Baseband Generator with TDMA Standards, replaces Option UN3,

Baseband I/Q Generator with 1M of RAM.

The installation of this kit comprises the following basic steps:

1. verifying the functionality of the signal generator

2. removing Option UN3

3. installing Option UN8

4. installing and verifying new ﬁrmware

5. activating Option UN8

6. recalibrating and reassembling the signal generator

Product Affected:...................... E4430B, E4431B, E4432B, and E4433B ESG-D Series

Signal Generators

Serial Numbers:...................... All

Options:............................. UN3

Compatibilities:......................

To Be Performed By: . . . . . . . . . . . . . . . . . . . (X) Agilent Technologies Service Center

(X) Personnel Qualiﬁed by Agilent Technologies

(X) Agilent Technologies personnel on-site

Estimated Installation Time: . . ......... 1.5 hours

Estimated Veriﬁcation Time:............ 0.1 hours

4 Installation Note E4400-90167

Installation Kit Parts List

Table 1 Option UN8 Upgrade Kit E4400-60160 Contents

Tools Required

❏T-10 TORX screwdriver

❏T-15 TORX screwdriver

❏Long-nose pliers

❏9/16-in. Socket

WARNING Before you disassemble the signal generator, turn the power switch off,

and disconnect the line cord. Failure to unplug the instrument can result

in personal injury.

CAUTION Electrostatic discharge (ESD) can damage or destroy electronic components. All

work on electronic assemblies should be performed at a static-safe workstation.

Item Quantity Description Part Number

Std

Opt’s*

* Implies no other digital hardware options are installed.

UN7

UND

11 1 1 Board Assembly, Real-Time I/Q Baseband Generator (A7) E4400-60070

21 1 1 Board Assembly, Generator/1 Meg (A8) E4400-60154

31 0 0 Firmware Upgrade Kit, Digital E4400-60230

41 1 1 UN8 Option Label 7120-1232

51 1 1 Ribbon Cable Interconnect (W19) 8120-8349

61 1 1 Ribbon Cable (W18) 8120-8457

72 0 0 SMB Cable (W25/W26) 8120-8748

83 0 0 Coax Cable (W3/W4/W5) Longer cables, if needed 8120-5063

91 0 0 Installation Note E4400-90167

10 1 1 1 Ribbon Cable (W27), A7 to A8 8120-8725

11 1 0 1 Coax Cable (W24), A7 (Option UN8) to A5 (Option UND) E4400-20131

12 1 0 0 ESG Digital Documentation Set E4400-90322

Installation Note E4400-90167 5

Verifying the Functionality of the Signal Generator

Power On the Signal Generator and Check for Error Messages

This procedure veriﬁes that the signal generator powers up and that the internal instrument check

identiﬁes no errors.

1. Turn on power to the signal generator by pressing the power switch. The green LED will light. Let

the signal generator warm up for one hour.

2. Cycle the power to the signal generator. The green LED should again be lit and the signal generator

performs a check.

3. When the display is lit, check to see if the ERR annunciator is turned on.

4. If the ERR annunciator is turned on, review the error messages in the queue by pressing Utility >

Error Info. The ﬁrst error message in the queue is shown in the text area of the display. Refer to the

service guide for information about the error message.

If there is more than one error message (each message will be designated as 1 of n), press the

View Next Error Message softkey until you have seen all of the messages.

5. When you have resolved all of the error messages, press Clear Error Queue(s) to delete the messages.

Then restart this procedure at step two.

NOTE For signal generators with Option 1E5, ERROR 514, Reference Oven Cold will occur

whenever the signal generator is ﬁrst connected to AC line power. The OVEN COLD annunciator

and the ERR annunciator will both turn on. The OVEN COLD annunciator will automatically clear

after approximately 5 minutes. The error queue cannot be cleared, however, until the OVEN COLD

annunciator has turned off.

6 Installation Note E4400-90167

Removing Option UN3

Use the following procedure to remove Option UN3 as a ﬁrmware selection, and to remove the

hardware associated with Option UN3.

Removing Option UN3 in Firmware

1. Preset the signal generator.

2. In the MENUS key group, press the hardkey Utility.

3. In the Utility menu, press the softkey Instrument Adjustments, then select Hardware Options.

The signal generator displays a list of hardware options, and an Xindicates a selected option.

4. Highlight Option UN3, then press the softkey Deselect Item.

This removes the X, indicating that Option UN3 is no longer selected.

5. To disable Option UN3, press the softkey Proceed With Reconﬁguration.

6. To verify that you want to reconﬁgure the signal generator without Option UN3, press the softkey

Conﬁrm Change (Instrument will Reboot).

The signal generator reboots to the preset condition, and removes Option UN3.

Removing Option UN3 Hardware

1. Turn off the line power switch on the signal generator and disconnect the line cord.

2. Loosen the two screws on each handle and remove the two strap handles (Figure 1, page 7, items 1

and 2).

3. Remove the four bottom feet (Figure 1, item 3).

4. Remove the four rear feet (Figure 1, items 4 and 5).

5. Slide the top cover off the signal generator (Figure 1, item 6).

6. Remove the 11 top cover screws and remove the top cover.

7. Disconnect cables W15, W16, W17, and W19 from the A7 baseband generator board (Figure 2, page

7).

NOTE If Option UND is also installed, refer to Figure 3 on page 8 and disconnect W15, W16, W17, W18,

and W24 from the dual arb board (A5).

If Option UN7 is also installed, refer to Figure 4 on page 9 and disconnect A18W1, W21, and W23

from the Bit Error Rate Test board (A6).

8. Remove the baseband generator board (A7).

9. Disconnect cables W3, W4, and W5, and W19 from the A8 data generator board (Figure 5, page 9).

10. Disconnect W18, the rear panel interface ribbon cable, from both the data generator board (A8) and

the rear panel interface board (A17). Discard this older version of W18.

11. Remove the data generator board (A8).

Installation Note E4400-90167 7

Figure 1 Cover Removal

Figure 2 Option UN3 A7 Baseband Generator Board and Cables

8 Installation Note E4400-90167

Figure 3 Option UND A5 Dual Arb Board and Cables

Installation Note E4400-90167 9

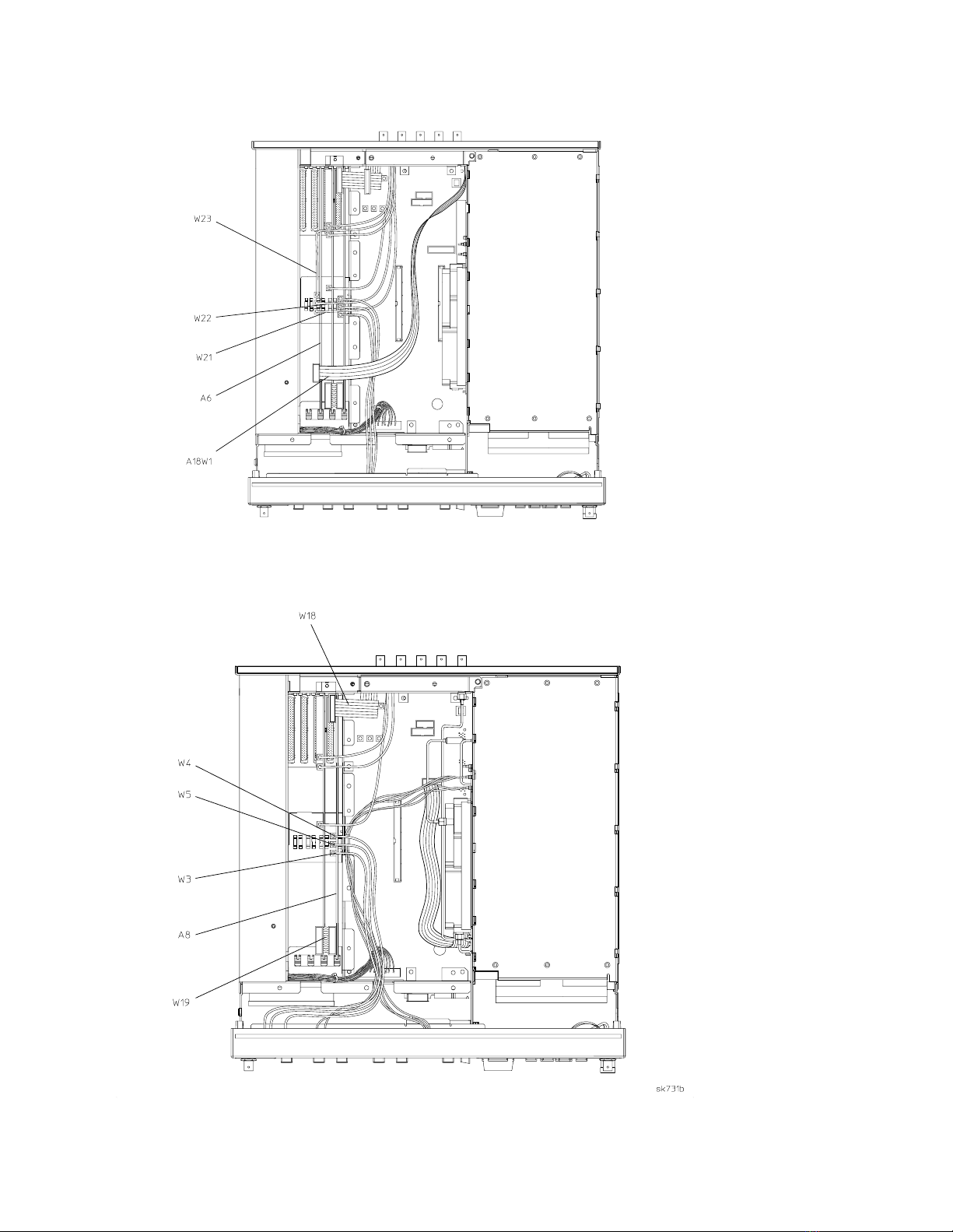

Figure 4 Option UN7 A6 Bit Error Rate Test Board and Cables

Figure 5 Option UN3 A8 Data Generator Board and Cables

10 Installation Note E4400-90167

Installing Option UN8 Hardware and Cables

Refer to Figures 6 and 7 on page 11 to assist you in installing the new A7 and A8 assemblies.

NOTE If the signal generator has Option UND installed, you will also need to refer to refer to Figure 3

on page 8.

1. Insert the Board Assy-Generator/1 Meg (A8) into the A14J4 motherboard connector.

2. Insert the Real-Time I/Q Baseband Generator Board (A7) into the A14J3 motherboard connector.

3. Connect W3 (Data) from the front panel to A14P5 on the motherboard.

NOTE If longer cables are required for W3, W4, and W5, use those provided in this upgrade kit.

Using a 9/16-in. socket, remove the shorter cables from the front panel. Resecure with wavey

washer and hex nuts. Torque to 21 in-lb.

4. Connect W4 (Data Clock) from the front panel to A14P6 on the motherboard.

5. Connect W5 (Symbol Sync) from the front panel to A14P7 on the motherboard.

6. Insert the W18 ribbon cable provided in this upgrade kit between the A17 ribbon cable interconnect,

and A8P2

NOTE If Option UND is installed, reconnect W18 to both A8P2 and A5P1.

7. Connect W17 (I Out) to the rear panel to A7P405.

NOTE If Option UND is installed, reconnect W17 to A5J1 instead of A7P405.

8. Connect W16 (Q Out) to the rear panel to A7P404.

NOTE If Option UND is installed, reconnect W16 to A5J2 instead of A7P404.

9. Connect W15 (BASEBAND GENREF IN) to the rear panel to A7P403.

NOTE If Option UND is installed, reconnect W15 to A5J3 instead of A7P403. Then connect W24 from

A5J4 to A7P403.

10. If the Option UN7, Bit Error Rate Test board (A6) is installed, refer to Figure 4 on page 8 and

reconnect the following cables:

a. W23 (BER DATA IN) from the rear panel to A6P1

b. W22 (BER CLK IN) from the rear panel to A6P2

c. W21 (BER GATE IN) from the rear panel to A6P3

d. A18W1 ribbon cable from the A18 board to A6P4

11. Connect the W27 ribbon cable from A7P10 to A8P4.

12. Connect the W19 ribbon cable between A7P300 and A8P3.

13. Remove the W25 (INT Q) cable from between the motherboard connector A14P103 and the

A15 daughterboard, and replace it with the W25 cable provided in this upgrade kit (Figure 7, page

11).

NOTE A14P103 and A14P102 are located under W18.

14. Remove theW26 (INT I) cable from between the motherboard connector A14P102 and the

A15 daughterboard, and replace it with the W26 cable provided in this upgrade kit.
