Agilent Technologies 33210A Manual de usuario

Keysight 33210A

10 MHz Function/Arbitrary

Waveform Generator

User’s Guide

dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ [email protected] ▪ www.datatec-gruppe.de

Distributed by:

Ihr Spezialist für

Mess- und Prüfgeräte

Keysight 33210A at a Glance

The Keysight Technologies 33210A is a 10 MHz synthesized

function generator with built-in arbitrary waveform and pulse

capabilities.

Itscombination of bench-top and system features makes this function

generator a versatile solution for your testing requirements now and

in the future.

Convenient bench-top features

•Up to 10 standard waveforms

•Built-in 14-bit 50 MSa/s waveform capability

•Precise pulse waveform capabilities with adjustable edge time

•LCD display provides numeric and graphical views

•Easy-to-use knob and numeric keypad

•Instrument state storage with user-defined names

•Portable, ruggedized case with non-skid feet

Flexible system features

•Four optional downloadable 8K-point arbitrary waveform

memories (Option 002)

•GPIB (IEEE-488), USB, and LAN remote interfaces are standard

•LXI Class C Compliant

•SCPI (Standard Commands for Programmable Instruments) compatibility

Note:

Unless otherwise indicated, this manual applies to all Serial

Numbers.

33210A users guide.book Page 2 Wednesday, July 16, 2008 11:16 AM

The Front Panel at a Glance

Note: To get context-sensitive help on any front-panel key or menu softkey,

press and hold down that key.

1Graph Mode/Local Key

2On/Off Switch

3Modulation/Sweep/Burst Keys

4State Storage Menu Key

5Utility Menu Key

6Help Menu Key

7Menu Operation Softkeys

8Waveform Selection Keys

9Manual Trigger Key (used for

Sweep and Burst only)

10 Output Enable/Disable Key

Knob

Cursor Keys

Sync Connector

Output Connector

33210A users guide.book Page 3 Wednesday, July 16, 2008 11:16 AM

The Front-Panel Display at a Glance

Menu Mode

Trigger OutputMode

Numeric

Readout

Information Information StatusUnits

Display

Icon

Softkey Labels

Graph Mode

To enter or exit the Graph Mode, press the key.

In Graph Mode, only one parameter label

Signal

Parameter

Name Parameter

Value

Ground

is displayed for each key at one time.

33210A users guide.book Page 4 Wednesday, July 16, 2008 11:16 AM

Front-Panel Number Entry

You can enter numbers from the front-panel using one of two methods.

Use the knob and cursor keys to modify the displayed number.

1. Use the keys below the knob to move the cursor left or right.

2. Rotate the knob to change a digit (clockwise to increase).

Use the keypad to enter numbers and the softkeys to select units.

1. Key in a value as you would on a typical calculator.

2. Select a unit to enter the value.

33210A users guide.book Page 5 Wednesday, July 16, 2008 11:16 AM

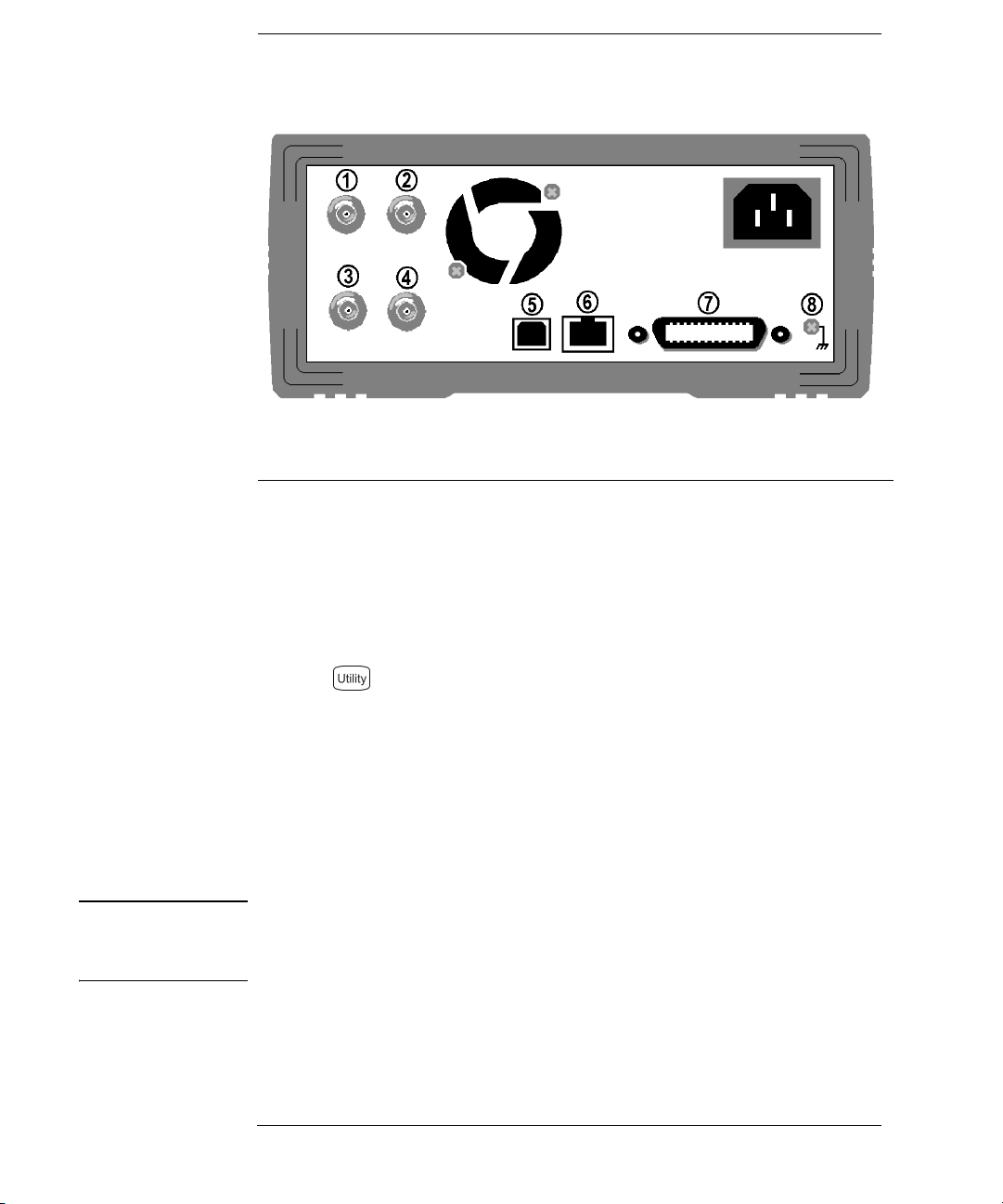

The Rear Panel at a Glance

Note: The External and Internal 10 MHz Reference Terminals (1 and 2,

above) are present only if Option 001, External Timebase Reference, is

installed. Otherwise, the holes for these connectors are plugged.

WARNING For protection from electrical shock, the power cord ground must not be

defeated. If only a two-contact electrical outlet is available, connect the

instrument’s chassis ground screw (see above) to a good earth ground.

External 10 MHz Reference Input Terminal

(Option 001 only).

Internal 10 MHz Reference Output Terminal

(Option 001 only).

3External Modulation Input Terminal

4Input:

External Trigger/Burst Gate

Output: Trigger Output

5USB Interface Connector

6LAN Interface Connector

7GPIB Interface Connector

8Chassis Ground

Use the menu to:

• Select the GPIB address (see chapter 2).

• Set the network parameters for the LAN interface (see chapter 2).

• Display the current network parameters (see chapter 2).

33210A users guide.book Page 6 Wednesday, July 16, 2008 11:16 AM

In This Book

Quick Start Chapter 1 prepares the function generator for use and

helps you get familiar with a few of its front-panel features.

Front-Panel Menu Operation Chapter 2 introduces you to the front-

panel menu and describes some of the function generator’s menu features.

Features and Functions Chapter 3 gives a detailed description of the

function generator’s capabilities and operation. You will find this chapter

useful whether you are operating the function generator from the front

panel or over the remote interface.

Remote Interface Reference

Chapter 4 contains reference information

to help you program the function generator over the remote interface.

Error Messages Chapter 5 lists the error messages that may appear

as you are working with the function generator. Each listing contains

information to help you diagnose and solve the problem.

Application Programs Chapter 6 contains several remote interface

application programs to help you develop programs for your application.

Tutorial Chapter 7 discusses the fundamentals of signal generation

and modulation techniques.

Specifications Chapter 8 lists the function generator’s specifications.

33210A users guide.book Page 7 Wednesday, July 16, 2008 11:16 AM

You can contact Keysight Technologies at one of the following

telephone numbers for warranty, service, or technical support

information.

In the United States:(800) 829-4444

In Europe:31 20 547 2111

In Japan:0120-421-345

Or use our Web link for information on contacting Keysight worldwide.

www.keysight.com/find/assist

OrcontactyourKeysight TechnologiesRepresentative.
