Agilent Technologies

E8041A Interposer for the Intel® Pentium® 4

Processor in the 478-Pin Package

Interposer Installation

Quick Start

2 E8041A Interposer Quick Start

Protecting the Interposer

Here is a summary of precautions to take to avoid damaging the interposer:

DO minimize the removal of the analysis probe cables, once they are connected

to the interposer.

DO minimize the removal of the interposer, once it is connected to the

microprocessor and target system.

DO exercise patience and care when working with the interposer.

DO use ESD precautions.

DO remove power from the target system and analysis probe before making

attachments.

DO protect the pins from damage by covering them with the pin protector when

the interposer is not in use.

DO NOT insert any kind of tool between the interposer and the microprocessor,

except as described in this manual.

DO NOT kink the analysis probe cables.

DO NOT pull on or twist the "wings" of the interposer.

E8041A Interposer Quick Start 3

1Remove the heatsink from the microprocessor.

2Remove the microprocessor from the target system.

3Remove the Intel retention module from the target

system.

4Install the Agilent retention modules.

4 E8041A Interposer Quick Start

5Check that the socket on the target system is still

open.

6Remove the pin protector from the interposer.

Keep the pin protector. You will need it to prevent damage to the interposer

whenever the interposer is not plugged into the target system.

E8041A Interposer Quick Start 5

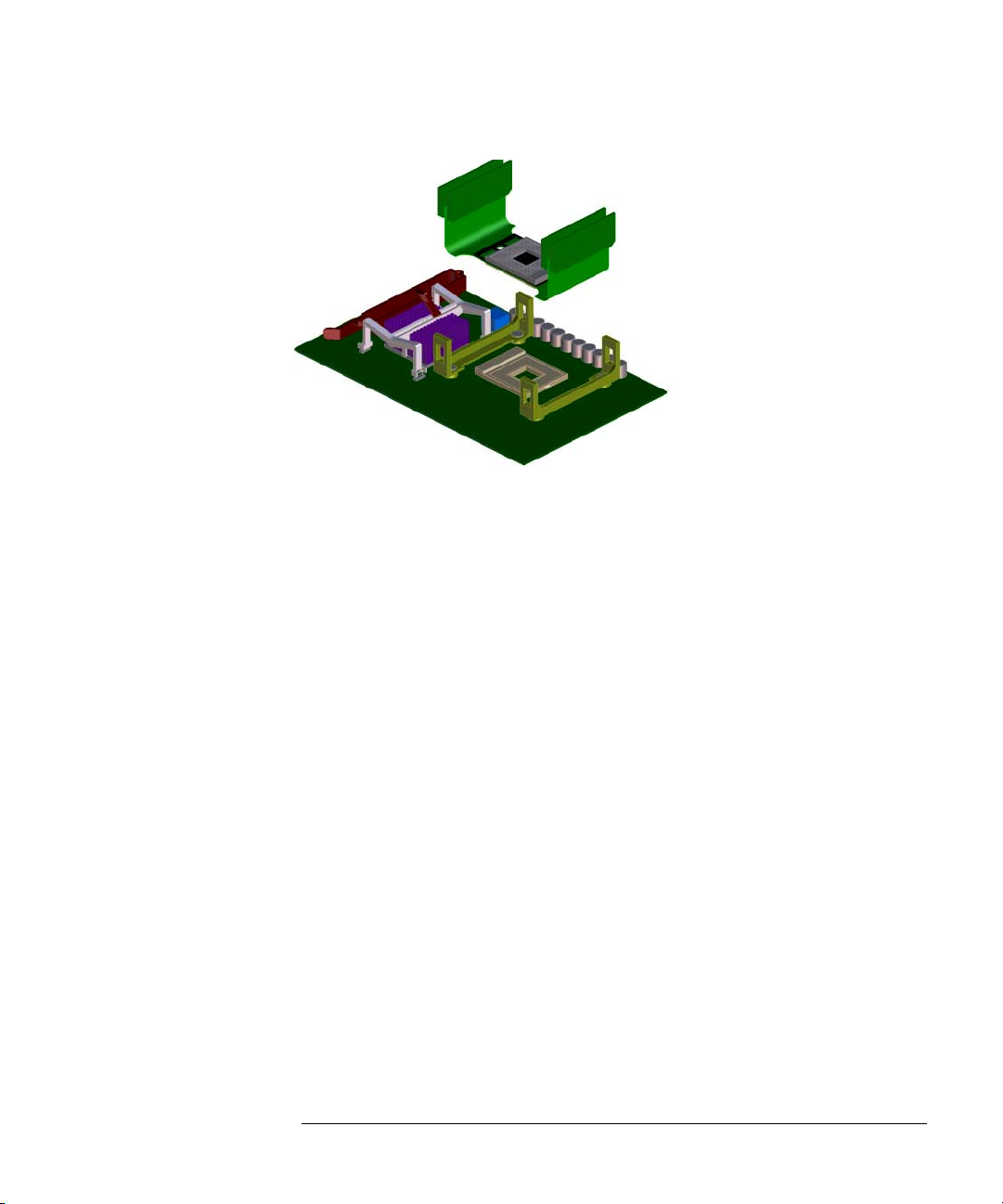

7Align the interposer over the socket on the target

system.

Note how the socket on the interposer is rotated 80° relative to the socket on

the target system. This is done so that the interposer will not interfere with

the target socket’s actuation mechanism.

The wings of the interposer will flex around the retention modules.

8Gently wiggle the interposer until you feel the pins

fall into the holes of the socket.

9Visually check that the bottom of the interposer is

flush with the top of the socket on the target

system.

6 E8041A Interposer Quick Start

10 With one hand, apply light downward pressure on

the interposer. With the other hand, close the the

socket.

11 Align the processor over the socket on the

interposer.

12 Gently wiggle the assembly until you feel the pins

fall into the holes. Visually check that the bottom of

the processor module is flush with the top of the

socket on the interposer.

CAUTION

The processor should be oriented the same way that it was originally oriented

on the target system. Note that the orientation of the processor with respect to

the lever on the socket is opposite from the target system. The socket is keyed,

so the processor will only go in the right way.

E8041A Interposer Quick Start 7

13 Apply light downward pressure on the processor

while you close the interposer socket.

14 Re-install the heatsink.

8 E8041A Interposer Quick Start

15 Install the clip assembly to hold the heatsink in

place.

Use the clip assembly which you removed earlier.

E8041A Interposer Quick Start 9

16 Connect the analysis probe cables to the interposer.

Refer to the silkscreened labels on the interposer and on the cable paddles.

Install the supplied clips to keep the paddles on the end of the analysis probe

cables from pulling apart.

17 Connect the analysis probe to the logic analyzer.

Connect the pod cables to the connectors on the analysis probe as shown on

the back of the analysis probe.

10 E8041A Interposer Quick Start
