AGA SIX-FOUR SERIES - CERAMIC HOB
OWNERS MANUAL
12/15 EINS 517080
LEASE READ THESE INSTRUCTIONS BEFORE USING THIS A LIANCE
Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety
and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised
by AGA.
For use in GB and IE
Comprising
Servicing, Installation &
Users Guide
DESN 513131
SECTION AGE
INTRODUCTION 3
APPLIANCE VIEW 4
INSTALLATION SECTION 5
TECHNICAL DATA 6
INSTALLATION 6
FITTING AND PRODUCT DIMENSIONS 7
ELECTRICAL CONNECTION 8 - 9
LEVELLING AND MOBILITY WHEELS 10
SPLASHBACK 11
USERS GUIDE 12
WARNINGS 13
CONTROL PANEL 14
SETTING UP THE COOKER FOR USE 15
CERAMIC HOB 16
THE GRILL 17
THE OVENS (GENERAL) 18
FITTING AND REMOVAL OF OVEN SHELVES 19
SIMMERING OVEN 20
FAN OVEN - COOKING HINTS 21 - 22
USING THE AUTOMATIC COOKING FACILITY 23 - 25
CLEANING AND CARING FOR YOUR COOKER 26 - 27
SERVICING 28
SERVICING 29 - 32
SCHEMATIC WIRING DIAGRAM 33
2
CONTENTS
As responsible manufacturers we take care to make sure that our products are designed and constructed to meet the
required safety standards when properly installed and used.
IM ORTANT NOTICE: LEASE READ THE ACCOM ANYING WARRANTY.
Any alteration that is not approved by AGA could invalidate the approval of the appliance, operation of the warranty and
could affect your statutory rights.
In the interests of safety and effective use, please read the following before using your new AGA appliance.
Installation must be to local and national wiring regulations and carried out by a qualified engineer.
A little smoke and some odour may be emitted when first switched on. This is normal and harmless (from oven lagging and
starch binder on the element insulation) and will cease after a short period of use.
Your appliance has a ceramic hob, three electric ovens; the lower right hand oven is a slow cooking oven, the upper right
hand and lower left hand ovens are electric fan ovens. The fan behind the rear panel ensures a virtually even distribution
of heat within the oven during cooking i.e the temperature at the lowest shelf position is the same as the temperature at the
highest shelf position.
The electric grill is situated in the roof of the top left hand compartment.
Refer to the diagram (See Fig. 1) to familiarise yourself with the cooker and refer to the relevant section for the simmering
oven, fan ovens and ceramic hotplate etc.
Your cooker is supplied with the following accessories:
5 oven shelves
1 large roasting tin
1 grill shelf
1 grill pan
1 grill grid
1 baking tray
The following loose parts are also packed:
ceramic hob and frame assembly
1 splashback assembly
INTRODUCTION
3
A LIANCE VIEW
4

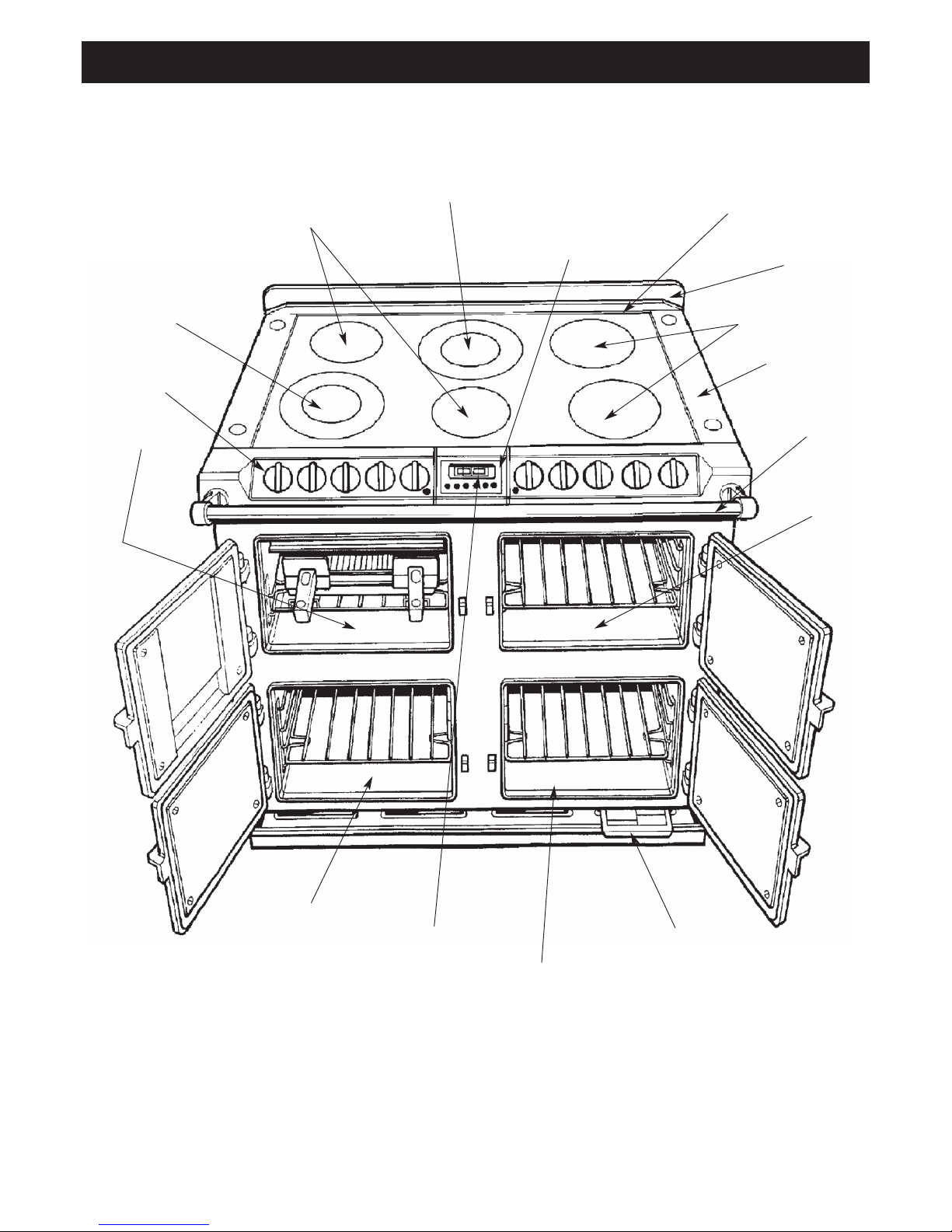

Fig. 1 DESN 517095
GRILL
COMPARTMENT
CONTROLS
DUAL ELEMENT
SINGLE ELEMENT
DUAL ELEMENT
TIMER
SURROUND
HOTPLATE
REAR TRIM
SPLASHBACK
SINGLE HISPEED
ELEMENT
UPPER
FAN OVEN
HANDRAIL
HOTPLATE
SIDE TRIMS
TIMER
LOWER
FAN OVEN
SIMMERING
OVEN
DATA PLAQUE
Installation
Section
5
Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the
safety and performance specification that we require. Do not use reconditioned or copy parts that have not been
clearly authorised by AGA.
INSTALLATION
WARNING: THIS A LIANCE MUST BE EARTHED
This appliance is designed for the voltage stated on the data plate, which is situated in the right hand vent slot at the base
of the appliance.
The AGA Six-Four Series Ceramic Hob is supplied from the manufacturers as a fully tested chassis construction. Ceramic
hob, doors, splashback and handrail are assembled during installation.
6
TECHNICAL DATA
HOT LATE
FRONT LEFT - double circuit - 2.0 kW/0.70 kW - 205/120mm dia - rapid heat up
REAR LEFT - single circuit - 1.1 kW - 140mm dia - rapid heat up
FRONT CENTRE - single circuit - 1.1 kW - 140 mm dia - rapid heat up
REAR CENTRE - double circuit - 2.0 kW/0.70 kW - 205/220mm dia - rapid heat up
FRONT RIGHT - single circuit - 1.4 kW - 155mm dia - rapid heat up
REAR RIGHT - single circuit - 1.4 kW - 155mm dia - rapid heat up
ELECTRIC GRILL AND OVENS
U ER OVEN (FAN) - POWER RATING - 1.45 kW
GRILL ELEMENT - POWER RATING - 2.3 kW
SLOW COOKING OVEN - POWER RATING - 1.0 kW
LOWER OVEN (FAN) - POWER RATING - 1.45 kW
OWER SU LY - 230V 50 Hz TOTAL LOAD 15.2 kW
TOTAL WEIGHT OF A LIANCE - 170 kg
FITTING AND RODUCT DIMENSIONS
7

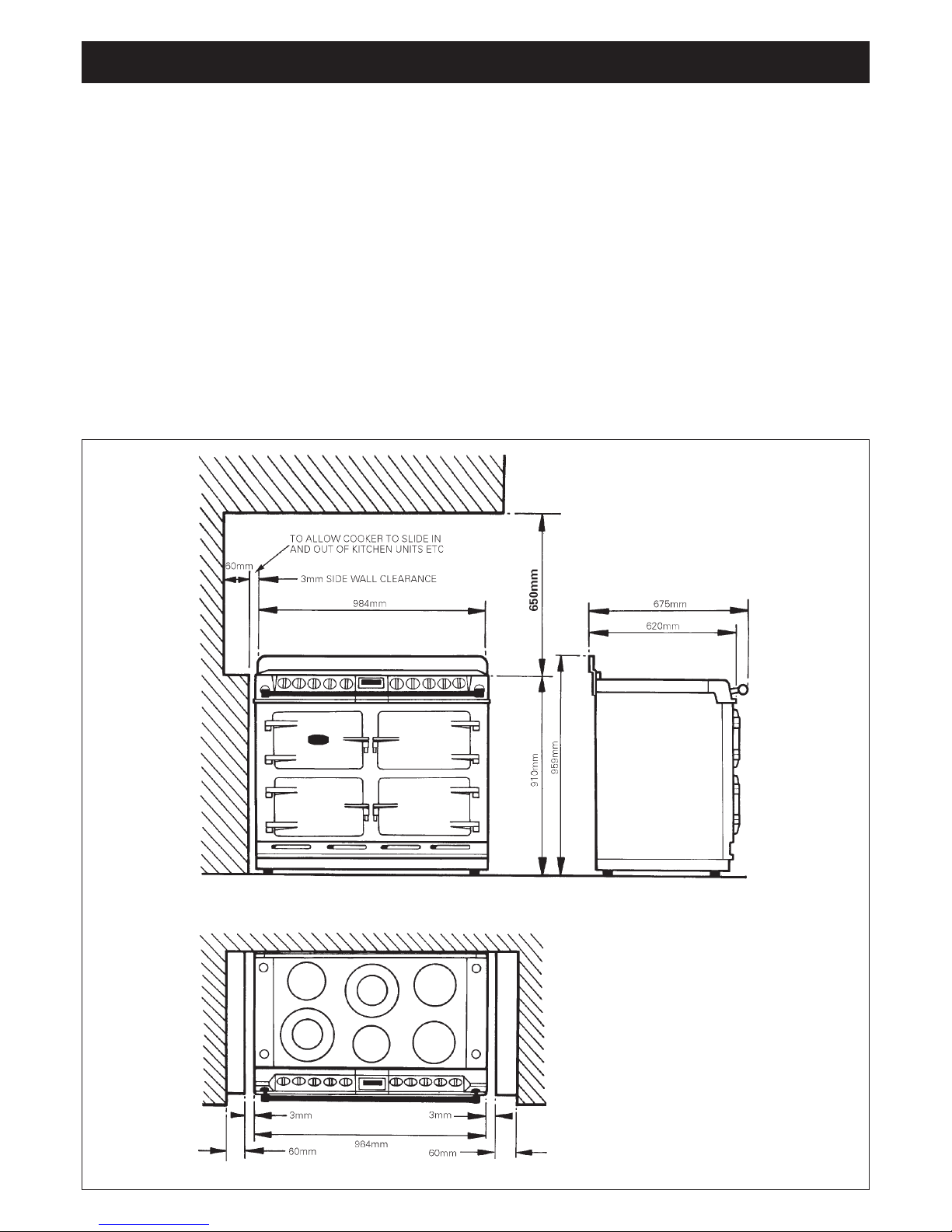

Fig. 2 DESN 513133
Any adjacent walls that project above the height of the hob must be of heat resistant material.
Any side wall above the cooker on either side shall not be less than 60mm horizontally from the cooker. (See Fig. 2).
A minimum clearance of 1000mm must be available at the front of the cooker to enable it to be serviced.
Surfaces over the top of the cooker must not be closer than 650mm. (Cooker Hood, see below).
The vent slots in the back of the top plate must not be obstructed.
Do not install the cooker behind a decorative door in order to avoid overheating.
The cooker must stand on a firm and level surface and we recommend that any soft material such as linoleum is removed.
It is recommended that the cooker is not installed on a base.
LEASE NOTE WHEN FITTING A COOKER HOOD
If a cooker hood is to be fitted, we only recommend the Six-Four Series CH900 cooker hood. It must be installed at a height
of at least 800mm above the hotplate.
ELECTRICAL CONNECTION IS LOCATED AT THE TOP RIGHT HAND SIDE OF THE APPLIANCE, BEHIND SIDE PANEL.
DURING INSTALLATION REMOVE THE RIGHT HAND SIDE PANEL TO CONNECT ELECTRICAL SUPPLY.
Remove 3 screws securing side panel to gain access to mains terminal. See Fig. 4 for location of cover.
Remember that the mains electrical cable must be routed through the grommet at the rear right hand side of the cooker
near the top, before connecting to the mains terminal connection.
Refer to Fig. 3 for single phase wiring connection, or Fig 3A for three phase wiring connection to appliance.
Remember that an excess of cable length is required behind the cooker for the withdrawal of the cooker from between the
kitchen units etc.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
SINGLE HASE CONNECTION - The cooker requires a 45 amp power supply fitted in conjunction with a double pole
isolator with a minimum contact clearance of 3mm and be connected to the mains with a minimum 10mm2cable to comply
with the latest editions of the local and national wiring regulations.
THE ISOLATOR MUST NOT BE POSITIONED IMMEDIATELY ABOVE THE COOKER, BUT MUST BE SITED WITHIN 2
METRES OF THE APPLIANCE.
Replace the right hand side panel once electrical connection has been made and replace fixing screws.
NOTE: Ensure that the insulation card covering the mains terminal is in place, between the side panel and mains terminal.
8
ELECTRICAL CONNECTION
Fig. 3 DESN 517106
SINGLE HASE CONNECTION - Minimum 10mm2cable and must comply with the latest editions of the local and
national wiring regulations.
9
Fig. 4 DESN 517101
ELECTRICAL CONNECTION (CONTINUED)
THREE HASE CONNECTION - Minimum 2.5mm2cable and must comply with the latest editions of the local and
national wiring regulations.
Fig. 3A DESN 517107
L1 - 5.25 kW
L2 - 4.50 kW
L3 - 5.45 kW
CABLE
ENTRY
SIDE PANEL
FIXING
SCREWS
Installation/Levelling
The AGA Six-Four Series Ceramic Hob is designed to stand on a flat and level surface, any unevenness may be overcome
by adjusting the four levelling feet, one at each corner of the base plate. The adjusting screws are accessed by removing
the hotplate casting (See section ‘To Remove Ceramic Hob and Frame’ - Servicing Section - Page 29). To raise the cooker
turn screw clockwise, to lower turn screw anti-clockwise.
10
DESN 513148Fig. 5
LEVELLING AND MOBILITY WHEELS
There are rollers on the base of the cooker to allow for positioning.
When the cooker is in the correct position, the four levelling feet can be adjusted to level the cooker. The feet must be
lowered enough to prevent the cooker rolling out of position (See Fig. 5).
