AG Neovo WMK-01 Manual de usuario

English

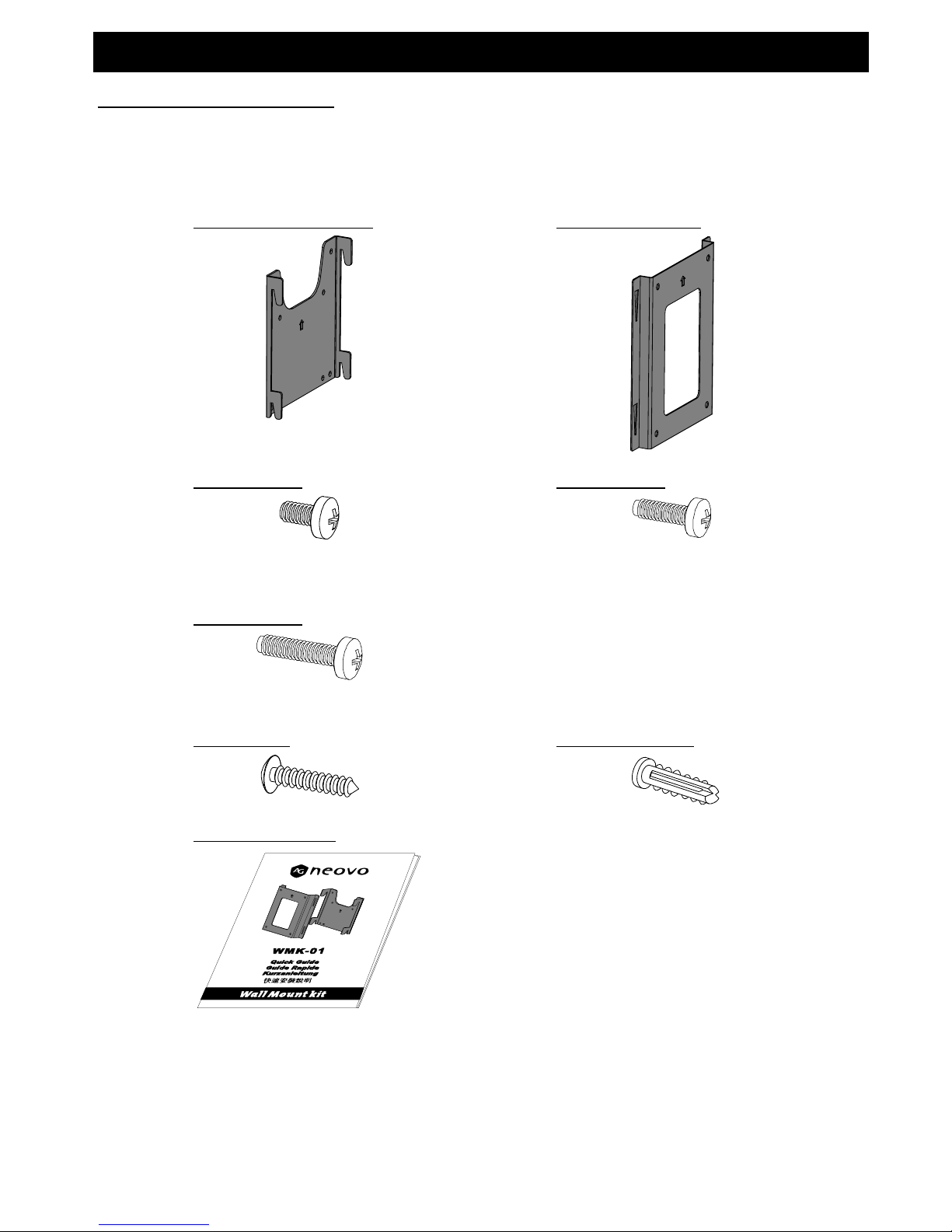

Package Contents

Before starting wall mount kit installation, be sure that the following

items are contained in the box.

 Display Bracket (x1)  Wall Bracket (x1)

 Screw A*：M4-8mm (x4)  Screw B*：M4-15mm (x4)

* Suitable for other AG Neovo

displays

* Only for M - Series

 Screw C*：M4-18mm (x2)

* Only for S-15E

 Screw D：4-19mm (x4)  Wall anchor：1/4”-1” (x4)

 Quick Guide (x1)

English

Precautions

• Install your display and wall mount kit on the wall with a flat

surface.

• Be sure the wall can support the weight of a display

weighing up to 18kgs (40 lbs).

• Use only the provided materials and follow the step-by-step

instructions to finish the installation.

Applicable LCD Display Models

This wall mount kit complies with VESA’s (Video Electronics

Standards Association) FPMPMI (Flat Panel Display Physical

Mounting Interface) Standard. All AG Neovo displays are suitable for

this wall mount kit.

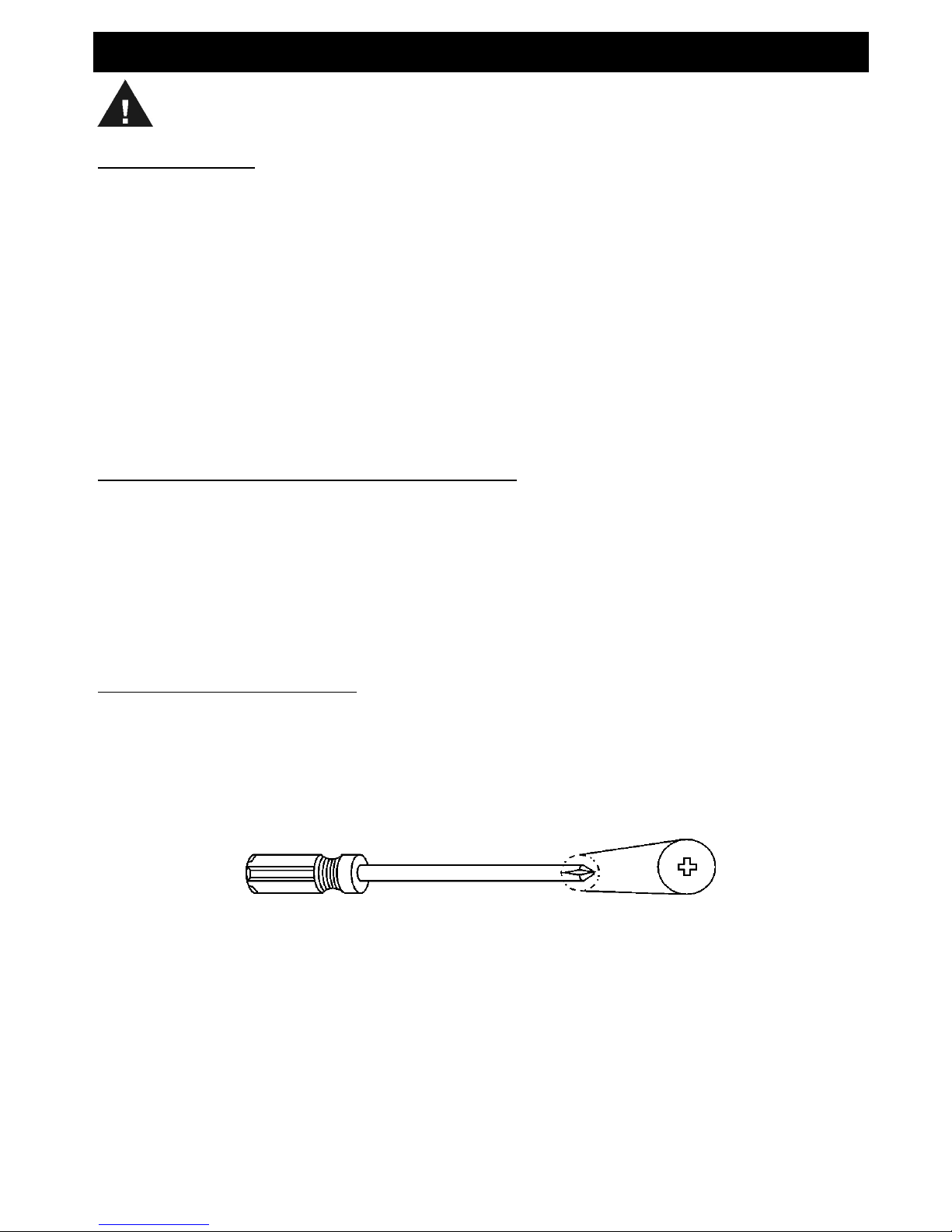

Tools you will need

You may need the following tools to complete wall mount

installations.

• Phillips head screwdriver

• Drill with 1/4” (6.35mm) bit (only if you want to install your

display on a concrete wall.)

English

Setup

Please follow the steps one by one to mount your display on the

wall.

Step 1: Installing the Wall Bracket onto the Wall

Consult with appropriate engineering or construction

personnel to ensure the wall mount kit is mounted

properly to handle applied loads.

Depending on the material and

construction of the wall, different

types of screws and tools will be

needed to complete this part of

the installation.

 For a wooden wall, you may mount the Wall Bracket to it by

using screw D directly.

 For a concrete wall, you need to drill four 1 1/2” (38.1mm) deep

holes, insert the 4 wall anchors into the holes accordingly. Then

you can use screws D to fix the Wall Bracket to the wall.

 The arrow sign on the metal plate should point upwards.

English

Step 2: Installing the Display Bracket to the rear of the LCD

display

75mm

100mm

Use screw A、B or screw C to secure Display Bracket to the rear of

display. Line up the holes of the Bracket with the holes in the rear of

the display. (The Bracket supports both 75mm and 100mm VESA

standards.)

Step 3: Connect all the cables before attaching display to wall

It is difficult to connect cables after hanging the display on the wall.

Step 4: Hang the display on the Wall Bracket

The cables should pass through the space between the two Brackets

for better cable management.
