AG Neovo TX-22 Manual de usuario

www.agneovo.com

A 22” multi-touch display built on

rigorous choice of components and

meticulous assembly to endure in

public and interactive environments.

Featuring an LED-backlit IPS panel, the TX-22 oers more than

just full HD 1920 x 1080 resolution. Consistent and accurate

colour is discernible from all viewing angles. Projected capacitive

touch technology enables users to navigate the display with ease

and precision. Its tilting exibility ranging from –5 to 90 degrees

ensures user comfort and ergonomically friendly for public and

interactive environments. Glass overlay brings such benets as ease

of cleaning and resistance against bacteria/dust. Durable metal

housing and rugged base design guarantee stability as well as

strength.

> Incorporate Projected Capacitive Touch Technology

> Multi-touch capabilities for system with Microso® Windows® 7 and 8*

> IPS panel ensures consistent and accurate colour from all viewing angles

> Front-sided IP54 rating protects screens from splashing liquid and dust

> 1920 x 1080 Full HD resolution

> Flush touch screen makes surface neat and clean

> Tilt capacity from –5o to 90o

> Dual inputs: VGA and DVI

> RJ11 for remote control

> HID compliant for easy integration

> Durable metal housing

> Rugged base design for superb stability

> Touch method: ngers or magnetic ball pens

> Lockable OSD setting

Touch capability may vary depending on the Microso® 8 versions.

TX-22

All specications are subject to change without prior notice.

All other trademarks are the property of their respective owners.

P/C: TX2200 Version 1.1, 20130326

Panel Panel Type

Panel Size

Max. Resolution

Pixel Pitch

Brightness

Contrast Ratio

Viewing Angle (H/V)

Display Colour

Response Time (GTG)

LED-Backlit TFT LCD (IPS Panel)

21.5”

FHD 1920 x 1080

0.248 mm

250 cd/m2 (Typical)

1,000 : 1 (Typical)

178°/178° (Typical)

16.7 M

7 ms

Frequency (H/V) H.Freq

V.Freq

31.47kHz – 82.3kHz

56Hz – 75Hz

Input VGA

DVI

15-Pin D-Sub

24-Pin DVI-D

External Control RJ11 RJ11

Touch Screen Technology

Positioning Accuracy

Active Force

Panel Interface

Projected Capacitive

±2.5mm

None required

USB (Type–B, HID compliant)

Power AC-DC Adaptor

Power

Consumption

External DC 12V

100 - 240V, 50 - 60Hz

< 27W (On)

< 2W (Stand-by)

< 1W (Off)

Operating

Conditions

Temperature

Humidity

0°C ~ 40°C (32°F~104°F)

20%~80% (No condensation)

Storage

Conditions

Temperature

Humidity

-20°C ~ 60°C (-4°F~140°F)

10%~90% (No condensation)

Mounting VESA FPMPMI Yes (100mm x 100mm)

Dimensions Product (W x H x D)

Packaging (W x H x D)

528 x 347 x 214 mm

(20.8” x 13.7” x 8.4”)

450 x 330 x 615 mm

(17.7” x 13.0” x 24.2”)

Weight Product Weight (with base)

Packaging weight

6.7 kg (14.7 lbs)

9.8 kg (21.6 lbs)

Regulation

Approval

Certications &

Compliance

FCC, CB, CE, BSMI

Accessories Supplied CD ROM (user manual and touch

driver), 15-Pin D-Sub cable, 24-Pin

DVI-D cable, power cord, power

adaptor, USB cable, cable cover

screw

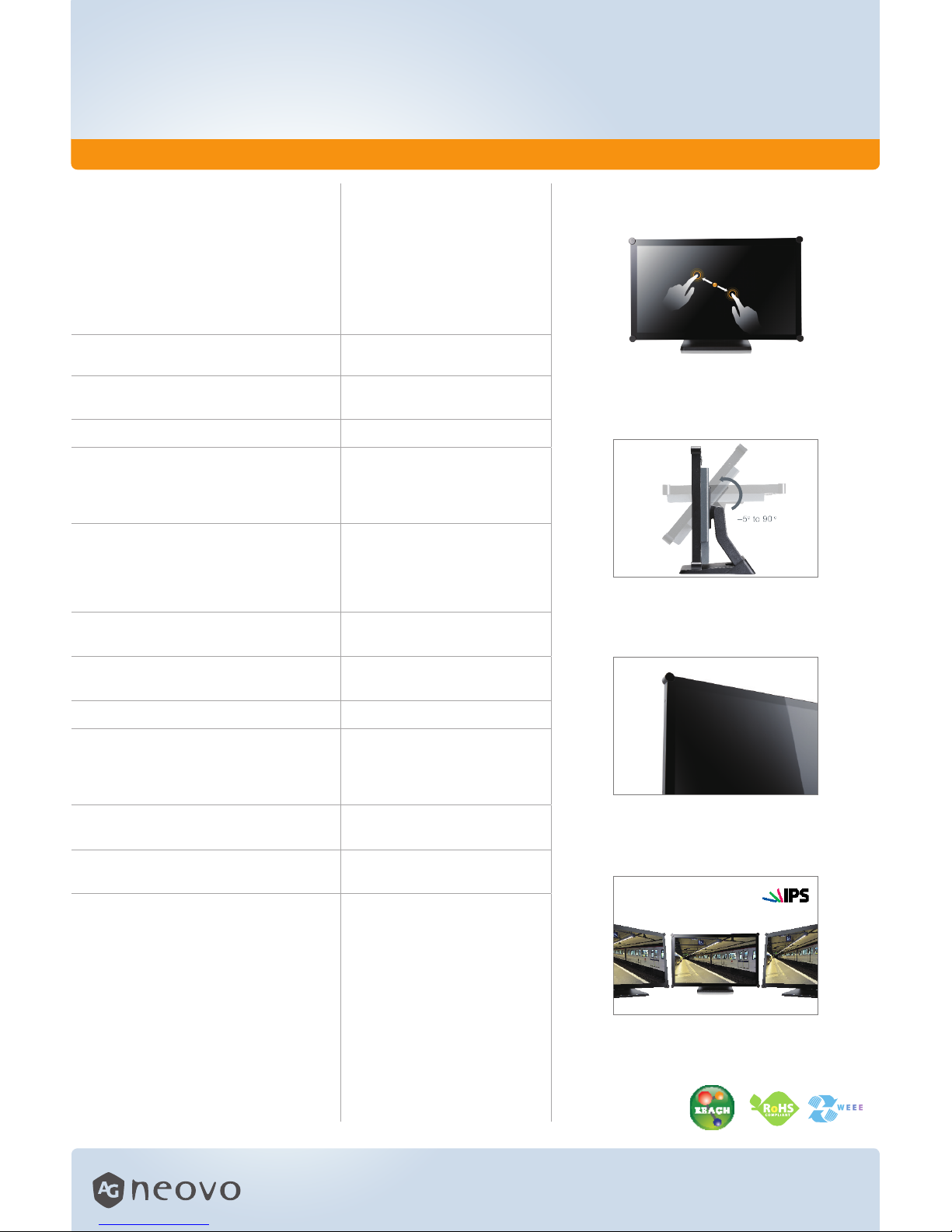

TX-22

Integration of dual-touch and projected ca-

pacitive touch technology provides accurate and

precise touch experience

IPS panel provides superb clarity from all angles

Wide range of tilt exibility from –5o to 90o

Specications TX-22

A rating of IP54 attests to its extraordinary protection

against dust and water spray
